Appendix A: Accessories
C b i – f g
onduiT ox nsTallaTion rame

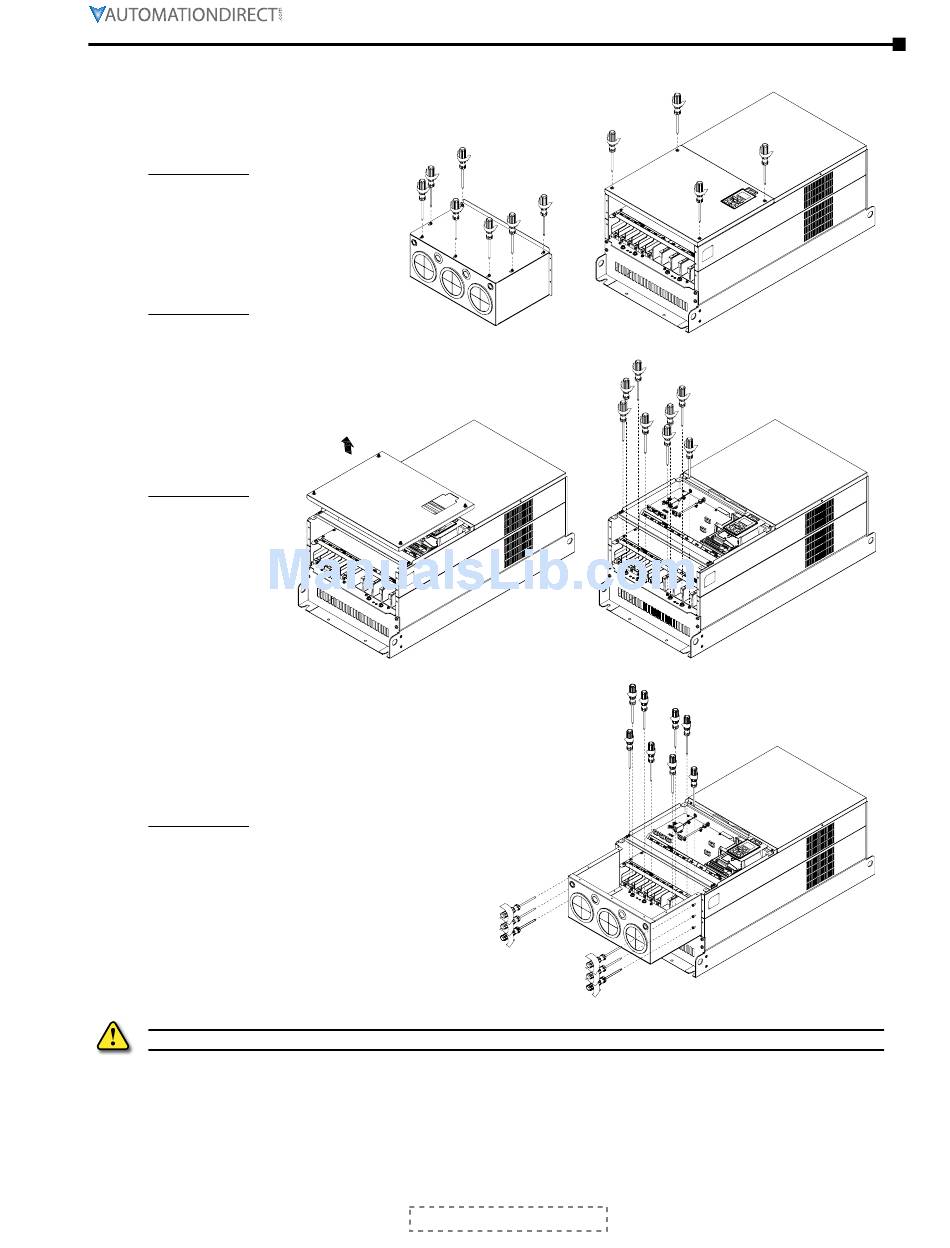

On the conduit box, loosen 7 of
the cover screws and remove
the cover, as shown.
Screw torque:
24~26 kg·cm (20.8~22.6 lb·in)
On the drive, loosen 4 of the
cover screws to remove the
cover, as shown.
Screw torque:
12~15 kg·cm (10.4~13 Ib·in).
Remove the top
cover and loosen
the screws, as
shown.
Screw torque:
M5:
24~26 kg·cm
(20.8~22.6 lb·in)
M8:
100~120 kg·cm
(86.7~104.2 lb·in)
Install the conduit box by fastening all the
screws shown.
Screw torque:
M5:
24~26 kg·cm (20.8~22.6 lb·in)
M8:
100~120 kg·cm (86.7~104.2 lb·in)
Remove poWeR fRom dRIve pRIoR to INstAllAtIoN ANd/oR RemovAl of AccessoRIes.
DuRA
GS4 AC Drive User Manual – 1st Ed, Rev A - 10/20/2017 Page A–29
