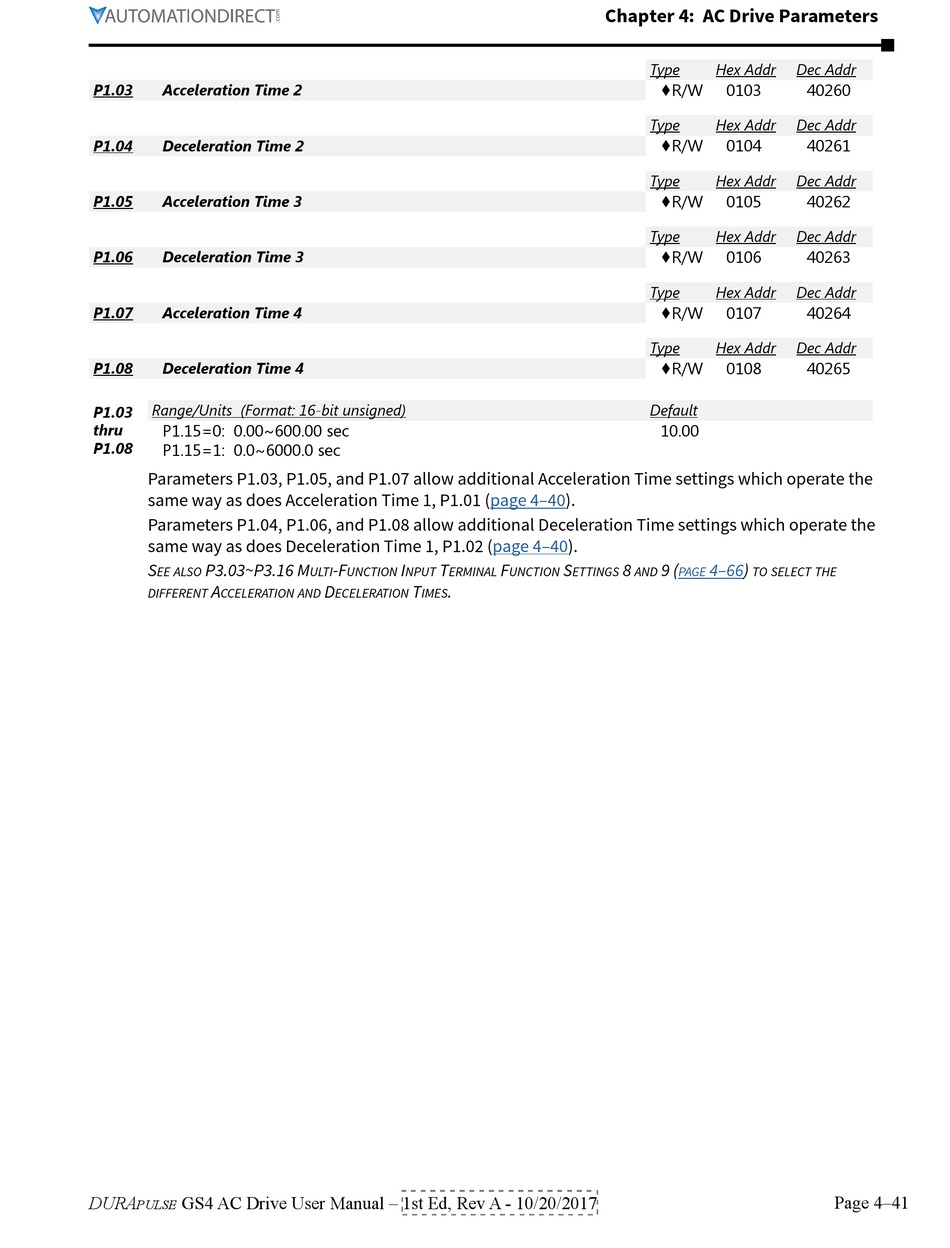

Automation Direct DURApulse GS4 User Manual page 135

P1.03 Acceleration Time 2
P1.04 Deceleration Time 2
P1.05 Acceleration Time 3
P1.06 Deceleration Time 3
P1.07 Acceleration Time 4
P1.08 Deceleration Time 4
Range/Units (Format: 16-bit unsigned)
P1.03
thru P1�15=0: 0�00~600�00 sec
P1.08
P1�15=1: 0�0~6000�0 sec
Parameters P1.03, P1.05, and P1.07 allow additional Acceleration Time settings which operate the
same way as does Acceleration Time 1, P1.01
Parameters P1.04, P1.06, and P1.08 allow additional Deceleration Time settings which operate the
same way as does Deceleration Time 1, P1.02
S P3.03~P3.16 M
ee alSo
a
DiFFerenT cceleraTion anD
DURA
GS4 AC Drive User Manual – 1st Ed, Rev A - 10/20/2017
pulse
(page
-F i T
ulTi uncTion nPuT erMinal
D T .
eceleraTion iMeS
Chapter 4: AC Drive Parameters
Type
♦R/W
Type
♦R/W
Type
♦R/W
Type
♦R/W
Type
♦R/W
Type
♦R/W
Default
10�00
4–40).
(page 4–40).
F S 8 9 (
uncTion eTTingS anD
Hex Addr Dec Addr
0103 40260
Hex Addr Dec Addr
0104 40261
Hex Addr Dec Addr
0105 40262
Hex Addr Dec Addr
0106 40263
Hex Addr Dec Addr
0107 40264
Hex Addr Dec Addr
0108 40265
4–66)
Page To SelecT The
Page 4–41
