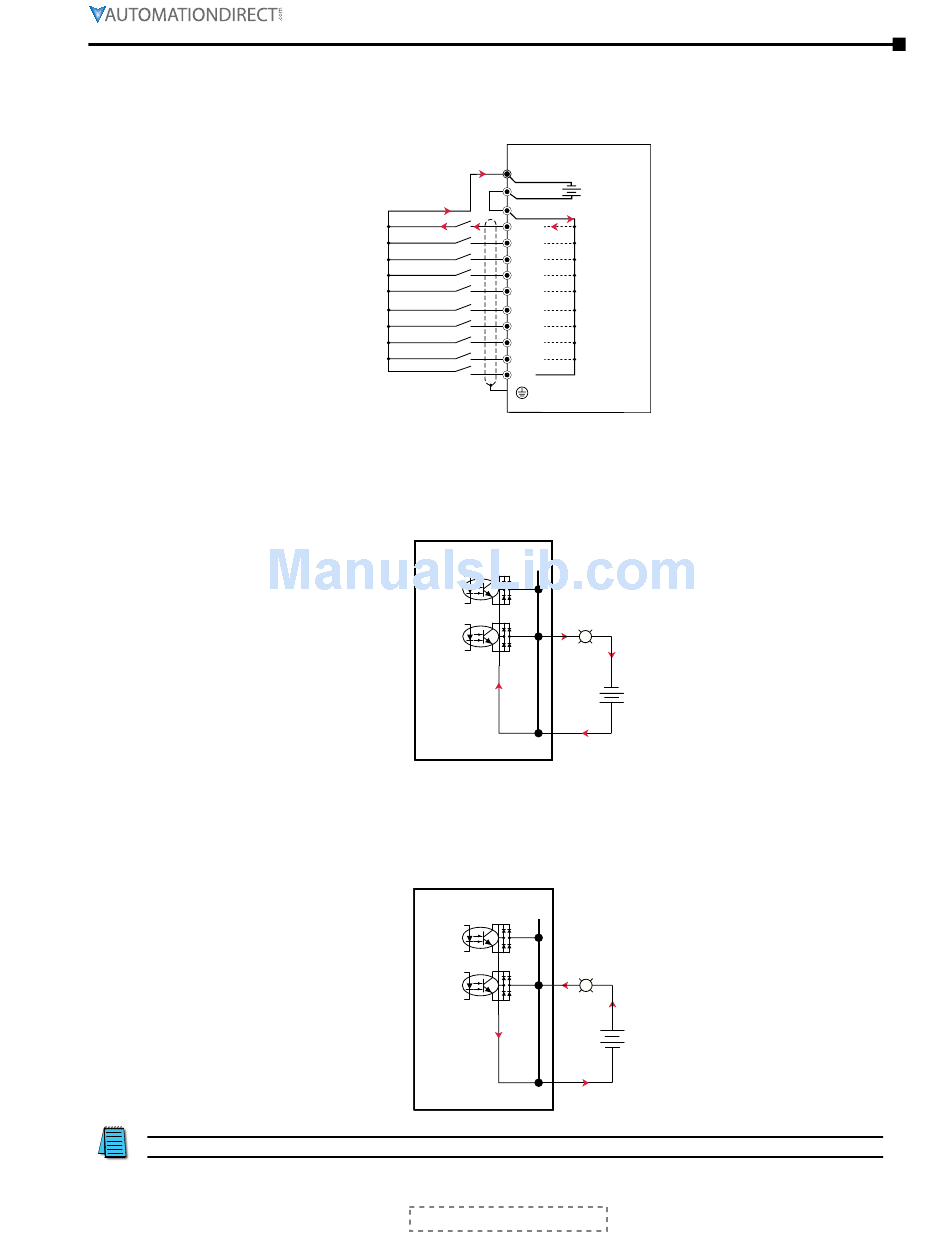

GS4 DC inputs can also be wired for sourcing. In this configuration, notice that the 24VDC supply
is feeding into the DIC (Digital Input Common) terminal and the current is coming out of the drive
input (GS4 is sourcing) and the field device is sinking the current.
GS4 DC outputs can also be wired as sinking or sourcing. A sourcing output supplies current.
This requires a device (pilot light, buzzer, PLC input card) that will sink the current. Notice how
the electronics of the output allow current to flow out the DO1 or DO2 terminal. The DOC (Digital
Output Common) terminal is connected to +24VDC.
The same drive output circuit can be used to sink current. Notice below that the DOC terminal is
now connected to the power supply common. The pilot light sources the current into the drive.
The drive output sinks the current. (Even though the light has 24V on it at all times, it will not light
up unless current is flowing through it and into the drive output).
NOTE: GS4 output can be wired as sinking or sourcing, but not both at the same time.
DuRA
GS4 AC Drive User Manual – 1st Ed, Rev A - 10/20/2017
pulse
Appendix D: Using GS4 AC Drives with AutomationDirect PLCs
DCM
Field devices +24V
are sinking
DIC
FWD/STOP
FWD
REV/STOP
REV
Multi-step 1
DI1
Multi-step 2
DI2
Multi-step 3
DI3
Multi-step 4
DI4
N/A
DI5
N/A
DI6
N/A
DI7
N/A
DI8
GS4-xxxx
DO1
DO2
DOC
Digital Output Com.
GS4-xxxx
DO1
DO2
DOC
Digital Output Com.
GS4-xxxx
Internal Power
Supply
+
Digital Input Common
Drive inputs
are sourcing
Drive
Internals
Light
Power
Supply
–
+
+24
VDC
Light
+24
VDC
+
Power
Supply
–
