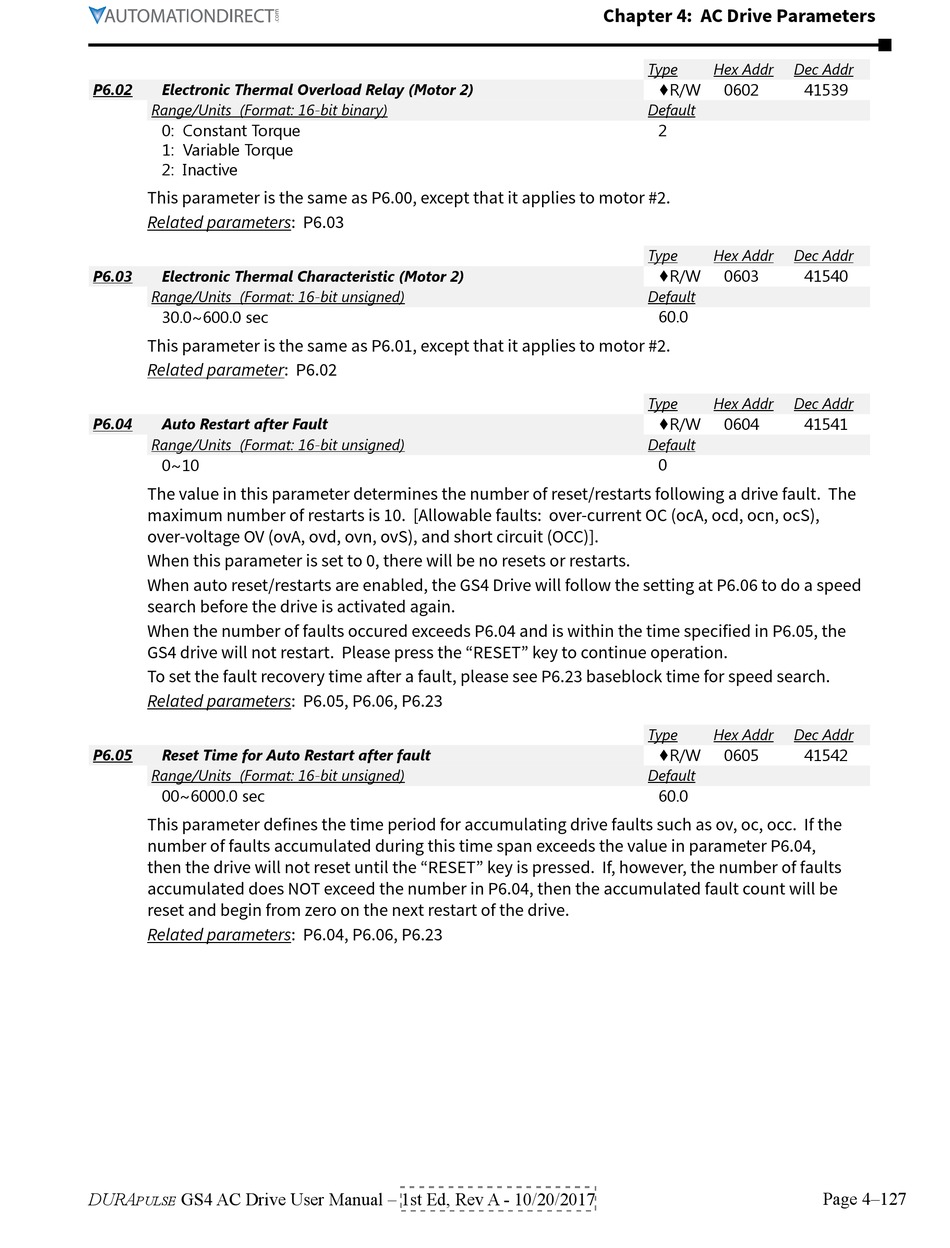

Automation Direct DURApulse GS4 User Manual page 221

P6.02 Electronic Thermal Overload Relay (Motor 2)
Range/Units (Format: 16-bit binary)
0: Constant Torque
1: Variable Torque
2: Inactive
This parameter is the same as P6.00, except that it applies to motor #2.
Related parameters: P6.03
P6.03 Electronic Thermal Characteristic (Motor 2)
Range/Units (Format: 16-bit unsigned)
30�0~600�0 sec
This parameter is the same as P6.01, except that it applies to motor #2.
Related parameter: P6.02
P6.04 Auto Restart after Fault
Range/Units (Format: 16-bit unsigned)
0~10
The value in this parameter determines the number of reset/restarts following a drive fault. The
maximum number of restarts is 10. [Allowable faults: over-current OC (ocA, ocd, ocn, ocS),
over-voltage OV (ovA, ovd, ovn, ovS), and short circuit (OCC)].
When this parameter is set to 0, there will be no resets or restarts.
When auto reset/restarts are enabled, the GS4 Drive will follow the setting at P6.06 to do a speed
search before the drive is activated again.
When the number of faults occured exceeds P6.04 and is within the time specified in P6.05, the
GS4 drive will not restart. Please press the "RESET" key to continue operation.
To set the fault recovery time after a fault, please see P6.23 baseblock time for speed search.
Related parameters: P6.05, P6.06, P6.23
P6.05 Reset Time for Auto Restart after fault
Range/Units (Format: 16-bit unsigned)
00~6000�0 sec
This parameter defines the time period for accumulating drive faults such as ov, oc, occ. If the
number of faults accumulated during this time span exceeds the value in parameter P6.04,
then the drive will not reset until the "RESET" key is pressed. If, however, the number of faults
accumulated does NOT exceed the number in P6.04, then the accumulated fault count will be
reset and begin from zero on the next restart of the drive.
Related parameters: P6.04, P6.06, P6.23
DURA
GS4 AC Drive User Manual – 1st Ed, Rev A - 10/20/2017
pulse
Chapter 4: AC Drive Parameters
Type Hex Addr
♦R/W 0602
Default
2
Type Hex Addr
♦R/W 0603
Default
60�0
Type Hex Addr
♦R/W 0604
Default
0
Type Hex Addr
♦R/W 0605
Default
60�0
Dec Addr
41539
Dec Addr
41540
Dec Addr
41541
Dec Addr
41542
Page 4–127
