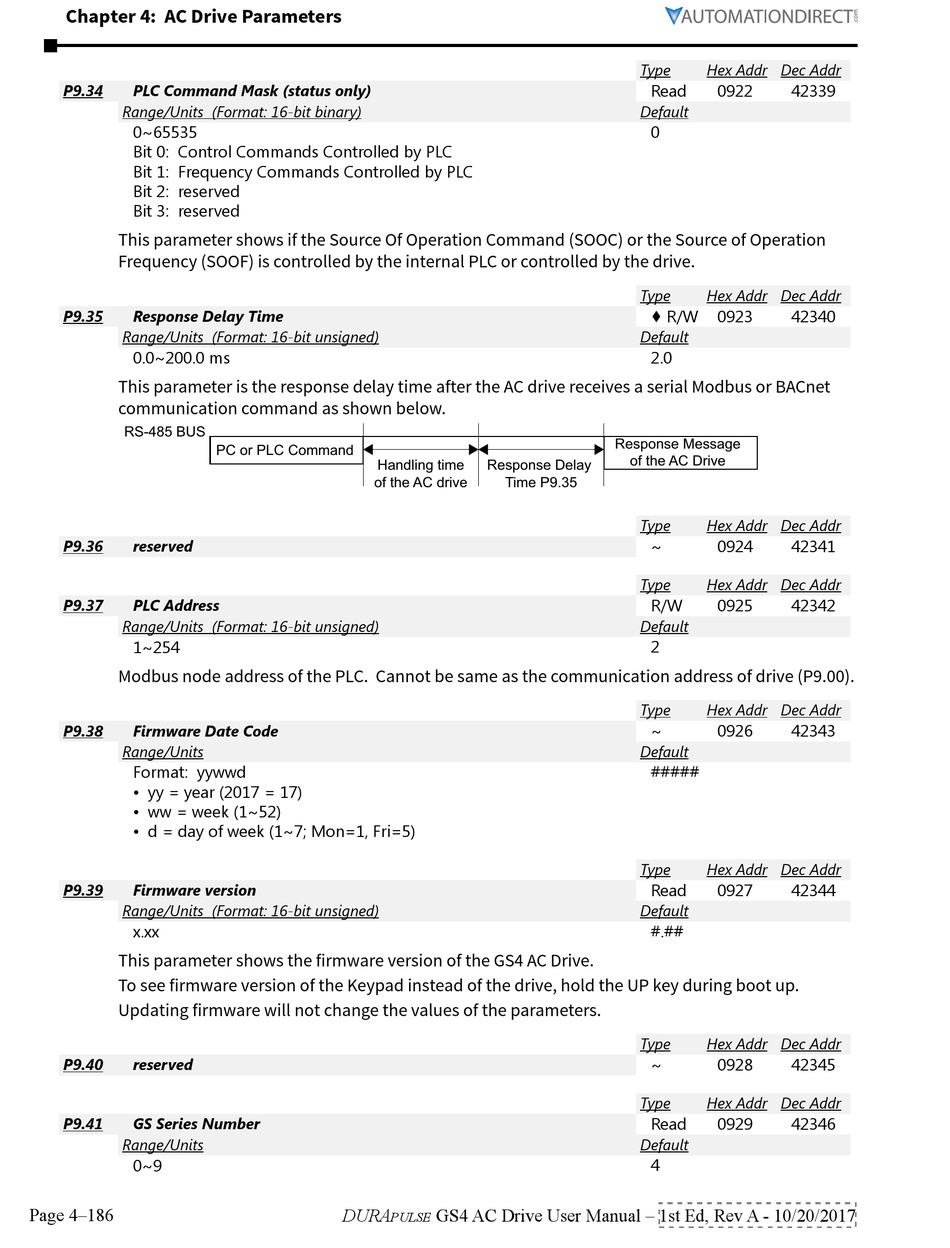

Automation Direct DURApulse GS4 User Manual page 280

Chapter 4: AC Drive Parameters
P9.34 PLC Command Mask (status only)
Range/Units (Format: 16-bit binary)
0~65535
Bit 0: Control Commands Controlled by PLC
Bit 1: Frequency Commands Controlled by PLC
Bit 2: reserved
Bit 3: reserved
This parameter shows if the Source Of Operation Command (SOOC) or the Source of Operation
Frequency (SOOF) is controlled by the internal PLC or controlled by the drive.
P9.35 Response Delay Time
Range/Units (Format: 16-bit unsigned)
0�0~200�0 ms
This parameter is the response delay time after the AC drive receives a serial Modbus or BACnet
communication command as shown below.
RS-485 BUS
P9.36 reserved
P9.37 PLC Address
Range/Units (Format: 16-bit unsigned)
1~254
Modbus node address of the PLC. Cannot be same as the communication address of drive (P9.00).
P9.38 Firmware Date Code
Range/Units
Format: yywwd
• yy = year (2017 = 17)
• ww = week (1~52)
• d = day of week (1~7; Mon=1, Fri=5)
P9.39 Firmware version
Range/Units (Format: 16-bit unsigned)
x�xx
This parameter shows the firmware version of the GS4 AC Drive.
To see firmware version of the Keypad instead of the drive, hold the UP key during boot up.
Updating firmware will not change the values of the parameters.
P9.40 reserved
P9.41 GS Series Number
Range/Units
0~9
Page 4–186
PC or PLC Command
Handling time
of the AC drive
DURA
pulse
Response Message
Response Delay
Time P9.35
GS4 AC Drive User Manual – 1st Ed, Rev A - 10/20/2017
Type Hex Addr Dec Addr
Read 0922 42339
Default
0
Type Hex Addr Dec Addr
♦ R/W 0923 42340
Default
2�0
of the AC Drive
Type Hex Addr Dec Addr
~ 0924 42341
Type Hex Addr Dec Addr
R/W 0925 42342
Default
2
Type Hex Addr Dec Addr
~ 0926 42343
Default
#####
Type Hex Addr Dec Addr
Read 0927 42344
Default
#�##
Type Hex Addr Dec Addr
~ 0928 42345
Type Hex Addr Dec Addr
Read 0929 42346
Default
4
