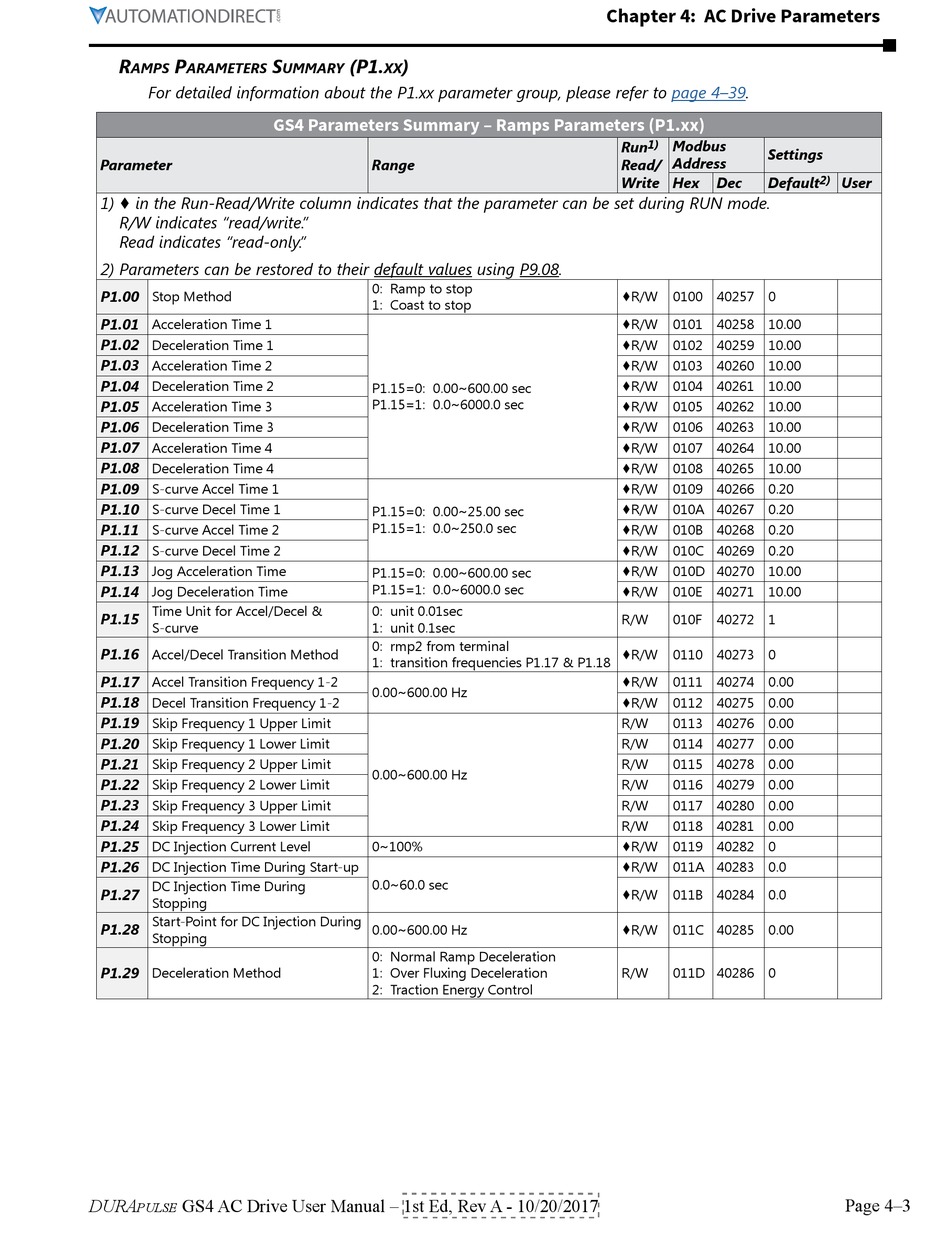

Automation Direct DURApulse GS4 User Manual page 97

r P
aMPs araMeters
For detailed information about the P1.xx parameter group, please refer to
Parameter
1) ♦ in the Run-Read/Write column indicates that the parameter can be set during RUN mode.
R/W indicates "read/write. "
Read indicates "read-only. "
2) Parameters can be restored to their default values using P9.08.
P1.00
Stop Method
P1.01
Acceleration Time 1
P1.02
Deceleration Time 1
P1.03
Acceleration Time 2
P1.04
Deceleration Time 2
P1.05
Acceleration Time 3
P1.06
Deceleration Time 3
P1.07
Acceleration Time 4
P1.08
Deceleration Time 4
P1.09
S-curve Accel Time 1
P1.10
S-curve Decel Time 1
P1.11
S-curve Accel Time 2
P1.12
S-curve Decel Time 2
P1.13 Jog Acceleration Time
P1.14
Jog Deceleration Time
Time Unit for Accel/Decel &
P1.15
S-curve
P1.16
Accel/Decel Transition Method
P1.17
Accel Transition Frequency 1-2
P1.18
Decel Transition Frequency 1-2
P1.19 Skip Frequency 1 Upper Limit
P1.20
Skip Frequency 1 Lower Limit
P1.21
Skip Frequency 2 Upper Limit
P1.22
Skip Frequency 2 Lower Limit
P1.23
Skip Frequency 3 Upper Limit
P1.24 Skip Frequency 3 Lower Limit
P1.25
DC Injection Current Level
P1.26
DC Injection Time During Start-up
DC Injection Time During
P1.27
Stopping
Start-Point for DC Injection During
P1.28
Stopping
P1.29
Deceleration Method
DURA
GS4 AC Drive User Manual – 1st Ed, Rev A - 10/20/2017
pulse
s (P1. )
uMMary xx
GS4 Parameters Summary – Ramps Parameters (P1.xx)
Range
0: Ramp to stop
1: Coast to stop
P1�15=0: 0�00~600�00 sec
P1�15=1: 0�0~6000�0 sec
P1�15=0: 0�00~25�00 sec
P1�15=1: 0�0~250�0 sec
P1�15=0: 0�00~600�00 sec
P1�15=1: 0�0~6000�0 sec
0: unit 0�01sec
1: unit 0�1sec
0: rmp2 from terminal
1: transition frequencies P1�17 & P1�18
0�00~600�00 Hz
0�00~600�00 Hz
0~100%
0�0~60�0 sec
0�00~600�00 Hz
0: Normal Ramp Deceleration
1: Over Fluxing Deceleration
2: Traction Energy Control
Chapter 4: AC Drive Parameters
page 4–39.
Modbus
1)
Run
Settings
Address
Read/
Write Hex Dec Default
♦R/W 0100 40257 0
♦R/W 0101 40258 10�00
♦R/W 0102 40259 10�00
♦R/W 0103 40260 10�00
♦R/W 0104 40261 10�00
♦R/W 0105 40262 10�00
♦R/W 0106 40263 10�00
♦R/W 0107 40264 10�00
♦R/W 0108 40265 10�00
♦R/W 0109 40266 0�20
♦R/W 010A 40267 0�20
♦R/W 010B 40268 0�20
♦R/W 010C 40269 0�20
♦R/W 010D 40270 10�00
♦R/W 010E 40271 10�00
R/W 010F 40272 1
♦R/W 0110 40273 0
♦R/W 0111 40274 0�00
♦R/W 0112 40275 0�00
R/W 0113 40276 0�00
R/W 0114 40277 0�00
R/W 0115 40278 0�00
R/W 0116 40279 0�00
R/W 0117 40280 0�00
R/W 0118 40281 0�00
♦R/W 0119 40282 0
♦R/W 011A 40283 0�0
♦R/W 011B 40284 0�0
♦R/W 011C 40285 0�00
R/W 011D 40286 0
