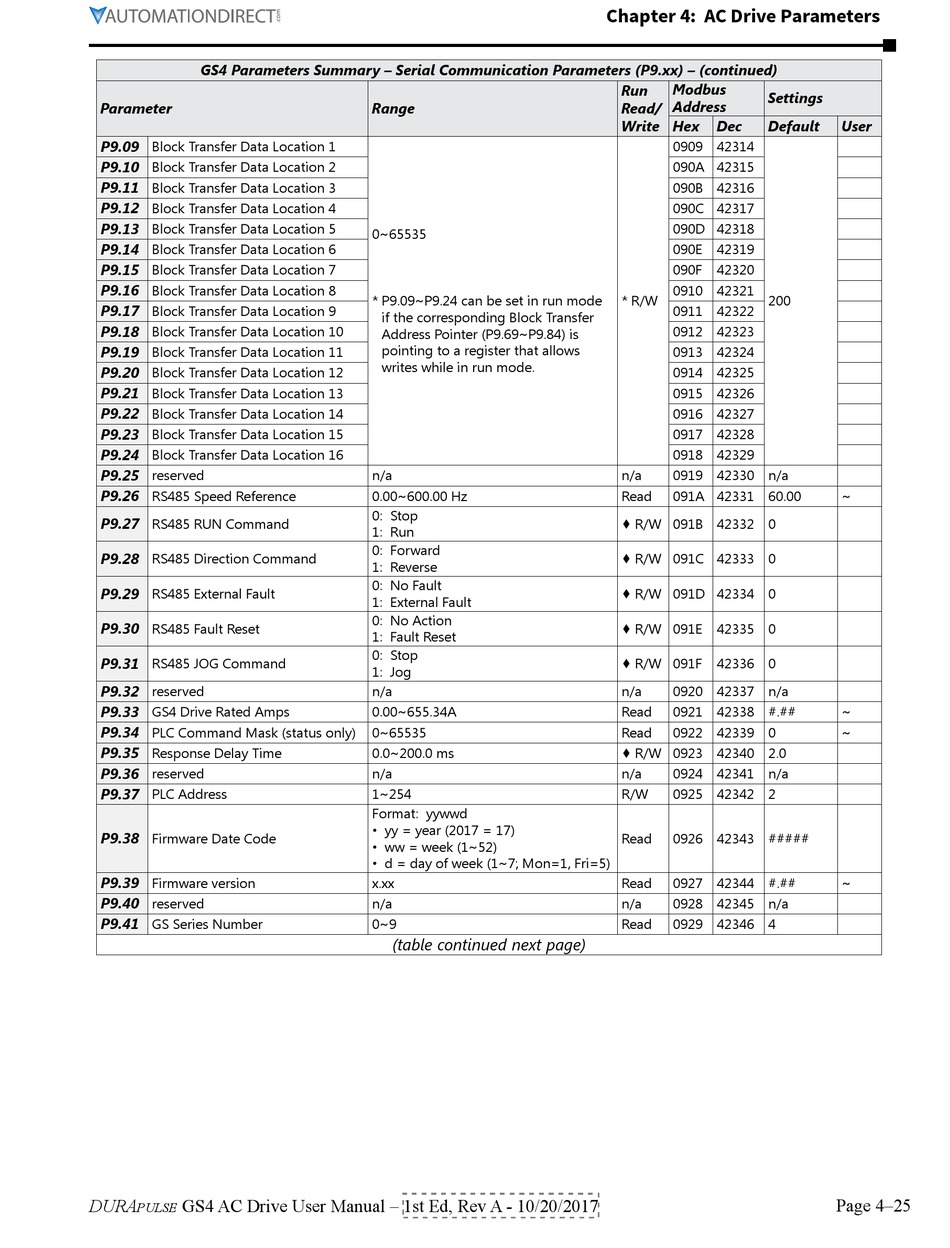

Automation Direct DURApulse GS4 User Manual page 119

GS4 Parameters Summary – Serial Communication Parameters (P9.xx) – (continued)
Parameter
P9.09
Block Transfer Data Location 1
P9.10
Block Transfer Data Location 2
P9.11
Block Transfer Data Location 3
P9.12
Block Transfer Data Location 4
P9.13
Block Transfer Data Location 5
P9.14
Block Transfer Data Location 6
P9.15
Block Transfer Data Location 7
P9.16
Block Transfer Data Location 8
P9.17
Block Transfer Data Location 9
P9.18
Block Transfer Data Location 10
P9.19
Block Transfer Data Location 11
P9.20
Block Transfer Data Location 12
P9.21 Block Transfer Data Location 13
P9.22
Block Transfer Data Location 14
P9.23
Block Transfer Data Location 15
P9.24
Block Transfer Data Location 16
P9.25
reserved
P9.26 RS485 Speed Reference
P9.27
RS485 RUN Command
P9.28
RS485 Direction Command
P9.29
RS485 External Fault
P9.30
RS485 Fault Reset
P9.31
RS485 JOG Command
P9.32
reserved
P9.33
GS4 Drive Rated Amps
P9.34
PLC Command Mask (status only)
P9.35
Response Delay Time
P9.36 reserved
P9.37
PLC Address
P9.38
Firmware Date Code
P9.39
Firmware version
P9.40
reserved
P9.41
GS Series Number
DURA
GS4 AC Drive User Manual – 1st Ed, Rev A - 10/20/2017
pulse
Range
0~65535
* P9�09~P9�24 can be set in run mode
if the corresponding Block Transfer
Address Pointer (P9�69~P9�84) is
pointing to a register that allows
writes while in run mode�
n/a
0�00~600�00 Hz
0: Stop
1: Run
0: Forward
1: Reverse
0: No Fault
1: External Fault
0: No Action
1: Fault Reset
0: Stop
1: Jog
n/a
0�00~655�34A
0~65535
0�0~200�0 ms
n/a
1~254
Format: yywwd
• yy = year (2017 = 17)
• ww = week (1~52)
• d = day of week (1~7; Mon=1, Fri=5)
x�xx
n/a
0~9
(table continued next page)
Chapter 4: AC Drive Parameters
Modbus
Run
Settings
Address
Read/
Write Hex Dec Default
0909 42314
090A 42315
090B 42316
090C 42317
090D 42318
090E 42319
090F 42320
0910 42321
* R/W 200
0911 42322
0912 42323
0913 42324
0914 42325
0915 42326
0916 42327
0917 42328
0918 42329
n/a 0919 42330 n/a
Read 091A 42331 60�00
♦ R/W 091B 42332 0
♦ R/W 091C 42333 0
♦ R/W 091D 42334 0
♦ R/W 091E 42335 0
♦ R/W 091F 42336 0
n/a 0920 42337 n/a
Read 0921 42338 #�##
Read 0922 42339 0
♦ R/W 0923 42340 2�0
n/a 0924 42341 n/a
R/W 0925 42342 2
Read 0926 42343 #####
Read 0927 42344 #�##
n/a 0928 42345 n/a
Read 0929 42346 4
User
~
~
~
~
Page 4–25
