Automation Direct DURApulse GS4 User Manual page 114

Chapter 4: AC Drive Parameters
Parameter
P7.25
PID Mode Selection
P7.26
PID Reverse Enable
P7.27
Source of Sleep
P7.28
Integral Limit During Sleep
P7.29 Sleep Reference
P7.30
Wake-up Reference
P7.31
Sleep Time
P7.32
Wake-up Delay Time
Page 4–20

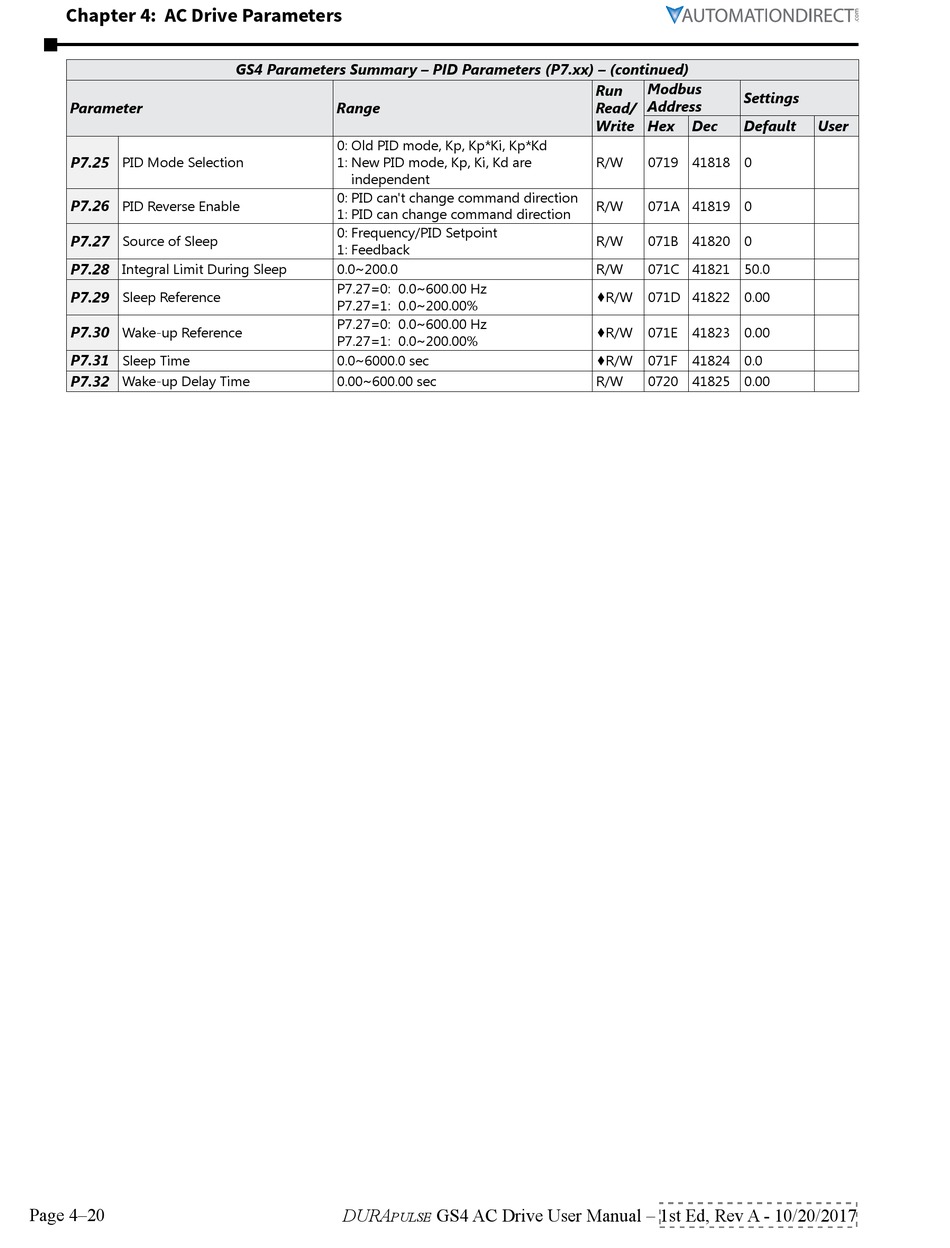

GS4 Parameters Summary – PID Parameters (P7.xx) – (continued)
Range
0: Old PID mode, Kp, Kp*Ki, Kp*Kd
1: New PID mode, Kp, Ki, Kd are
independent
0: PID can't change command direction
1: PID can change command direction
0: Frequency/PID Setpoint
1: Feedback
0�0~200�0
P7�27=0: 0�0~600�00 Hz
P7�27=1: 0�0~200�00%
P7�27=0: 0�0~600�00 Hz
P7�27=1: 0�0~200�00%
0�0~6000�0 sec
0�00~600�00 sec
DURA
pulse
Run
Read/
Write
R/W
R/W
R/W
R/W
♦R/W
♦R/W
♦R/W
R/W
GS4 AC Drive User Manual – 1st Ed, Rev A - 10/20/2017
Modbus
Settings
Address
Hex Dec Default User
0719 41818 0
071A 41819 0
071B 41820 0
071C 41821 50�0
071D 41822 0�00
071E 41823 0�00
071F 41824 0�0
0720 41825 0�00
