Chapter 4: AC Drive Parameters

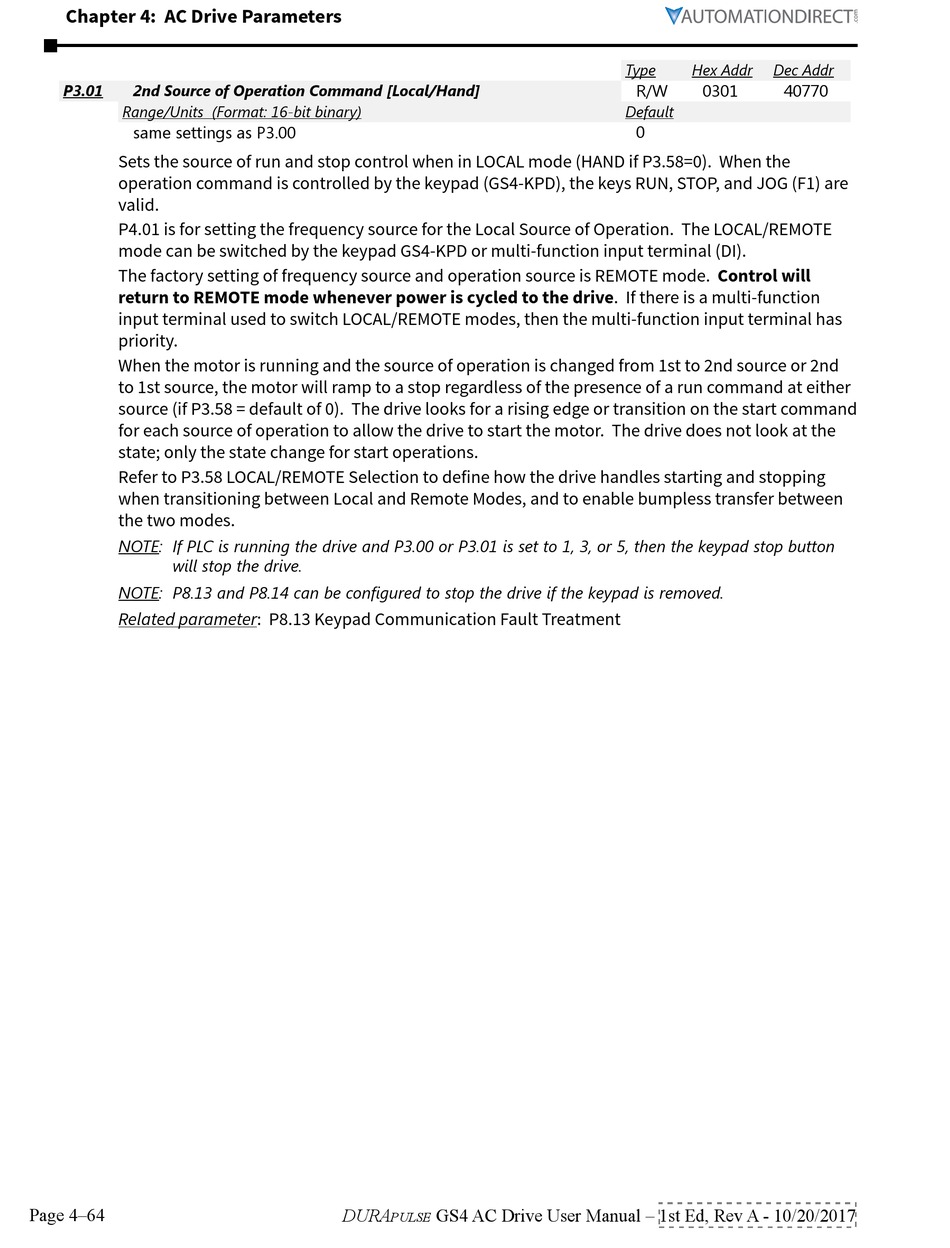

P3.01 2nd Source of Operation Command [Local/Hand]
Range/Units (Format: 16-bit binary)
same settings as P3�00
Sets the source of run and stop control when in LOCAL mode (HAND if P3.58=0). When the
operation command is controlled by the keypad (GS4-KPD), the keys RUN, STOP, and JOG (F1) are
valid.
P4.01 is for setting the frequency source for the Local Source of Operation. The LOCAL/REMOTE
mode can be switched by the keypad GS4-KPD or multi-function input terminal (DI).
The factory setting of frequency source and operation source is REMOTE mode. Control will
return to REMOTE mode whenever power is cycled to the drive. If there is a multi-function
input terminal used to switch LOCAL/REMOTE modes, then the multi-function input terminal has
priority.
When the motor is running and the source of operation is changed from 1st to 2nd source or 2nd
to 1st source, the motor will ramp to a stop regardless of the presence of a run command at either
source (if P3.58 = default of 0). The drive looks for a rising edge or transition on the start command
for each source of operation to allow the drive to start the motor. The drive does not look at the
state; only the state change for start operations.
Refer to P3.58 LOCAL/REMOTE Selection to define how the drive handles starting and stopping
when transitioning between Local and Remote Modes, and to enable bumpless transfer between
the two modes.
NOTE: If PLC is running the drive and P3.00 or P3.01 is set to 1, 3, or 5, then the keypad stop button
will stop the drive.
NOTE: P8.13 and P8.14 can be configured to stop the drive if the keypad is removed.
Related parameter: P8.13 Keypad Communication Fault Treatment
Page 4–64
DURA
GS4 AC Drive User Manual – 1st Ed, Rev A - 10/20/2017
pulse
Type Hex Addr Dec Addr
R/W 0301 40770
Default
0
