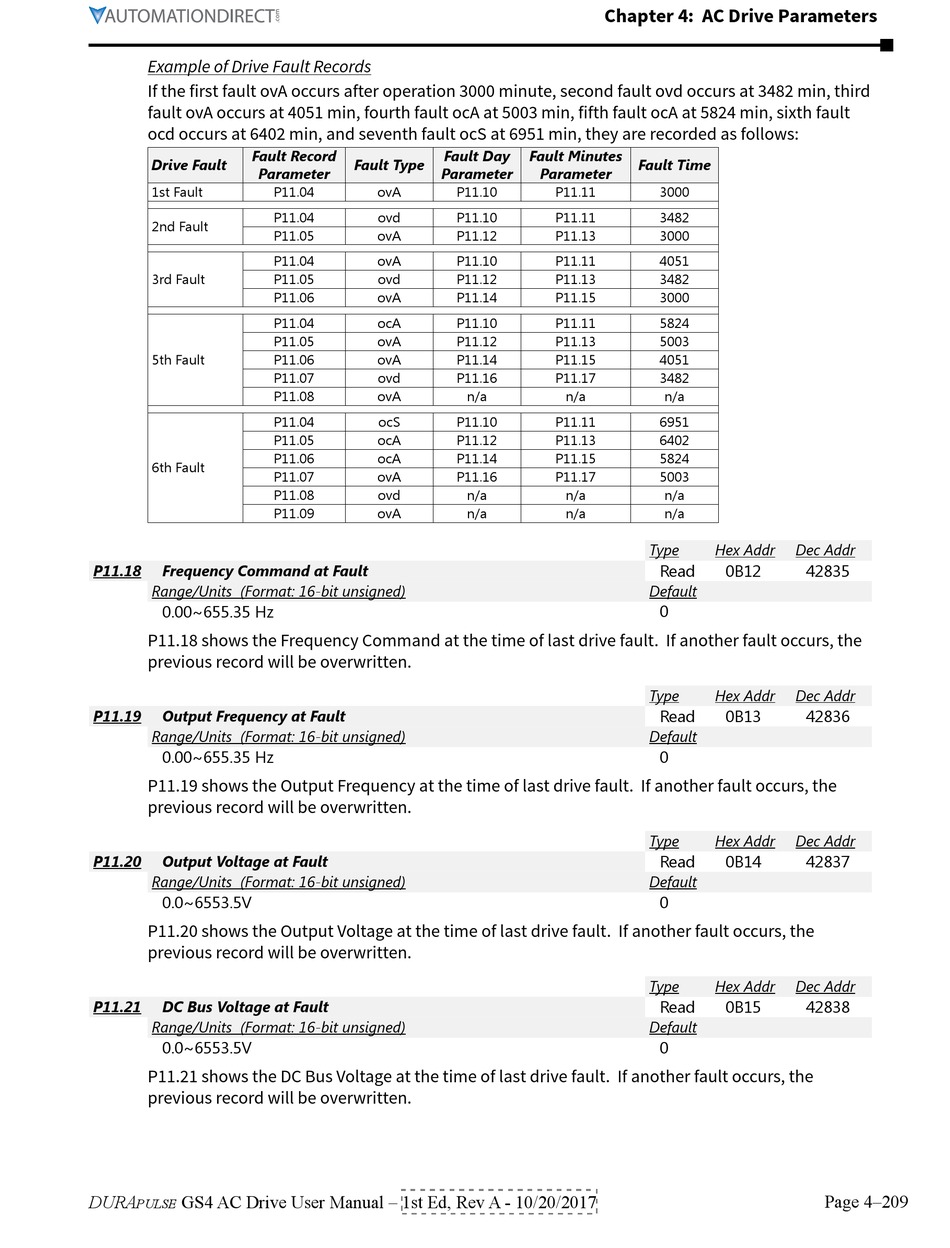

Example of Drive Fault Records

If the first fault ovA occurs after operation 3000 minute, second fault ovd occurs at 3482 min, third

fault ovA occurs at 4051 min, fourth fault ocA at 5003 min, fifth fault ocA at 5824 min, sixth fault

ocd occurs at 6402 min, and seventh fault ocS at 6951 min, they are recorded as follows:

Fault Record

Frequency Command at Fault

Range/Units (Format: 16-bit unsigned)

0�00~655�35 Hz

P11.18 shows the Frequency Command at the time of last drive fault. If another fault occurs, the

previous record will be overwritten.

Output Frequency at Fault

Range/Units (Format: 16-bit unsigned)

0�00~655�35 Hz

P11.19 shows the Output Frequency at the time of last drive fault. If another fault occurs, the

previous record will be overwritten.

Output Voltage at Fault

Range/Units (Format: 16-bit unsigned)

P11.20 shows the Output Voltage at the time of last drive fault. If another fault occurs, the

previous record will be overwritten.

DC Bus Voltage at Fault

Range/Units (Format: 16-bit unsigned)

P11.21 shows the DC Bus Voltage at the time of last drive fault. If another fault occurs, the

previous record will be overwritten.

GS4 AC Drive User Manual – 1st Ed, Rev A - 10/20/2017

Chapter 4: AC Drive Parameters
