Network Management Port

TABLE 13
Pin
1
2
3
4
Related Information
"Rear Panel Components and Cable Connections" on page 18
■
"Server System-Level Status Indicators" on page 31
■
"Disconnect Cables From the Server" on page 60
■
"Reconnect Power and Data Cables" on page 233
■

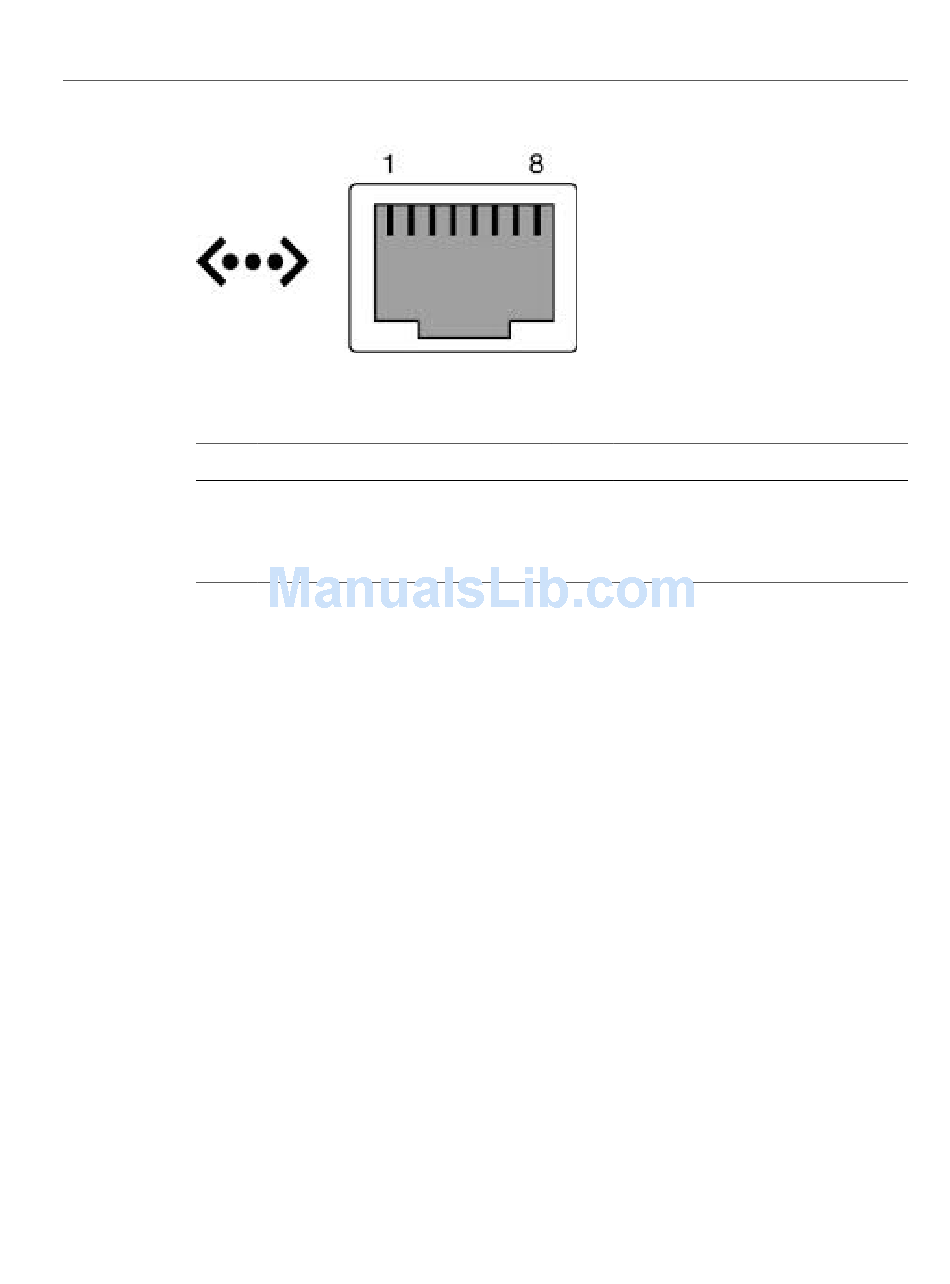

Network Management Port
The server has one auto-negotiating 10/100/1000BASE-T Ethernet management domain
interface, labeled NET MGT. For information about configuring this port for managing the
server with Oracle ILOM, refer to the Oracle Integrated Lights Out Manager (ILOM) 3.2
Documentation Library at http://www.oracle.com/goto/ILOM/docs.
236 Oracle Server X5-2L Service Manual • May 2015
10-GbE Port Signals
Signal Description
Transmit/Receive Data 0 +
Transmit/Receive Data 0 –
Transmit/Receive Data 1 +
Transmit/Receive Data 2 +
Pin Signal Description
5 Transmit/Receive Data 2 –
6 Transmit/Receive Data 1 –
7 Transmit/Receive Data 3 +
8 Transmit/Receive Data 3 –
