Remove the Motherboard Assembly

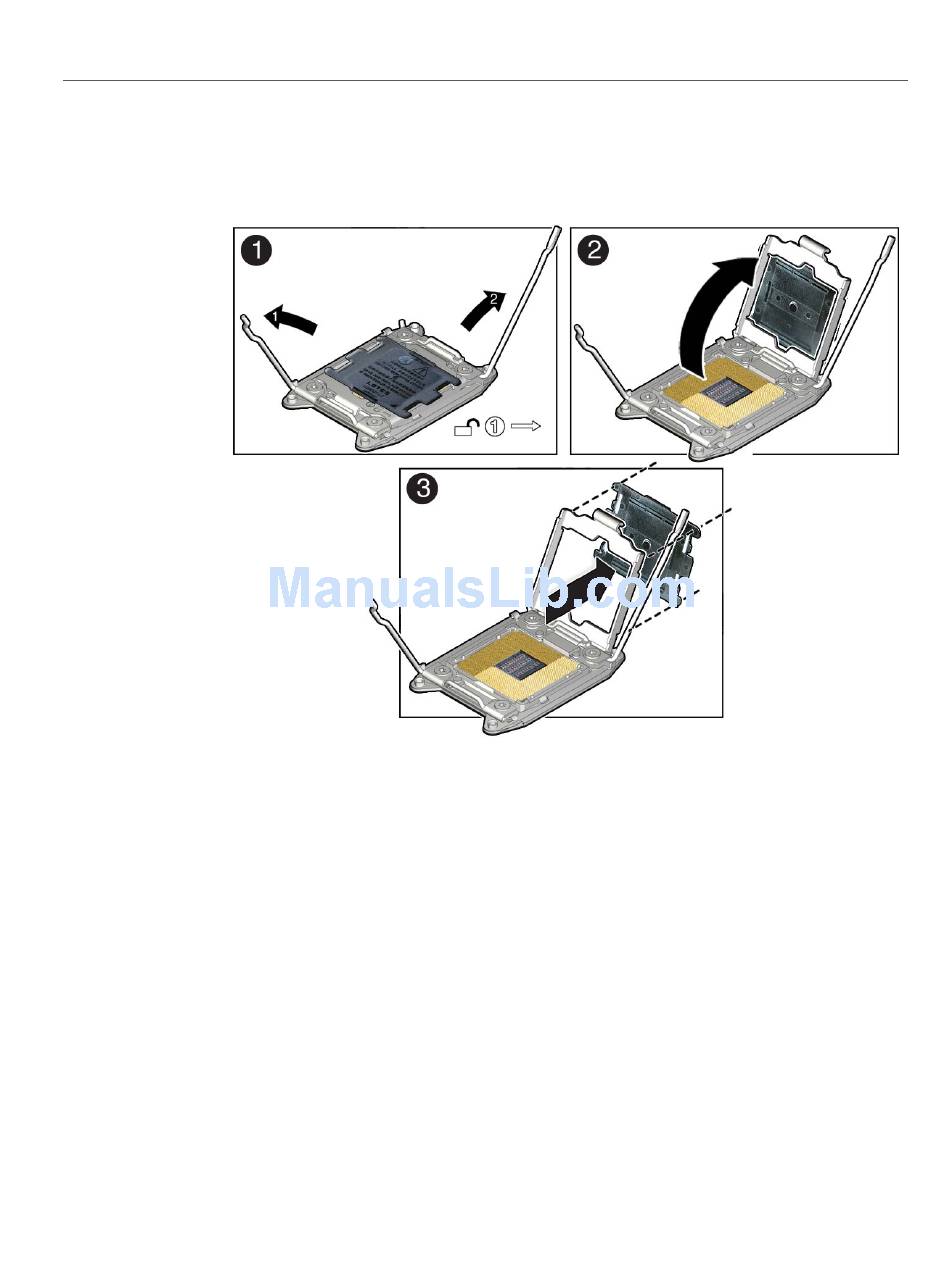

FIGURE 82
b. Disengage the processor ILM assembly load lever on the left side of the
processor socket (viewing the server from the front) by pushing down
on the lever and moving it to the side away from the processor, and then
rotating the lever upward [1].
To lift the processor ILM assembly load plate off of the processor socket,
c.
rotate the ILM assembly hinge lever on the right side of the processor
toward the closed position (the load plate is lifted up as the hinge lever is
lowered) and carefully swing the load plate to the fully open position [2].
d. Grasp the top and underside of the processor socket cover with one hand
(place your thumb against the underside of the cover), place your other
thumb against the underside of the cover, and carefully push the cover out
of the processor ILM assembly load plate [3].
216 Oracle Server X5-2L Service Manual • May 2015
Removing the Processor Socket Cover
