Remove the Motherboard Assembly

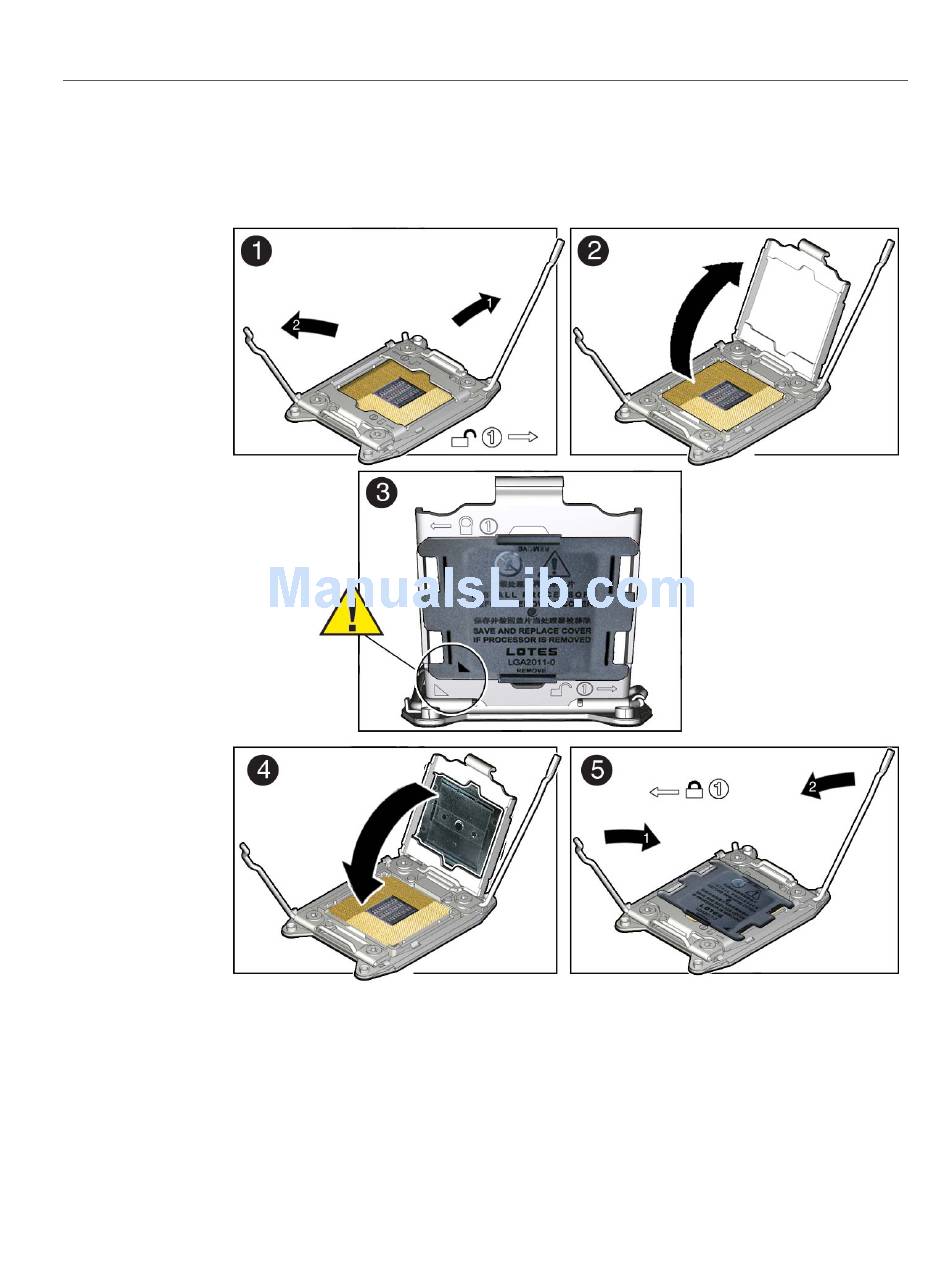

FIGURE   83
Hold the processor ILM assembly load plate open with one hand and
b.
position the processor socket cover over the top of the pressure frame so
that 1) the arrow on the processor socket cover is aligned with the arrow on
the load plate and 2) the fasteners on one side of the cover (the fasteners
218
Oracle Server X5-2L Service Manual • May 2015
Installing the Processor Socket Cover
