Populate the DIMM sockets in the order described in the following sections.
■
The following sections provide an example of how to populate the DIMM sockets to achieve
optimal system performance.
Not all possible configurations are shown here.
Note -
"Populating DIMMs in Single-Processor Systems for Optimal System
■
Performance" on page 105
"Populating DIMMs in Dual-Processor Systems for Optimal System
■
Performance" on page 106
Populating DIMMs in Single-Processor Systems
for Optimal System Performance
In single-processor systems, install DIMMs only into DIMM sockets associated with processor
0 (P0). Starting with socket P0 D0, first filling the black sockets, then the black sockets with
white tabs, and then the white sockets, as shown in the following figure. Notice that the order
of populating the black sockets is Ch C first, Ch A second, Ch D third, and Ch B last. Repeat
the same population sequence for the black sockets with white tabs, and finally for the white
sockets.

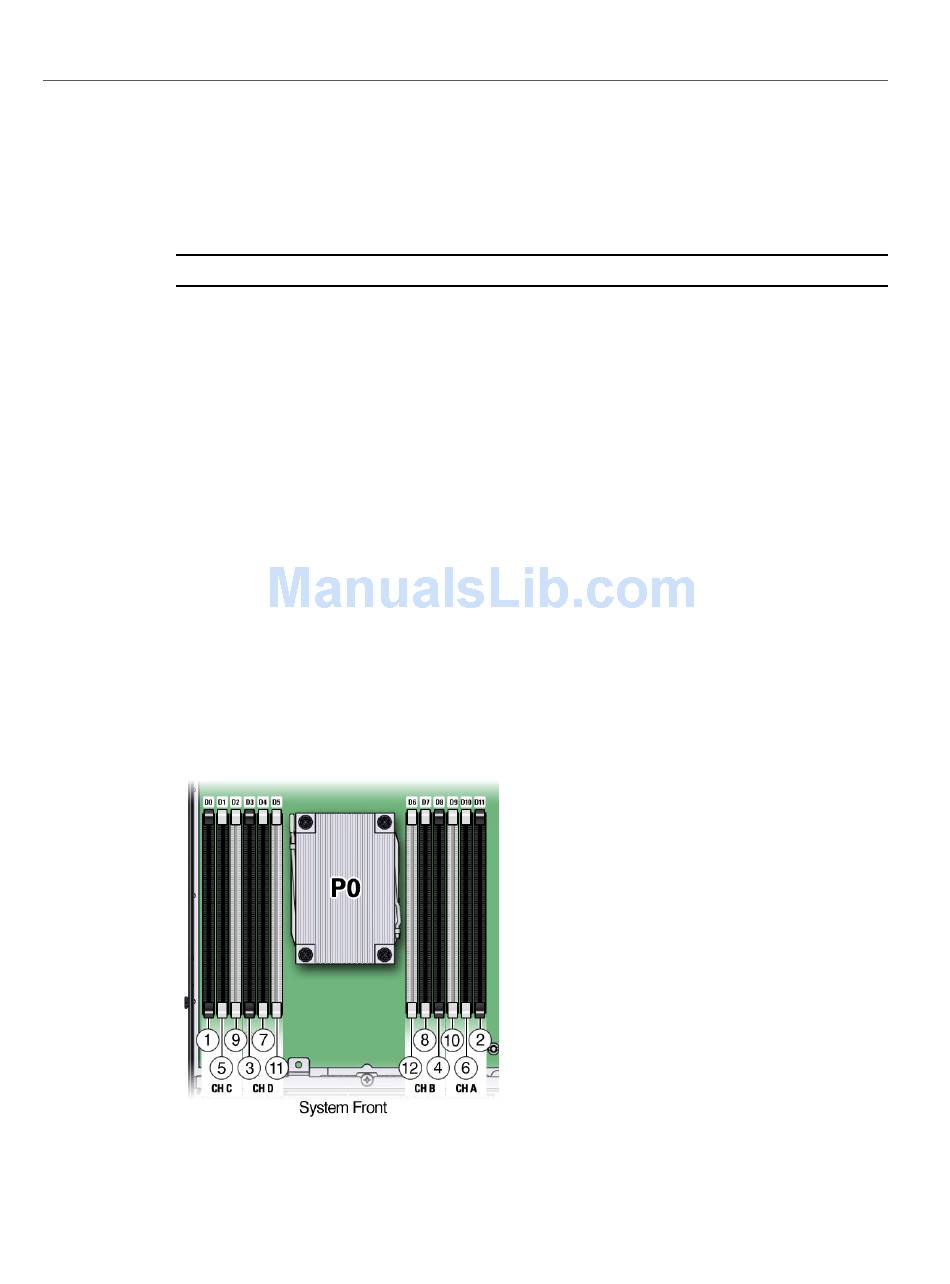

FIGURE 27 DIMM Population Order for Single-Processor Systems
