Oracle X5-2L Service Manual page 133

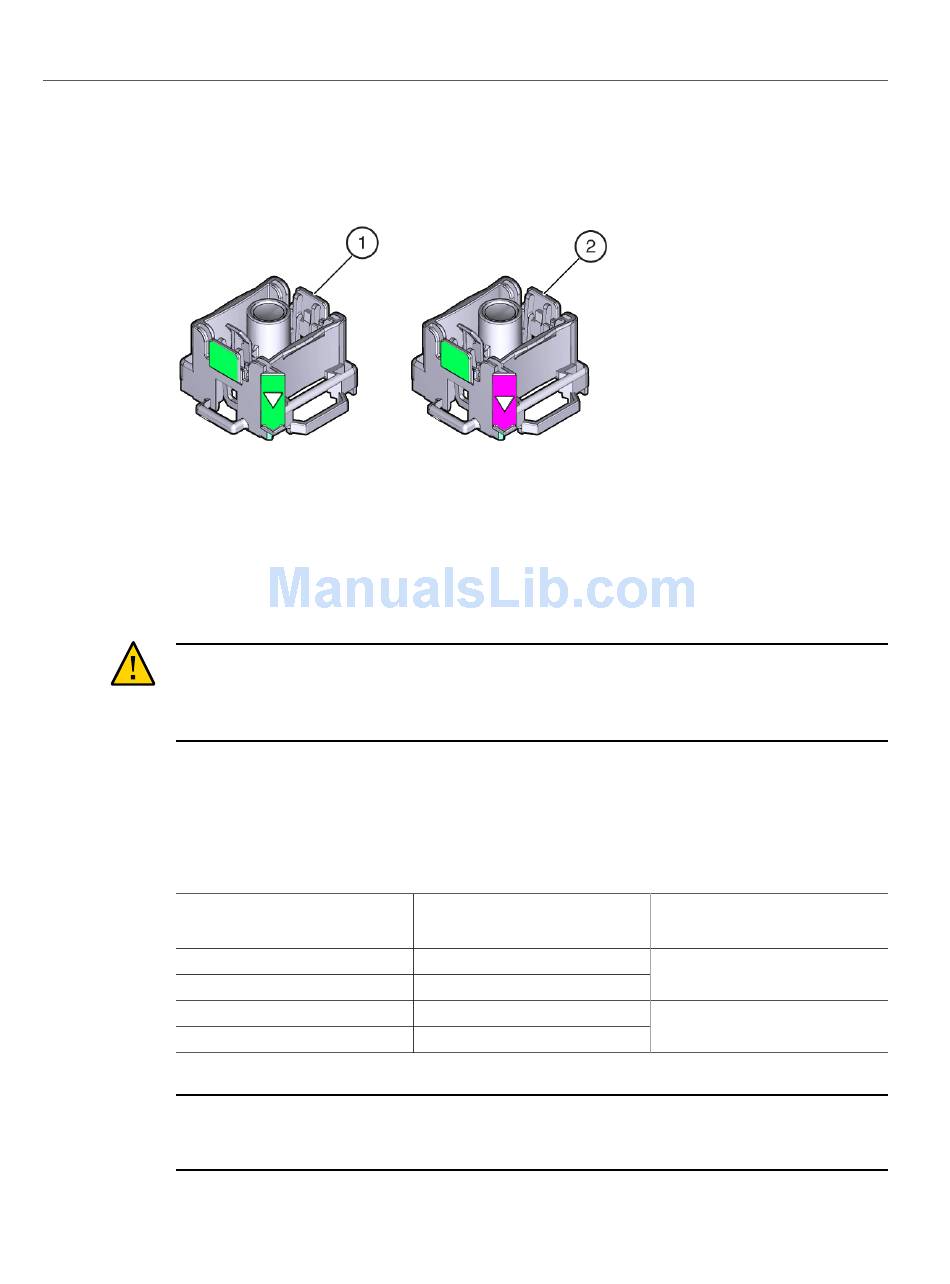

Color-Coded Processor Removal and Replacement Tool
FIGURE 41
Figure Legend
1
Green, color-coded removal and replacement tool for the smaller processor models E5-2630 V3 (8-core) and E5-
2660 V3 (10-core)
2
Pink, color-coded removal and replacement tool for the larger processor models E5-2690 V3 (12-core) and E5-
2699 V3 (18-core)
The pink color-coded processor removal and replacement tool must be used only
Caution -
with the larger processors (the 12-, and 18-core processors). Likewise, the green color-coded
removal and replacement tool must be used only with smaller processors (the 8-, and 10-core
processors); otherwise, the processor or the processor socket might be damaged.
The following table provides an easy reference for matching a processor (by number of cores or
model number) to the correct processor removal and replacement tool. The processor removal
and replacement tool part number is also recorded on the tool.
Processor Model Numbers by Number of Cores
TABLE 11
Processor Cores
8-core
10-core
12-core
18-core
The correct processor removal and replacement tool is included in the box with the
Note -
replacement processor. Additionally, both removal and replacement tools ship with replacement
motherboards.
Processor Model Number
E5-2630 V3
E5-2660 V3
E5-2690 V3
E5-2699 V3
Servicing Processors (FRU)
Processor Removal and
Replacement Tool Color Code and
Part Number
Green, part number G29477-002 or
later
Pink, part number G54233-001 or
later
Servicing FRUs 133
