Install the Right LED/USB Indicator Module

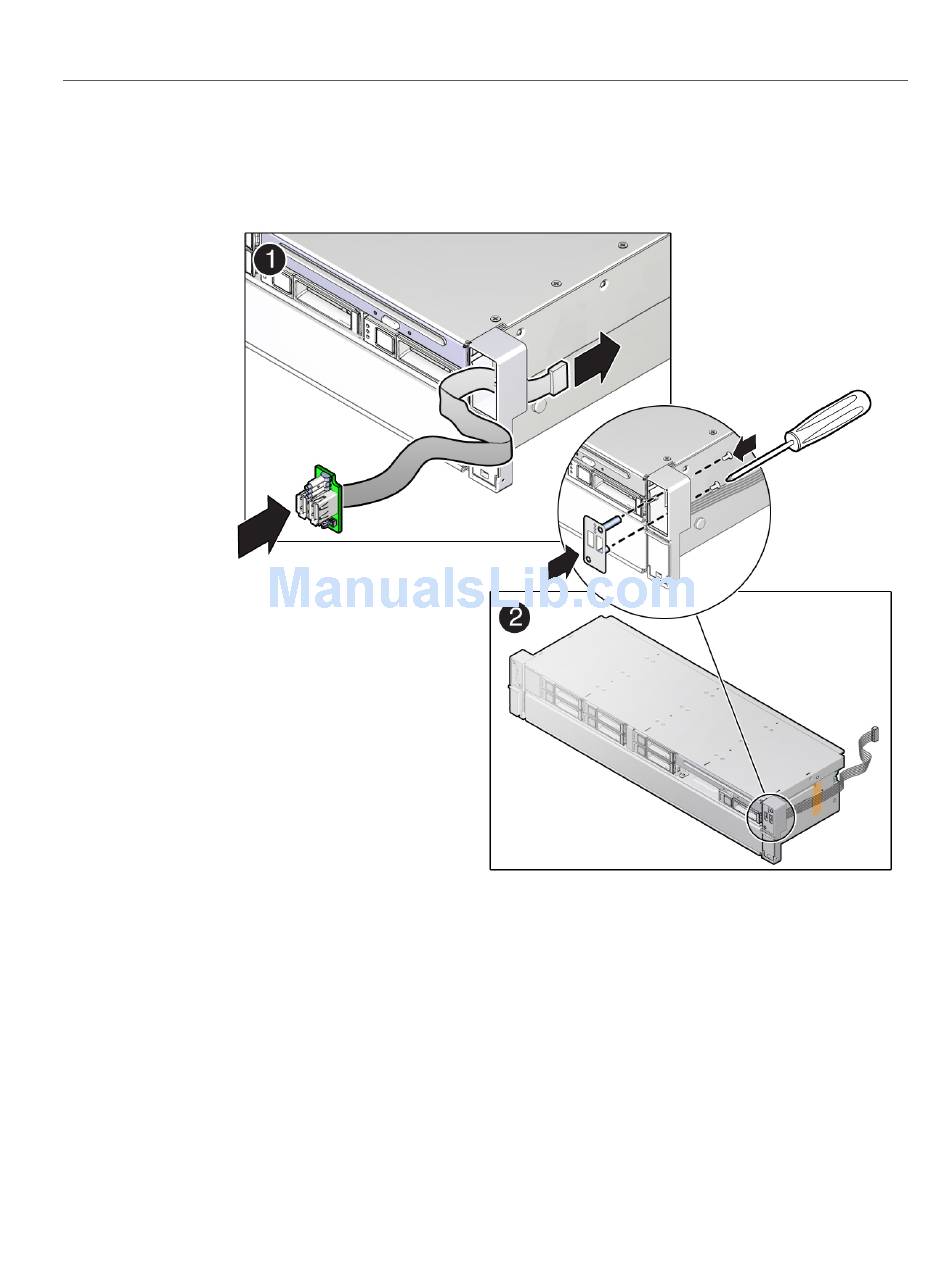

FIGURE 76
b.
Insert and tighten the two No. 2 Phillips screws to secure the LED/USB
indicator module to the server front panel [2].
Gently lift the disk cage assembly and set it into the server chassis [1].
2.
Slightly push the disk cage assembly into the server chassis to ensure that the disk cage screw
holes are correctly aligned with the server chassis.
206
Oracle Server X5-2L Service Manual • May 2015
Installing the Right LED/USB Indicator Module
