A.2 Network Management Port

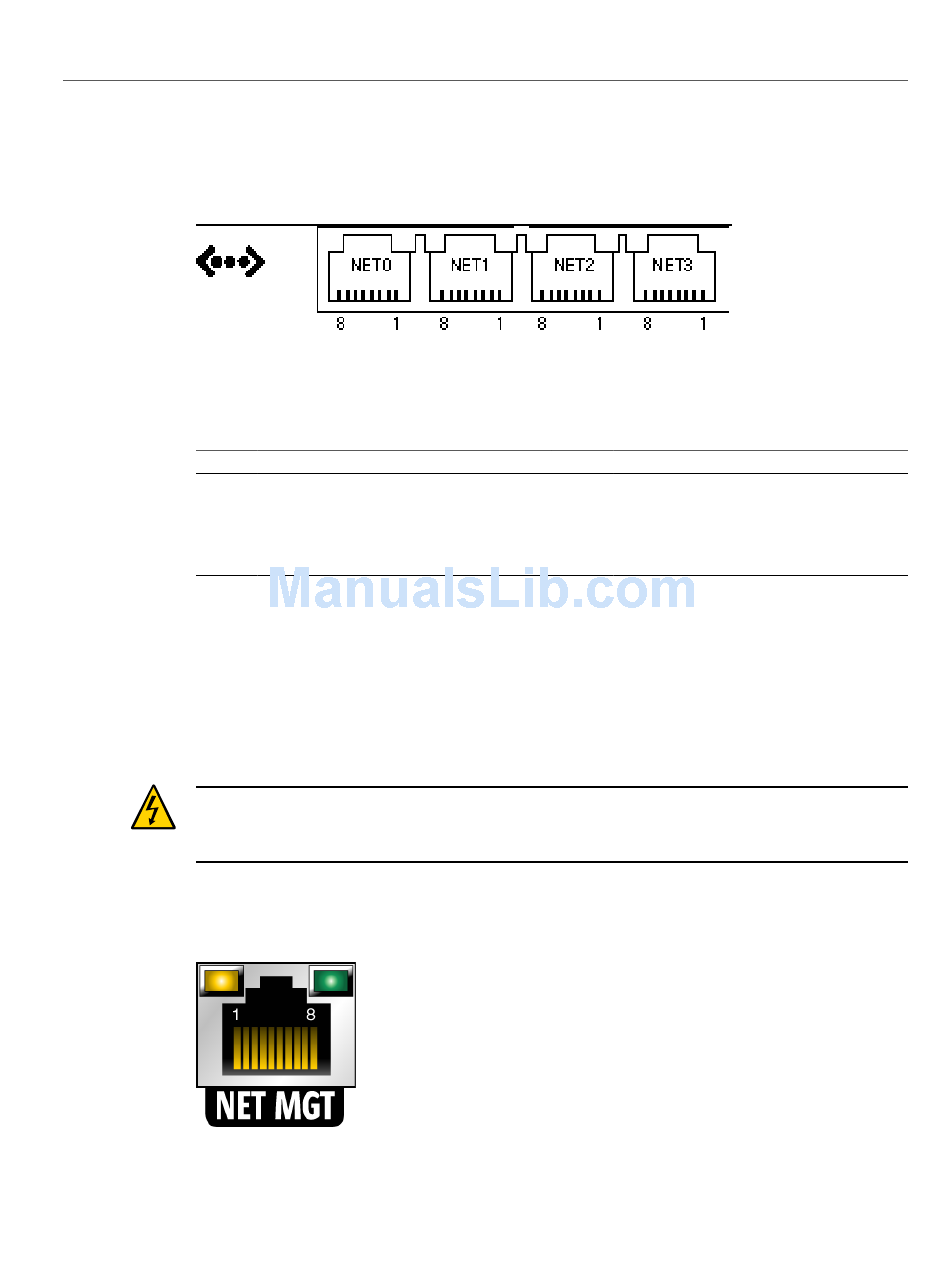

FIGURE A-1
TABLE A-2
Pin
1
2
3
4
A.2
Network Management Port
The server has one 10BASE-T Ethernet management domain interface, labelled NET MGT. For
information on configuring this port for managing the server with ILOM, refer to the Sun Netra
T5440 Server Administration Guide.
Caution -
shielded Ethernet cable to maintain your server's NEBS compliance. The cable's shield must be
grounded at both ends.
FIGURE A-2
150
Sun Netra T5440 Server • September 2015
Gigabit Ethernet Port Pin Numbering
Gigabit Ethernet Port Signals
Signal Description
Transmit/Receive Data 0 +
Transmit/Receive Data 0 –
Transmit/Receive Data 1 +
Transmit/Receive Data 2 +
If you are planning to use the network management (NET MGT) port, you must use a
Network Management Port Pin Numbering
Pin
Signal Description
5
Transmit/Receive Data 2 –
6
Transmit/Receive Data 1 –
7
Transmit/Receive Data 3 +
8
Transmit/Receive Data 3 –
