Remove a Fan Module
Each fan module has a fan status indicator (LED) that is located next to the module. If the LED
is amber, the fan has failed. The location of the fan status LED is shown in the following figure.
FIGURE 20
LED Color and State Meaning
Amber – The fan module is faulty. The front Top Fan LED and the front and rear panel Service Required LEDs are
also lit if the system detects a fan module fault.
Use a No. 2 Phillips screwdriver to loosen the captive screw that secures the
4.
faulty fan module in the chassis [1].
90 Oracle Server X5-2L Service Manual • May 2015

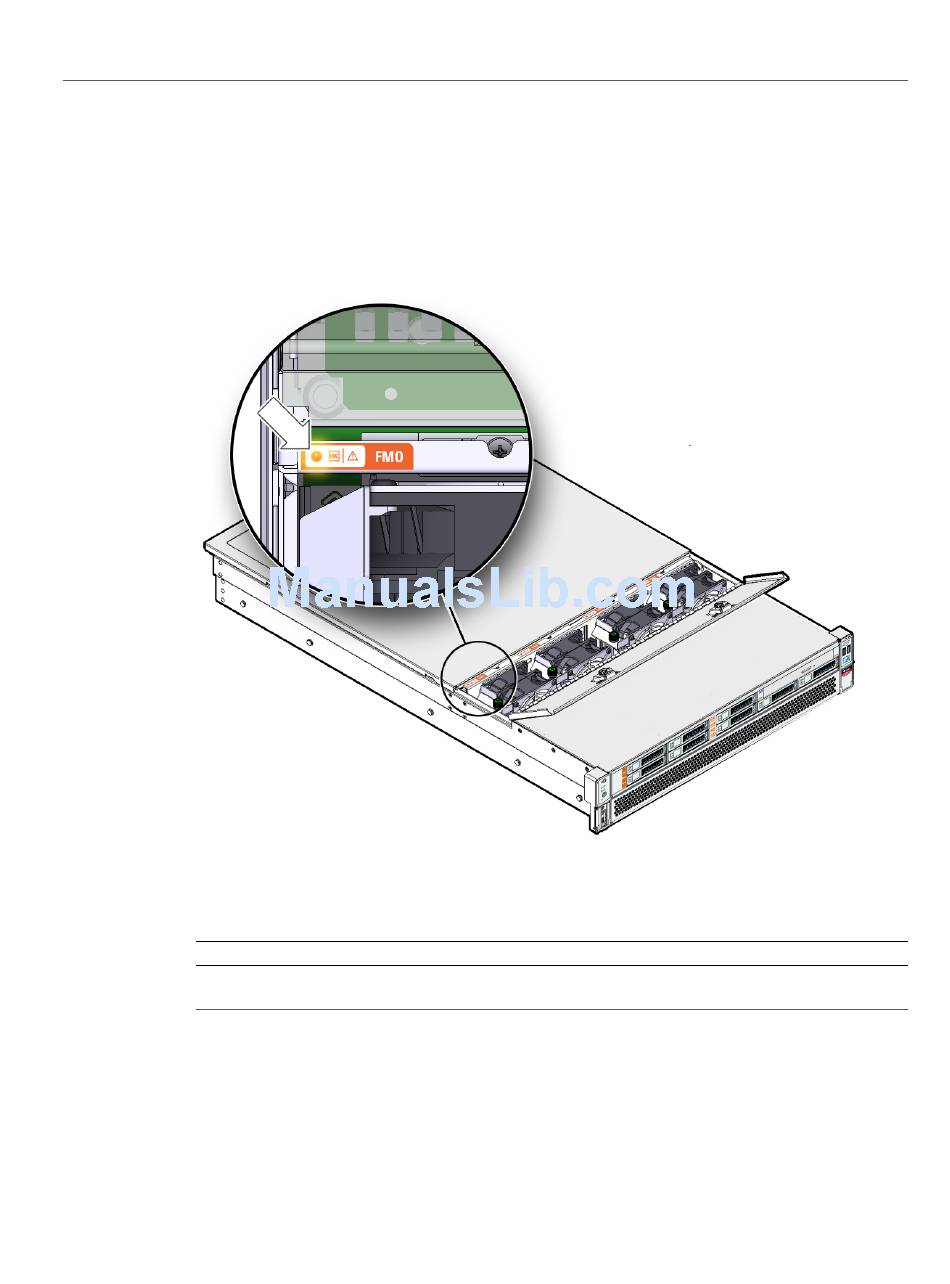

Fan Module Locations and Fan Status Indicators
