Network Management Port; Serial Management Port; Ethernet Port Transfer Rates - Oracle Exadata X10M Service Manual

Table 2-6
Connection Type
Fast Ethernet
Gigabit Ethernet

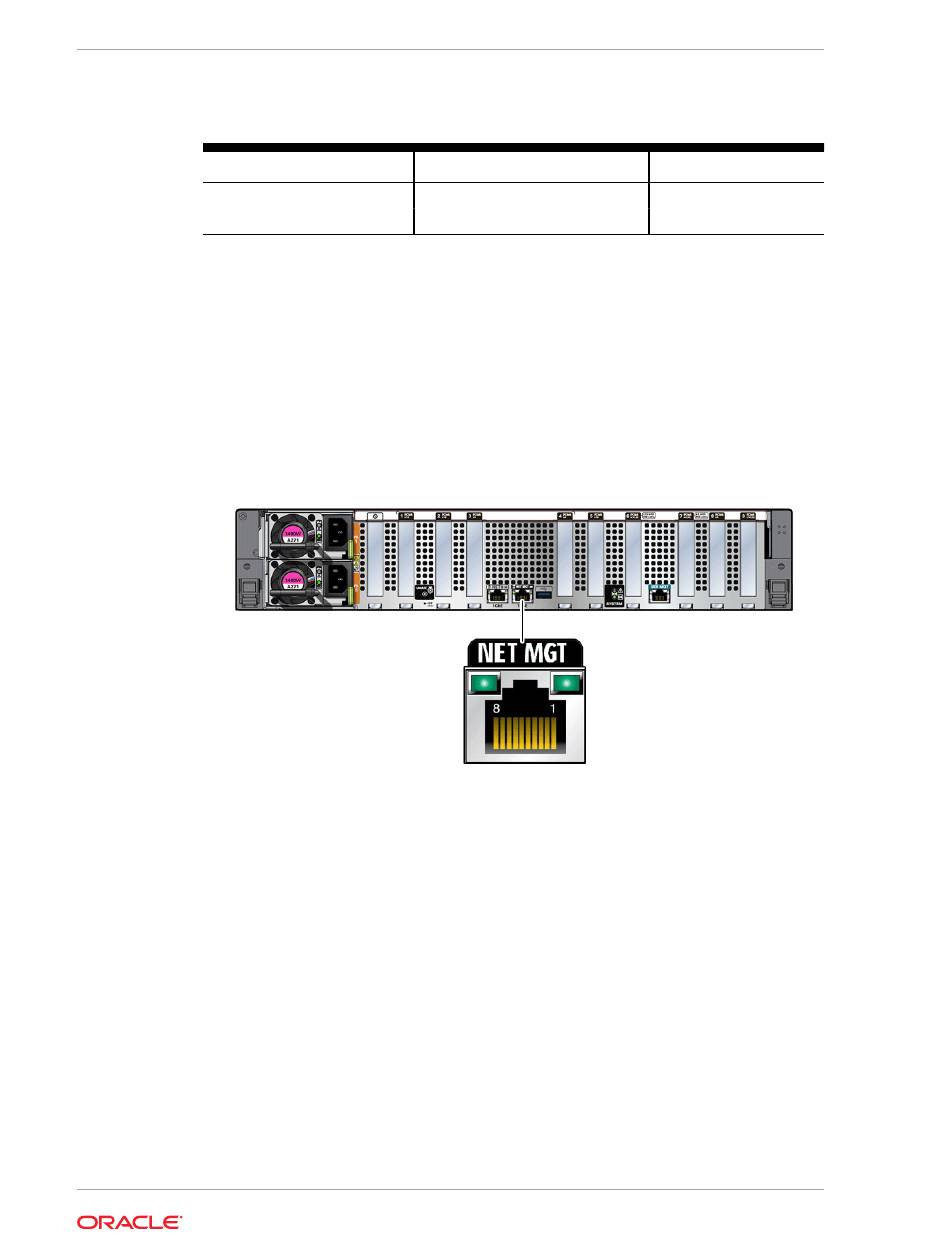

Network Management Port

The server has one 100/1000BASE-T RJ-45 Oracle Integrated Lights Out Manager
(ILOM) service processor (SP) network management Ethernet port labeled NET MGT.
The auto-negotiating 100/1000BASE-T Ethernet management domain interface port is
configured by default to use Dynamic Host Configuration Protocol (DHCP).
SPs with Oracle Integrated Lights Out Manager (ILOM) include support for Ethernet
access to the SP through a dedicated Network Management port (NET MGT). Access
to the SP is available through a rear panel RJ-45 100/1000BASE-T port labeled NET
MGT. The NET MGT port is connected to a system rack switch and can be used for
accessing the SP remotely over an Ethernet connection. See
See Network Management Port Status
port for managing the server with Oracle ILOM, refer to

Serial Management Port

The serial management connector, labeled SER MGT, is an RJ-45 connector that can
be accessed from the back panel. This port is the default connection to the server
Oracle ILOM SP. Use only the SER MGT port for server management. Refer to
ILOM Documentation.
The following figure and table describe the SER MGT port pin signals.

Ethernet Port Transfer Rates

IEEE Terminology
100BASE-T
1000BASE-T
Attaching Devices to the Server
Transfer Rate
100 Mbps
1,000 Mbps
Accessing Oracle
Indicators. For information on configuring this
Oracle ILOM
Chapter 2
ILOM.
Documentation.
Oracle
2-14
