Install the Storage Drive Backplane for Eight-Drive Systems

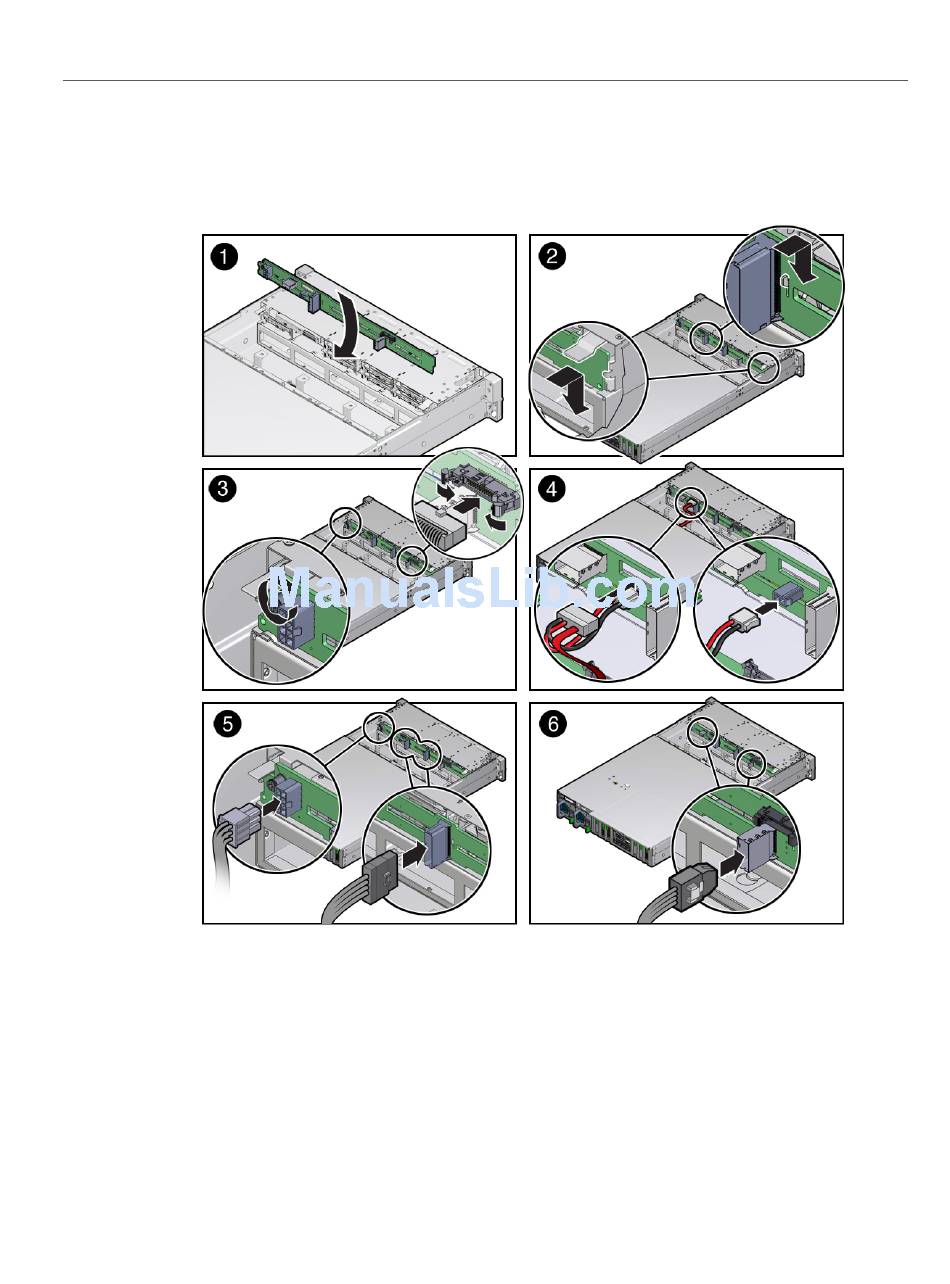

FIGURE 48
Using a No. 2 Phillips screwdriver, install and tighten the right-side spring-
2.
mounted screw to secure the storage drive backplane to the chassis [3].
3.
Reconnect the cables to the storage drive backplane.
Reconnect the auxiliary signal cable to the storage drive backplane [3].
a.
150
Oracle Server X5-2L Service Manual • May 2015
Installing the Storage Drive Backplane for Eight-Drive Systems
