Remove a PCIe Card
See "PCIe Slot Locations" on page
3. If necessary, record where the PCIe cards are installed.
Unplug all data cables from the PCIe card [1].
4.
Note the cable connections in order to ease proper reconnection of the cables.
5. Rotate the PCIe card locking mechanism [1], and then lift up on the PCIe card to
disengage it from the motherboard connectors [2].

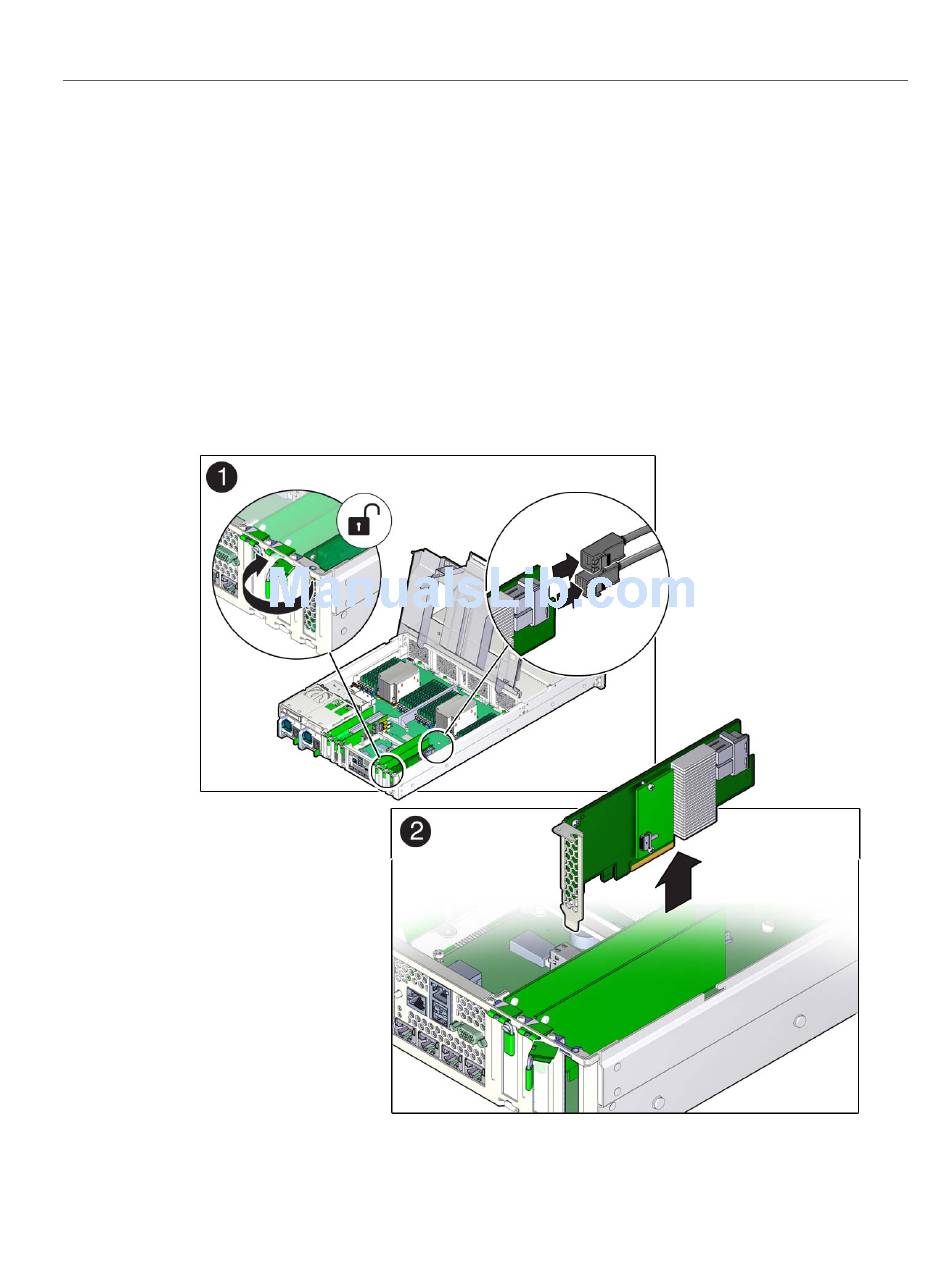

FIGURE 34
118 Oracle Server X5-2L Service Manual • May 2015
116.
Removing the PCIe Card
