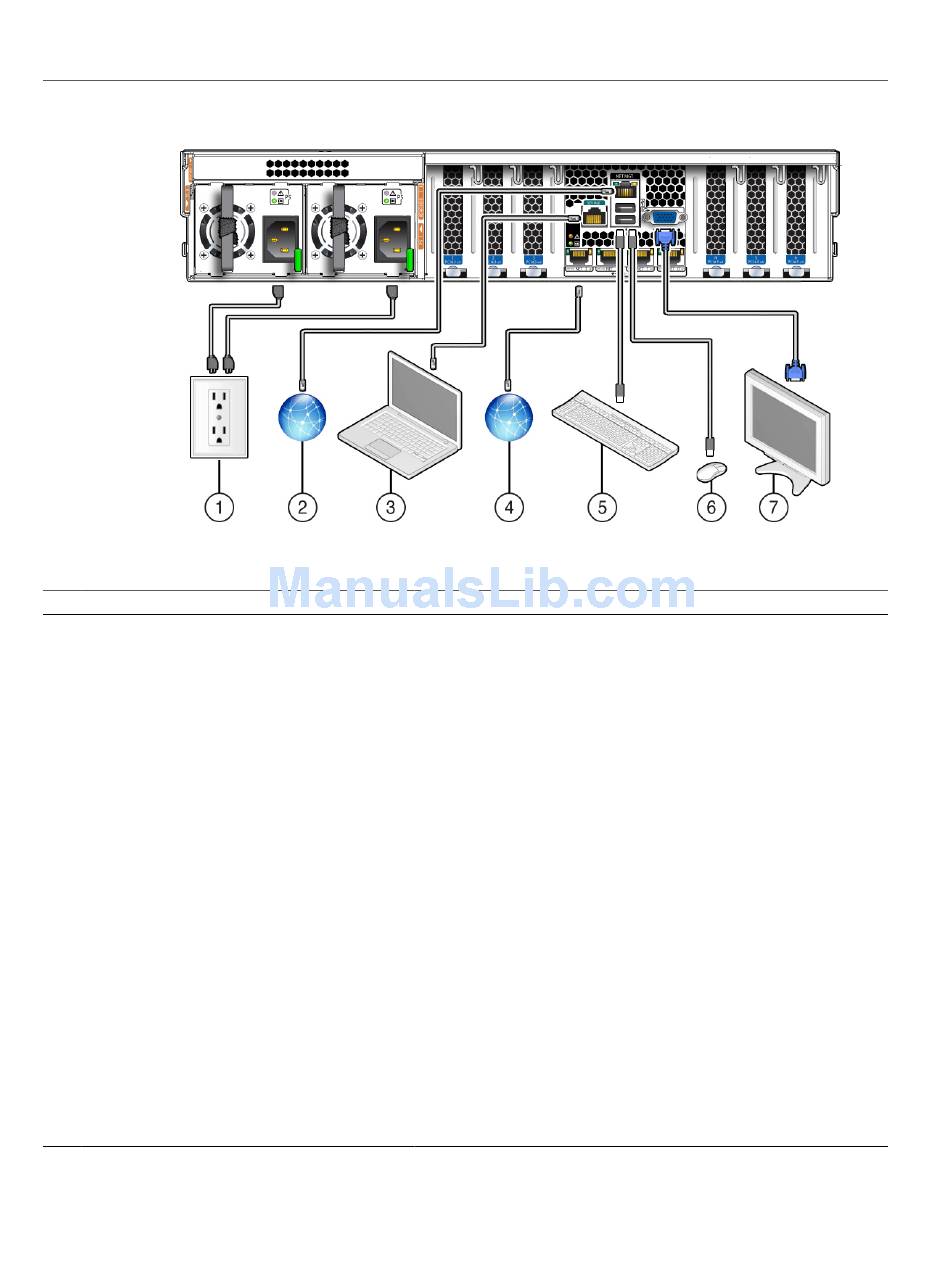

No. Cable Port or Expansion Slot
1 Power supply 0 input power
Power supply 1 input power
2 Network management port (NET MGT)
3 Serial management port (SER MGT)
4 Ethernet ports (NET 3, NET 2, NET 1, NET 0)
5, 6 USB ports (USB 0, USB 1)
Description
The server has two power supply connectors, one for each power supply.
Do not attach power cables to the power supplies until you have finished
connecting the data cables to the server. The server goes into standby power
mode, and the Oracle ILOM service processor initializes when the AC
power cables are connected to the power source. System messages might
be lost after 60 seconds if the server is not connected to a terminal, PC, or
workstation.
Note - Oracle ILOM will signal a fault on any installed power supply that
is not connected to an AC power source, since it might indicate a loss of
redundancy.
The service processor NET MGT port is the optional connection to the
Oracle ILOM service processor. The NET MGT port is configured by default
to use Dynamic Host Configuration Protocol (DHCP). The service processor
NET MGT port uses an RJ-45 cable for a 10/100/1000BASE-T connection.
The service processor SER MGT port uses an RJ-45 cable and is the default
connection to the Oracle ILOM service processor. This port supports local
connections to the server and only recognizes Oracle ILOM command-line
interface (CLI) commands. Typically you connect a terminal or terminal
emulator to this port.
Note - This port does not support network connections.
The four 10-Gigabit Ethernet ports enable you to connect the system to the
network.
Ethernet ports NET2 and NET3 are nonfunctional in single-processor
Note -
systems.
The two USB ports support hot-plugging. You can connect and disconnect
USB cables and peripheral devices while the server is running without
affecting system operations.
Attach Devices to the Server
