Remove an HDD or SSD Storage Drive
7
Storage drive 6 (HDD/SSD)
8
Storage drive 7 (HDD/SSD)
9
Optional SATA DVD drive
FIGURE 13
Figure Legend
1
Storage drive 0 (HDD/SSD)
2
Storage drive 4 (HDD/SSD)
3
Storage drive 8 (HDD/SSD)
4
Storage drive 1 (HDD/SSD)
5
Storage drive 5 (HDD/SSD)
6
Storage drive 9 (HDD/SSD)
7
Storage drive 2 (HDD/SSD)
8
Storage drive 6 (HDD/SSD)
9
Storage drive 10 (HDD/SSD)
10
Storage drive 3 (HDD/SSD)
11
Storage drive 7 (HDD/SSD)
12
Storage drive 11 (HDD/SSD)
74 Oracle Server X5-2L Service Manual • May 2015

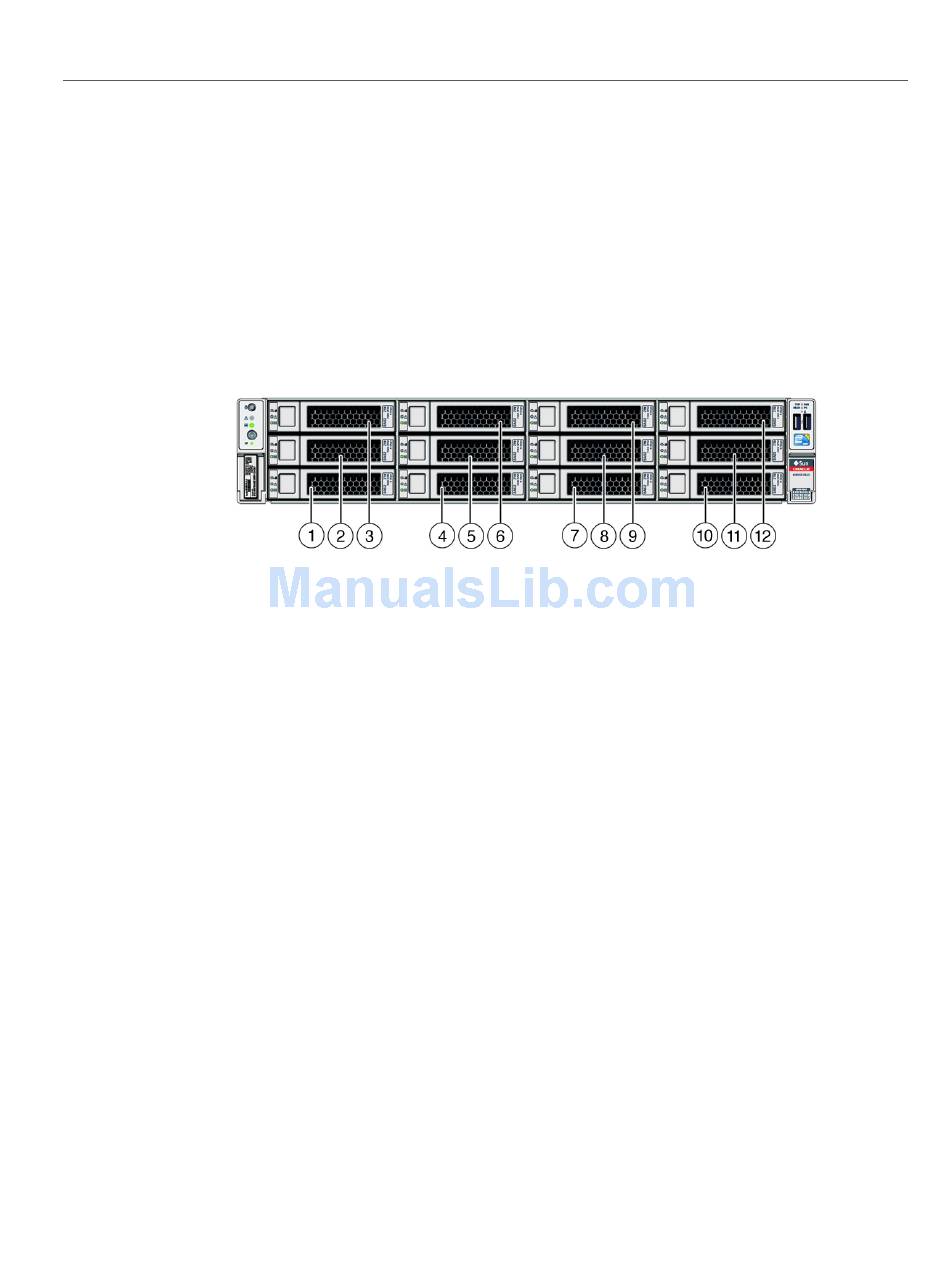

Drive Location and Numbering on a Server With Twelve 3.5-Inch Drives
