Removing and Replacing an HDD or SSD Storage
Drive
The following sections describe how to remove and replace an HDD or SSD storage drive.
"Remove an HDD or SSD Storage Drive" on page 73
■
"Install an HDD or SSD Storage Drive" on page 78
■
Remove an HDD or SSD Storage Drive
1. Prepare the system for the drive removal.
Refer to "Take Antistatic Measures" on page
2. Identify the location of the drive that you want to remove.
The following illustrations show the location of the drives and the internal system software
designations for the drives. For information on storage drive status indicators (LEDs), refer to
"Storage and Boot Drive Indicators" on page

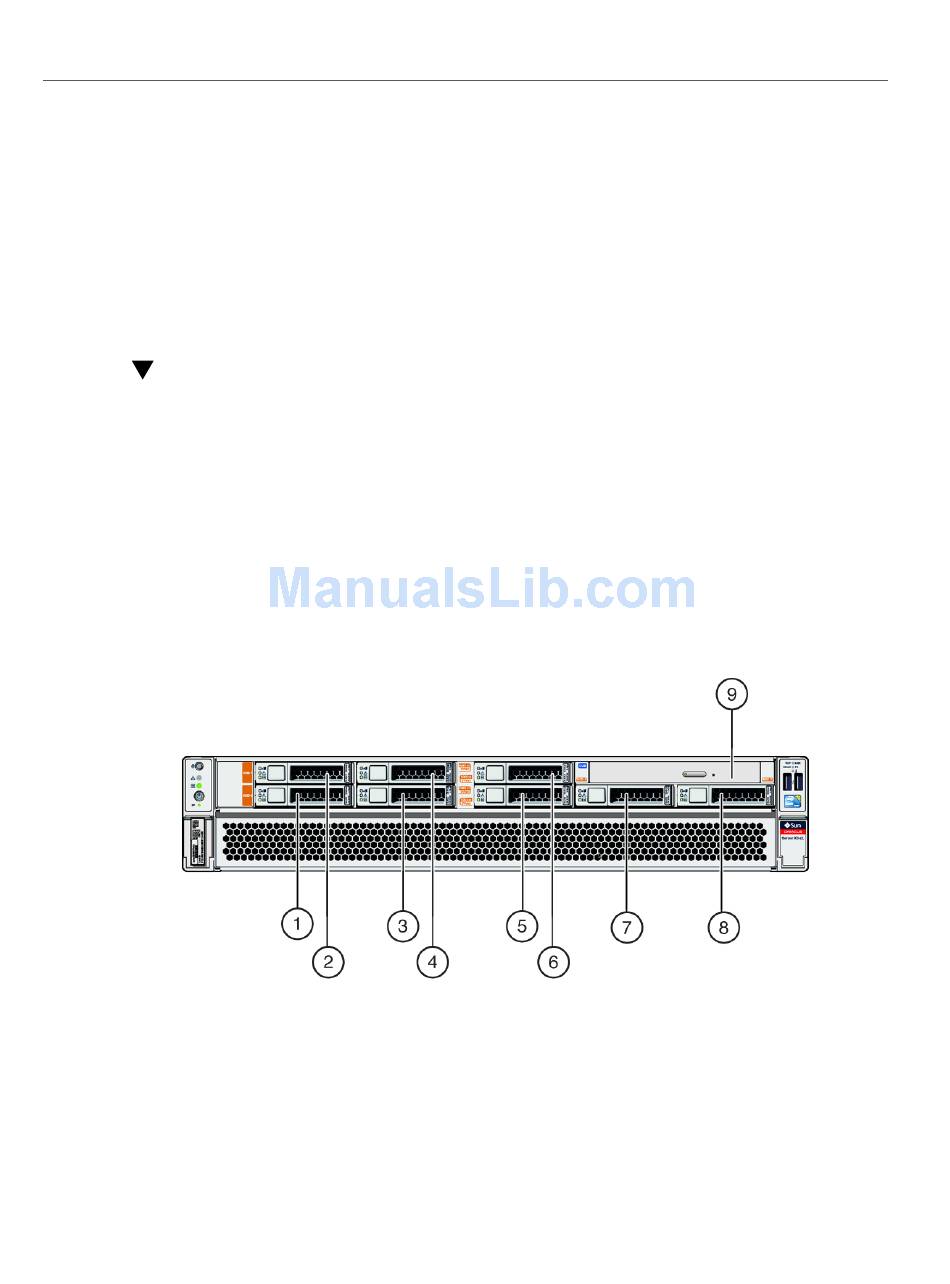

Drive Location and Numbering on a Server With Eight 2.5-Inch Drives
FIGURE 12
Figure Legend
1
Storage drive 0 (HDD/SSD)
2
Storage drive 1 (HDD/SSD)
3
Storage drive 2 (HDD/SSD/NVMe 0)
4
Storage drive 3 (HDD/SSD/NVMe 1)
5
Storage drive 4 (HDD/SSD/NVMe 2)
6
Storage drive 5 (HDD/SSD/NVMe 3)
Remove an HDD or SSD Storage Drive
64.
32.
Servicing CRUs That Do Not Require Server Power-Off 73
