Removing the Server Top Cover

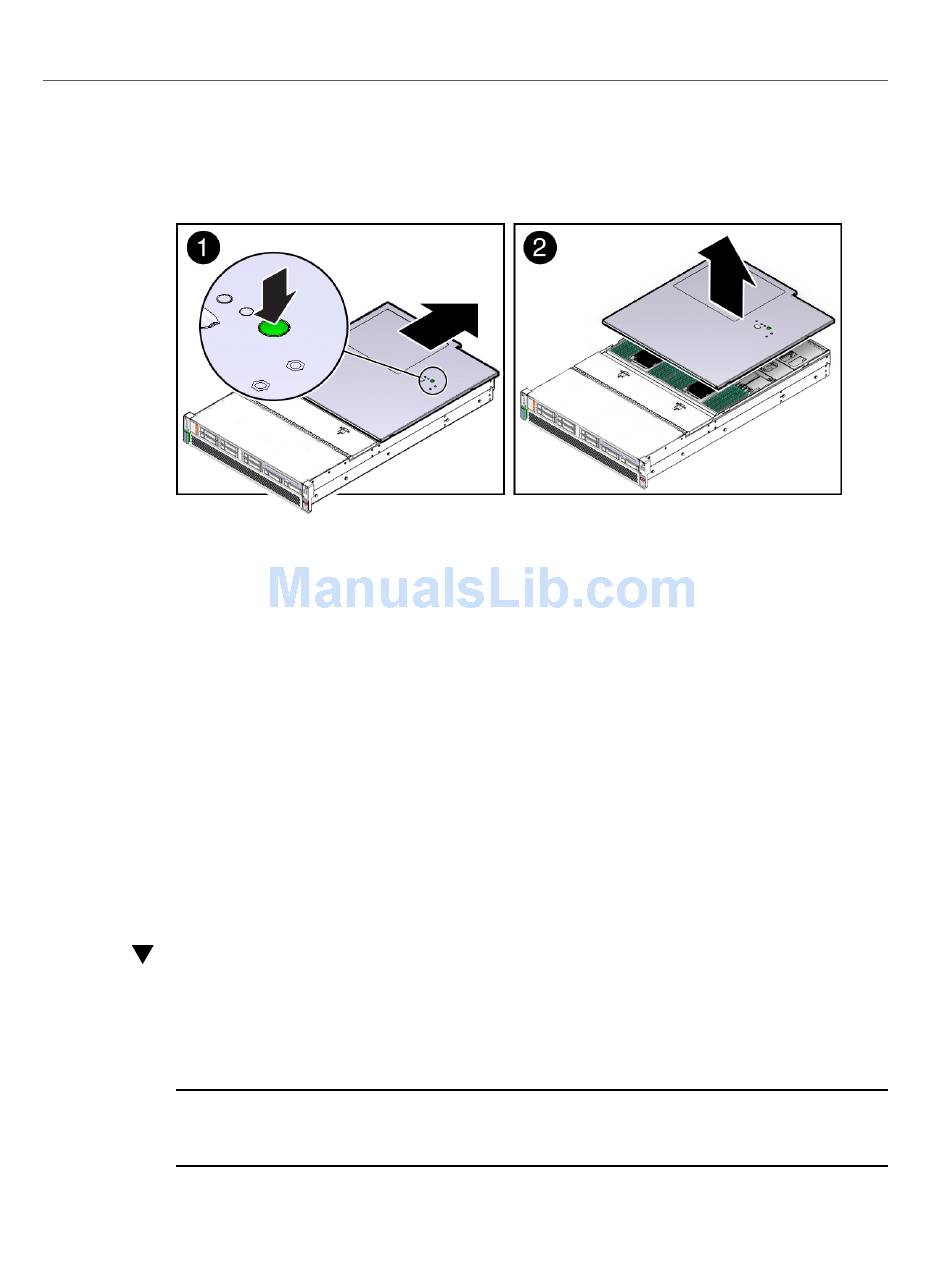

FIGURE   9
3.
While pressing the top cover release button, slide the cover toward the rear of
the server [2].
4.
If necessary, open the fan assembly door.
5.
Lift up and remove the top cover [2].
Related Information
"Take Antistatic Measures" on page 64
"Remove the Fan Assembly Door From the Server" on page 65
"Install the Server Top Cover" on page 226

Remove the Fan Assembly Door From the Server

Before you service the server's storage drive backplane, you should first remove the server's
front fan assembly door.
This procedure is only required for systems configured with twelve 3.5-inch storage
Note -
drives or twenty-four 2.5-inch storage drives. If your system is configured with eight 2.5-inch
storage drives, see
"Remove the Disk Cage Cover From the Server" on page
Remove the Fan Assembly Door From the Server
Preparing for Service
67.
65
