Remove the Storage Drive Backplane for Rear-Mounted Storage Drives

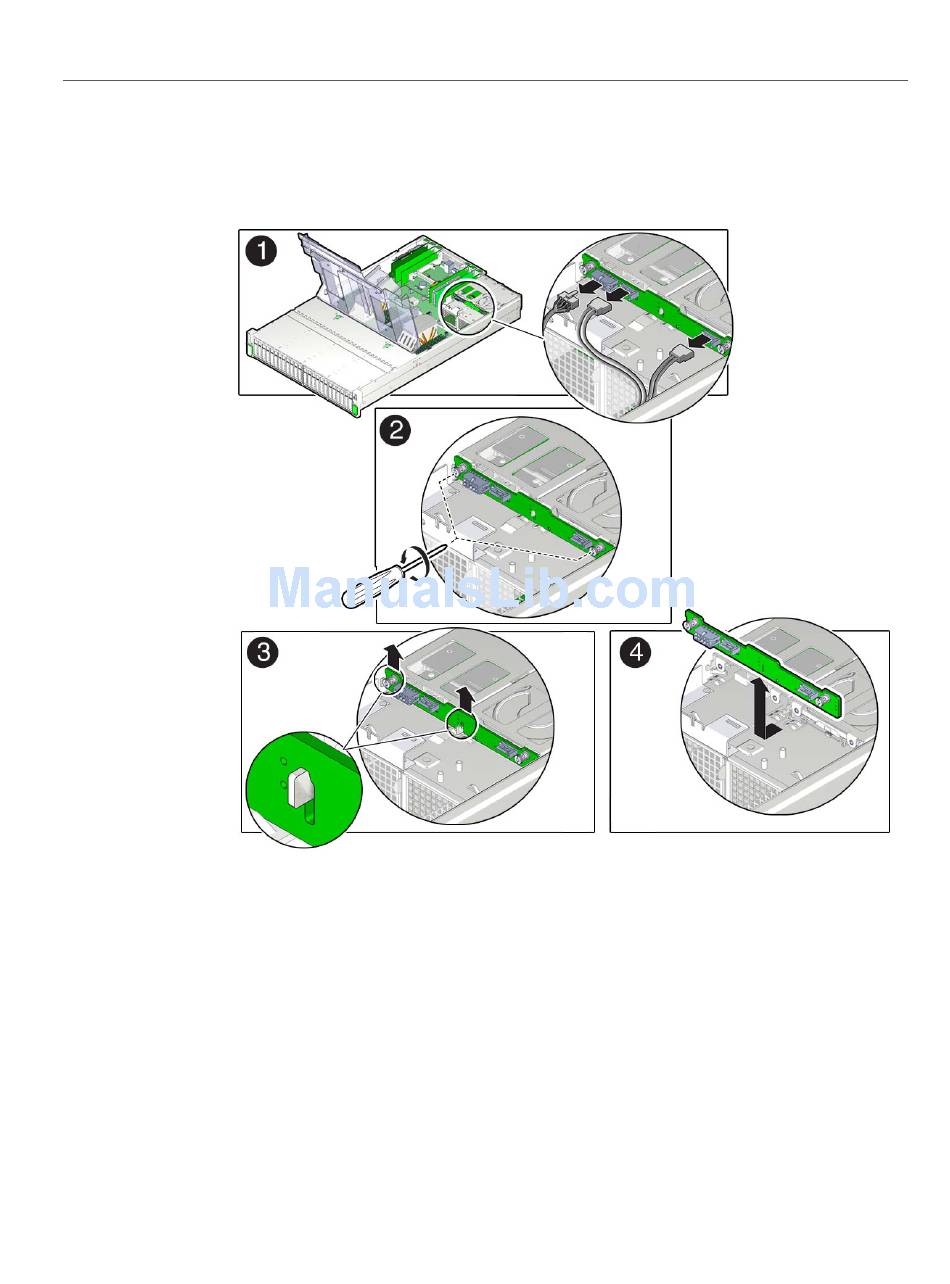

FIGURE 53
4.
Using a No. 2 Phillips screwdriver, loosen the two screws that secure the storage
drive backplane to the storage drive cage [2].
5.
Lift the storage drive backplane up to release it from the two standoff hooks [3].
6.
Pull the storage drive backplane away from the standoff hooks and out of the
chassis [4].
7.
Place the storage drive backplane on an antistatic mat.
164
Oracle Server X5-2L Service Manual • May 2015
