Oracle X5-2L Service Manual page 185

Installing the Oracle Storage 12 Gb/s SAS PCIe RAID HBA Card

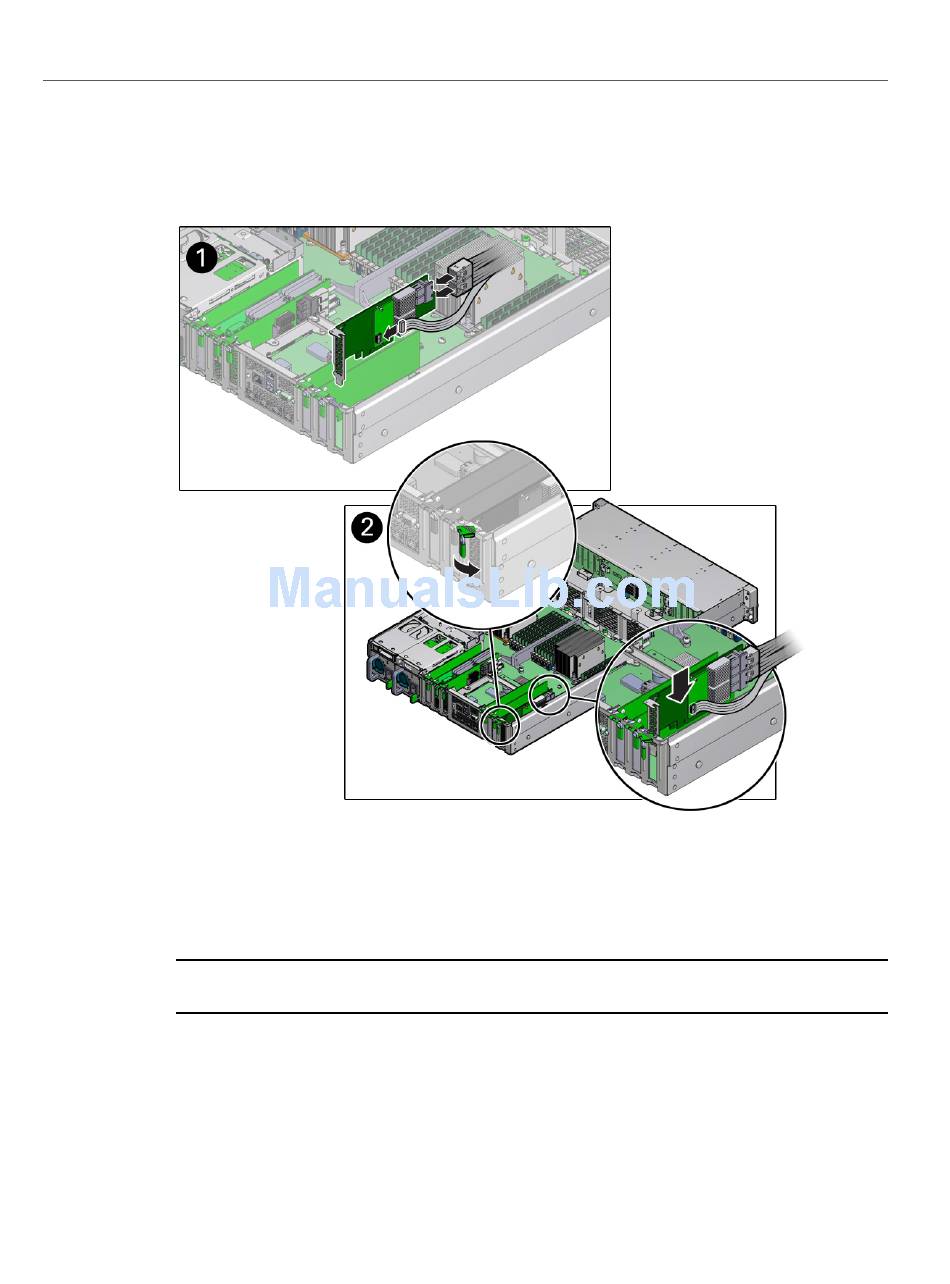

FIGURE 61
Insert the Oracle Storage 12 Gb/s SAS PCIe RAID HBA card into PCIe slot 6, and
4.
rotate the PCIe locking mechanism to secure the PCIe HBA card in place [2].
PCIe slot 6 is the primary slot for the Oracle Storage 12 Gb/s SAS PCIe RAID HBA
Note -
card. The card is required for controlling and managing the SAS storage drives.
5. Install the super capacitor in the chassis.
a. Lower the air baffle to the installed position.
b. Apply a recloseable fastener to the underside of the super capacitor.
Install the Oracle Storage 12 Gb/s SAS PCIe RAID HBA Card
Servicing FRUs 185
