Install the Fan Assembly Door

Install the Fan Assembly Door
Note -
inch storage drives or twenty-four 2.5-inch storage drives. If your system is configured with
eight 2.5-inch drives, see

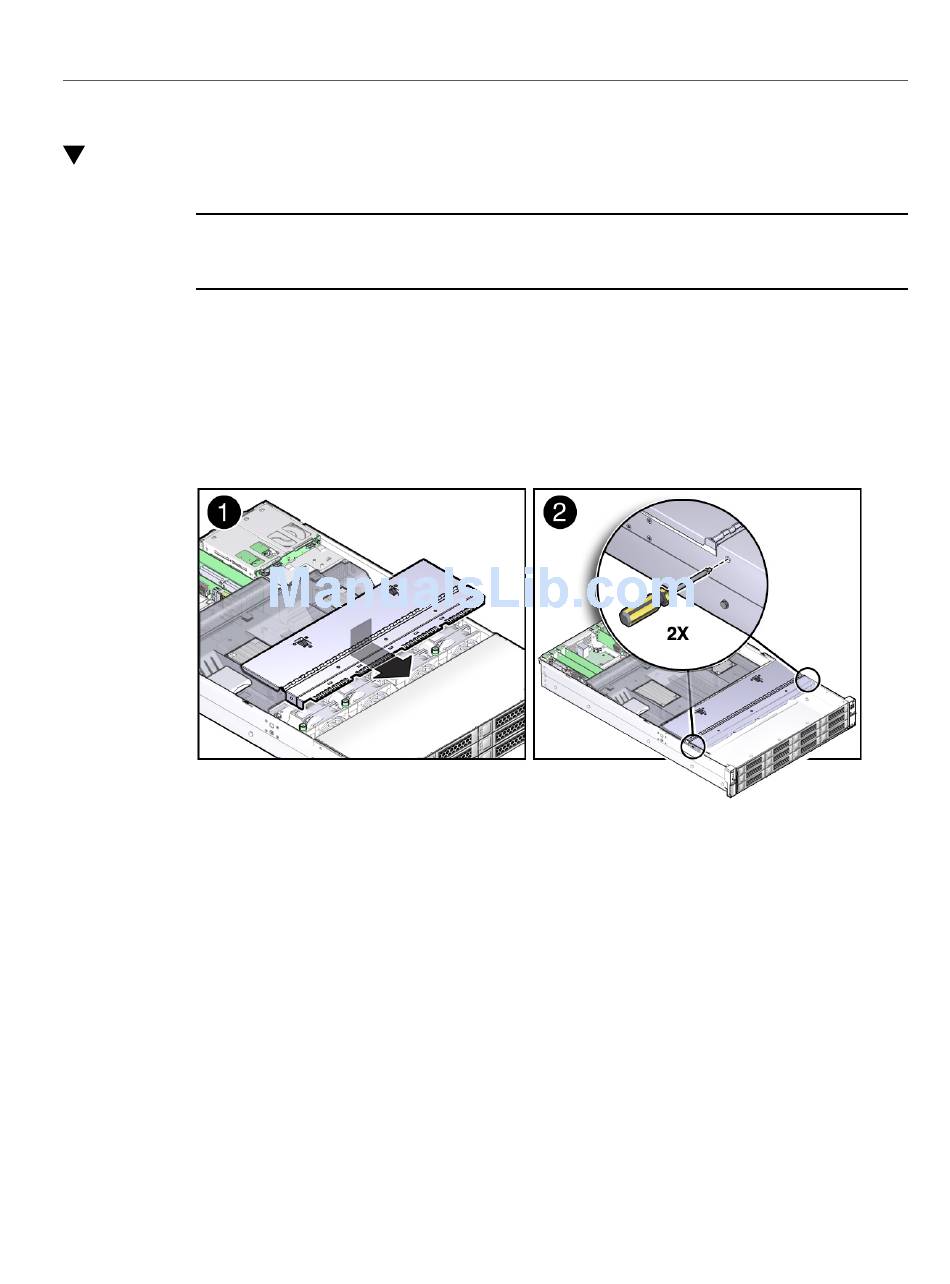

1. Place the fan assembly door on the chassis and slightly over the fan assembly.
Slide the fan assembly door forward and under the lip of the forward top cover
2.
until it latches into place [1].
FIGURE 88
3. Use a No. 2 Phillips screwdriver to install and secure the fan assembly door [2].
■ If your system is configured with twelve 3.5-inch storage drives, install and
tighten the two screws on each side of the chassis and the three screws on
top of the chassis.
■ If your system is configured with twenty-four 2.5-inch storage drives, install
and tighten the two screws on each side of the chassis.
Related Information
"Remove the Fan Assembly Door From the Server" on page 65
■
"Remove the Server Top Cover" on page 64
■
228 Oracle Server X5-2L Service Manual • May 2015
The procedures in this section should be used for systems configured with twelve 3.5-
"Install the Disk Cage Cover" on page
Installing the Fan Assembly Door
229.
