Access BIOS Setup Utility Menus
Connect to the server using the Oracle ILOM Remote System Console Plus application.
■
1. Reset or power on the server.
For example, to reset the server:
From the local server, press the Power button on the front panel of the server to power off
■
the server, and then press the Power button again to power on the server.
From the Oracle ILOM web interface, click Host Management → Power Control and
■
select Reset from the Select Action list.
From the Oracle ILOM CLI, type
■
The power-on self-test (POST) sequence begins.
2. To enter the BIOS Setup Utility, press the F2 key (Ctrl+E from a serial connection)
when prompted and while the BIOS is running the power-on self-tests (POST).

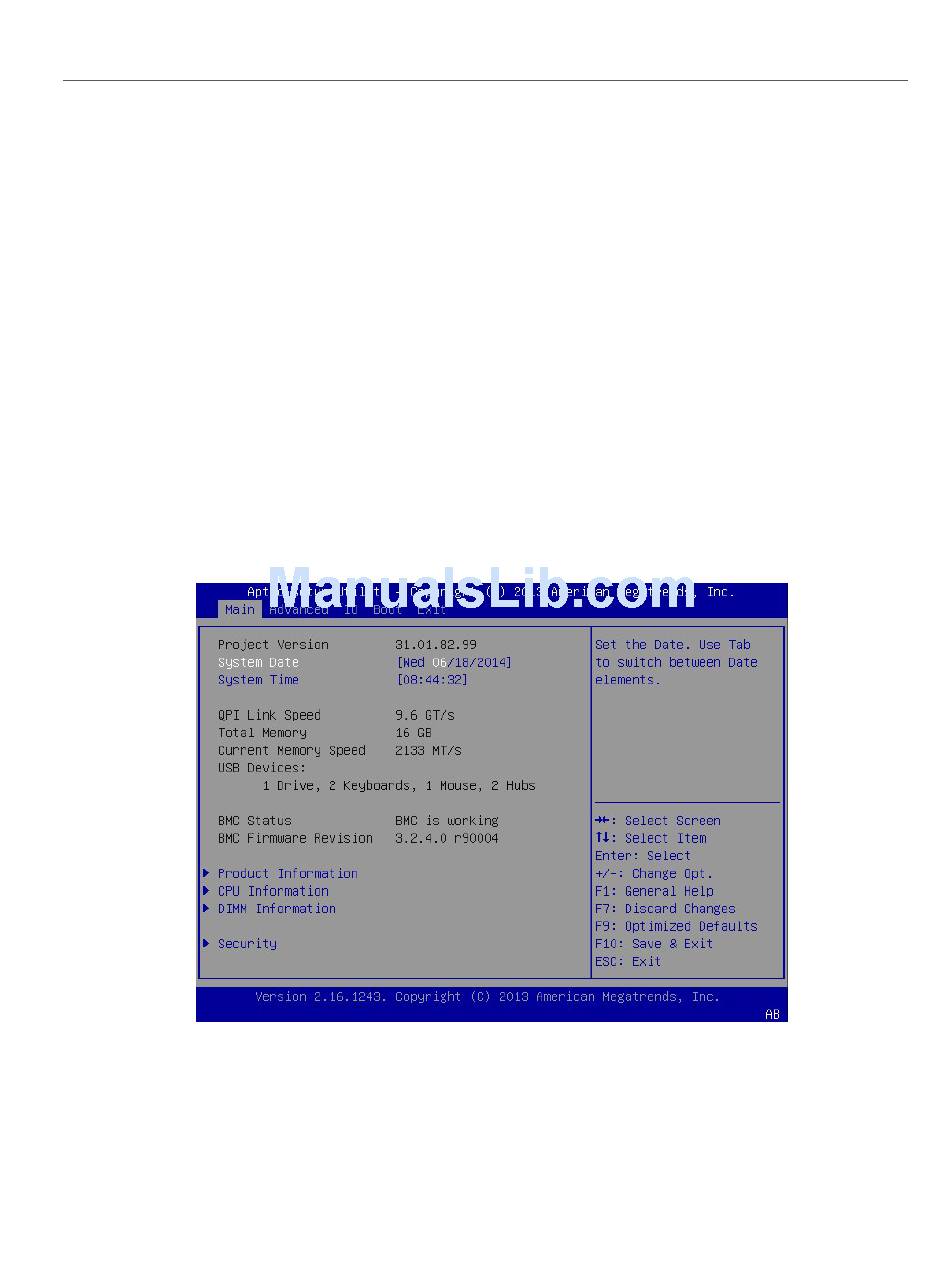

The BIOS Setup Utility Main Menu screen appears.
Related Information
"BIOS Setup Utility Menus" on page 242
■
"BIOS Key Mappings" on page 243
■
"BIOS Setup Utility Menu Options"
■
244 Oracle Server X5-2L Service Manual • May 2015
reset /System
