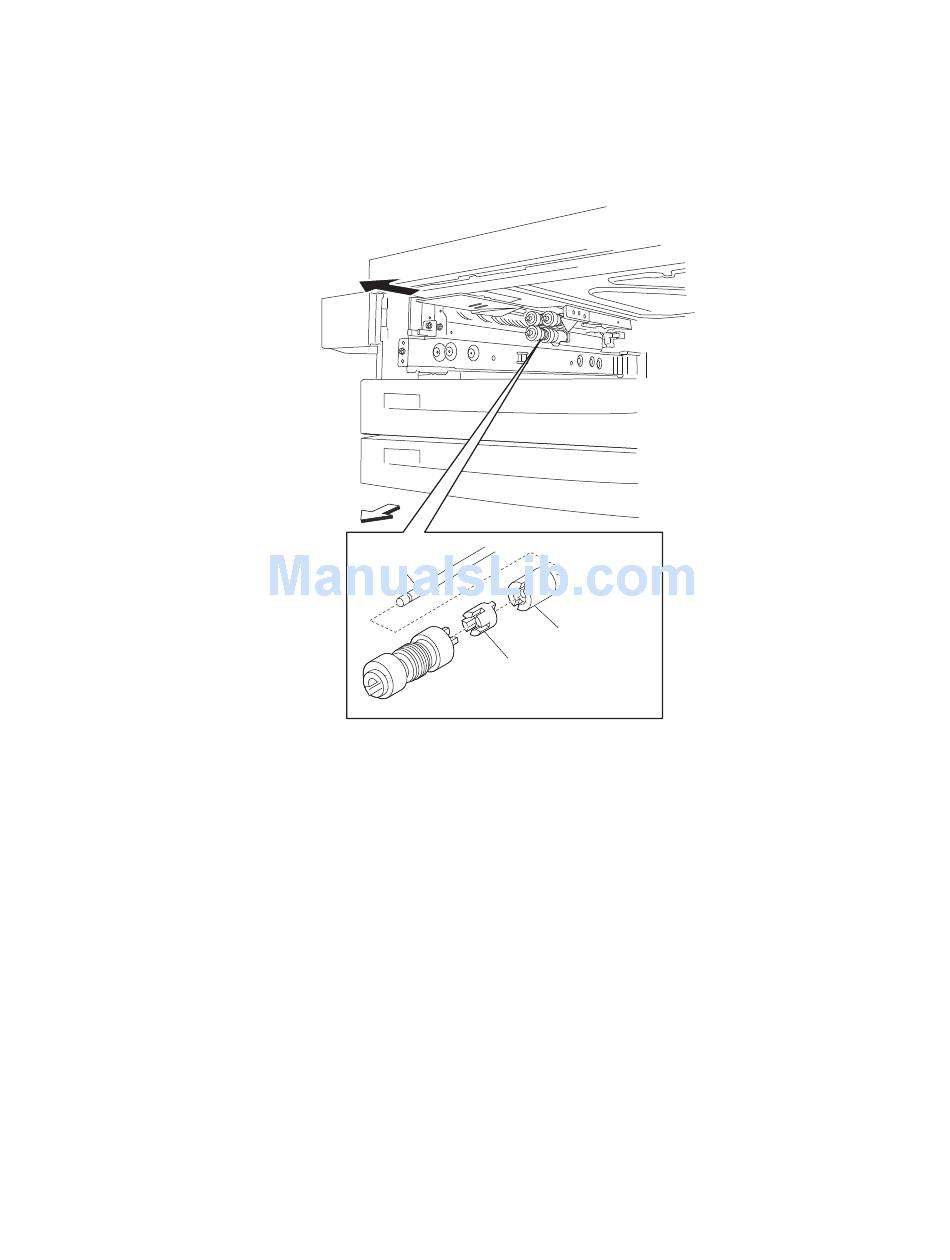

3X 500-sheet drawer (3TM)—separation roll one-way friction clutch removal
1. Remove the media tray assembly.
2. Remove the separation roll. See "2000-sheet dual input (TTM)–separation roll removal" on page 4-197.
3. Remove the separation roll spacer (A).
4. Remove the separation roll one-way friction clutch (B).
Front
B
C
A
4-225
Repair information
