Rear lower cooling fan assembly removal

1. Remove the rear cover assembly. See
2. Remove the rear upper cooling fan bracket assembly. See
removal" on page
3. Remove the developer / transfer roll HVPS card assembly. See
assembly removal" on page
4. Remove the lower printer engine card bracket assembly. See
removal" on page
5. Remove the 5V LVPS card bracket assembly. See

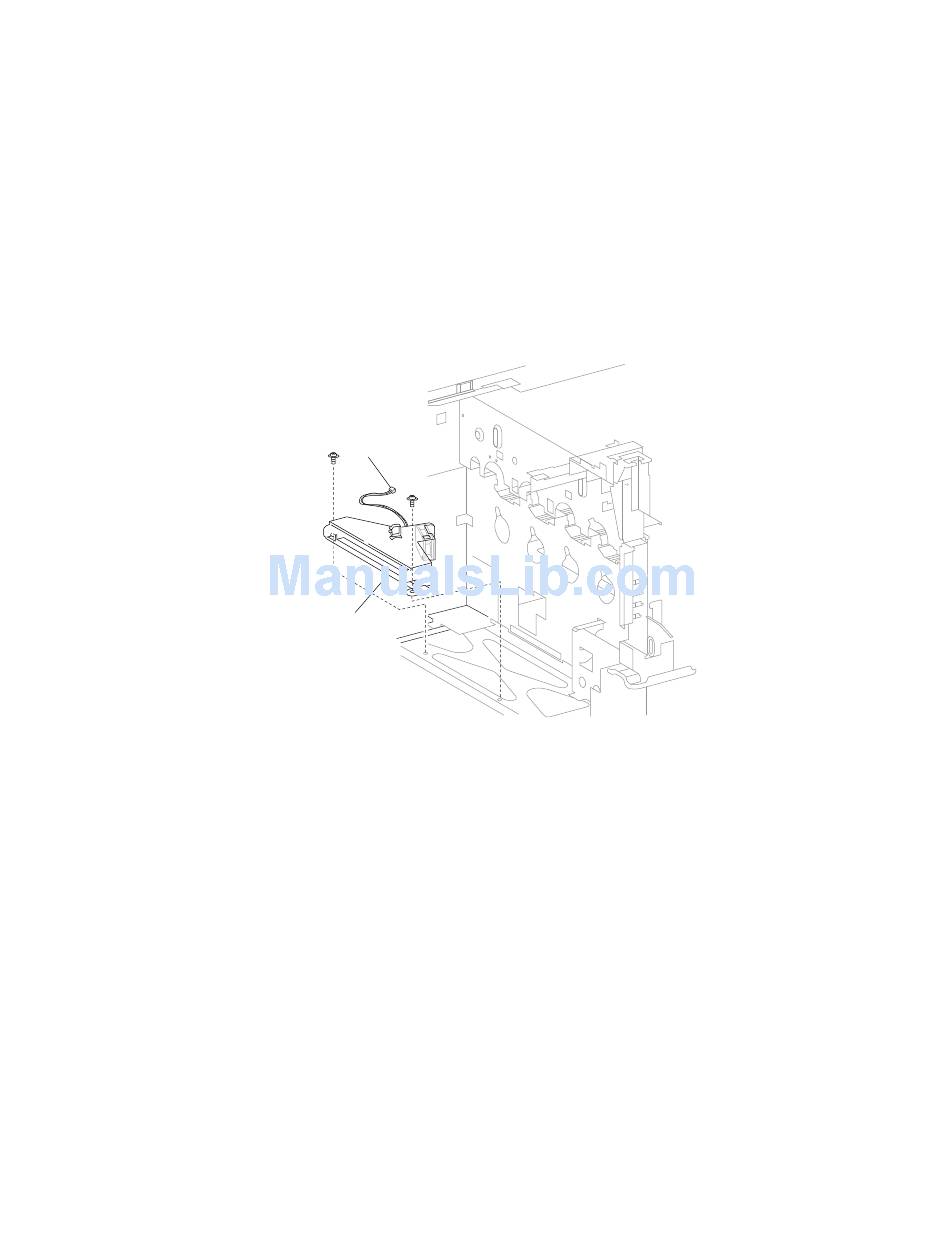

6. Disconnect the connector from the rear lower cooling fan assembly (A).
7. Release the harnesses from the clamp.
8. Remove the two screws securing the rear lower cooling fan assembly (A) to the machine.
9. Remove the rear lower cooling fan assembly (A).
"Rear cover assembly removal" on page
4-102.
4-103.
4-79.
Connector
A
"Rear upper cooling fan bracket assembly
"Developer / transfer roll HVPS card
"Lower printer engine card bracket assembly
"5V LVPS card bracket assembly removal" on page
7510
4-5.
4-86.
4-89
Repair information
