6. Remove the main power switch actuator (A).

CMYK toner add motor assembly removal

1. Remove the printer front door assembly. See
2. Remove the front left cover. See
3. Remove the waste toner cartridge cover. See
4. Remove the waste toner cartridge sensor assembly. See
on page 4-39.
5. Remove the inner cover. See
6. Remove the three CMY toner add assemblies. See
7. Remove the K toner add assembly. See
8. Remove the rear cover assembly. See
9. Remove the right cover assembly. See
10. Remove the top cover assembly. See
11. Remove the main power switch actuator. See

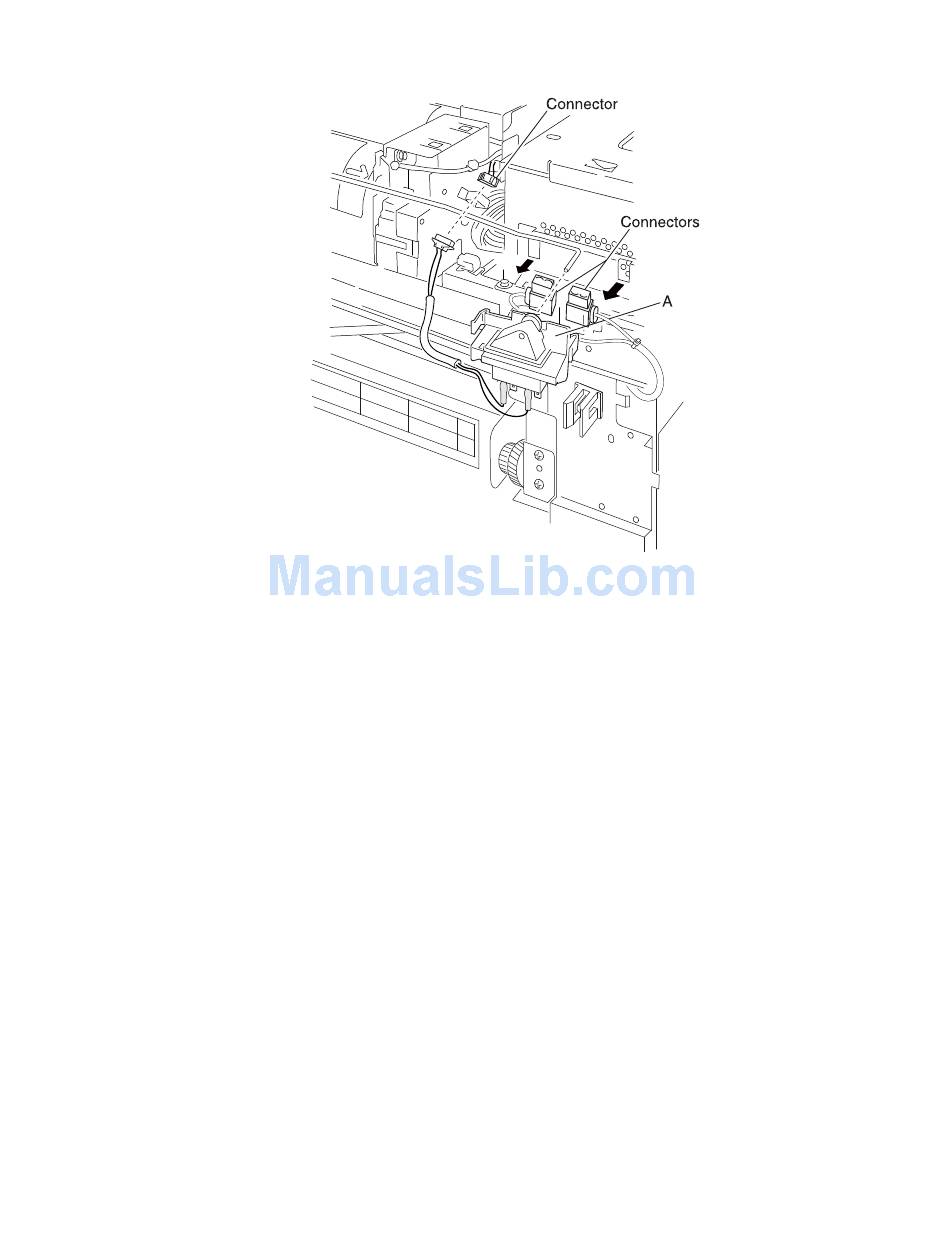

12. Remove the two screws securing the CMYK toner add motor assembly (A) to the machine.
13. Lift the CMYK toner add motor assembly (A) slightly, and pull it towards the front of the machine.
14. Release the harnesses from the clamps.
15. Disconnect the connector from the CMYK toner add motor assembly (A).
16. Release the tabs securing the four sensors (toner RFID) to the assembly.
17. Remove the four sensors (toner RFID).
