Developer / transfer roll HVPS card assembly removal

1. Remove the rear cover assembly. See
2. Remove the rear upper cooling fan bracket assembly. See
removal" on page

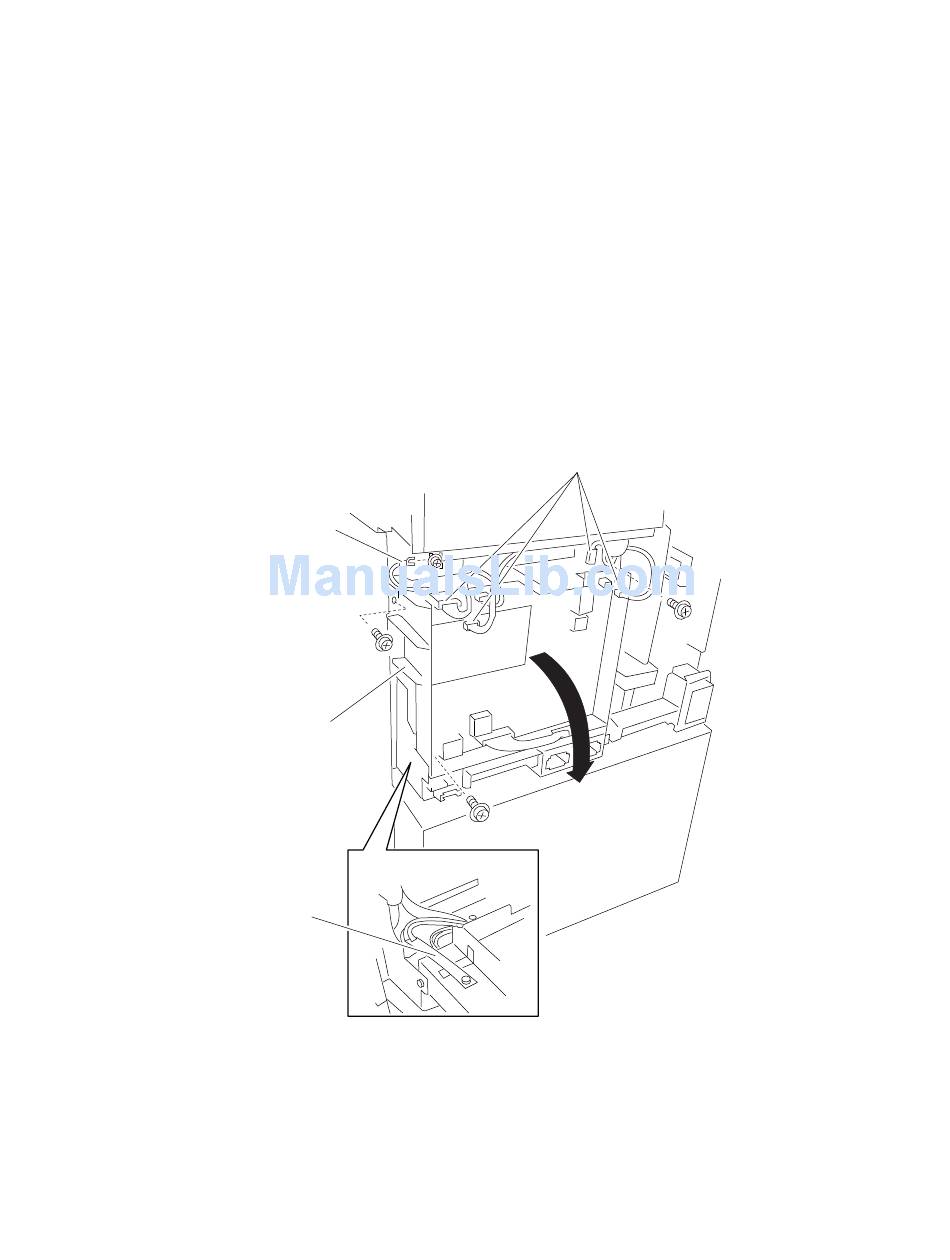

3. Loosen the screw securing the ground wire (A) to the machine.
4. Remove the ground wire (A).
Warning: The connector P572 and P502 are permanently attached to the developer / transfer roll HVPS card
assembly (B); do not attempt to remove these connectors, or damage will occur.
5. Disconnect the five connectors from the developer / transfer roll HVPS card assembly (B).
6. Remove the three screws securing the developer / transfer roll HVPS card assembly (B) to the machine.
Note: The developer / transfer roll HVPS card assembly (B) can be supported by the plastic support (C) by
attaching it to the hook on the machine.
7. Lower the developer / transfer roll HVPS card assembly (B).
8. Remove the connector from the developer / transfer roll HVPS card assembly (B).
9. Release the harnesses from the clamps.
10. Lift the right side of the developer / transfer roll HVPS card assembly up (B).
11. Remove the developer / transfer roll HVPS card assembly (B).
"Rear cover assembly removal" on page
4-102.
A
B
C
"Rear upper cooling fan bracket assembly
Connectors
7510
4-5.
4-103
Repair information
