MPF / transport drive motor assembly removal

1. Remove the rear cover assembly. See
2. Remove the rear upper cooling fan bracket assembly. See
removal" on page
3. Remove the developer / transfer roll HVPS card assembly. See
assembly removal" on page
4. Remove the rear left middle cover. See
5. Remove the 24V LVPS card bracket assembly. See
page 4-85.
6. Remove the CMYK transfer HVPS card assembly. See
page 4-94.

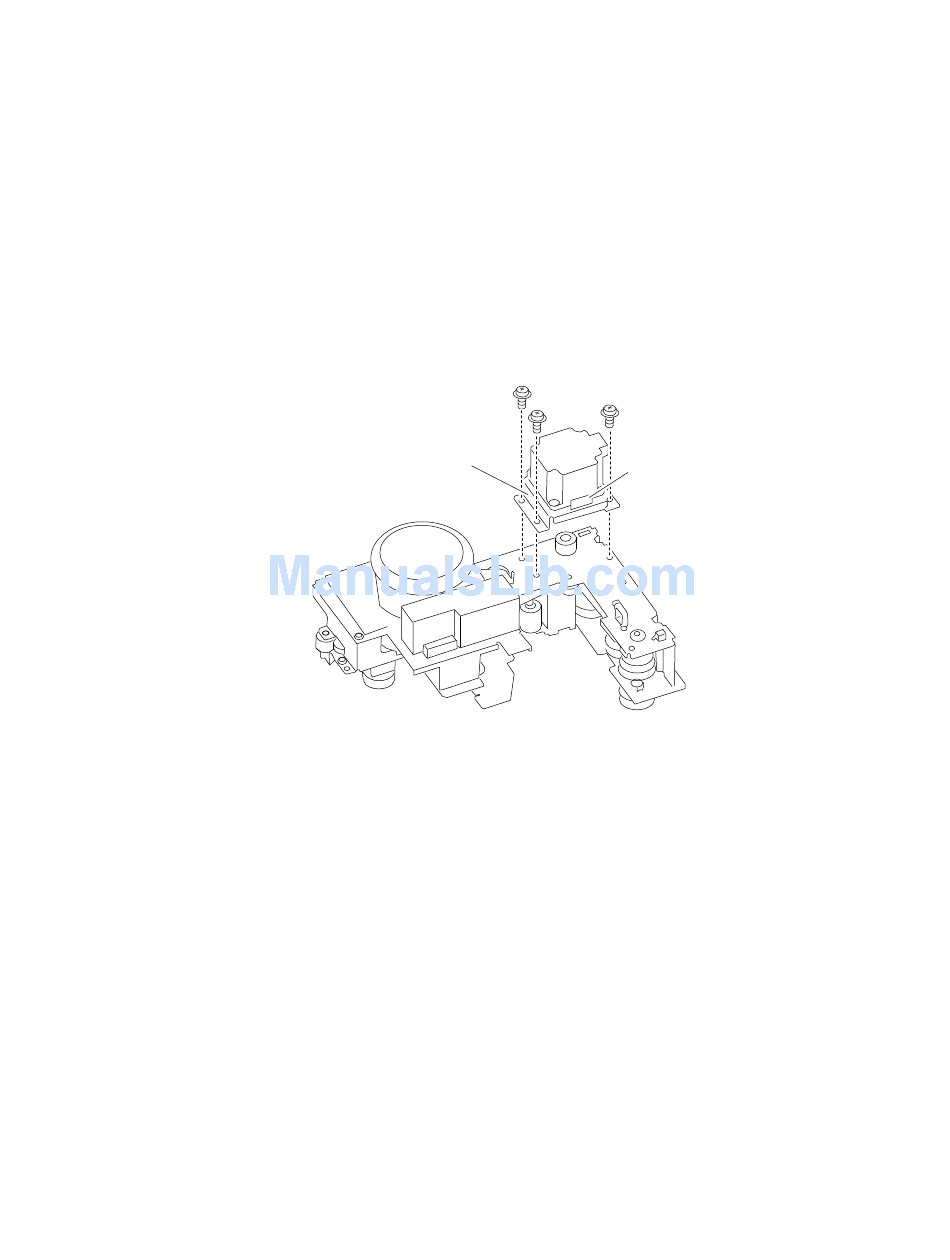

7. Disconnect the connector from the MPF transport drive motor assembly (A).
8. Remove the three screws securing the MPF/transport drive motor assembly (A) to the machine.
9. Remove the MPF/transport drive motor assembly (A).
"Rear cover assembly removal" on page
4-102.
4-103.
"Rear left middle cover removal" on page
A
"Rear upper cooling fan bracket assembly
"Developer / transfer roll HVPS card
"24V LVPS card bracket assembly removal" on
"CMYK transfer HVPS card assembly removal" on
Connector
7510
4-5.
4-6.
4-105
Repair information
