2000-sheet dual input (TTM)—one-way 22 tooth removal
1. Remove the media tray assembly.
2. Remove the feed roll. See
"2000-sheet dual input (TTM)–feed roll removal" on page
4-193.
3. Remove the feed roll one-way clutch. See
"2000-sheet dual input (TTM)–feed roll one-way clutch removal"
on page
4-194.

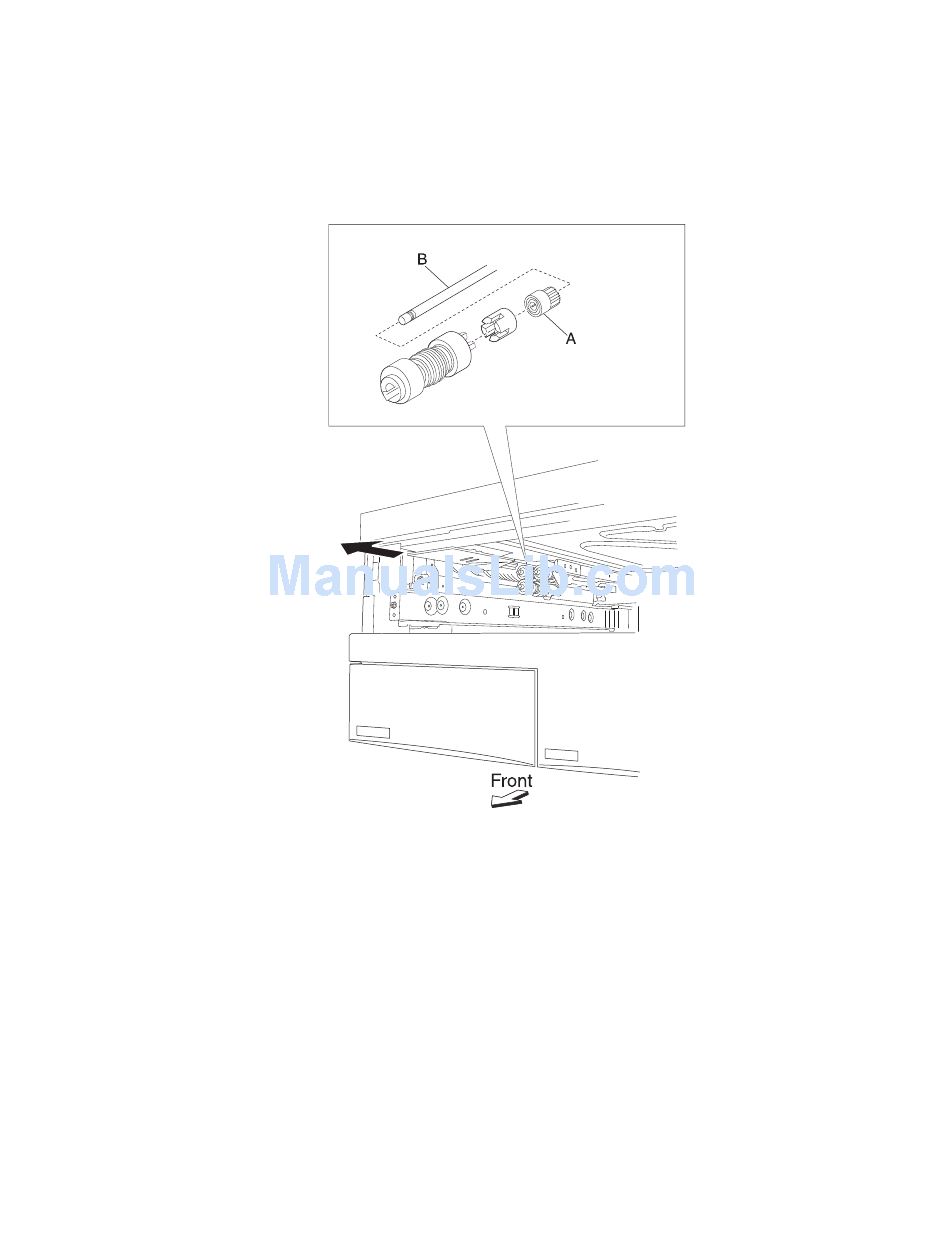

4. Remove the feed roll one-way gear 22 tooth (A).
4-195
Repair information
