CMY developer drive motor assembly removal

1. Remove the rear cover assembly. See
2. Remove the rear upper cooling fan bracket assembly. See
removal" on page
3. Remove the developer / transfer roll HVPS card assembly. See
removal" on page
4. Remove the lower printer engine card bracket assembly. See
removal" on page
5. Remove the 5V LVPS card bracket assembly. See

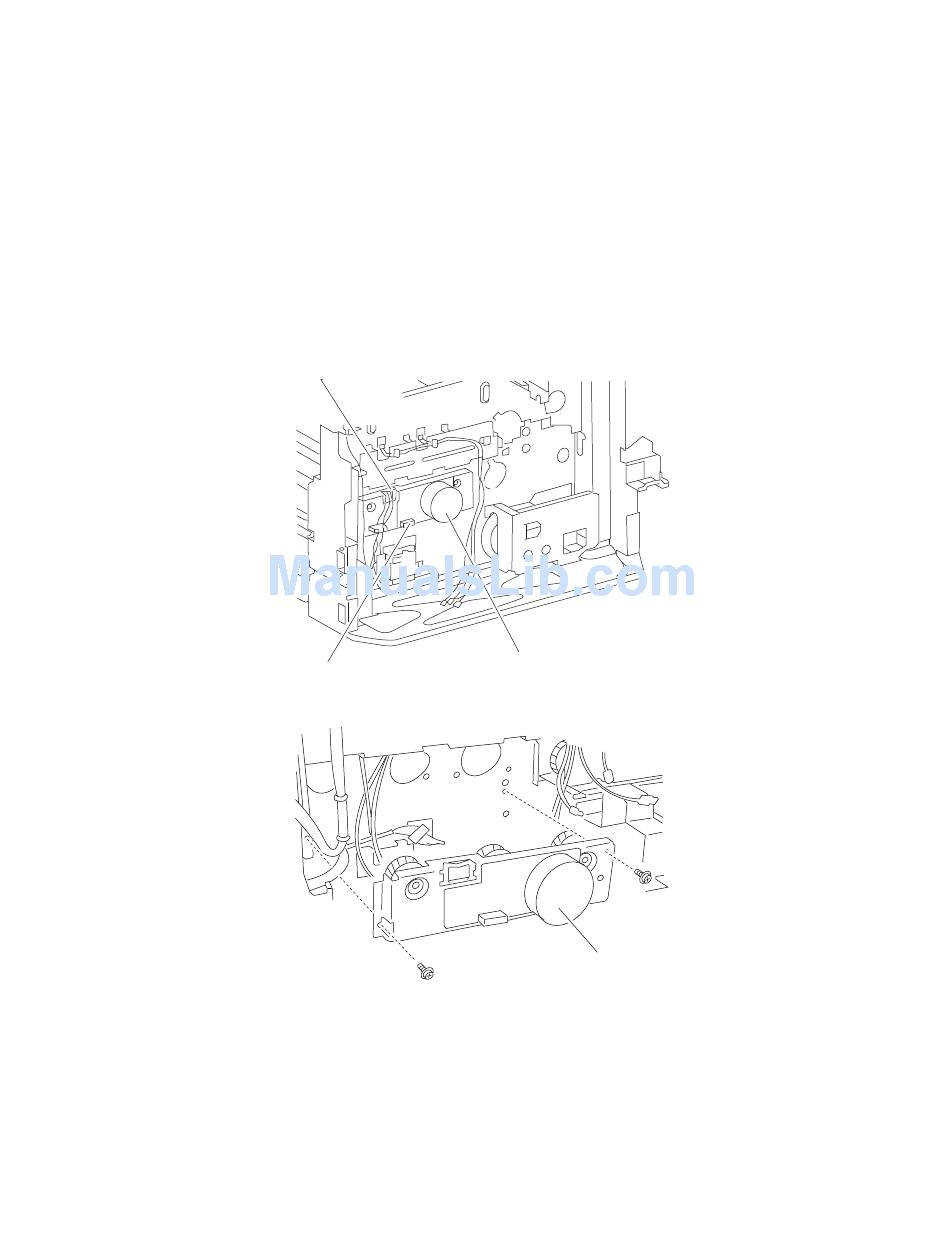

6. Disconnect the connector from the CMY developer drive motor assembly (A).
7. Release the harnesses from the clamps.
8. Remove the two screws securing the CMY developer drive motor assembly (A) to the machine.
9. Remove the CMY developer drive motor assembly (A).
4-90
Service Manual
"Rear cover assembly removal" on page
4-102.
4-103.
4-79.
Clamp
Connector
"Rear upper cooling fan bracket assembly
"Developer / transfer roll HVPS card assembly
"Lower printer engine card bracket assembly
"5V LVPS card bracket assembly removal" on page
A
A
4-5.
4-86.
