Media transport path

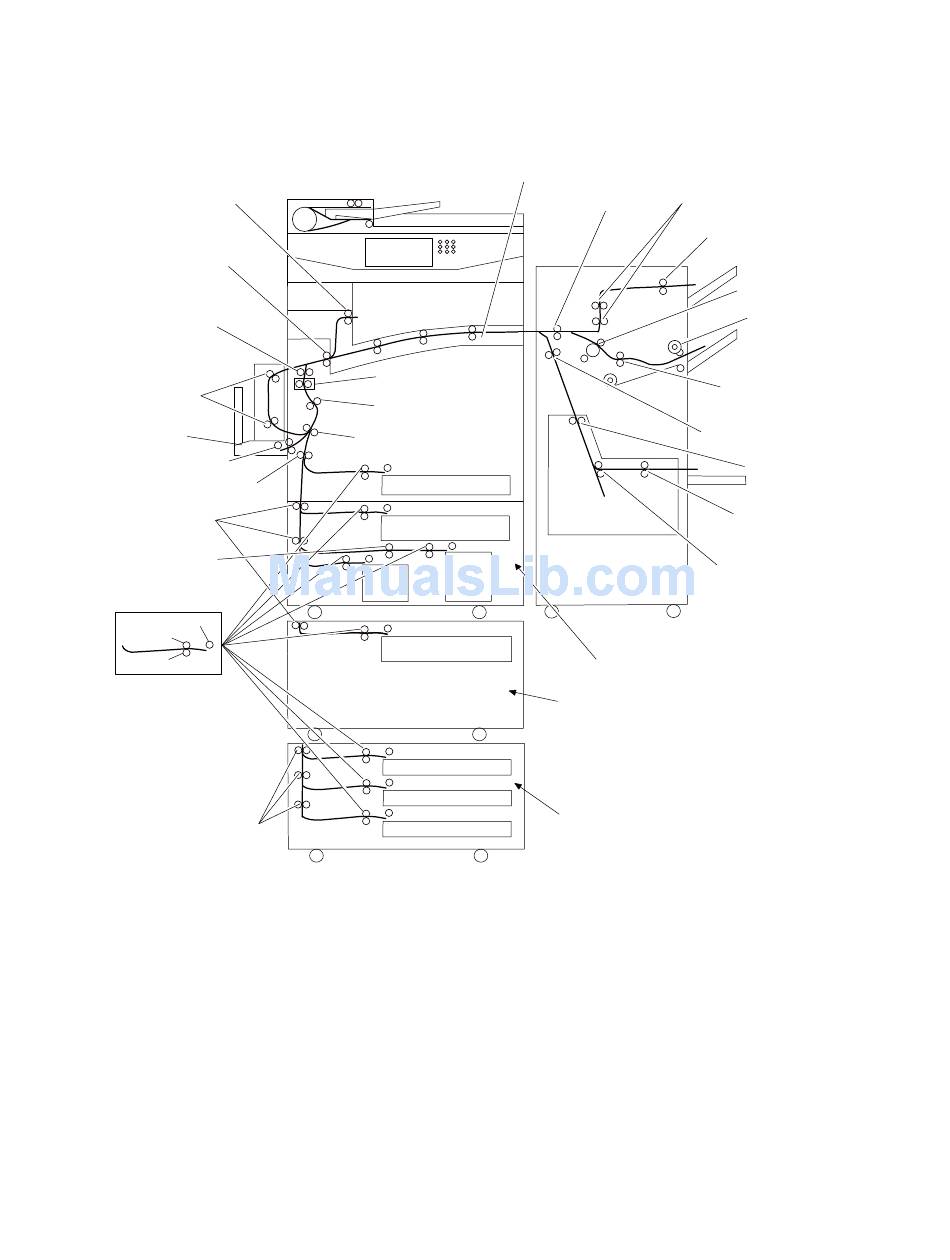

The following is a cross section of the printer and the tandem tray module, showing the main components
directly associated with the media path and transport.
Bridge unit bin exit
roll assembly
Standard media exit
roll assembly
Fuser exit
roll assembly
Duplex media
transport roll
assembly
MPF
MPF pick roll
Media transport roll assembly
Tray module transport
roll assembly
Tray 4 transport roll assembly
Pick roll
Feed roll
Separation roll
Tray module transport
roll assembly

Functions of main components

When the TTM is installed under the printer, additional trays are available.

Media tray assembly

It is necessary to adjust the rear side guides in the media tray assembly to match the media size.

Rear media guide

The rear media guide can be adjusted to different media sizes by moving it to the front or rear. The guide comes
into contact with the rear edge of the media and holds it in position.
1-58
Service Manual
Bridge unit assembly
(included with finisher)
ADF and Scanner
Fuser
2nd transfer
roll assembly
Registration
roll assembly
Tray 1
Tray 2
Tray 4
Tray 3
Tray 2
Tray 2
Tray 3
Tray 4
Upper media
transport roll assembly
Finisher media entrance
roll assembly
Upper media exit
roll assembly
Booklet media
transport roll assembly
Booklet maker unit
(optional)
Finisher
(optional)
TTM
1TM (optional)
3TM (optional)
Buffer roll assembly
Media eject
roll assembly
Lower media exit
roll assembly
Booklet media
entrance roll assembly
Booklet media
exit roll assembly
Booklet folding
roll assembly
