Edition: June 8, 2009

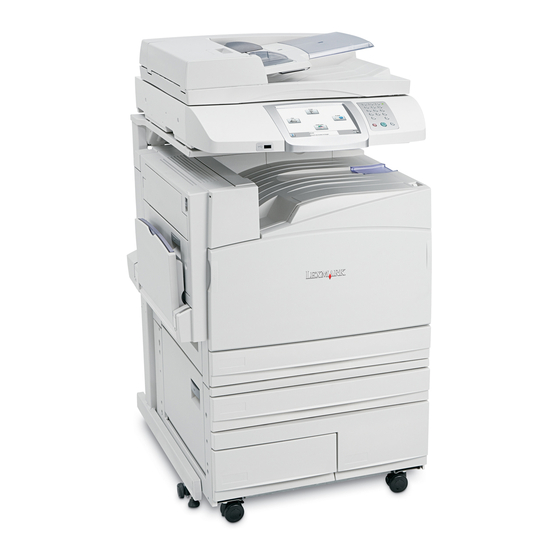

Lexmark™ X940e & X945e MFP

7510

• Table of contents

• Start diagnostics

• Safety and notices

• Trademarks

• Index

Lexmark and Lexmark with diamond design are

trademarks of Lexmark International, Inc., registered

in the United States and/or other countries.

Table of Contents

Advertisement

Table of Contents

Troubleshooting

Need help?

Need help?

Do you have a question about the X940e and is the answer not in the manual?

Questions and answers

Summary of Contents for Lexmark X940e

Page 1 Lexmark™ X940e & X945e MFP 7510 • Table of contents • Start diagnostics • Safety and notices • Trademarks • Index Lexmark and Lexmark with diamond design are trademarks of Lexmark International, Inc., registered in the United States and/or other countries.
Page 2 Lexmark and Lexmark with diamond design are trademarks of Lexmark International, Inc., registered in the United States and/or other countries. PCL® is a registered trademark of the Hewlett-Packard Company.
Page 3: Table Of Contents
7510 Table of contents Table of contents ............iii Notices and safety information .
Page 4 7510 Transfer belt steering motor ........... .1-13 2nd transfer roll assembly .
Page 5 7510 Auto density sensing ............1-33 Document scanning .
Page 6 7510 White level variation compensation ..........1-55 Black level variation compensation .
Page 7 7510 Functions of main components ..........1-74 Media tray assembly .
Page 8 7510 244.00 Sensor (tray 4 feed-out) late jam ..........2-61 244.01 Sensor (tray 3 feed-out) on jam (feeding from tray 4) .
Page 9 7510 845.01 CCD initialization (lamp on) error ......... . . 2-125 845.02 CCD initialization (lamp off) error .
Page 10 7510 924.01 Magenta toner RFID communication error ........2-161 924.02 Cyan toner RFID communication error .
Page 11 7510 <Color> toner cartridge nearly empty ..........2-197 <Color>...
Page 12 7510 Sensor Test (duplex) ............3-10 INPUT TRAY TESTS .
Page 13 7510 Panel Menus ..............3-40 PPDS Emulation .
Page 14 7510 2nd transfer roll retract cam assembly removal ........4-31 Sensor (2nd transfer roll retract HP) removal .
Page 15 7510 Transfer belt waste toner auger assembly removal ........4-96 K developer / transport drive motor assembly removal .
Page 16 7510 Switch (ADF left cover interlock) removal ......... .4-145 Sensor (ADF width APS 1) removal .
Page 17 7510 2000-sheet dual input (TTM)–switch (TTM left door interlock) removal ....4-201 2000-sheet dual input (TTM)–tray 3 lift gear assembly removal ..... . . 4-202 2000-sheet dual input (TTM)–tray 4 lift gear assembly removal .
Page 18 7510 1X 500-sheet drawer (1TM)–switch (tray module left door interlock) removal ... .4-251 1X 500-sheet drawer (1TM)–tray module drive motor assembly removal ....4-252 1X 500-sheet drawer (1TM)–1TM controller card assembly removal .
Page 19 7510 Assembly 34: ADF covers and components ..........7-39 Assembly 35: ADF base .
Page 20 7510 Service Manual...
Page 21: Notices And Safety Information
7510 Notices and safety information The following laser notice labels may be affixed to this printer. Laser notice The printer is certified in the U.S. to conform to the requirements of DHHS 21 CFR Subchapter J for Class I (1) laser products, and elsewhere is certified as a Class I laser product conforming to the requirements of IEC 60825-1.
Page 22 7510 Avisos sobre el láser Se certifica que, en los EE.UU., esta impresora cumple los requisitos para los productos láser de Clase I (1) establecidos en el subcapítulo J de la norma CFR 21 del DHHS (Departamento de Sanidad y Servicios) y, en los demás países, reúne todas las condiciones expuestas en la norma IEC 60825-1 para productos láser de Clase I (1).
Page 23 7510 Laserilmoitus Tämä tulostin on sertifioitu Yhdysvalloissa DHHS 21 CFR Subchapter J -standardin mukaiseksi luokan I (1) - lasertuotteeksi ja muualla IEC 60825-1 -standardin mukaiseksi luokan I lasertuotteeksi. Luokan I lasertuotteita ei pidetä haitallisina. Tulostimen sisällä on luokan IIIb (3b) laser, joka on nimellisteholtaan 5 mW:n galliumarsenidilaser ja toimii 770 - 795 nanometrin aallonpituuksilla.
Page 24 7510 Avís sobre el Làser Segons ha estat certificat als Estats Units, aquesta impressora compleix els requisits de DHHS 21 CFR, apartat J, pels productes làser de classe I (1), i segons ha estat certificat en altres llocs, és un producte làser de classe I que compleix els requisits d’IEC 60825-1.
Page 25 7510 Notices and safety information...
Page 26 7510 xxvi Service Manual...
Page 27: Safety Information
7510 Safety information • The safety of this product is based on testing and approvals of the original design and specific components. The manufacturer is not responsible for safety in the event of use of unauthorized replacement parts. • The maintenance information for this product has been prepared for use by a professional service person and is not intended to be used by others.
Page 28 7510 Sicherheitshinweise • Die Sicherheit dieses Produkts basiert auf Tests und Zulassungen des ursprünglichen Modells und bestimmter Bauteile. Bei Verwendung nicht genehmigter Ersatzteile wird vom Hersteller keine Verantwortung oder Haftung für die Sicherheit übernommen. • Die Wartungsinformationen für dieses Produkt sind ausschließlich für die Verwendung durch einen Wartungsfachmann bestimmt.
Page 29 7510 Informació de Seguretat • La seguretat d'aquest producte es basa en l'avaluació i aprovació del disseny original i els components específics. El fabricant no es fa responsable de les qüestions de seguretat si s'utilitzen peces de recanvi no autoritzades. •...
Page 30: Preface
7510 Preface This manual contains maintenance procedures for service personnel. It is divided into the following chapters: General information contains a general description of the printer and the maintenance approach used to repair it. Special tools and test equipment, as well as general environmental and safety instructions, are discussed.
Page 31: General Information
7510 1. General information The Lexmark™ X940e and X945e are color laser MFPs that provide print, copy, scan, and fax functions. All information in this service manual pertains to both models unless explicitly noted. Printer technology • Color laser Processor •...
Page 32 7510 Scanner Number of light sources Color bit depth Maximum optical resolution 600 x 600 Scan area - flatbed 297 x 432 mm Scanner ADF Type C-path (duplexing) Optical resolution ADF (mono) Maximum 600 x 600 dpi Optical resolution ADF (color) Maximum 600 x 300 dpi Document capacity 75 sheets (80 g/m...
Page 33: Printer Overview
7510 Printer overview CAUTION: Do not set up this product or make any electrical or cabling connections, such as the power cord or options and features, during a lightning storm. Basic model The following illustration shows a printer with its base features. Operator panel Duplex unit...
Page 34: Configured Model
7510 Configured model The following illustration shows a fully configured printer. Items denoted with an asterisk (*) are options. Operator panel Duplex unit Bridge unit* (Used in conjunction with finisher) Multipurpose feeder (MPF) Finisher* Tray 3 and tray 4 850+1150 sheet dual input tray (TTM) Tray 1 and tray 2 (500 sheet trays)
Page 35: Printer Theory
7510 Printer theory Media transport Media transport path Media is supplied from the MPF, tray 1, 2, 3 or 4, and is transported to the printer along the media transport path shown below. Tray 1 Tray 2 Tray 3 Tray 4 MPF pick roll Pick roll Pick roll...
Page 36: Mfp Paper Path Rolls
7510 MFP paper path rolls Bridge unit assembly (included with finisher) ADF and Scanner Upper media Bridge unit bin exit transport roll assembly roll assembly Finisher media entrance roll assembly Upper media exit roll assembly Standard media exit roll assembly Buffer roll assembly Fuser exit Media eject...
Page 37: Mfp Sensors
7510 MFP sensors ADF and Scanner Sensor (bridge unit media exit) Sensor (diverter gate) Sensor (upper Sensor (finisher media exit) media entrance) Sensor (standard Sensor (upper bin media full) media bin full) Sensor (lower Sensor (fuser exit) media exit) Sensor (bridge unit Sensor (media on belt) Sensor (buffer path) media entrance)
Page 38: Rear Media Guide
7510 Rear media guide The rear media tray guide assembly can be adjusted to different media sizes by moving it to the front or rear. The rear guide come into contact with the media and hold it in position. End guide The media tray assembly is designed so it can adapt to the media length in the media feed direction by moving the end guide to the left or right.
Page 39: Media Feed/Lift Motor
7510 Media feed/lift motor This motor is activated to feed media and to lift the bottom plate. When feeding media, it rotates forward to drive the pick roll. When lifting the bottom plate, it rotates reversely to drive the tray module gears to lift the lift up shaft.
Page 40: Mpf Feed Roll
The MPF side guides detects the width (length in the main scanning direction) of media on the MPF. MPF pick solenoid MPF pick rolls Sensor (MPF media width) Sensor (MPF media out) Media size The following table details the standard paper and envelope sizes supported by the Lexmark X945e MFPs and options. Media Width Length 210 mm...
Page 41: Registration
7510 Media Width Length Statement 5.5 inches 8.5 inches Universal 140 to 297 mm 98.4 to 432 mm 5.5 to 11.7 inches 3.9 to 17 inches MPF only 105 to 305 mm 148 to 482 mm 4.1 to 12 inches 5.8 to 19 inches 7 3/4 Envelope 98.4 mm...
Page 42: Transfer
7510 The registration roll assembly feeds the media at the precise moment to ensure that printed images are precisely placed. The registration roll assembly feeds media from all trays to the transfer belt. Registration clutch Sensor (transparency detect) Sensor (registration) Media transport roll assembly Transfer 1st transfer rolls (C,M,Y,K)
Page 43: Transfer Belt Unit Assembly
7510 Transfer belt unit assembly The transfer belt unit assembly contains the four 1st transfer rolls; these 1st transfer rolls are referred to as the CMYK transfer rolls. The CMYK transfer rolls are positively charged to remove the developed toner image from the four drums.
Page 44: Sensor (2Nd Transfer Roll Hp)
7510 Sensor (2nd transfer roll HP) The sensor (2nd transfer roll HP) is used to detect the home position of the 2nd transfer roll assembly. Transfer belt Sensor (2nd transfer roll retract HP) 2nd transfer roll assembly 2nd transfer roll retract motor Printhead assembly The printhead scans the four drum surface with four laser beams.
Page 45 7510 Conceptual diagram of an image created by scanning Printhead 1-15 General information...
Page 46 7510 Y Laser Path Y drum Sensor (Y start of scan) Polygon Mirror M Laser Path M drum Polygon Mirror Sensor (M start of scan) 1-16 Service Manual...
Page 47: Printhead Shutter
7510 C drum C Laser Path Sensor (C start of scan) Polygon Mirror K drum K Laser Path Sensor (K start of scan) Polygon Mirror Printhead shutter The printhead shutter tightly covers the slit glass through which laser beams from the printhead pass to write the four drums.
Page 48: Fuser
7510 Fuser Fuser cooling fan Heat roll Sensor (fuser exit) Pressure belt Thumb screws Heat roll The heat roll is a hollow metal tube with a coated surface. This tube is heated by the inner heater lamp. The heat is applied to the media passing between the heat roll and pressure roll, fusing the toner on the media. 1-18 Service Manual...
Page 49: Pressure Belt
7510 Pressure belt The pressure belt is used to apply pressure to the media surface for fusing. Pressure is applied to the media between the pressure belt and heat roll, pressing the melted toner against the media. Heater lamps Rear thermister Thermistat Front...
Page 50: Standard Media Exit Roll Assembly
7510 Standard media exit roll assembly The media exit roll assembly feeds printed media from the fuser to the standard bin. Sensor (standard bin full) The sensor (standard bin full) detects whether the standard bin is full by moving the actuator up and down. Standard media exit shift motor The standard media exit shift motor allows the standard media exit roll assembly to shift back and forth to perform off-set sorting.
Page 51: Cmyk Pc Cartridge Drive Motor Assembly
7510 The MPF/transport drive motor is a stepper motor that drives the MPF unit assembly and media transport roll. K developer/transport drive motor assembly MPF/transport drive motor CMYK PC cartridge drive motor assembly The CMYK PC cartridge drive motor assembly uses dual DC brushless motors that drive the four drums in the four PC cartridges.
Page 52: Cmy Developer Drive Motor Assembly
7510 CMY developer drive motor assembly The CMY developer drive motor assembly uses a DC brushless motor to drive the three color developer unit assemblies. K developer clutch This clutch is used to engage the K developer unit assembly and is driven by the K-developer transfer drive motor assembly.
Page 53: Waste Toner Agitator Motor Assembly
7510 The CMYK toner add motor assembly consists of 4 separate DC motors. Each color of toner has its own motor that is used to rotate the toner auger inside the toner cartridge and drive the auger inside the toner add assembly.
Page 54: Lvps Card Assembly
7510 5V LVPS card assembly The LVPS card assembly generates low voltages 5V for logic circuits, 5 V for laser diodes from AC power. 24V LVPS card assembly The LVPS card assembly generates 24 V for motors/clutches from AC power. CMYK transfer roll HVPS card assembly The CMYK transfer roll HVPS card assembly generates AC power and feeds it to the CMYK transfer rolls inside the transfer belt unit assembly.
Page 55: Upper Printer Engine Card Assembly
7510 Upper printer engine card assembly The upper printer engine card assembly controls printing operation based on the communication with the RIP card assembly and optional peripherals. It also controls toner dispense, erase lamps and fuser control. Lower printer engine card assembly The lower printer engine card assembly controls printing operation based on the communication with the RIP card assembly and on sensor/switch information.
Page 56: Control
7510 Control Media size control Media tray assembly feeding The following table gives the states (on/off) of the switches on the switch (media size), corresponding to the media sizes of the media tray assembly. Note: The switches on the switch (media size) are denoted by “S/W2”, “S/W4”, “S/W3”, “S/W5”, and “S/W1” respectively from the left side.
Page 57: Determination Of Printhead Ready
7510 Determination of printhead ready The printhead goes into ready state after the specified period passes since the reception of the printhead MPA start signal and the SOS cycle exceeds the reference value. Printhead reference value Printhead reference value Description Ready reference value SOS signal interval (equivalent to 98% or more of the rated RPM of the printhead motor)
Page 58: Xerographic Process During A Print Cycle
7510 Xerographic process during a print cycle K toner C toner M toner Y toner Fuser Transfer belt Transfer belt Cleaning roll K transfer roll C transfer roll M transfer roll cleaning Y transfer roll assembly 2nd transfer roll assembly Registration roll Printhead Erase Lamp...
Page 59: Charge
7510 Charge The Charge Roll places a uniform negative electrostatic charge on the surface of the drum. The drum surface is made of a photoconductive material that holds an electrical charge as long as the drum remains in darkness. Light striking the drum discharges the surface charge. HVPS Charge roll (-VDC)
Page 60: Exposure
7510 Exposure The Printhead generates a beam of laser light. Image data received from the RIP card assembly modulates this beam, turning it on and off according to image information that is received from the host computer and software. Through the use of a series of rotating and stationary mirrors within the Printhead, the beam scans the negative charged drum surface.
Page 61: Transfer
7510 The toner adhering to the Magnet Roll is always in contact with the drum surface. When a less negative point on the drum (a discharged area) comes in contact with the more negative charged toner on the Magnet Roll, toner transfers from the Magnet Roll to that point on the drum.
Page 62: Cleaning
7510 is now stuck to the transfer belt due to the relative electrical differences between the negative electrical charge of the inner conductive layer of the drum and the positive electrical charge of the paper. HVPS -VDC DRUM -VDC Transfer roll Sheet of paper Cleaning The Cleaning Blade removes any toner that remains on the drum after the transfer process.
Page 63: Auto Density Sensing
7510 At the beginning of each individual printer cycle, the Printhead scans the surface of the drum, further discharging any residual DC charge that may be left on the drum. Erase lamp LED array DRUM Ground Auto density sensing Image density sensor assembly The image density sensor assembly uses a reflection type sensor that detects a pre-placed toner patch and image on the transfer belt and outputs pulses when the central line of the patch image aligns with the central line...
Page 64: Document Scanning
7510 Document scanning The document scanning section of this machine consists of a scanner that reads a single-sheet document placed on the platen glass and a document feeder that can transport a multiple-sheet document and flip the sheets for two-sided scanning. This ADF employs a constant velocity transport system that scans images by feeding the document at a constant speed over the specified position (scan position) where the carriage (full/half rate carriage) of the scanner unit assembly is fixed.
Page 65: Document Scanning At Adf
7510 The exposure lamp is installed on the full rate carriage. As the full rate carriage travels, the document on the platen glass is scanned and exposed with the exposure lamp. In conjunction with the full rate carriage, the half rate carriage travels half of the stroke of the full rate carriage. The optical image of the exposed document is reflected by the scanner 1st mirror of the full rate carriage and directed to the scanner lens via the scanner 2nd mirror and the scanner 3rd mirror of the half rate carriage.
Page 66: Pre-Feed
7510 Pre-feed In the pre-feed step, a document sheet is fed from the Feed roll to the ADF transport roll assembly. To correct the skew, side1 of the document sheet is thrust against the ADF transport roll assembly rotating in the reverse direction, and side2 is thrust against the ADF transport roll assembly at rest.
Page 67: Scan Control
7510 ADF transport roll assembly ADF registration roll assembly Scan control Scanning of the image illuminated with the exposure lamp of the full rate carriage is controlled by changing the feed speed according to the copy magnification. The document sheet stopping at the scan feed reference position is then fed to the scan position when the scan signal is sent from the main unit of the machine after the predetermined time lapse following the paper detection at sensor (ADF registration).
Page 68: Simplex Document
7510 ADF exit roll assembly Document Inverter gate Simplex document For two simplex document sheets, feed is performed in the following sequence: 1. The first document sheet is fed to the ADF transport roll assembly. (see Pre-feed) 2. The document is fed to the ADF registration roll assembly, and then fed to the scan feed reference position.
Page 69: Duplex Document
7510 Sensor (ADF pre-registration) 2nd documant 1st document Duplex document The ADF scans the image on Side 1 (side facing up when set on the tray), inverts the document sheet, scans the image on Side 2 (side facing down when set on the tray), and then ejects the document sheet while inverting Therefore, the duplex document sheet is ejected with Side 2 up as with the simplex document sheet.
Page 70 7510 When the sensor (ADF pre-registration) detects the lead edge of document sheet (Side 1), the inverter solenoid assembly is turned on to release the nipped ADF exit roll assembly and exit pinch roll, and the ADF registration motor decelerates and stops. 12.
Page 71: Image Data Flow
7510 Image data flow The image date from the document set on the scanner unit assembly or ADF goes through the following components before it is printed at the Engine section. Document Lens CCD image sensor Scanner controller card assembly Scanner Engine RIP card assembly...
Page 72: Drive Torque Transfer Scheme
7510 Drive torque transfer scheme ADF feed motor assembly The rotational force of the ADF feed motor assembly is transferred to each document feeding roll as shown below. ADF feed motor assembly ADF drive belt Feed drive rear pulley 14/32/37 Feed/pick drive gear 20T Transport roll drive belt Feed/pick drive...
Page 73: Gear Layout
7510 Gear layout ADF registration motor Registration roll drive belt Registration drive gear/pulley 21/54T Registration drive belt Exit/feed-out drive Registration roll pulley 25/28 drive gear 28T Exit roll drive belt Registration roll assembly Feed-out roll assembly Exit roll drive pulley 20T Exit roll assembly 1-43 General information...
Page 74 7510 Feed/pick drive gear 20T Feed drive gear/pulley14/32/37T ADF feed motor assembly Transport roll drive Feed roll drive gear 26T gear pulley 20/50T Pick roll idler gear 36T Exit roll drive pulley 20T ADF registration motor Pick roll drive gear 34T Pick roll Registration main drive Exit roll assembly...
Page 75: Names And Functions Of Components
7510 Names and functions of components The sections below describe the functions of main components of the scanner. Scanner unit assembly Sensor (platen length APS 1) Sensor (platen length APS 2) The document length in the slow scanning direction is detected by a combination of the two reflector sensors. Switch (platen interlock) A switch that detects whether the ADF is open and determines the timing of platen document size detection.
Page 76: Adf
7510 A fan that prevents overheating of the scanner controller card assembly and exposure lamp. Scanner drive motor assembly Exposure lamp PS card assembly (under the carriage) Sensor (platen length APS1) Scanner cooling fan Sensor (platen ADF angle length APS2) actuator assembly Sensor CCD image...
Page 77: Adf Document Set Led
7510 ADF Document Set LED An LED that illuminates when a document is set on the ADF Document Tray. Switch (ADF left cover interlock) A switch that detects whether the ADF left cover assembly is open. ADF controller card assembly A card that controls the ADF unit assembly.
Page 78: Sensor (Adf Registration)
7510 The ADF sensor (ADF pre-registration) is installed immediately upstream from the ADF transport roll assembly to detect that the preceding document sheet has left the ADF transport roll assembly, triggering the pre-feed of the next document sheet. Sensor (ADF registration) The sensor (ADF registration) is installed upstream from the ADF registration roll assembly to detect that the preceding document sheet has left the ADF registration roll assembly, triggering the pre-registration of the next document sheet.
Page 79 7510 Sensor (ADF pre-registration) ADF feed motor assembly Sensor (sheet through) ADF registration motor Sensor (ADF registration) Inverter solenoid assembly Sensor (ADF inverter) Sensor (ADF APS 3) Sensor (ADF APS 2) Sensor (ADF APS 1) 1-49 General information...
Page 80: Control
7510 Control Document size detection at scanner unit assembly The width (fast-scan-directional size) of the document sheet on the Platen Grass is detected with the CCD image sensor, and the length (slow-scanning-directional size) is detected with the sensor (platen length APS 1) and the sensor (platen length APS 2).
Page 81 7510 Shown below are the combinations of document size, detection range in the fast scanning direction, and sensors. Width (Fast scanning Length (Slow scanning direction) Area direction: mm) Document Size Fast Detection Sensor (platen Sensor (platen scanning Range length APS 1) length APS 2) Width Japanese Post...
Page 82: Adf Document Size Detection
7510 Width (Fast scanning Length (Slow scanning direction) Area direction: mm) Document Size Fast Detection Sensor (platen Sensor (platen scanning Range length APS 1) length APS 2) Width A4 LEF 297.2 289—307 A3 SEF 297.2 O: Detectable by default. N: Detectable by replacing the document size marked as O with the system data having the same detection information.
Page 83 7510 The standard document sizes to be identified by the same given detection information are defined on an area-by-area basis. Each area is to be set in the system data. Leading edges Flatbed ADF side 1 ADF side 2 1-53 General information...
Page 84: Document Scanning Steps
7510 The table below shows the combinations of document sizes and sensors. Width (Fast scanning direction) Length (Slow scanning direction) Area Sensor (document tray width *) Sensor (document tray length *) Document Size 5.5 X 8.5 SEF A5 SEF B5 SEF 8 X 10 SEF 8 X 10.5 SEF A5 LEF...
Page 85: Agc (Auto Gain Control): White Level Coarse Adjustment
7510 The CCD image sensor is used to read image data from the document. To stabilize the read image data, the CCD image sensor output is adjusted and the read image data is compensated. The CCD image sensor output is adjusted with the gain/offset voltage of the amplifier in the analog circuit. This adjustment includes AGC and AOC.
Page 86: Ttm Theory
7510 TTM theory 1-56 Service Manual...
Page 87: Media Transport
7510 Media transport Media transport path Media is supplied from tray 2, tray 3 or tray 4, and is transported to the printer along the media transport path shown below. Tray 2 Tray 3 Tray 4 Pick roll Pick roll Pick roll Separation roll Separation roll...
Page 88: Functions Of Main Components
7510 Media transport path The following is a cross section of the printer and the tandem tray module, showing the main components directly associated with the media path and transport. Bridge unit assembly (included with finisher) ADF and Scanner Upper media Bridge unit bin exit transport roll assembly roll assembly...
Page 89: Bottom Plate
7510 Bottom plate The force pushing up the bottom plate is transmitted by the driving force of the motor on the media feed unit assembly. The bottom plate is pushed up by the rotation of the lift up shaft, which causes the supplied media to come in contact with the pick roll.
Page 90: Tray 3 Or 4 Media Tray Assembly
7510 Tray 3 or 4 media tray assembly Rear lift cables Rear media guide Bottom plate F/R lift cable F/L lift cable 1-60 Service Manual...
Page 91: Ttm Media Feed Units
7510 TTM media feed units Media feed unit assembly Since the tray 3 and tray 4 are functionally equivalent in terms of the switch (TTM media size), sensor (media out), sensor (media level) and sensor (pre-feed), only the components of one tray are described here. The media feed unit assembly is a mechanical unit supplying media from the media tray assembly to the printer.
Page 92: Main Components
7510 Media feed lift motor Sensor (media level) Sensor (media out) Switch (TTM media size) Media feed unit assembly Front Main components Switch (tray module left door interlock) The switch (tray module left door interlock) detects open/close of the tray module left door assembly. Sensor (tray 2 feed-out) The sensor (tray 2 feed-out) detects media fed from trays 2, 3, or 4.
Page 93: Tray Module Drive Motor
7510 Tray module drive motor This motor is used to drive the media transport mechanism in the tray module. TTM tray 4 media transport motor This motor is used in the TTM to transport media from the tray 4 towards the tray module left door assembly. TTM controller card assembly The TTM controller card assembly, which contains a CPU, controls media feed in the tandem tray module upon receiving a command from the upper printer engine card assembly and sensor/switch information.
Page 94: Switch (Ttm Media Size)
7510 Switch (TTM media size) The following table gives on/off states of the switches on the switch (TTM media size), corresponding to the media sizes of the media tray assembly. Note: The switches (TTM media size) are denoted by “S/W1” and “S/W3” respectively from the left side. Analog switch Media Size S/W1...
Page 95: 3Tm Theory
7510 3TM theory 1-65 General information...
Page 96: Media Transport
7510 Media transport Media transport path Media is supplied from tray 3 or tray 4, and is transported to the printer along the media transport path shown below. Tray 2 Tray 3 Tray 4 Pick roll Pick roll Pick roll Separation roll Separation roll Separation roll...
Page 97: Media Transport Path
7510 Media transport path The following is a cross section of the printer and the tandem tray module, showing the main components directly associated with the media path and transport. Bridge unit assembly (included with finisher) ADF and Scanner Upper media Bridge unit bin exit transport roll assembly roll assembly...
Page 98: Bottom Plate
7510 Bottom plate The force pushing up the bottom plate is transmitted by the driving force of the motor on the media feed unit assembly. The bottom plate is pushed up by the rotation of the lift up shaft, which causes the supplied media to come in contact with the pick roll.
Page 99: Main Components
7510 This sensor detects by the actuator position whether media in the media tray assembly is lifted. When the flag of the actuator leaves the sensor (media level) sensing area, the sensor detects that the media has been lifted. Main components Switch (tray module left door interlock) The switch (tray module left door interlock) detects open/close of the tray module left door assembly.
Page 100: Tray Module Drive Motor
7510 The tray module transport roll assembly feeds media from the tray 3 or tray 4 to the printer. Tray module drive motor This motor is used to drive the media transport mechanism in the tray module. 3TM controller card assembly The 3TM controller card assembly, which contains a CPU, controls media feed in the tandem tray module upon receiving a command from the upper printer engine card assembly and sensor/switch information.
Page 101: Switch (Media Size)
7510 Switch (media size) The following table gives on/off states of the switches on the switch (media size), corresponding to the media sizes of the media tray assembly. Note: The switches (media size) are denoted by “S/W1” and “S/W3” respectively from the left side. Analog switch Media Size S/W1...
Page 102: 1Tm Theory
7510 1TM theory 1-72 Service Manual...
Page 103: Media Transport
7510 Media transport Media transport path Media is supplied from tray 3 or tray 4, and is transported to the printer along the media transport path shown below. Tray 2 Tray 3 Tray 4 Pick roll Pick roll Pick roll Separation roll Separation roll Separation roll...
Page 104: Media Transport Path
7510 Media transport path The following is a cross section of the printer and the 1TM, showing the main components directly associated with the media path and transport. Bridge unit assembly (included with finisher) ADF and Scanner Upper media Bridge unit bin exit transport roll assembly roll assembly Finisher media entrance...
Page 105: Tray 2 Media Tray Assembly
7510 The force pushing up the bottom plate is transmitted by the driving force of the motor on the media feed unit assembly. The bottom plate is pushed up by the rotation of the lift up shaft, which causes the supplied media to come in contact with the pick roll.
Page 106: Switch (Media Size)
7510 Switch (media size) The switch (media size) switches the setting of the size of media supplied from each media tray assembly. A signal indicating the set size is transmitted as a voltage to the printer engine card assembly. Sensor (media out) If there is no media in the media tray assembly, the media out actuator lowers and the flag of the media out actuator that has stayed in the sensor (media out) sensing area leaves there.
Page 107: Sensor (Tray 2 Feed-Out)
7510 Sensor (tray 2 feed-out) The sensor (tray 2 feed-out) detects media fed from the tray 2. Tray module media transport roll assembly The tray module transport roll assembly feeds media from the tray 2. Tray module drive motor This motor is used to drive the media transport mechanism in the tray module. 1TM controller card assembly The 1TM controller card assembly, which contains a CPU, controls media feed in the 1TM upon receiving a command from the upper printer engine card assembly and sensor/switch information.
Page 108: Switch (Media Size)
7510 Switch (media size) The following table gives on/off states of the switches on the switch (media size), corresponding to the media sizes of the media tray assembly. Note: The switches (media size) are denoted by “S/W1” and “S/W3” respectively from the left side. Analog switch Media Size S/W1...
Page 109: Duplex
7510 Duplex 1-79 General information...
Page 110: Layout Of Media Transport Path
7510 Layout of media transport path The main components associated with the media path and transport with the duplex installed. Inverter forward Standard media clutch Inverter exit roll assembly reverse clutch Standard media bin Sensor Exit duplex diverter gate (fuser exit) Fuser unit assembly Fuser exit roll...
Page 111: Duplex Controller Card Assembly
7510 Duplex controller card assembly The duplex controller card assembly that contains a CPU controls media feed in the duplex upon receiving a command from the upper printer engine card assembly and sensor/switch information. Duplex drive motor The duplex drive motor transmits driving force to the two duplex media transport roll assemblies and the duplex media center transport roll assembly middle that feeds media.
Page 112: Tools Required For Service
7510 Tools required for service Flat-blade screwdriver #1 Phillips screwdriver, magnetic #2 Phillips screwdriver, magnetic #2 Phillips screwdriver, magnetic short-blade Needle nose pliers Diagonal side cutters Spring hook Analog or digital multi meter Parallel wrap plug 1319128 Twinax/serial debug cable (#1381963) Coax/serial debug cable (#1381964) 5.5 mm hexdriver (magnetic) Color toner vacuum...
Page 113: Acronyms
7510 Acronyms 1 Tray Module 3 Tray Module Alternating Current Automatic Document Feeder Automatic Paper Size ASIC Application Specific Integrated Circuit Automatic Toner Control Customer Replaceable Unit Customer Setup Counterclockwise Clockwise Direct Current DIMM Dual Inline Memory Module DRAM Dynamic Random Access Memory Enhanced Data Out Electrophotographic Process EPROM...
Page 114 7510 SRAM Static Random Access Memory Tandem Tray Module TVOC Total Volatile Organic Compound Used Parts Return Volts V ac Volts alternating current V dc Volts direct current 1-84 Service Manual...
Page 115: Diagnostic Information
7510 2. Diagnostic information Start CAUTION Unplug the power cord from the electrical outlet before you connect or disconnect any cable electronic board or assembly. CAUTION If the printer is kept on, never touch the conductive parts if not specifically required. The power switch and inlet of the low voltage power supply card (LVPS card) assembly is live even while the power supply is cut off.
Page 116: Confirm The Installation Status
The following is an example of the events that occur during the POR sequence: Turn the machine on. The Lexmark splash screen appears with a progress bar in the center until the code is loaded. The scanner exposure lamp flashes several times.
Page 117: Control Panel
7510 Control panel PQRS WXYZ Callout Control panel item Function A liquid crystal display (LCD) which shows home screen buttons, menus, menu items, and values. Allows for making selections within Copy, Fax, and so on. Indicator light Gives information about the status of the MFP using the colors red and green.
Page 118 7510 Dial Pause Press to cause a two- or three-second dial pause in a fax number. The button only functions within the Fax menu or with fax functions. Press from the home screen to redial a fax number. When outside of the Fax menu, fax function, or home screen, pressing Dial Pause causes an error beep.
Page 119: Home Screen And Home Screen Buttons
7510 Home screen and Home screen buttons After the MFP is turned on and a short warm-up period occurs, the LCD shows the following basic screen which is referred to as the Home screen. Use the Home screen buttons to initiate an action such as copy, fax, or scan, to open the menu screen, or to respond to messages.
Page 120 7510 Touch to access the File Transfer Protocol (FTP) menus. A document can be scanned directly to an FTP site. Touch to access the Fax menus. Other buttons may appear on the Home screen. They are: Button Button name Function Release Held Faxes There are held faxes with a Check the sensor (sheet through) for (or Held Faxes if in...
Page 121 7510 Unlock Device This button appears on the screen when the MFP is locked. The control panel buttons and shortcuts cannot be used while it appears, and no default copy starts may occur. To unlock the MFP: 1 Touch Unlock Device to open a PIN entry screen. 2.
Page 122: Using The Lcd Touch-Screen Buttons
7510 Using the LCD touch-screen buttons The following section provides information on navigating through several screens. Only a few are chosen to demonstrate the use of the buttons. Sample screen one Copy from Sides (Duplex) Letter (8.5 x 11 in.) Portrait 1-sided to 1-sided Copy to...
Page 123 7510 Button Button name Function or description Touch the left arrow button to scroll left to: Left arrow button • Reach a decreased value shown by an illustration. • See a full text field on the left. Touch the right arrow button to scroll right to: Right arrow button •...
Page 124: Sample Screen Two
7510 Sample screen two Unknown paper size. Copy from: Letter (8.5 x 11 in.) Legal (8.5 x 14 in.) Executive (7.25 x 10.5 in.) Folio (8. 5 x 13 in.) Statement (5.5 x 8.5 in.) A4 (210 x 297 mm) Cancel Continue Information on touch-screen buttons...
Page 125: Other Touch-Screen Buttons
7510 Button Button name Function or description “Cancel Jobs” on page 2-7. Cancel Job Cancel Continue Touch Continue after a menu item or value on a screen is selected and more changes need to be made for a job from the original screen.
Page 126: Features
7510 Button Button name Function or description Done Allows specifying that a job is finished. For example, when scanning an original document, one could indicate that the last page is scanned, and then printing the job would begin. Done Touch the Back button to return to the previous Back screen, and no settings are saved on the screen where it was touched.
Page 127: To Enter The Diagnostic Menu
7510 To enter the diagnostic menu: 1. Turn off the printer. 2. Press and hold the 3 and 6 buttons simultaneously. 3. Turn on the printer. 4. Release the buttons after 10 seconds. Error code table Error code or Error contents Description/Action message Sensor (ADF registration) lag...
Page 128 7510 Error code or Error contents Description/Action message 231.01 Sensor (registration) late jam The media is late reaching the sensor (registration) (duplex media feed) within the specified time after reaching the sensor Paper jam (duplex wait). Go to “231.01 Sensor (registration) late jam (duplex media feed)”...
Page 129 7510 Error code or Error contents Description/Action message 250.00 Sensor (registration) late jam The media is late reaching the sensor (registration) (feeding from the MPF) within the specified time after the MPF pick solenoid Paper jam is turned on. Go to “250.00 Sensor (registration) late jam (feeding from the MPF)”...
Page 130 7510 Error code or Error contents Description/Action message 284.03 Sensor (lower media exit) lag The media reached the sensor (lower media exit) but did not clear it within the specified time. Paper jam Refer to the Finisher Service Manual. 284.05 Sensor (lower media exit) Media remains on the sensor (lower media exit).
Page 131 7510 Error code or Error contents Description/Action message 289.04 Sensor (booklet media exit) The media is late reaching the sensor (booklet late jam media exit) within the specified time after the Paper jam booklet folding solenoid is turned on. Refer to the Finisher Service Manual. 289.05 Sensor (booklet media exit) The media reached the sensor (booklet media exit)
Page 132 7510 Error code or Error contents Description/Action message 290.20 Sensor (ADF width APS1), Media remain on the sensor (ADF width APS1), sensor (ADF width APS 2) sensor (ADF width APS 2) and the sensor (ADF Scanner jam and the sensor (ADF width width APS 3).
Page 133 7510 Error code or Error contents Description/Action message 294.01 Sensor (ADF pre-registration) The media is late reaching the sensor (ADF pre- late jam (side 2) registration) within the specified time after the ADF Scanner jam registration motor was turned on. Go to “294.01 Sensor (ADF pre-registration) late jam (side 2)”...
Page 134 7510 Error code or Error contents Description/Action message Incorrect <color> toner A <color>) toner cartridge of an incorrect cartridge error. specification is installed. Replace “Incorrect <color> toner cartridge error” unsupported Go to <Color> on page 2-200. cartridge Incorrect black toner cartridge A black toner cartridge of an incorrect specification error.
Page 135 7510 Error code or Error contents Description/Action message ADF maintenance required Service is required to maintain printer performance. Scheduled Go to “ADF maintenance required” on page 2-190. maintenance ADF kit Waste toner cartridge full Replace the waste toner cartridge. Replace waste Go to “Waste toner cartridge full”...
Page 136 7510 Error code or Error contents Description/Action message 841.00 Image pipeline ASIC error The image pipeline for processing the data that comes from the scanner, prior to being printed, has Service image failed. pipeline Go to “Black toner cartridge detection error 841.00 Image pipeline ASIC error”...
Page 137 7510 Error code or Error contents Description/Action message 843.01 Scanner carriage over run The scanner carriage has overrun. error Service Go to “843.01 Scanner carriage over run error” on page 2-116. scanner failure 843.10 ADF RAM test error The ADF controller card assembly RAM has failed in the read/write operation.
Page 138 7510 Error code or Error contents Description/Action message 844.00 Exposure lamp error A error has occurred with the exposure lamp. Service Go to “844.00 Exposure lamp error” on page 2-122. scanner failure 844.01 White reference/exposure The large platen glass is not properly installed or lamp Illumination error missing Service...
Page 139 7510 Error code or Error contents Description/Action message 847.01 Fax storage The remaining memory available on the hard drive is too small. Service fax “847.01 Fax storage error” on page 2-130. Go to 848.00 Fax modem/configuration ID The device does not have a modem installed, even mismatch though its configuration ID indicates that a modem Service modem...
Page 140 7510 Error code or Error contents Description/Action message 902.07 General lower engine card An error has occurred in the lower engine card error assembly. Service engine “902.07 General lower engine error fuse error Fuse #5 Go to #5” on page 2-138.
Page 141 7510 Error code or Error contents Description/Action message 904.05 Sensor (CMY transfer roll The sensing area of the sensor (CMY transfer roll retract HP) late error retract HP) is not interrupted within the specified Service time when the CMY retract rolls are moving to the transfer belt home position.
Page 142 7510 Error code or Error contents Description/Action message 907.03 C laser SOS internal error The interval of the printhead start of scan C signals exceed the specified value. Printhead error “907.03 C laser SOS internal error” on Go to page 2-152.
Page 143 7510 Error code or Error contents Description/Action message 920.02 Fuser sub lamp overheat The rear thermistor detected an abnormal high error temperature. Service fuser error This error must be reset inside diagnostic mode before troubleshooting or machine operation can occur. “920.02 Fuser sub lamp overheat error”...
Page 144 7510 Error code or Error contents Description/Action message 925.00 Sensor (Y ATC) Outputs of the sensor (Y ATC) are not in the specified range. Service PC cartridge This error must be reset inside diagnostic mode before troubleshooting or machine operation can occur.
Page 145 7510 Error code or Error contents Description/Action message 943.00 Switch (media size) size The tray 3 switch (media size) detected an invalid sensing error (tray 3) size setting. Service tray 3 “943.00 Switch (media size) size sensing failure Go to error (tray 3)”...
Page 146 7510 Error code or Error contents Description/Action message 950.30 through EPROM mismatch failure This error code indicates a mismatch between the 950.60 RIP card assembly and the interconnect card assembly. Service NVRAM Warning: In the event of replacement of any one of mismatch the following components: •...
Page 147 7510 Error code or Error contents Description/Action message 956.02 RIP card assembly cooling The RIP card assembly cooling fan is not fan failure functioning properly. Service system “956.02 RIP card assembly cooling board Go to Go to fan failure” on page 2-177.
Page 148 7510 Error code or Error contents Description/Action message 983.00 Sensor (rear tamper HP) late The sensing area of the sensor (rear tamper HP) is error not interrupted when the rear tamper starts moving Service finisher to the home position. error Refer to the Finisher Service Manual.
Page 149 7510 Error code or Error contents Description/Action message 989.00 Stapler unit error The sensing area of the sensor (stapler unit motor HP) inside the stapler unit assembly is not Service finisher interrupted within the specified timer after the error stapler unit motor starts moving to the home position.
Page 150 7510 Error code or Error contents Description/Action message 991.07 Sensor (booklet compiler no The sensing area of the sensor (booklet compiler no media) no media detected media) did not detect any media when the booklet Service finisher stapler motor was activated. error Refer to the Finisher Service Manual.
Page 151 7510 Error code or Error contents Description/Action message Close door D 1TM, 3TM or TTM left door The 1TM, 3TM or TTM tray left door assembly is assembly open open. “1TM, 3TM or TTM left door assembly Go to open” on page 2-180.
Page 152 7510 Error code or Error contents Description/Action message Toner Toner cartridge RFID error A toner cartridge of a different specification is unsupported installed. “Toner cartridge set error” on page 2-192. Go to 2-38 Service Manual...
Page 153: Service Checks
7510 Service checks 200.00 Sensor (registration) late jam Step Check Check the media position. Remove the Go to step 2. media. Does the media touch the sensor (registration)? Check the registration/transport roll assembly. Go to step 3. Clean or replace the registration / Is the above component free of excess wear and transport roll...
Page 154: Sensor (Registration) Lag Jam
7510 Step Check Check the Replace the K developer/transport drive motor Go to step 9. Go to step 8. assembly for proper operation. Caution: When performing motor tests, ensure that all cover and door interlock switches are overridden. 1. Enter the Diagnostics Menu. 2.
Page 155 7510 Step Check Check the sensor (registration) for proper operation. Go to step 6. Go to step 5. 1. Enter the Diagnostics Menu. 2. Touch BASE SENSOR TEST. 3. Touch Media Path. 4. Touch Registration. Does the display on the operator panel, change every time the sensing area of the above sensor is interrupted or blocked? Check the sensor (registration) for proper connection.
Page 156: Sensor Static Jam
7510 Step Check Check the Replace the K developer/transport drive motor Go to step 12. Go to step 11. assembly for proper operation. Caution: When performing motor tests, ensure that all cover and door interlock switches are overridden. 1. Enter the Diagnostics Menu. 2.
Page 157: Sensor (Media On Belt) Late Jam
7510 Step Check POR the machine. Replace the lower Problem solved. printer engine card Does the error continue? assembly. Go to “Lower printer engine card assembly removal” on page 4-80. 200.03 Sensor (media on belt) late jam Step Check Check the media condition. Replace the Go to step 2.
Page 158: Sensor (Fuser Exit) Late Jam
7510 201.00 Sensor (fuser exit) late jam Step Check Check the media position. Remove the Go to step 2. media. Does the media touch the sensor (fuser exit)? Check the fuser exit actuator. Replace the Go to step 3. sensor (fuser exit) Does the fuser exit actuator attached to the sensor (fuser exit) appear to be binding or sticking in its normal resting Go to...
Page 159 7510 Step Check Check the duplex diverter gate solenoid for proper Replace the Replace the connection. duplex media connection. inverter assembly. Is the above component properly connected? Go to “Duplex media inverter assembly removal” on page 4-9. Check the registration clutch for proper operation. Go to step 10.
Page 160: Sensor (Fuser Exit) Lag Jam
7510 Step Check Perform a print test. Replace the lower Problem solved. printer engine card Does the error continue? assembly. Go to “Lower printer engine card assembly removal” on page 4-80. 202.00 Sensor (fuser exit) lag jam Step Check Check the media position. Remove the Go to step 2.
Page 161: Sensor (Duplex Wait) Late Jam (Duplex Media Feed)
7510 Step Check Check the Replace the K developer/transport drive motor Go to step 8. Go to step 7. assembly for proper operation. Caution: When performing motor tests, ensure that all cover and door interlock switches are overridden. 1. Enter the Diagnostics Menu. 2.
Page 162 7510 Step Check Check the sensor (duplex wait) for proper connection. Replace the sensor Replace the (duplex wait). connection. Is the above component properly connected? “Sensor Go to (duplex wait) removal” on page 4-11. Check the duplex diverter gate solenoid for proper Go to step 7.
Page 163: Sensor (Registration) Late Jam (Duplex Feed)
7510 Step Check Check the duplex media inverter clutch for proper Go to step 11. Go to step 10. operation. Caution: When performing motor tests, ensure that all cover and door interlock switches are overridden. 1. Enter the Diagnostics Menu. 2.
Page 164 7510 Step Check Check the sensor (registration) for proper operation. Go to step 5. Go to step 4. 1. Enter the Diagnostics Menu. 2. Touch BASE SENSOR TESTS. 3. Touch Media Path. 4. Touch Registration. Does the display on the operator panel, change every time the sensing area of the above sensor is interrupted or blocked? Check the sensor (registration) for proper connection.
Page 165: Sensor (Registration) Late Jam (Duplex Media Feed)
7510 Step Check Check the duplex media inverter clutch for proper Go to step 11. Go to step 10. operation. Caution: When performing motor tests, ensure that all cover and door interlock switches are overridden. 1. Enter the Diagnostics Menu. 2.
Page 166 7510 Step Check Check the sensor (registration) for proper operation. Go to step 5. Go to step 4. 1. Enter the Diagnostics Menu. 2. Touch BASE SENSOR TESTS. 3. Touch Media Path. 4. Touch Registration. Does the display on the operator panel, change every time the sensing area of the above sensor is interrupted or blocked? Check the sensor (registration) for proper connection.
Page 167: Sensor (Tray 1 Feed-Out) Late Jam
7510 Step Check Check the duplex media inverter clutch for proper Go to step 11. Go to step 10. operation. Caution: When performing motor tests, ensure that all cover and door interlock switches are overridden. 1. Enter the Diagnostics Menu. 2.
Page 168 7510 Step Check Check the feed roll, separation roll, and pick roll for media Go to step 4. Clean or replace tray 1. the feed roll, separating roll, or Are the above components free of excess wear and pick roll. contamination? “Feed roll Go to...
Page 169: Sensor (Tray 2 Feed-Out) Late Jam
7510 242.00 Sensor (tray 2 feed-out) late jam Step Check Check the media condition. Replace the Go to step 2. damaged media Is the media in the tray crumpled or damaged? with new. Check the media size setup. Go to step 3. Replace the media, or change Does the media size, in use, match the size set for tray 2?
Page 170: Sensor (Tray 1 Feed-Out) Late Jam (Feeding From Tray 2)
7510 Step Check Perform a print test. Replace the lower Problem solved. printer engine card Does the error continue? assembly. Go to “Lower printer engine card assembly removal” on page 4-80. 242.01 Sensor (tray 1 feed-out) late jam (feeding from tray 2) Step Check Check the media condition.
Page 171: Sensor (Tray 3 Feed-Out) Late Jam
7510 Step Check Check the MPF/transport drive motor for proper operation. Go to step 9. Skip to step 8. Caution: When performing motor tests, ensure that all cover and door interlock switches are overridden. 1. Enter the Diagnostics Menu. 2. Touch MOTOR TESTS. 3.
Page 172 7510 Step Check Check the sensor (tray 3 feed-out) for proper operation. Go to step 7. Go to step 6. 1. Enter the Diagnostics Menu. 2. Touch INPUT TRAY TESTS. 3. Touch Sensor test. 4. Touch Tray 3. 5. Touch Feed-out. Does the display on the operator panel, change every time the sensing area of the above sensor is interrupted or blocked?
Page 173: Sensor (Tray 2 Feed-Out) Late Jam (Feeding From Tray 3)
7510 Step Check Perform a print test. Replace the lower Problem solved. printer engine card Does the error continue? assembly. Go to “Lower printer engine card assembly removal” on page 4-80. 243.01 Sensor (tray 2 feed-out) late jam (feeding from tray 3) Step Check Check the media condition.
Page 174 7510 Step Check Check the tray module drive motor for proper operation. Go to step 9. Skip to step 8. Caution: When performing motor tests, ensure that all cover and door interlock switches are overridden. 1. Enter the Diagnostics Menu. 2.
Page 175: Sensor (Tray 4 Feed-Out) Late Jam
7510 244.00 Sensor (tray 4 feed-out) late jam Step Check Check the media condition. Replace the Go to step 2. damaged media with Is the media in the tray crumpled or damaged? new. Check the media size setup. Go to step 3. Replace the media, or change the media Does the media size, in use, match the size set for...
Page 176 7510 Step Check Check the TTM tray 4 transport motor for proper Go to step 9. Skip to step 8. operation. Caution: When performing motor tests, ensure that all cover and door interlock switches are overridden. 1. Enter the Diagnostics Menu. 2.
Page 177: Sensor (Tray 3 Feed-Out) On Jam (Feeding From Tray 4)
7510 244.01 Sensor (tray 3 feed-out) on jam (feeding from tray 4) Step Check Check the media condition. Replace the Go to step 2. damaged media with Is the media in the tray crumpled or damaged? new. Check the media position. Remove the media.
Page 178: Sensor (Registration) Late Jam (Feeding From The Mpf)
7510 Step Check Check the tray module drive motor for proper Replace the tray Replace the connection. module drive motor . connection. Is the above component properly connected? Go to “2000-sheet dual input (TTM)–tray module drive motor assembly removal” on page 4-203 “2000-sheet dual input (TTM)–tray module drive motor...
Page 179 7510 Step Check Check the pick feed rolls. Go to step 5. Clean or replace the pick rolls. Are the pick rolls free of excess wear and contamination? “Pick roll Go to removal” on page 4-107. Check the sensor (registration) for proper operation. Go to step 7.
Page 180: Switch (Sheet Through) Static Jam
7510 Step Check Check the MPF/transport drive motor for proper connection. Replace the MPF/ Replace the transport drive connection. Is the above component properly connected? motor . Go to “MPF / transport drive motor assembly removal” on page 4-105. Perform a print test. Replace the lower Problem solved.
Page 181: Sensor (Sheet Through) Late Jam
7510 290.01 Sensor (sheet through) late jam Step Check Check the original document condition. Go to step 2. Remove damaged original Is the original document free of paper clips and staples as document and well as damage such as creases, tears, holes or excessive replace with a wear? new undamaged...
Page 182 7510 Step Check Check the ADF feed drive motor assembly for proper Go to step 8. Go to step 7. operation. Caution: When performing motor tests, ensure that all cover and door interlock switches are overridden. 1. Enter the Diagnostics Menu. 2.
Page 183: Sensor (Adf Pre-Registration) Late Jam (Side 1)
7510 290.02 Sensor (ADF pre-registration) late jam (side 1) Step Check Check the original document condition. Go to step 2. Remove damaged original document Is the original document free of paper clips and staples as and replace with a well as damage such as creases, tears, holes or excessive new undamaged wear? original document.
Page 184: Sensor (Adf Pre-Registration) Lag Jam
7510 Step Check Check the ADF feed drive motor assembly for proper Go to step 8. Go to step 7. operation. Caution: When performing motor tests, ensure that all cover and door interlock switches are overridden. 1. Enter the Diagnostics Menu. 2.
Page 185 7510 Step Check Check the ADF rolls for wear. Go to step 3. Clean or replace the ADF feed/pick Is the ADF feed/pick roll assembly or the ADF separation roll roll assembly or guide assembly free of excess wear? the ADF separation roll guide assembly.
Page 186 7510 Step Check Check the ADF feed drive motor assembly for proper Go to step 10. Go to step 9. operation. Caution: When performing motor tests, ensure that all cover and door interlock switches are overridden. 1. Enter the Diagnostics Menu. 2.
Page 187: Sensor (Adf Pre-Registration) Static Jam
7510 Step Check Place an undamaged document in the ADF, and perform a Replace the RIP Problem solved. ADF test. card assembly. “RIP card Does the error remain? Go to assembly removal” on page 4-73. 290.10 Sensor (ADF pre-registration) static jam Step Check Check the media path.
Page 188: Sensor (Adf Registration) Late Jam (Side 1)
7510 290.11 Sensor (ADF registration) late jam (side 1) Step Check Check the original document condition. Go to step 2. Remove damaged original document Is the original document free of paper clips and staples as and replace with a well as damage such as creases, tears, holes or excessive new undamaged wear? original document.
Page 189: Sensor (Adf Registration) Late Jam (Side 2)
7510 Step Check Check the ADF feed drive motor assembly for proper Replace the Go to step 7. operation. ADF feed drive motor assembly. Caution: When performing motor tests, ensure that all cover and door interlock switches are Go to “ADF feed drive overridden.
Page 190 7510 Step Check Check the ADF rolls for wear. Go to step 3. Clean or replace the ADF feed/pick Is the ADF feed/pick roll assembly or the ADF separation roll roll assembly or guide assembly free of excess wear? the ADF separation roll guide assembly.
Page 191 7510 Step Check Check the ADF feed drive motor assembly for proper Replace the Replace the connection. ADF feed drive connection. motor assembly. Is the above component properly connected? Go to “ADF feed drive motor assembly removal” on page 4-134. Check the inverter solenoid assembly for proper operation.
Page 192: Sensor (Adf Registration) Lag Jam
7510 290.13 Sensor (ADF registration) lag jam Step Check Check the original document condition. Go to step 2. Remove damaged original document Is the original document free of paper clips and staples as and replace with a well as damage such as creases, tears, holes or excessive new undamaged wear? original document.
Page 193 7510 Step Check Check the media path for contaminates. Go to step 5. Remove all contaminates from Is the media path free of excess media dust and foreign the media path. objects such as paper clips and staples? Check the sensor (ADF registration) for proper operation. Go to step 7.
Page 194: Sensor (Adf Inverter) Late Jam (Inverting)
7510 290.14 Sensor (ADF inverter) late jam (Inverting) Step Check Check the original document condition. Go to step 2. Remove damaged original document Is the original document free of paper clips and staples as and replace with a well as damage such as creases, tears, holes or excessive new undamaged wear? original document.
Page 195 7510 Step Check Check the ADF registration motor for proper operation. Go to step 8. Go to step 7. Caution: When performing motor tests, ensure that all cover and door interlock switches are overridden. 1. Enter the Diagnostics Menu. 2. Touch MOTOR TESTS. 3.
Page 196: Sensor (Adf Registration) Lag Jam (Inverting)
7510 290.15 Sensor (ADF registration) lag jam (inverting) Step Check Check the original document condition. Go to step 2. Remove damaged Is the original document free of paper clips and staples as original well as damage such as creases, tears, holes or document and excessive wear? replace with a...
Page 197 7510 Step Check Check the sensor (ADF pre registration) for proper Go to step 8. Go to step 7. operation. 1. Enter the Diagnostics Menu. 2. Touch SCANNER TESTS. 3. Touch Sensor Tests. 4. Touch ADF pre registration. Does the display on the operator panel, change every time the sensing area of the above sensor is interrupted or blocked? Check the sensor (ADF pre-registration) for proper...
Page 198 7510 Step Check Check the inverter solenoid assembly for proper Go to step 12. Go to step 11. operation. Caution: When performing motor tests, ensure that all cover and door interlock switches are overridden. 1. Enter the Diagnostics Menu. 2. Touch MOTOR TESTS. 3.
Page 199: Sensor (Adf Width Aps1), Sensor (Adf Width Aps 2) And Sensor (Adf Width Aps 3) Static
7510 Step Check Place an undamaged document in the ADF, and perform Replace the Problem solved. a ADF test. RIP card assembly. Does the error remain? Go to “RIP card assembly removal” on page 4-73. 290.20 Sensor (ADF width APS1), sensor (ADF width APS 2) and sensor (ADF width APS 3) static jam Step Check...
Page 200: Sensor (Adf Width Aps 1) Static Jam
7510 Step Check Check the sensor (ADF width APS 3) for proper operation. Go to step 9. Go to step 8. 1. Enter the Diagnostics Menu. 2. Touch SCANNER TESTS. 3. Touch Sensor Tests. 4. Touch ADF width APS 3. Does the display on the operator panel, change every time the sensing area of the above sensor is interrupted or blocked?
Page 201: Sensor (Adf Width Aps 2) Static Jam
7510 Step Check Check the sensor (ADF width APS 1) for proper connection. Replace the Replace the sensor (ADF connection. Is the above component properly connected? width APS 1). Go to “Sensor (ADF width APS 1) removal” on page 4-146. Place an undamaged document in the ADF, and perform a Replace the ADF Problem solved.
Page 202: Sensor (Adf Width Aps 3) Static Jam
7510 Step Check Place an undamaged document in the ADF, and perform a Replace the RIP Problem solved. ADF test. card assembly. “RIP card Does the error remain? Go to assembly removal” on page 4-73. 290.23 Sensor (ADF width APS 3) static jam Step Check Check the media path.
Page 203: Sensor (Adf Registration) Static Jam
7510 291.00 Sensor (ADF registration) static jam Step Check Check the media path. Go to step 2. Remove any media or media Is the media path free of media or media fragments? fragments. Check the sensor (ADF registration) for proper operation. Go to step 4.
Page 204 7510 Step Check Check the ADF rolls for wear. Go to step 3. Clean or replace the ADF feed/pick Is the ADF feed/pick roll assembly or the ADF separation roll assembly or roll guide assembly free of excess wear? the ADF separation roll guide assembly.
Page 205: Sensor (Adf Inverter) Late Jam 2
7510 Step Check Place an undamaged document in the ADF, and perform a Replace the ADF Problem solved. ADF test. controller card assembly. Does the error remain? Go to “ADF controller card assembly removal” on page 4-138. Go to step 9. Place an undamaged document in the ADF, and perform a Replace the RIP Problem solved.
Page 206 7510 Step Check Check the sensor (ADF inverter) for proper connection. Replace the Replace the sensor (ADF connection. Is the above component properly connected? inverter). Go to “Sensor (ADF inverter) removal” on page 4-151. Check the inverter gate condition. Go to step 7. Replace the inverter gate.
Page 207: Sensor (Adf Inverter) Lag Jam
7510 291.03 Sensor (ADF inverter) lag jam Step Check Check the original document condition. Go to step 2. Remove damaged original document Is the original document free of paper clips and staples as and replace with a well as damage such as creases, tears, holes or excessive new undamaged wear? original document.
Page 208 7510 Step Check Check the sensor (ADF registration) for proper connection. Replace the Replace the sensor (ADF connection. Is the above component properly connected? registration). Go to “Sensor (ADF inverter) removal” on page 4-151. Check the inverter gate condition. Go to step 9. Replace the inverter gate.
Page 209: Adf Raised Jam
7510 Step Check Place an undamaged document in the ADF, and perform a Replace the ADF Problem solved. ADF test. controller card assembly. Does the error remain? Go to “ADF controller card assembly removal” on page 4-138. Go to step 14. Place an undamaged document in the ADF, and perform a Replace the RIP Problem solved.
Page 210: Sensor (Adf Inverter) Static Jam
7510 Step Check Check the sensor (document set) for proper operation. Go to step 4. Go to step 3. 1. Enter the Diagnostics Menu. 2. Touch SCANNER TESTS. 3. Touch Sensor Tests. 4. Touch Document set. Does the display on the operator panel, change every time the sensing area of the above sensor is interrupted or blocked? Check the sensor (document set) for proper connection.
Page 211: Sensor (Adf Pre-Registration) Late Jam (Side 2)
7510 Step Check Check the sensor (ADF inverter) for proper connection. Replace the Replace the sensor (ADF connection. Is the above component properly connected? inverter). Go to “Sensor (ADF inverter) removal” on page 4-151. Place an undamaged document in the ADF, and perform a ADF Replace the Problem solved.
Page 212 7510 Step Check Check the inverter gate condition. Go to step 5. Replace the inverter gate. Is the inverter gate free of damage and warpage, and does “Inverter it move smoothly? Go to gate removal” on page 4-152. Check the sensor (ADF pre registration) for proper Go to step 7.
Page 213: Sensor (Adf Pre-Registration) Lag Jam (Inverting)
7510 Step Check Check the inverter solenoid assembly for proper operation. Go to step 11. Go to step 10. Caution: When performing motor tests, ensure that all cover and door interlock switches are overridden. 1. Enter the Diagnostics Menu. 2. Touch MOTOR TESTS. 3.
Page 214 7510 Step Check Check the ADF rolls for wear. Go to step 3. Clean or replace the ADF feed/pick Is the ADF feed/pick roll assembly or the ADF separation roll roll assembly or the guide assembly free of excess wear? ADF separation roll guide assembly.
Page 215 7510 Step Check Check the ADF feed drive motor assembly for proper Go to step 10. Go to step 9. operation. Caution: When performing motor tests, ensure that all cover and door interlock switches are overridden. 1. Enter the Diagnostics Menu. 2.
Page 216: Size Mismatch Jam (Mix-Size)
7510 Step Check Check the ADF registration motor for proper operation. Go to step 14. Go to step 13. Caution: When performing motor tests, ensure that all cover and door interlock switches are overridden. 1. Enter the Diagnostics Menu. 2. Touch MOTOR TESTS. 3.
Page 217 7510 Step Check Check the sensor (ADF width APS 1) for proper operation. Go to step 2. Go to step 3. 1. Enter the Diagnostics Menu. 2. Touch SCANNER TESTS. 3. Touch Sensor Tests. 4. Touch ADF width APS 1. Does the display on the operator panel, change every time the sensing area of the above sensor is interrupted or blocked?
Page 218: Size Mismatch Jam (No Mix-Size)
7510 Step Check Place an undamaged document in the ADF, and perform a Replace the ADF Problem solved. ADF test. controller card assembly. Does the error remain? Go to “ADF controller card assembly removal” on page 4-138. Go to step 9. Place an undamaged document in the ADF, and perform a Replace the RIP Problem solved.
Page 219: Invalid Combine Size Jam
7510 295.02 Invalid combine size jam Step Check Check the document size. Go to step 2. Insert the proper size document into Is the correct size document being inserted into the ADF? the ADF. Check the document tray media guide position. Go to step 3.
Page 220: Too Short Size Jam
7510 Step Check Check the sensor (ADF width APS 3) for proper operation. Go to step 10. Go to step 9. 1. Enter the Diagnostics Menu. 2. Touch SCANNER TESTS. 3. Touch Sensor Tests. 4. Touch ADF width APS 3. Does the display on the operator panel, change every time the sensing area of the above sensor is interrupted or blocked?
Page 221: Too Long Size Jam
7510 Step Check Check the sensor (sheet through) for proper connection. Replace the Replace the sensor (sheet connection. Is the above component properly connected? through). Go to “Sensor (sheet through) removal” on page 4-158. Check the sensor (ADF pre registration) for proper Go to step 6.
Page 222 7510 Step Check Check the sensor (sheet through) for proper operation. Go to step 4. Go to step 3. 1. Enter the Diagnostics Menu. 2. Touch SCANNER TESTS. 3. Touch Sensor Tests. 4. Touch Sheet through. Does the display on the operator panel, change every time the sensing area of the above sensor is interrupted or blocked? Check the sensor (sheet through) for proper connection.
Page 223: Mixed Size Not Supported
7510 295.05 Mixed size not supported Step Check Check the mixed sizes setting. Perform a POR Select mixed and refeed sizes setting. Is the above setting properly selected for mixed sizes? originals. 298.01 Scanner cable missing or unplugged Step Check Check the scanner interface cable assembly for damage.
Page 224: Scanner Communication Error
7510 Step Check Check the sensor (RFID toner cartridge) for the black toner Replace the Replace the cartridge for proper connection. sensor (RFID connection. toner cartridge). Is the above component properly connected? Go to “Sensor (RFID toner cartridge) removal” on page 4-109.
Page 225 7510 Step Check Perform a POR. Replace the Problem solved. scanner Does the error remain when the power is turned off/on? controller card assembly. “Scanner Go to controller card assembly removal” on page 4-123. Go to step 4. Perform a POR. Replace the RIP Problem solved.
Page 226: Scanner Communication Error
7510 842.02 Scanner communication error Step Check Check the scanner interface cable assembly connection Go to step 2. Replace the between the RIP card assembly and the scanner unit connection. assembly. Is the scanner interface cable assembly connected properly? Check all connections of the scanner controller card assembly. Go to step 3.
Page 227: Scanner Communication Error
7510 Step Check Perform a POR. Replace the RIP Problem solved. card assembly. Does the error remain when the power is turned off/on again? “RIP card Go to assembly removal” on page 4-73. 842.04 Scanner communication error Step Check Check the scanner interface cable assembly connection Go to step 2.
Page 228: Scanner Communication Error (By Scanner)
7510 Step Check Perform a POR. Replace the ADF Problem solved. controller card Does the error remain when the power is turned off/on? assembly. Go to “ADF controller card assembly removal” on page 4-138. Perform a POR. Replace the Problem solved. scanner controller Does the error remain when the power is turned off/on? card assembly.
Page 229: Sensor (Scanner Hp) Error
7510 Step Check Check all connections of the ADF controller card assembly. Go to step 3. Replace all connections. Are the connections of the ADF controller card assembly connected properly? Perform a POR. Replace the Problem solved. ADF controller Does the error remain when the power is turned off/on? card assembly.
Page 230: Scanner Carriage Over Run Error
7510 Step Check Check the scanner drive motor assembly. Go to step 6. Go to step 5. Caution: When performing motor tests, ensure that all cover and door interlock switches are overridden. 1. Enter the Diagnostics Menu. 2. Touch MOTOR TESTS. 3.
Page 231: Adf Ram Test Error
7510 843.10 ADF RAM test error Step Check Check the connection between the ADF controller card Replace the ADF Connect the ADF assembly and the scanner controller card assembly. controller card controller card assembly. assembly and the Are the ADF controller card assembly and the scanner scanner controller controller card assembly connected properly? Go to...
Page 232 7510 Step Check Check the sensor (pick roll position HP) for operation. Go to step 4. Go to step 3. 1. Enter the Diagnostics Menu. 2. Touch SCANNER TESTS. 3. Touch Sensor Tests. 4. Touch Pick roll position HP. Does the display on the operator panel, change every time the sensing area of the above sensor is interrupted or blocked? Check the sensor (pick roll position HP) for connection.
Page 233: Scanner Unit Assembly Connection Error
7510 843.20 Scanner unit assembly connection error Step Check Check the connection of each ADF controller card assembly Go to step 2. Connect each connector. connector of ADF controller card Is each connector of ADF controller card assembly connected assembly properly? properly.
Page 234: Scanner Cooling Fan Error
7510 Step Check Perform a POR. Replace the Problem scanner solved. Does the error remain when the power is turned off/on? controller card assembly. Go to “Scanner controller card assembly removal” on page 4-123. 843.23 Scanner cooling fan error Step Check Check the scanner cooling fan operation.
Page 235: Image Processing Error
7510 843.24 Image processing error Step Check Check the connections of the scanner controller card Go to step 2. Connect each assembly. connector of the scanner Are the connectors of the scanner controller card assembly controller card connected properly? assembly properly.
Page 236: Scanner Controller Card Assembly Error 2
7510 843.26 Scanner controller card assembly error 2 Step Check Check the connection of each scanner controller card Go to step 2. Connect each assembly connector. connector of scanner Is each connector of scanner controller card assembly controller card connected properly? assembly properly.
Page 237: White Reference/Exposure Lamp Illumination Error
7510 Step Check Check the exposure lamp PS card assembly. Replace the Replace the exposure lamp connection. Is the above card properly connected to the scanner PS card controller card assembly? assembly. “Exposure lamp PS card assembly removal” on page 4-122.
Page 238: Ccd Error
7510 Step Check Check the exposure lamp for operation. Go to step 8. Go to step 5. Caution: When performing motor tests, ensure that all cover and door interlock switches are overridden. 1. Enter the Diagnostics Menu. 2. Touch MOTOR TESTS. 3.
Page 239: Ccd Initialization (Lamp On) Error
7510 Step Check Perform a POR. Replace the scanner Does the error remain? controller card assembly. “Scanner Go to controller card assembly removal” on page 4-123. 845.01 CCD initialization (lamp on) error Step Check Check the exposure lamp for operation. Go to step 6.
Page 240: Ccd Initialization (Lamp Off) Error
7510 Step Check Perform a POR. Replace the Problem solved. scanner Does the error remain when the power is turned off/on? controller card assembly. “Scanner Go to controller card assembly removal” on page 4-123. 845.02 CCD initialization (lamp off) error Step Check Check the connection of the scanner controller card...
Page 241: Scanner Communication Error
7510 Step Check Perform a POR. Replace the Problem solved. scanner Does the error remain when the power is turned off/on? controller card assembly. “Scanner Go to controller card assembly removal” on page 4-123. Go to step 4. 846.01 Scanner communication error Step Check Check the scanner interface cable assembly connection...
Page 242 7510 Step Check Check the sensor (ADF width APS 1) for proper connection. Replace the Replace the sensor (ADF connection. Is the above component properly connected? width APS 1). Go to “Sensor (ADF width APS 1) removal” on page 4-146. Check the sensor (ADF width APS 2) for proper operation.
Page 243: Scanner Unit Assembly Software Logic Error
7510 846.12 Scanner unit assembly software logic error Step Check Check the software version for the scanner controller card Go to step 2. Upgrade the assembly. software of the scanner controller Is the version of the software of the scanner controller card card assembly.
Page 244: Modem Error
7510 847.00 Modem error Step Check Confirm the configuration ID is set correctly. Go to step 2. Set the configuration ID Is the configuration ID set correctly? correctly. Go to “Configuration ID” on page 3-19. Check the fax interface card assembly (modem) connection. Replace the fax Replace the interface card...
Page 245: Fax/Modem Configuration Id Mismatch
7510 848.00 Fax/modem configuration ID mismatch Step Check Check the fax interface card assembly (modem) connection. Replace the fax Replace the interface card connection. Is the fax interface card assembly (modem) connected assembly properly? (modem) and properly set configuration ID. Go to “Fax interface card...
Page 246: General Upper Engine Error Fuse #1
7510 Step Check Turn the printer off for 60 seconds. Replace the RIP Problem solved. card assembly. Does the error occur when the power is turned off/on again? “RIP card Go to assembly removal” on page 4-73. Go to step 3. 901.XX RIP card assembly software error Step Check...
Page 247 7510 Step Check Check the rear lower cooling fan cables and any associated Go to step 4. Repair or replace cables for damage. the appropriate cable assemblies Are the above components free from crimps and damage? or replace the rear lower cooling fan assembly.
Page 248: General Upper Engine Error Fuse #2
7510 902.01 General upper engine error fuse #2 Step Check Perform a POR. Go to step 2. Perform several print tests. Does the error occur when the power is turned off/on? If the problem remains, go to step 2. Check the erase lamp cable assemblies and any other Go to step 3.
Page 249: General Lower Engine Error Fuse #1
7510 Step Check Check the waste toner agitator motor assembly cables and Go to step 4. Repair or replace any associated cables for damage. the appropriate cable assemblies Are the above components free from crimps and damage? or the waste toner agitator motor assembly.
Page 250: General Lower Engine Error Fuse #2
7510 902.04 General lower engine error fuse #2 Step Check Perform a POR. Go to step 2. Perform several print tests. Does the error occur when the power is turned off/on? If the problem remains, go to step 2. Check the transfer belt drive motor assembly cables and Go to step 3.
Page 251: General Lower Engine Error Fuse #4
7510 Step Check Check the MPF/transport drive motor assembly cables and Go to step 3. Repair or replace any associated cables for damage. the appropriate cable assemblies Are the above components free from crimps and damage? or replace the MPF/transport drive motor assembly.
Page 252: General Lower Engine Error Fuse #5
7510 Step Check Check the 2nd transfer roll retract motor assembly cables Go to step 5. Repair or replace and any associated cables for damage. the appropriate cable assemblies Are the above components free from crimps and damage? or replace the 2nd transfer roll retract motor assembly.
Page 253 7510 Step Check Check the tray #1 media feed lift motor cables and any Go to step 4. Repair or replace associated cables for damage. the appropriate cable assemblies Are the above components free from crimps and damage? or replace media feed lift motor.
Page 254: K Developer/Transport Drive Assembly Motor Error
7510 Step Check Check the inverter reverse clutch cables and any Go to step 9. Repair or replace associated cables for damage. the appropriate cable assemblies Are the above components free from crimps and damage? or replace the duplex media inverter assembly.
Page 255: K Pc Drive Motor Error
7510 Step Check Perform a POR. Replace the lower Problem solved. printer engine card Does the error occur when the power is turned off/on? assembly. Go to “Lower printer engine card assembly removal” on page 4-80. 903.01 K PC drive motor error Step Check Perform a POR.
Page 256: Cmy Pc Drive Motor Error
7510 903.02 CMY PC drive motor error Step Check Perform a POR. Go to step 2. Perform several print tests. Does the error occur when the power is turned off/on? If the problem remains, go to step 2. Check the CMYK PC cartridge drive motor assembly for Go to step 4.
Page 257: Sensor (Transfer Belt Hp) Late Error
7510 Step Check Check the CMY developer drive motor assembly for proper Go to step 4. Go to step 3. operation. Caution: When performing motor tests, ensure that all cover and door interlock switches are overridden. 1. Enter the Diagnostics Menu. 2.
Page 258: Transfer Belt Position Failure
7510 Step Check “Transfer Replace the transfer belt unit assembly. To to Replace the lower Problem solved. belt unit assembly removal” on page 4-16. printer engine card assembly. Does the error remain? Go to “Lower printer engine card assembly removal” on page 4-80.
Page 259: Sensor (Transfer Belt Edge) Failure
7510 904.02 Sensor (transfer belt edge) failure Step Check Check the transfer belt unit assembly for proper installation. Go to step 2. Re-install the transfer belt unit Is the above component properly installed? assembly. Check the transfer belt unit assembly for damage. Go to step 3.
Page 260 7510 Step Check Check the sensor (2nd transfer roll HP) for proper Go to step 4. Go to step 3. operation. 1. Enter the Diagnostics Menu. 2. Touch Base Sensor Tests. 3. Touch Media Path. 4. Touch 2nd transfer roll retract HP. Does the display on the operator panel, change every time the sensing area of the above sensor is interrupted or blocked?
Page 261: Sensor (2Nd Transfer Roll Retract Hp) Lag Error
7510 904.04 Sensor (2nd transfer roll retract HP) lag error Step Check Perform a POR. Go to step 2. Perform several print tests. Does the error occur when the power is turned off/on? If the problem remains, go to step 2. Check the sensor (2nd transfer roll HP) for proper Go to step 4.
Page 262: Sensor (Cmy Transfer Roll Retract Hp) Late Error
7510 Step Check Perform a POR. Replace the lower Problem solved. printer engine card Does the error occur when the power is turned off/on? assembly. Go to “Lower printer engine card assembly removal” on page 4-80. 904.05 Sensor (CMY transfer roll retract HP) late error Step Check Perform a POR.
Page 263: Cmy Transfer Roll Retract Motor Time Out
7510 904.07 CMY transfer roll retract motor time out Step Check Perform a POR. Go to step 2. Perform several print tests. Does the error occur when the power is turned off/on? If the problem remains, go to step 2. “Transfer Replace the transfer belt unit assembly.
Page 264: Marking Device Xerographics Error
7510 905.02 Marking device Xerographics error Step Check Perform a POR. Replace the upper Problem solved. printer engine card Does the error occur when the power is turned off/on? assembly. Go to “Upper printer engine card assembly removal” on page 4-77.
Page 265: Printhead Polygon Mirror Motor Error
7510 907.00 Printhead polygon mirror motor error Step Check Perform a POR. Go to step 2. Perform several print tests. Does the error occur when the power is turned off/on? If the problem remains, go to step 2. Turn the printer off for 60 seconds. Go to step 3.
Page 266: C Laser Sos Internal Error
7510 Step Check Perform a POR. Replace the Problem solved. printhead Does the error occur when the power is turned off/on? assembly. Go to “Printhead assembly removal” on page 4-95. 907.03 C laser SOS internal error Step Check Perform a POR. Go to step 2.
Page 267: Printhead Control Error
7510 907.05 Printhead control error Step Check Perform a POR. Go to step 2. Perform several print tests. Does the error occur when the power is turned off/on? If the problem remains, go to step 2. Turn the printer off for 60 seconds. Go to step 3.
Page 268: Lvps Cooling Fan Error
7510 911.00 24V LVPS cooling fan error Step Check Perform a POR. Go to step 2. Perform several print tests. Does the error occur when the power is turned off/on? If the problem remains, go to step 2. Check the 24V LVPS cooling fan assembly for proper Replace the 24V Replace the connection.
Page 269: Fuser Cooling Fan Lock Error
7510 911.02 Fuser cooling fan lock error Step Check Perform a POR. Go to step 2. Perform several print tests. Does the error occur when the power is turned off/on? If the problem remains, go to step 2. Check the fuser cooling fan for proper operation. Go to step 4.
Page 270: Fuser Main Lamp Overheat Error
7510 920.00 Fuser main lamp overheat error Step Check Reset the fuser overheat failure lock out condition. Go to step 2. Go to step 5. 1. Enter the Diagnostics Menu. 2. Touch Fuser temp fail clear. 3. Touch Fuser temp fail clear. Perform a POR.
Page 271: Fuser Sub Lamp Overheat Error
7510 Step Check Perform a POR. Replace the fuser Problem solved. unit assembly. Does the error occur when the power is turned off/on? “Fuser unit Go to assembly removal” on page 4-15. 920.02 Fuser sub lamp overheat error Step Check Reset the fuser overheat failure lock out condition.
Page 272: Main Lamp Warm Up Error
7510 Step Check Check the fuser unit assembly for proper installation. Go to step 3. Install the fuser unit assembly Is the fuser unit assembly installed properly? properly. Check the fuser unit assembly for proper connection. Go to step 4. Repair the connection.
Page 273: Main Lamp On-Time Error
7510 920.05 Main lamp on-time error Step Check Check the fuser unit assembly for a media jam. Remove the Go to step 2. media. Is there a media jam in the fuser unit assembly? Check the fuser unit assembly for proper installation. Go to step 3.
Page 274: Sub Lamp On-Time Error
7510 Step Check Perform a POR. Replace the AC Problem solved. drive card bracket Does the error occur when the power is turned off/on? assembly. Go to “AC drive card bracket assembly removal” on page 4-100. 920.07 Sub lamp on-time error Step Check Check the fuser unit assembly for a media jam.
Page 275: Magenta Toner Rfid Communication Error
7510 Step Check Perform a POR. Replace the upper Problem solved. printer engine card Does the error occur when the power is turned off/on? assembly. Go to “Upper printer engine card assembly removal” on page 4-77. 924.01 Magenta toner RFID communication error Step Check Check the M toner cartridge.
Page 276: Black Toner Rfid Communication Error
7510 Step Check Perform a POR. Replace the upper Problem solved. printer engine card Does the error occur when the power is turned off/on? assembly. Go to “Upper printer engine card assembly removal” on page 4-77. 924.03 Black toner RFID communication error Step Check Check the K toner cartridge.
Page 277: Sensor (M Atc) Error
7510 Step Check Perform a very large print test. Replace the upper Problem solved. printer engine card Does the error continue? assembly. Go to “Upper printer engine card assembly removal” on page 4-77. 925.01 Sensor (M ATC) error Step Check Reset the M ATC failure lock out condition.
Page 278: Sensor (K Atc) Error
7510 Step Check Check the sensor (C ATC) for proper connection. Replace the C Replace the Developer unit connection. Is the above component properly connected? assembly. Go to “Developer unit assembly removal” on page 4-52. Perform a very large print test. Replace the upper Problem solved.
Page 279: Switch (Media Size) Size Sensing Error (Tray 1)
7510 Step Check Check the MPF feed unit assembly. Replace the MPF Replace the feed unit connection. Is the above component properly connected? assembly . Go to “MPF feed unit assembly removal” on page 4-8. Perform a POR. Replace the upper Problem solved.
Page 280: Sensor (Media Level) Late Error (Tray 1)
7510 941.01 Sensor (media level) late error (tray 1) Step Check Check the media. Go to step 2. Load media properly. Is media loaded in tray 1 properly? Check the sensor (media level) (tray 1) for proper operation. Go to step 4. Go to step 3.
Page 281: Switch (Media Size) Size Sensing Error (Tray 2)
7510 942.00 Switch (media size) size sensing error (tray 2) Step Check Check the media. Go to step 2. Load media properly. Is media loaded in tray 2 properly? Check the media tray. Replace the media Go to step 3. tray assembly.
Page 282: Switch (Media Size) Size Sensing Error (Tray 3)
7510 Step Check Check the sensor (media level) (tray 2) for proper Replace the Replace the connection. sensor (media connection. level). Is the above component properly connected? Go to “Sensor (media level) removal” on page 4-24. Check the media feed/lift motor (tray 2) for proper Go to step 6.
Page 283: Sensor (Media Level) Late Error (Tray 3)
7510 Step Check Check the tray 3 switch (media size) for proper Go to step 5. Go to step 4. operation. 1. Enter the Diagnostics Menu. 2. Touch INPUT TRAY TESTS. 3. Touch Sensor Test. 4. Touch Tray 3. 5. Touch Tray 3 present. Does the display on the operator panel, change every time the media tray is opened and closed? 3TM equipped machines check the tray 3 switch (media...
Page 284: Switch (Media Size) Size Sensing Error (Tray 4)
7510 Step Check Check the sensor (media level) (tray 3) for proper Replace the Replace the connection. sensor (media connection. level). Is the above component properly connected? Go to “Sensor (media level) removal” on page 4-24. Check the media feed/lift motor (tray 3) for proper Go to step 6.
Page 285: Sensor (Media Level) Late Error (Tray 4)
7510 Step Check Check the tray 4 switch (media size) for proper Go to step 5. Go to step 4. operation. 1. Enter the Diagnostics Menu. 2. Touch INPUT TRAY TESTS. 3. Touch Sensor Test. 4. Touch Tray 4. 5. Touch Tray 4 present. Does the display on the operator panel, change every time the media tray is opened and closed? 3TM equipped machines check the tray 4 switch (media...
Page 286: Through 950.29 Eprom Mismatch Failure
7510 Step Check Check the sensor (media level) (tray 4) for proper Replace the Replace the connection. sensor (media connection. level). Is the above component properly connected? Go to “Sensor (media level) removal” on page 4-24. Check the media feed/lift motor (tray 4) for proper Go to step 6.
Page 287: Through 950.60 Eprom Mismatch Failure
7510 Check the interconnect card assembly. Go to step 3. Go to step 2. Was the interconnect card assembly recently replaced? Check the operator panel assembly. Go to step 4. Contact next level of support. Was the operator panel recently replaced? Replace the current interconnect card assembly with the Go to step 5.
Page 288: Rip Card Assembly Nvram Failure
7510 If problem remains, replace the original interconnect card Contact the next Problem solved. assembly with a new and not previously installed level of support. interconnect card assembly. Does the error remain? If problem remains, replace the original panel assembly with Contact the next Problem solved.
Page 289: Operator Panel Assembly Nvram Failure
7510 953.XX Operator panel assembly NVRAM failure Step Check Perform a POR. Go to step 2. Perform several print tests. Does the error occur when the power is turned off/on? If the problem remains, go to step 2. Turn the printer off for 60 seconds. Replace the Problem solved.
Page 290: Rip Card Assembly Nand Crc Failure
7510 955.XX RIP card assembly NAND CRC failure Step Check Perform a POR. Go to step 2. Perform several print tests. Does the error occur when the power is turned off/on? If the problem remains, go to step 2. Turn the printer off for 60 seconds. Replace the RIP Problem solved.
Page 291: Rip Card Assembly Cooling Fan Failure
7510 956.02 RIP card assembly cooling fan failure Step Check Perform a POR. Go to step 2. Perform several print tests. Does the error occur when the power is turned off/on? If the problem remains, go to step 2. Turn the printer off for 60 seconds. Go to step 3.
Page 292: Hvps Controller Communication Error
7510 Step Check Perform a POR. Replace the 1TM, Problem solved. 3TM or the TTM Does the error continue when the power is turned off/ TTM controller card assembly. “1X 500- Go to sheet drawer (1TM)–1TM controller card assembly removal” on page 4-252, “3X...
Page 293: Communication Error Between Printer And Rip Card Assembly
7510 980.02 Communication error between printer and RIP card assembly Step Check Check the RIP card assembly and the printer engine card Go to step 2. Replace the assembly for proper connection. connection. Is the above component properly connected? Perform a POR. Replace the RIP Problem solved.
Page 294: 1Tm, 3Tm Or Ttm Left Door Assembly Open
7510 1TM, 3TM or TTM left door assembly open Step Check Check the 1TM, 3TM or TTM left door for proper Go to step 2. Replace the 1TM, operation. 3TM or TTM left door assembly. Is the above component open and close properly? Go to “1X 500- sheet drawer...
Page 295: Duplex Left Door Assembly Open
7510 Step Check Perform a POR. Replace the upper Problem solved. printer engine card Does the error continue when the power is turned off/ assembly. Go to “Upper printer engine card assembly removal” on page 4-77. Duplex left door assembly open Step Check Check the duplex left door for proper operation.
Page 296: Media Size Mismatch In Width
7510 Media size mismatch in width Step Check Check the media. Go to step 2. Load media properly. Is media properly loaded in the tray? Check the media. Go to step 3. Set the guides properly. Is the rear media tray guide, and media tray end guide of tray 1 or tray 2 set correctly? Check the switch (media size) for proper installation.
Page 297: No Media In The Selected Media Tray
7510 Step Check Check the switch (TTM media size) for proper Replace the Replace the connection. appropriate switch connection. (TTM media size). Check tray 3 and tray 4. Go to “2000-sheet Are the above sensors connected properly? dual input (TTM)–switch (TTM media size) removal”...
Page 298 7510 Step Check Check the sensor (media out) for operation. Go to step 4. Go to step 3. 1. Enter the Diagnostics Menu. 2. Touch INPUT TRAY TESTS. 3. Touch Sensor test. 4. Touch Tray 1. 5. Touch Media out. 1.
Page 299: Paper Is Installed (Short Edge) In The Media Paper Tray
7510 Paper is installed (short edge) in the media paper tray Step Check Is the media installed (short edge) orientation in the media Turn media 90 Go to step 2. tray assembly as opposed to long edge? degrees or enable short edge feeding which is found in the config menu...
Page 300: Printer Front Door Assembly Open
7510 Printer front door assembly open Step Check Check the printer front door for proper operation. Go to step 2. Replace the printer front door Does the above component open and close properly? assembly. Go to “Printer front door assembly removal”...
Page 301: Printer Left Door Open
7510 Printer left door open Step Check Check the printer left door closed actuator located on the Go to step 2. Replace the rear of the printer left door assembly for damage. printer left door closed actuator Is the above component, as shown in the graphic below, (40X4098).
Page 302: Transfer Belt Access Door Open
7510 Transfer belt access door open Step Check Check the transfer belt access door for proper operation. Go to step 2. Replace the printer right cover Does the above component open and close properly? assembly. Go to “Printer left door damper removal”...
Page 303: Maintenance Required
7510 Step Check Check the switch (printer left lower door interlock) for Go to step 4. Go to step 3. operation. 1. Enter the Diagnostics Menu. 2. Touch BASE SENSOR TEST. 3. Touch Cover and Door. 4. Touch Door B left/lower. Does the display on the operator panel change every time the actuator on the above switch is operated? Check the switch (printer left lower door interlock)
Page 304: Adf Maintenance Required
7510 ADF maintenance required Step Check Install the ADF maintenance kit. Reset the ADF Problem solved. maintenance Does the message still occur? counter. Go to “Scheduled maintenance” on page 6-3. Standard media bin full Step Check Check the actuator for movement. Go to step 2.
Page 305: Adf Left Cover Assembly Is Open
7510 Step Check Perform a POR. Replace the Problem solved. scanner Does the error remain when the power is turned off/on? controller card assembly. “Scanner Go to controller card assembly removal” on page 4-123. Go to step 4. Perform a POR. Replace the RIP Problem solved.
Page 306: Toner Cartridge Error
7510 Toner cartridge error Step Check Check the toner cartridge installation. Go to step 2. Install the correct toner cartridge Is the correct toner cartridge properly installed? properly. Checking the sensor (RFID toner cartridge) for proper Go to step 3. Install the sensor installation.
Page 307: Waste Toner Cartridge Full
7510 Waste toner cartridge full Step Check Check the waste toner cartridge. Go to step 2. Reinstall the waste toner cartridge. Is the above component properly installed? Check the sensor (waste toner cartridge full) for proper Go to step 5. Go to step 3.
Page 308: Waste Toner Cartridge Nearly Full
7510 Step Check Perform a POR. Replace the upper Problem solved. printer engine card Does the error remain when the power is turned off/on assembly. again? Go to “Upper printer engine card assembly removal” on page 4-77. Waste toner cartridge nearly full Step Check Check the waste toner cartridge.
Page 309: Color> Pc Cartridge Not Detected
7510 <Color> PC cartridge not detected Step Check Check the appropriate PC cartridge. Go to step 2. Reinstall the appropriate PC Is the above component properly installed? cartridge. Go to “PC cartridge unit removal” on page 4-44. Replace the appropriate PC cartridge. Go to step 3.
Page 310: Cmy Pc Cartridges Nearly Exhausted
7510 CMY PC cartridges nearly exhausted Step Check Check the CMY PC cartridges. Go to step 2. Reinstall the CMY PC cartridges. Is the above component properly installed? Go to “PC cartridge unit removal” on page 4-44. Replace the CMY PC cartridges. Go to step 3.
Page 311: K Pc Cartridge Exhausted
7510 Step Check Replace the K PC cartridge. Go to step 3. Problem solved. Does the error remain? Perform a POR. Replace the upper Problem solved. printer engine card Does the error remain when the power is turned off/on assembly. again? Go to “Upper...
Page 312: Color> Toner Cartridge Empty
7510 Step Check Check the appropriate toner add assembly chute for Go to step 5. Clean any clogging. obstructions. Is the chute, located at the lower part of the above component, free of clogs and obstructions? Check the appropriate segment of the CMYK toner add Go to step 7.
Page 313: Color> Toner Cartridge Detection Error
7510 Step Check Check the appropriate toner add assembly chute for Go to step 5. Clean any clogging. obstructions. Is the chute, located at the lower part of the above component, free of clogs and obstructions? Check the appropriate segment of the CMYK toner add Go to step 7.
Page 314: Incorrect Black Toner Cartridge Error
7510 Step Check Perform a POR. Replace the upper Problem solved. printer engine card Does the error remain when the power is turned off/on? assembly. Go to “Upper printer engine card assembly removal” on page 4-77. Perform a POR. Replace the RIP Problem solved.
Page 315: Tray 2 Media Size Mismatch Error
7510 Step Check Check the switch (media size) for proper connection. Replace the switch Replace the (media size) connection. Is the above component properly connected? Perform a POR. Replace the upper Problem solved. printer engine card Does the error remain when the power is turned off/on? assembly.
Page 316: Tray 3 Media Size Mismatch Error
7510 Tray 3 media size mismatch error Step Check Check the media tray assembly 3 side guide. Go to step 2. Properly set the media tray Is the above component set properly? assembly side guide. Check the media tray assembly 3 end guide. Go to step 3.
Page 317: Tray 1 Media Type Mismatch Error
7510 Step Check Perform a POR. Replace the upper Problem solved. printer engine card Does the error remain when the power is turned off/on? assembly. Go to “Upper printer engine card assembly removal” on page 4-77. Perform a POR. Replace the RIP Problem solved.
Page 318: Tray 2 Media Type Mismatch Error
7510 Step Check Perform a POR. Replace the RIP Problem solved. card assembly. Does the error remain when the power is turned off/on “RIP card again? Go to assembly removal” on page 4-73. Tray 2 media type mismatch error Step Check Check the media tray assembly 2 for the correct media Go to step 2.
Page 319: Tray 3 Media Type Mismatch Error
7510 Tray 3 media type mismatch error Step Check Check the media tray assembly 3 for the correct media Go to step 2. Install the correct type. media. Does the above tray contain the correct type of media? Check the media tray assembly 3 for the transparencies. Ensure that the Go to step 3.
Page 320 7510 Step Check Check the media tray assembly 4 for the transparencies. Ensure that the Go to step 3. media tray Does the media tray 1 assembly contain transparencies? assembly is supposed to be configured for transparencies or replace them with standard media.
Page 321: Image Quality Trouble
7510 Image quality trouble Printer Related Troubleshooting Note: First, get a printout as a base, and follow the symptom table to identify the possible failing FRU’s. Image quality symptoms • “Faint print (Low contrast)” on page 2-208. Faint print (low contrast)– •...
Page 322: Image Quality
7510 Image Quality Faint print (Low contrast) Leading edge Trailing edge Before starting, check the media route for foreign objects, such as staples, clips, and scraps, in the media path. Step Check Check the media condition. Problem solved. Go to step 2. Load new, dry, recommended media, and perform a print test.
Page 323 7510 Step Check Check the toner add motor assembly. Go to step 7. Problem solved. Replace the toner add motor assembly. “CMYK toner add motor assembly removal” on Go to page 4-93. Does the error continue. Check the developer/transfer roll HVPS card assembly. Go to step 8.
Page 324: Blank Print (No Print)
7510 Blank print (no print) Check the media path for foreign objects such as staples, clips, scraps of media. Step Check Check the four toner cartridges. Problem solved. Replace any empty toner Re-print the defective image. cartridges. Is the image density normal? Check the 2nd transfer roll assembly for contamination Go to step 3.
Page 325 7510 Step Check Check the printhead assembly installation. Go to step 8. Problem solved. Install the printhead assembly properly, and perform a print test. Does the problem remain? Check the printhead assembly for connection. Go to step 9. Replace the connection.
Page 326: Solid Black
7510 Solid black Check the media path for foreign objects such as staples, clips, scraps of media. Step Check Check the four PC cartridges for proper installation. Go to step 2. Correct and clean Check the PC cartridge connections. contaminated pins, or replace Are the PC cartridge connections free of excess wear the appropriate...
Page 327: Vertical Lines And Bands (Process Direction)
7510 Vertical lines and bands (process direction) Leading edge Trailing edge Step Check Check the media condition. Go to step 2. Problem solved. Load new, dry, recommended media. Re-print the defective image. Does the error continue? Is the media transfer route and the media path clear of Go to step 3.
Page 328 7510 Step Check Check the upper printer engine card assembly. Go to step 9. Problem solved. Replace the upper printer engine card assembly. “Upper printer engine card assembly removal” Go to on page 4-77. Perform a print test. Does the problem remain? Check the printhead assembly for connection.
Page 329: Horizontal White Stripes Or Bands (Side To Side Direction)
7510 Horizontal white stripes or bands (side to side direction) Leading edge Trailing edge Step Check Check the media condition. Go to step 2. Problem solved. Load new, dry, and recommended media. Re-print the defective image. Does the error continue? Are the media transfer route and the media path free of Go to step 3.
Page 330 7510 Step Check Check the printhead assembly. Go to step 9. Problem solved. Replace the printhead assembly. “Printhead assembly removal” on page 4-95. Go to Does the error continue? Check the upper printer engine card assembly. Replace the RIP problem solved. card assembly.
Page 331: Vertical Stripes (Process Direction)
7510 Vertical stripes (process direction) Leading edge Trailing edge Step Check Check the media condition. Go to step 2. Problem solved. Load new, dry, recommended media. Re-print the defective image. Does the error continue? Are the media transfer route and the media path free of Go to step 3.
Page 332 7510 Step Check Check the upper printer engine card assembly. Problem solved. Replace the RIP card assembly. Replace the upper printer engine card assembly. Go to “RIP card “Upper printer engine card assembly removal” Go to assembly on page 4-77. removal”...
Page 333: Horizontal Stripes (Side To Side Direction)
7510 Horizontal stripes (side to side direction) Leading edge Trailing edge Step Check Check the media condition. Go to step 2. Problem solved. Load new, dry, recommended media. Re-print the defective image. Does the error continue? Check the media transfer route. Go to step 3.
Page 334 7510 Step Check Check the developer/transfer roll HVPS card assembly. Go to step 8. Problem solved. Replace the developer/transfer roll HVPS card assembly. Go to “Developer / transfer roll HVPS card assembly removal” on page 4-103. Perform a print test. Does the problem remain? Check the upper printer engine card assembly.
Page 335: Partial Lack
7510 Partial lack Leading edge Trailing edge Step Check Check the media condition. Go to step 2. Problem solved. Load new, dry, recommended media. Re-print the defective image. Does the problem remain? Check the four toner cartridges. Problem solved. Replace any empty toner Re-print the defective image.
Page 336 7510 Step Check Check the printhead assembly. Go to step 9. Problem solved. Replace the printhead assembly. “Printhead assembly removal” on page 4-95. Go to Does the error continue? Check the upper printer engine card assembly. Problem solved. Replace the RIP card assembly.
Page 337: Spots
7510 Spots Leading edge Trailing edge Step Check Check the media condition. Go to step 2. Problem solved. Load new, dry, recommended media. Re-print the defective image. Does the error continue? Check the media transfer route. Go to step 3. Remove debris Is the media route free of contamination or debris? contamination.
Page 338: After Image
7510 Step Check Check the printhead assembly. Go to step 8. Problem solved. Replace the printhead assembly. “Printhead assembly removal” on page 4-95. Go to Does the error continue? Check the upper printer engine card assembly. Replace the RIP Problem solved. card assembly.
Page 339 7510 Step Check Check the upper printer engine card assembly. Replace the RIP Problem solved. card assembly. Replace the upper printer engine card assembly. Go to “RIP card “Upper printer engine card assembly removal” Go to assembly on page 4-77. removal”...
Page 340: Background (Fog)
7510 Background (fog) Leading edge Trailing edge Step Check Check the media condition. Go to step 2. Problem solved. Load new, dry, recommended media. Re-print the defective image. Does the error continue? Check the media transfer route. Go to step 3. Remove debris Is the media path free of contamination or debris.
Page 341 7510 Step Check Check the printhead assembly. Go to step 8. Problem solved. Replace the printhead assembly. “Printhead assembly removal” on page 4-95. Go to Does the error continue? Check the upper printer engine card assembly. Replace the RIP Problem solved. card assembly.
Page 342: Skew
7510 Skew Leading edge Trailing edge The printed image is not paralleled with both sides of the media. Step Check Check printer installation placement. Go to step 2. Correct the installation Check the installation surface for irregularities. placement. Check for damaged printer caster. Is the setup surface normal? Properly load media into the media tray assembly and Go to step 3.
Page 343 7510 Step Check Check the registration/transport roll assembly. Go to step 7. Replace registration/ Are all drive rolls on the registration/transport roll transport roll assembly free of contamination, wear and damage? assembly. Go to “Registration / transport roll assembly removal” on page 4-36.
Page 344: Media Damage
7510 Media damage Leading edge Trailing edge Step Check Check printer installation placement. Go to step 2. Correct the installation Check the installation surface for irregularities. placement. Check for missing printer foot. Is the setup surface normal? Check the media feed. Go to step 3.
Page 345 7510 Step Check Check the heat roll and pressure roll. Replace the Inspect the fuser unit machine for Remove the fuser unit assembly. assembly. obstructions in the media path. CAUTION: Allow the fuser unit assembly to Go to “Fuser unit assembly cool down.
Page 346: No Fuse
7510 No fuse Leading edge Trailing edge Step Check Check the fuser unit assembly installation. Go to step 2. Problem solved. Check that the levers, on both sides of the fuser unit assembly, are pushed down. Re-print the defective image. Does the error continue? Check the media condition.
Page 347: Color Misregistration
7510 Color misregistration Step Check Replace the transfer belt unit assembly. Go to Go to step 2. Problem solved. “Transfer belt unit assembly removal” on page 4-16. Does the error remain? Replace the transfer belt steering motor. Go to Go to step 3. Problem solved.
Page 348: Deletions
7510 Deletions Step Check Check the media condition. Go to step 2. Problem solved. Load new, dry, recommended media. Re-print the defective image. Does the problem remain? Replace the transfer belt unit assembly. Go to Go to step 3. Problem solved. “Transfer belt unit assembly removal”...
Page 349: High Frequency Bands
7510 High frequency bands Step Check Check the four PC cartridges for proper installation. Go to step 2. Correct and clean Check the PC cartridge connections. contaminated pins, or replace Are the PC cartridge connections free of excess wear the appropriate and contamination? PC cartridge or connector.
Page 350: Adf & Scanner Related Troubleshooting
7510 ADF & Scanner Related Troubleshooting Note: First, get a printout as a base, and follow the symptom table to identify the possible failing FRU’s. Image quality symptoms: • Dark print – “Faint print (Low contrast)” on page 2-208. • “Vertical stripes (process direction)”...
Page 351: Adf & Scanner Image Quality
7510 ADF & Scanner Image Quality Dark image quality (using ADF or Scanner) Leading edge Leading edge Trailing edge Trailing edge Before starting, check the media route for foreign objects, such as staples, clips, and scraps, in the media path. Step Check Check the large and small platen glass on the scanner...
Page 352: Vertical Lines (Process Direction Using The Adf)
7510 Vertical lines (process direction using the ADF) Leading edge Leading edge Trailing edge Trailing edge Step Check Check the small platen glass on the scanner unit Clean or replace Go to step 2. assembly. the small platen glass. Is the large and small platen glass contaminated or damaged? Go to “Large...
Page 353: Spots (Using Flatbed Scanner)
7510 Spots (using flatbed scanner) Leading edge Leading edge Trailing edge Trailing edge Step Check Check the large platen glass on the scanner unit Clean or replace Go to step 2. assembly. the large platen glass. Is the large platen glass contaminated or damaged? “Large Go to platen glass...
Page 354: Skew (Using Adf)
7510 Skew (using ADF) Leading edge Trailing edge The printed image is not paralleled with both sides of the media. Step Check Check printer installation placement. Go to step 2. Correct the installation Check the installation surface for irregularities. placement. Check for damaged printer caster.
Page 355: Media Damage (Using Adf)
7510 Media damage (using ADF) Leading edge Trailing edge Step Check Properly load document into the ADF unit assembly and Go to step 2. Problem solved. ensure all guides are set correctly. Re-print the defective image. Does the error continue? Check for obstructions in the area of the media feed Go to step 3.
Page 356 7510 Select a menu or menu item for more details. Supplies Menu Job Menu Serial Menu PCL Emul Menu Color Menu <color> Toner Cancel Job PCL SmartSwitch Font Source Color Adjust Oiler Reset Printer PS SmartSwitch Font Name Color Balance Waste Bottle Print Buffer NPA Mode...
Page 357: Diagnostic Aids
7510 3. Diagnostic aids This chapter explains the tests and procedures to identify printer failures and to verify that repairs have corrected the problem. Accessing service menus Access the following menus to identify problems with the printer and run diagnostic tests. Diagnostics Menu 1.
Page 358: Diagnostics Menus
7510 Diagnostics Menus Entering Diagnostics Menus 1. Turn off the printer. 2. Press and hold the 3 and 6 buttons simultaneously. 3. Turn on the printer. 4. Release the buttons after 10 seconds. Available tests Tests appear on the LCD in the order shown: MOTOR TESTS “MOTOR TESTS”...
Page 359 7510 Bridge unit bin media exit solenoid Printer Motor Tests Transfer belt steering motor CMY PC cartridge drive motor K PC cartridge drive motor Printhead polygon mirror motor Registration clutch Tray 1 media feed/lift motor Tray 2 media feed/lift motor Tray 3 media feed/lift motor Tray 4 media feed/lift motor 2nd transfer roll retract motor...
Page 360 7510 “PRINT TESTS” on page 3-7. PRINT TESTS Tray 1 Tray 2 Tray 3 Tray 4 MP Feeder “Print Quality Test Pages” on page 3-7. Printing Quality Test Pages HARDWARE TESTS Panel Test “Panel Test” on page 3-8. Button Test “Button Test”...
Page 361 7510 “Model Name” on page 3-19. Model Name “Configuration ID” on page 3-19. Configuration ID EVENT LOG Display Log “Display the Event Log” on page 3-21. Print Log “Print the Event Log” on page 3-22. Clear Log “Clear the Event Log” on page 3-22.
Page 362: Motor Tests
7510 MOTOR TESTS The tests in this group allow you to test specific motors, and on some motors run them forward or reverse. To run the MOTOR TESTS: 1. Touch MOTOR TESTS from the Diagnostics Menu. 2. Touch the test to run. The following Finisher Motor Tests are available: •...
Page 363: Print Tests
7510 PRINT TESTS To run the Print Tests: 1. Touch PRINT TESTS from the Diagnostics Menu. 2. Touch [Input Source] to verify that the printer can generate output from that source’s media. 3. Touch Printing Quality Test Pages to view information about the printer’s current settings and to test the printer’s ability to generate quality output.
Page 364: Hardware Tests
7510 HARDWARE TESTS Touch the following Hardware Tests from this menu: • Panel Test • Button Test • DRAM Test • CACHE Test Panel Test This test automatically toggles all pixels on the LCD through every contrast level beginning with the darkest to the brightest.
Page 365: Dram Test
7510 DRAM Test The DRAM Test is used to check the validity of both the printer’s standard and optional DRAM. The test involves writing patterns of data to DRAM to verify that each bit in memory can be set and read correctly. To run the DRAM Test: 1.
Page 366: Sensor Test (Duplex)
7510 Make sure either letter or A4 size paper is loaded in the default paper source. If the default source only supports envelopes, then the Quick Test will be printed from Tray 1. To run the Quick Test: 1. Touch DUPLEX TESTS from the Diagnostics Menu. 2.
Page 367: Sensor Test (Input Tray)
7510 • Single–Feeds one sheet of media from the selected source. • Continuous–Media continues feeding from the selected input source until Stop is pressed. Sensor Test (input tray) This test is used to verify that a specific input tray’s sensors are working correctly. To run the Input Tray Sensor Test: 1.
Page 368: Feed To All Bins
7510 • Continuous–Media continues feeding from the selected source until Stop is pressed. Press Stop to return to the [Selected Output Bin]. While this test runs, [Selected Output Bin] Feeding...appears on the LCD. During Single tests, no buttons are active. However, during Continuous tests, you can press Stop to cancel the test.
Page 369: Hole Punch Test
7510 Hole Punch Test This test is used to verify that media can be fed to a finisher output bin and then hole punched. No information is printed on the feed test pages. To run the Hole Punch Test: 1. Touch FINISHER TESTS from the Diagnostics Menu. 2.
Page 370 7510 Available Bin Level Sensors Sensor Name Finisher upper media bin full Stacker bin level1 Stacker bin level2 Stacker bin upper limit Stacker bin no media Stacker bin level encod Available Media Path 1 Sensors Sensor Name Bridge unit media entrance Bridge unit media exit Finisher media entrance Bridge unit media bin exit...
Page 371: Base Sensor Test
7510 Booklet unit interlock Booklet front low staple Booklet rear low staple Available Punch and Staple Sensors Sensor Name Punch side reg1 Punch side reg2 Punch box set Low staple Punch carriage shift hp Punch unit hp Stapler carriage shift hp Punch cam front Punch hole select After selecting one of the available sensors, you can manually toggle the sensor between its two values (Open...
Page 372: Device Tests
7510 Devices Sensors Sensor Name C PC cartridge present M PC cartridge present Y PC cartridge present K PC cartridge present Waste toner full Exit Level Sensor Sensor Name Standard bin full Media Path Sensors Sensor Name Registration Fuser exit Transparency detect 2nd transfer roll retract Transfer Belt Sensors...
Page 373: Disk Test/Clean
7510 Quick Disk Test Testing... appears on the LCD. This test cannot be canceled. After the test finishes, either Quick Disk Test Passed or Quick Disk Test Failed appears on the LCD. This message remains until you touch Back. Disk Test/Clean This test performs a low-level format of the hard disk.
Page 374: Printer Setup
7510 PRINTER SETUP To enter the PRINTER SETUP screen, touch PRINTER SETUP from the Diagnostics Menu. The following graphic appears on the LCD: PRINTER SETUP U.S. Defaults Printed Page Count Perm Page Count Serial Number NV26T470 Medium Envelope Entrance Engine Setting 1 Back Submit Defaults...
Page 375: Printed Mono Page Count
7510 Printed Mono Page Count The value of this setting enables you to gauge the amount of usage on a device. The Printed Page Count cannot be reset by the servicer. Permanent Page Count The value of this setting indicates the total number of pages that have been printed by the printer. The Permanent Page Count cannot be reset.
Page 376: Event Log
7510 The Configuration ID setting allows you to set both Configuration IDs simultaneously. To set one or both Configuration IDs: 1. From the PRINTER SETUP menu, touch the icon to the right of the Configuration ID menu item. The screen displays the value of both Configuration IDs. By default, the cursor appears on the Configuration ID 1 line.
Page 377: Display The Event Log
7510 • Maintenance Count Resets • NV Resets and various types of JFFS@ partition formats Touch EVENT LOG from the Diagnostics Menu, and the following options are displayed: Display Log Print Log Clear Log Display the Event Log Note: The displayed version of the Event Log shows only a subset of the information contained in the Diagnostics version of the printed Event Log.
Page 378: Print The Event Log
7510 Print the Event Log Each page of the printed Event Log report has the title Event Log at the top of each page followed by the model name and serial number. The following is a sample of a printed Event Log: Model and Serial number XXX-XXXX...
Page 379: Scanner Tests
7510 SCANNER TESTS ASIC Test This operation performs a diagnostic test on the scanner ASIC that cycles through all of the scanner ASIC's memory. To perform the ASIC Test: 1. Touch SCANNER TESTS from the Diagnostics Menu. 2. Touch ASIC Test. During this test, ASIC Test Running...
Page 380: Scanner Manual Registration
7510 Scanner Manual Registration Note: All scanner and ADF manual registration alignment verifications must be done in standard user mode, not in configuration or diagnostic mode. Note: You should verify the printer registration alignment before conducting the manual scanner registration “ENGINE ADJUST”...
Page 381: Trans Belt Hp Fail Clear
7510 Trans Belt HP Fail Clear To perform the Trans Belt Fail Clear Test: 1. Touch Trans Belt Fail Clear from the Diagnostics Menu. 2. Touch Trans Belt HP Fail Clear. Trans Belt HP Fail Clear Testing..appears on the LCD. Press Stop to return to Trans Blet PH Fail Clear.
Page 382: Engine Adjust
7510 ENGINE ADJUST To begin PH Adjust (media tray registration), the test page must be printed. To print the test page the printer must be in standard mode. 1. Select Menus. 2. Select Reports. 3. Select Network Setup Page The following report prints. Using a fine incremental ruler, measure from the black line border to the edge of the media.
Page 383 7510 Adj Lead Reg ALL (appears on LCD) Registration values appear on the LCD. If required, reset the values (Adj lead reg all trays) and Select to submit the changes. Adj Lead Reg Tr165 (appears on LCD) Registration values appear on the LCD.
Page 384 7510 PRO-CON (ATC sensor setup and adjust) This procedure is used to adjust the following: Sensor (C ATC) Sensor (M ATC) Sensor (Y ATC) Sensor (K ATC) Select PRO-CON and select: Then Select: Appears on the LCD ATC Sensor Adjust values Sen Grad SNR-Y Registration values appear on the LCD.
Page 385: Color Registration (Regcon)
7510 Color registration (RegCon) The purpose of the color registration is to establish correct horizontal and vertical positioning of the four primary color images. The procedure consists of the following steps, which must be performed in the listed sequence: 1. Belt Edge Learn - Used to align the transfer belt positioning system. 2.
Page 386: Testing The Manual Scanner Registration
7510 Testing the manual scanner registration Note: Machine must be in Standard User Mode. To properly position the Network Setup Page which will be used as the ADF test original page on the flatbed scanner and the ADF side 1 and ADF side 2, follow the graphic below: Warning: Ensure that the Network Setup Page is properly positioned according to the diagrams, or registration and margins cannot be properly adjusted.
Page 387: Analyzing The Manual Scanner Registration Copies
7510 Analyzing the manual scanner registration copies 1. To analyze the manual scanner registration of the flatbed, ADF side 1, and ADF side 2, hold the test copy according to the diagram below. 2. Compare the three copies to the Network Setup Page for image placement. Ideally, the image should be centered on the page by measuring the page edge to the black border with a ruler.
Page 388 7510 4. Make required adjustments, and touch Submit. Note: All reference to Side Registration in the graphic below refers to the left side edge. 5. Turn the machine off and then back on in order to make a copy. 6. Using the registration test original page, make a copy using the flatbed scanner and the ADF side 1 and ADF side 2 to verify adjustments for accuracy.
Page 389: Scanner Manual Registration Factory Defaults
7510 Decreasing the registration value moves the text toward the lead edge of the page and narrows the lead margin; increasing the registration value moves the text away from the lead edge of the page and widens the lead margin. The entire image moves up or down on the page; therefore, no compression or expansion of the image occurs to preserve the lead margin.
Page 390: Exiting Diagnostics Menu
7510 Exiting Diagnostics Menu From the Diagnostics Menu, touch Back until a graphic appears with Exit Diag Menu in the lower right corner. Touch Exit Diag Menu to perform a POR, and the following graphic appears on the LCD: Copy E-Mail Menus Ready.
Page 391: Configuration Menu
7510 Configuration Menu Entering Configuration Menu 1. Turn off the printer. 2. Press and hold the 2 and 6 buttons simultaneously. 3. Turn on the printer. 4. Release the buttons after 10 seconds. Available menus Maintenance Counter Value “Maintenance Counter Value” on page 3-37.
Page 392 7510 Exiting Configuration Menu “Exiting Configuration Menu” on page 3-50. 3-36 Service Manual...
Page 393: Maintenance Counter Value
7510 Maintenance Counter Value This setting enables you to view the current maintenance count value of each maintenance kit. After selecting this item, you can choose a specific kit in order to view its current maintenance count value. To return to the Configuration Menu, press Back.
Page 394: Usb Scan To Local
7510 USB Scan to Local To change this setting: 1. Touch USB Scan to Local from the Configuration Menu. [setting's current value] appears on the touch-screen. 2. Touch to scroll through the setting's possible values. 3. Touch Back to cancel and return to the Configuration Menu. 4.
Page 395: Size Sensing
7510 SIZE SENSING This setting controls whether the printer automatically registers the size of paper installed in an input source equipped with size sensing hardware. Size sensing Input source Length Width  Multipurpose feeder (integrated MPF)   Tray 1 (integrated 520-sheet drawer) ...
Page 396: A5/Statement
7510 A5/Statement Due to engine limitations, Trays 1 through 4 cannot simultaneously sense A5- and statement-size paper. The value of this setting determines which of the two paper sizes these trays will sense automatically. This setting will apply to all automatic trays, but not to the MP Feeder. The MP Feeder can support these paper sizes regardless of the value of this setting.
Page 397: Factory Defaults
2. Touch Restore Base to restore all non-critical base printer NVRAM settings. 3. Touch Restore Network to restore all network NVRAM settings. 4. Touch Restore LES to remove all Lexmark Embedded Solution applications When you select either value, the LCD displays Restoring Factory Defaults and then Resetting the Device.
Page 398: Format Fax Storage
7510 Format Fax Storage This setting enables you to format the non-volatile storage used for storing faxes. To change this setting: 1. Touch Format Fax Storage from the Configuration Menu. Note: If an advanced password has been established, you must enter this password in order to change the setting.
Page 399: Paper Prompts
7510 Paper Prompts When a tray is out of the indicated paper size, a prompt is sent to the user to load paper in a tray. This setting controls the tray the user is directed to fill. Selections are Auto (default), MP Feeder, and Manual Paper. To change this setting: 1.
Page 400: Power Off
7510 When you touch Enable (encryption) or Disable (formatting), Contents will be lost. Continue? appears on the LCD. Touch No to cancel or Yes to proceed. If you touch Yes, the printer performs the selected action on the hard disk. The following graphic appears when the encryption process is selected: Encrypting Disk DO NOT POWER OFF...
Page 401 7510 The panel provides many progress indicators during the two-stage process. 1. 1/2 indicates that the process is currently in the first stage. 2. 0% indicates the progress of the current stage of the process. 3. The progress bar indicates the overall completion of the entire process by filling in throughout each separate stage.
Page 402: Wipe Disk
7510 Formatting Disk DO NOT POWER OFF The entire process is complete when the progress bar appears completely shaded and the percentage indicator shows 100%. After completion, the panel returns to Disk Encryption. Wipe Disk This setting provides you with a tool for erasing the contents of a disk. Warning: Wipe Disk removes a disk's data in such a way that it cannot be recovered.
Page 403 7510 If you touch No, the device cancels the Wipe Disk process and returns to the Configuration Menu. If you touch Yes, the following screen appears: Wiping Disk ½ DO NOT POWER OFF The panel provides the following progress indicators during the execution of this process: 1.
Page 404: Font Sharpening
7510 When the first stage of the process completes, the printer displays the following graphic and then begins the second stage of the process: Wiping Disk DO NOT POWER OFF The entire process is complete when the progress bar appears completely shaded and the percentage indicator shows 100%.
Page 405: Require Standby
2. Touch Back to cancel and return to the Configuration Menu. 3. Touch Submit to save the change. LES Applications This disables all installed Lexmark Embedded Solution applications. The default is Enabled. To change this setting: 1. Touch LES Applications from the Configuration Menu.
Page 406: Key Repeat Initial Delay
7510 Key Repeat Initial Delay When a key is touched repeatedly, this is the delay before the key begins repeating. The delay ranges from .25 seconds to 5 seconds. The default is 1 second. Values are given in increments of .25 seconds. To change this setting: 1.
Page 407: Repeating Defects
7510 Repeating defects Roll Pitch 2nd transfer roll 83.05 mm Registration roll 62.61 mm Developer magnetic roll 33.76 mm Developer auger roll 43.89 mm Fuser hot roll 85.15 mm Charge roll 43.98 mm PC drum 94.25 mm Transfer belt 949.00 mm Fuser Fuser hot roll pressure roll...
Page 408 7510 3-52 Service Manual...
Page 409: Repair Information
7510 4. Repair information Warning: Read the following before handling electronic parts. Handling ESD-sensitive parts Many electronic products use parts that are known to be sensitive to electrostatic (ESD). To prevent damage to ESD- sensitive parts, use the following instructions in addition to all the usual precautions, such as turning off power before removing logic boards: •...
Page 410: Removal Procedures
7510 Removal procedures Before starting service work CAUTION: Remove the power cord from the electrical outlet before you connect or disconnect any cable or electronic board or assembly. CAUTION: While performing service around the fuser assembly, ensure the fuser area has cooled down. Note: Some removal procedures require removing cable ties.
Page 411: Printer Front Door Assembly Removal
7510 Printer front door assembly removal 1. Open the printer front door assembly. 2. Press the tab, and rotate the two flexible supports (A) 90°, and pull from the machine. 3. Remove the two flexible supports (A). 4. Remove the two screws securing the two brackets (B) to the printer front door assembly (C). 5.
Page 412: Right Cover Assembly Removal
7510 Right cover assembly removal Note: Detach the finisher if equipped. Refer to the MFP or Printer Finisher Service Manual. 1. Open the transfer belt unit access door (A). 2. Remove the three screws securing the right cover assembly (B) to the machine. 3.
Page 413: Rear Cover Assembly Removal
7510 Rear cover assembly removal 1. Remove the blind cover (A). 2. Remove all connectors and power cords from the rear of the machine. 3. Remove the four screws securing the rear cover assembly (B) to the machine. 4. Remove the rear cover assembly (B). Connectors Repair information...
Page 414: Rear Left Middle Cover Removal
7510 Rear left middle cover removal “Rear cover assembly removal” on page 4-5. 1. Remove the rear cover assembly. See 2. Open the printer left door assembly. 3. Remove the screw securing the rear left middle cover (A) to the machine. 4.
Page 415: Rear Left Upper Cover Removal
7510 Rear left upper cover removal “Rear cover assembly removal” on page 4-5. 1. Remove the rear cover assembly. See Warning: Ensure that the rear left middle cover is removed before removing the rear left upper cover, or damage will occur. 2.
Page 416: Printer Left Lower Door Assembly Removal
7510 Printer left lower door assembly removal 1. Remove the media tray 1. 2. Open the printer left lower door assembly. 3. Disconnect the connector from the printer left lower door assembly (A). 4. Release the harness from the clamp. 5.
Page 417: Front Left Cover Removal
7510 Front left cover removal 1. Open the printer front door assembly. 2. Remove the two screws securing the front left cover (A) to the machine. 3. Move the front left cover (A) up and pull out. 4. Remove the front left cover (A). Duplex media inverter assembly removal 1.
Page 418: Duplex Unit Assembly Removal
7510 Duplex unit assembly removal 1. Remove the two screws securing the duplex unit assembly (A) to the printer left door assembly (B). 2. Gently pull the duplex unit assembly (A) from the printer left door assembly (B). Note: When removing the duplex unit assembly (A), the plastic panel (C) may become detached. 3.
Page 419: Sensor (Duplex Wait) Removal
7510 Sensor (duplex wait) removal “Duplex unit assembly removal” on page 4-10. 1. Remove the duplex unit assembly. See 2. Remove the screw securing the bracket (A) to the duplex unit assembly (B). 3. Release the hooks securing the sensor (duplex wait) (C) to the bracket (A). 4.
Page 420: Duplex Media Exit Turn Guide Removal
7510 Duplex media exit turn guide removal “Rear cover assembly removal” on page 4-5. 1. Remove the rear cover assembly. See 2. Remove the rear left middle cover. See “Rear left middle cover removal” on page 4-6. 3. Remove the MPF feed unit assembly. See “MPF feed unit assembly removal”...
Page 421: Duplex Drive Motor Removal
7510 Replacement note: When replacing the printer left door assembly (B), ensure that the duplex media exit turn guide (A) is held up, or the printer left door assembly (B) will not close properly. Black line Duplex drive motor removal 1.
Page 422: Duplex Controller Card Assembly Removal
7510 Duplex controller card assembly removal “Duplex unit assembly removal” on page 4-10. 1. Remove the duplex unit assembly. See 2. Remove the screw securing the connector access cover (A) to the duplex unit assembly (C). 3. Disconnect the connectors from the duplex controller card assembly (B). 4.
Page 423: Fuser Unit Assembly Removal
7510 Fuser unit assembly removal CAUTION: The fuser unit assembly can be extremely hot, handle with care to avoid getting burned. 1. Open the printer left door assembly. 2. Loosen the two thumb screws to release the fuser unit assembly (A) from the machine. 3.
Page 424: Transfer Belt Unit Assembly Removal
7510 Transfer belt unit assembly removal Warning: When removing the transfer belt unit assembly, do not touch the belt surface, or damage will occur. Note: Detach the finisher if equipped. Refer to the MFP or the Printer Finisher Service Manual. 1.
Page 425: Transfer Belt Cleaning Assembly Removal
7510 Transfer belt cleaning assembly removal Warning: When removing the transfer belt unit assembly, do not touch the belt surface, or damage will occur. Note: It is not required to completely remove the transfer belt unit assembly (B) from the machine. It can be partially pulled out to provide access to the transfer belt cleaning assembly (A).
Page 426: Standard Media Exit Bin Full Actuator Removal
7510 Connectors Standard media exit bin full actuator removal 1. Remove the rear cover assembly. See “Rear cover assembly removal” on page 4-5. Warning: Ensure that the rear left middle cover is removed before removing the rear left upper cover, or damage will occur.
Page 427: Switch (Printer Left Door Interlock) Removal
7510 Switch (printer left door interlock) removal 1. Remove the rear cover assembly. See “Rear cover assembly removal” on page 4-5. Warning: Ensure that the rear left middle cover is removed before removing the rear left upper cover, or damage will occur. “Rear left middle cover removal”...
Page 428 7510 5. Remove the screw securing the bracket (A) to the standard media exit bin shift assembly. 6. Remove the bracket (A). 7. Release the hooks securing the switch (printer left door interlock) (B) to the bracket (A). 8. Remove the switch (printer left door interlock). Hooks Hooks Hooks...
Page 429: Sensor (Standard Media Bin Full) Removal
7510 Sensor (standard media bin full) removal “Rear cover assembly removal” on page 4-5. 1. Remove the rear cover assembly. See Warning: Ensure that the rear left middle cover is removed before removing the rear left upper cover, or damage will occur. 2.
Page 430: Sensor (Media Out) Removal
7510 Sensor (media out) removal “Printer left lower door assembly removal” on page 4-8. 1. Remove the printer left lower door assembly. See 2. Remove the media feed unit assembly. See “Media feed unit assembly 1 removal” on page 4-21. 3.
Page 431 7510 4. Remove the media out actuator (A). Front Bosses Lower view 4-23 Repair information...
Page 432: Sensor (Media Level) Removal
7510 Sensor (media level) removal “Printer left lower door assembly removal” on page 4-8. 1. Remove the printer left lower door assembly. See 2. Remove the appropriate media feed unit assembly. See “Media feed unit assembly 1 removal” on page 4-21.
Page 433: Sensor (Fuser Exit) Removal
7510 Sensor (fuser exit) removal 1. Open the printer left door assembly. 2. Remove the E-clip securing the fuser exit roll assembly (A) to the machine. 3. Remove the bushing (B). 4. Remove the fuser exit roll assembly (A). 5. Remove the two screws securing the sensor (fuser exit) (C) to the machine. 6.
Page 434: Printer Left Door Assembly Removal
7510 Printer left door assembly removal “Rear cover assembly removal” on page 4-5. 1. Remove the rear cover assembly. See 2. Remove the rear left middle cover. See “Rear left middle cover removal” on page 4-6. 3. Remove the MPF feed unit assembly. See “MPF feed unit assembly removal”...
Page 435 7510 C-clip Safety screw Approximately 75° Replacement warning: When replacing the printer left door assembly (B), ensure that the black lines are aligned on the damper assembly (E), or the door will not properly operate. Black line 4-27 Repair information...
Page 436: Printer Left Door Damper Removal
7510 ‘ Replacement warning: When replacing the printer left door assembly (B), ensure that the duplex media exit turn guide (F) is held in its upper-most position, or the printer left door assembly (B) will not close properly. Printer left door damper removal 1.
Page 437 7510 9. Remove the printer left door damper (C). E-clip Replacement warning: When replacing the printer left door assembly (D), ensure that the black lines are aligned on the damper assembly (C), or the door will not properly operate. Black line Replacement warning: When replacing the printer left door assembly (D), ensure that the duplex media exit turn guide (E) is held in its upper-most position, or the printer left door assembly (D) will not close properly.
Page 438: Sensor (Media On Belt) Removal
7510 Sensor (media on belt) removal 1. Open the printer left door assembly. 2. Remove the screw securing the sensor (media on belt) (A) to the machine. 3. Disconnect the connector from the sensor (media on belt) (A). 4. Remove the sensor (media on belt) (A). 4-30 Service Manual...
Page 439: 2Nd Transfer Roll Retract Cam Assembly Removal
7510 2nd transfer roll retract cam assembly removal “2nd transfer roll assembly removal” on page 4-35. 1. Remove the 2nd transfer roll assembly. See 2. Remove the two screws securing the registration pinch guide assembly (A) to the machine. 3. Remove the registration pinch guide assembly (A). 4.
Page 440 7510 Connector Replacement note: When reinstalling the transfer roll retract cam assembly (D), ensure that the bushing (E), pin (F), and washer are replaced. E-clip Actuator Connector 4-32 Service Manual...
Page 441 7510 4-33 Repair information...
Page 442: Sensor (2Nd Transfer Roll Retract Hp) Removal
7510 Sensor (2nd transfer roll retract HP) removal “2nd transfer roll assembly removal” on page 4-35. 1. Remove the 2nd transfer roll assembly. See 2. Remove the two screws securing the registration pinch guide assembly (A) to the machine. 3. Remove the registration pinch guide assembly (A). 4.
Page 443: 2Nd Transfer Roll Retract Motor Assembly Removal
7510 2nd transfer roll retract motor assembly removal “2nd transfer roll assembly removal” on page 4-35. 1. Remove the 2nd transfer roll assembly. See 2. Remove the 2nd transfer roll retract cam assembly. See “2nd transfer roll retract cam assembly removal” on page 4-31.
Page 444: Registration / Transport Roll Assembly Removal
7510 Warning: When removing the main transfer roll assembly (B), do not touch the roll surface. Replacement warning: When reinstalling the transfer roll assembly (B), do not touch the roll surface. Registration / transport roll assembly removal 1. Remove the rear cover assembly. See “Rear cover assembly removal”...
Page 445: Registration Clutch Removal
7510 Registration clutch removal “Rear cover assembly removal” on page 4-5. 1. Remove the rear cover assembly. See 2. Remove the rear left middle cover. See “Rear left middle cover removal” on page 4-6. 3. Remove the MPF feed unit assembly. See “MPF feed unit assembly removal”...
Page 446: Sensor (Transparency Detect) Removal
7510 9. Disconnect the connector from the sensor (registration) (C). Sensor (transparency detect) removal 1. Remove the rear cover assembly. See “Rear cover assembly removal” on page 4-5. “Rear left middle cover removal” on page 4-6. 2. Remove the rear left middle cover. See 3.
Page 447: Waste Toner Cartridge Cover Removal
7510 Waste toner cartridge cover removal “Printer front door assembly removal” on page 4-3. 1. Remove the printer front door assembly. See 2. Lower the waste toner cartridge cover (A) to its lower-most position. 3. Remove the waste toner cartridge. “Front left cover removal”...
Page 448: Sensor (Waste Toner Cartridge Full) Removal
7510 7. Remove the waste toner cartridge sensor assembly (B). Connectors Sensor (waste toner cartridge full) removal 1. Remove the front left cover. See “Front left cover removal” on page 4-9. “Waste toner cartridge cover removal” on page 4-39. 2. Remove the waste toner cartridge cover. See 3.
Page 449 7510 Connectors 4-41 Repair information...
Page 450: Switch (Waste Toner Cartridge Interlock) Removal
7510 Switch (waste toner cartridge interlock) removal “Printer front door assembly removal” on page 4-3. 1. Remove the printer front door assembly. See 2. Remove the front left cover. See “Front left cover removal” on page 4-9. 3. Remove the waste toner cartridge cover. See “Waste toner cartridge cover removal”...
Page 451: Inner Cover Removal
7510 Inner cover removal 1. Open the printer front door assembly. 2. Remove the front left cover. See “Front left cover removal” on page 4-9. 3. Remove the waste toner cartridge cover. See “Waste toner cartridge cover removal” on page 4-39.
Page 452: Waste Toner Agitator Motor Assembly Removal
7510 Waste toner agitator motor assembly removal “Printer front door assembly removal” on page 4-3. 1. Remove the printer front door assembly. See 2. Remove the front left cover. See “Front left cover removal” on page 4-9. 3. Remove the waste toner cartridge cover. See “Waste toner cartridge cover removal”...
Page 453: Image Density Sensor Assembly Removal
7510 Replacement warning: Ensure that all PC cartridge units are properly seated and aligned before raising the transfer belt lift handle to its upper-most position, or damage will occur. Never force the transfer belt lift handle into its home position, or damage will occur. Button Image density sensor assembly removal “Printer front door assembly removal”...
Page 454 7510 Warning: Note the orientation of the harnesses to ensure they are not pinched when replacing the harness access cover (A), or damage will occur. 8. Remove the harness access cover (A) from the machine. Connectors 9. Disconnect the three connectors from the image density sensor assembly (B). 10.
Page 455: Cmy Toner Add Assembly Removal
7510 12. Remove the image density sensor assembly (A). Replacement note: Requires color calibration adjustments. Replacement warning: When replacing the harness access cover, ensure that the harnesses are not pinched, or damage will occur. CMY toner add assembly removal 1. Remove the printer front door assembly. See “Printer front door assembly removal”...
Page 456: K Toner Add Assembly Removal
7510 7. Remove the appropriate CMY toner add assemblies (A). Shutter K toner add assembly removal Warning: Ensure the three CMY toner add assemblies are removed before removing the K toner add assembly, or damage will occur. 1. Remove the printer front door assembly. See “Printer front door assembly removal”...
Page 457: Developer Interlock Plate Assembly Removal
7510 Shutter Developer interlock plate assembly removal Warning: Always perform color registration adjustment (RegCon) when removing or reinstalling the printhead, NVM initialization, or developer interlock plate assembly. See “Color registration (RegCon)” on page 4-257. 1. Remove the printer front door assembly. See “Printer front door assembly removal”...
Page 458 7510 Warning: Use extreme caution when disconnecting the next seven connectors from the upper harness strip, or damage will occur. 9. Disconnect the seven connectors from the upper harness strip. 10. Remove the six screws securing the developer interlock plate assembly (A) to the machine. 11.
Page 459 7510 13. While holding the four developer unit assemblies firmly inside the machine, gently remove the developer interlock plate assembly (A). 14. Remove the developer interlock plate assembly (A) and allow it to gently hang down by the harness if removing the developer units.
Page 460: Developer Unit Assembly Removal
7510 Replacement note: When replacing the developer interlock plate assembly (A), install the bottom edge first and ensure that all four developer unit assemblies are properly aligned when replacing the developer interlock plate assembly (A). Replacement warning: Ensure that the erase lamp harnesses and developer unit assembly harnesses are correctly installed in the clamps, or they may become detached.
Page 461 7510 Warning: When removing developer unit assemblies, ensure that the area on the floor in front of the machine is protected from toner spillage. Warning: When replacing the developer unit assemblies, ensure that all toner spillage and contamination is removed. Warning: Always perform the sensor (ATC sensor) setup and adjustment if required or print quality problems “Sensor (ATC) setup”...
Page 462 7510 Replacement warning: Ensure that the rear area new developer unit assembly (A) is properly engaged into the machine or the magnetic rolls will not turn properly. Use the following procedure to test for proper magnetic roll engagement immediately after installing the new C, M or Y developer unit assembly (A): CAUTION: When performing motor tests, ensure that all cover and door interlock switches are overridden.
Page 463 7510 “Color registration (RegCon)” on 12. Perform the color registration (RegCon) setup and adjustment. See page 4-257. 13. Remove the printhead cleaning tool from the printer front door assembly. 14. Clean the four printhead glass windows using the printhead cleaning tool. 4-55 Repair information...
Page 464: Developer Carrier Removal And Replacement
7510 Developer carrier removal and replacement Note: The following procedure can be applied to the C, M, Y, and K developer carriers. Warning: Always perform the sensor (ATC sensor) setup and adjustment if required or print quality problems “Sensor (ATC) setup” on page 4-253.
Page 465 7510 11. Remove the top cover (A). 12. Completely remove the carrier (B) from the assembly by dumping it and using a toner vacuum or if installing a new developer unit assembly, go to next step. 4-57 Repair information...
Page 466 7510 Replacement warning: If reusing an existing developer unit assembly, ensure that all traces of old carrier (B) are removed from the developer unit assembly, or print quality issues may occur. 4-58 Service Manual...
Page 467 7510 To install the new carrier (B): Warning: Ensure that the carrier is installed evenly and uniformly in the assembly, or spillage may occur. 1. Open the appropriate bag, and dump the appropriate carrier into the appropriate assembly. Hook Tabs Seal Hook Seal...
Page 468: Photoconductor (Pc) Unit Assembly Removal
7510 Photoconductor (PC) unit assembly removal Warning: Ensure that all four PC cartridges are concealed from all sources of light, or damage will occur. Note: This procedure can be applied to either the C, M, Y, or K PC unit assemblies. 1.
Page 469 7510 5. Pull the appropriate PC unit assembly (C) from the machine. Note: When the PC unit assembly (C) is removed, ensure that it is stored in the position as shown in the graphic below. Replacement warning: When replacing the PC unit assembly (C), ensure that the rail on the PC unit assembly (C) is properly inserted into the metal track or physical binding and damage will occur.
Page 470: Transfer Belt Lift Latch Assembly Removal
7510 unit assembly (C) becomes bound, it can be removed by twisting it in a clockwise direction while pulling it from the machine. Metal track Rail must slide straight into metal track Transfer belt lift latch assembly removal 1. Remove the printer front door assembly. See “Printer front door assembly removal”...
Page 471 7510 9. Remove the transfer belt lift latch assembly (A). 4-63 Repair information...
Page 472: Transfer Belt Steering Motor Removal
7510 Transfer belt steering motor removal “Front left cover removal” on page 4-9. 1. Remove the front left cover. See 2. Remove the waste toner cartridge cover. See “Waste toner cartridge cover removal” on page 4-39. 3. Remove the waste toner cartridge sensor assembly. See “Waste toner cartridge sensor assembly removal”...
Page 473: K Erase Lamp Assembly Removal
7510 12. Gently raise the rear of the appropriate CMY erase lamp assembly (B) to detach the mounting hook from the machine. 13. Remove the appropriate CMY erase lamp assembly (B). Connector Mounting hook K erase lamp assembly removal Warning: Ensure the transfer belt assembly unit is removed, or damage will occur. 1.
Page 474 7510 13. Gently raise the rear of the K erase lamp assembly (B) to detach the mounting hook from the machine. 14. Remove the K erase lamp assembly (B). Connector 4-66 Service Manual...
Page 475: Printhead Shutter Motor Assembly
7510 Mounting hook Printhead shutter motor assembly 1. Remove the rear cover assembly. See “Rear cover assembly removal” on page 4-5. “Rear left middle cover removal” on page 4-6. 2. Remove the rear left middle cover. See 3. Remove the MPF feed unit assembly. See “MPF feed unit assembly removal”...
Page 476: Switch (Printer Front Door Interlock) Removal
7510 Replacement warning: When reinstalling the printhead shutter motor assembly (A), ensure that the plastic arm is inserted into the printhead shutter (B). Connectors Switch (printer front door interlock) removal “Rear cover assembly removal” on page 4-5. 1. Remove the rear cover assembly. See “Right cover assembly removal”...
Page 477: Sensor (Printer Left Lower Door Interlock) Removal
7510 Sensor (printer left lower door interlock) removal “Rear cover assembly removal” on page 4-5. 1. Remove the rear cover assembly. See 2. Remove the rear left middle cover. See “Rear left middle cover removal” on page 4-6. 3. Remove the MPF feed unit assembly. See “MPF feed unit assembly removal”...
Page 478: Controller Box Assembly Removal
7510 8. Remove the RIP card cooling fan cover assembly (A). Connector Connector Controller box assembly removal 1. Remove the rear cover assembly. See “Rear cover assembly removal” on page 4-5. 2. Remove the right cover assembly. See “Right cover assembly removal” on page 4-4 “Top cover assembly removal”...
Page 479: Switch (Main Power) Removal
7510 Switch (main power) removal “Rear cover assembly removal” on page 4-5. 1. Remove the rear cover assembly. See 2. Remove the right cover assembly. See “Right cover assembly removal” on page 4-4. 3. Remove the top cover assembly. See “Top cover assembly removal”...
Page 480: Bridge Card Assembly Removal
7510 Bridge card assembly removal “Rear cover assembly removal” on page 4-5. 1. Remove the rear cover assembly. See 2. Remove the right cover assembly. See “Right cover assembly removal” on page 4-4 3. Remove the top cover assembly. See “Top cover assembly removal”...
Page 481: Rip Card Access Cover Removal
7510 RIP card access cover removal 1. Using your finger, lift the RIP card access cover (A) by the notch. 2. Remove the RIP card access cover (A). RIP card assembly removal 1. Remove the two screws securing the RIP card assembly (A) to the machine. 2.
Page 482: Fax Interface Card (Modem) Assembly Removal
7510 Fax interface card (modem) assembly removal “RIP card assembly removal” on page 4-73. 1. Remove the RIP card assembly. See 2. Remove the two screws securing the fax interface card (modem) assembly (A) to the assembly. 3. Disconnect the connectors from the fax interface card (modem) assembly (A). 4.
Page 483: Interconnect Card Assembly Removal
7510 Interconnect card assembly removal Warning: In the event of replacement of any one of the following components: • RIP card assembly • Interconnect card assembly Only replace one component at a time. Replace the required component, and perform a POR before replacing a second component listed above.
Page 484: Upper Printer Engine Card Bracket Assembly Removal
7510 Upper printer engine card bracket assembly removal “Rear cover assembly removal” on page 4-5. 1. Remove the rear cover assembly. See 2. Remove the right cover assembly. See “Right cover assembly removal” on page 4-4 3. Remove the top cover assembly. See “Top cover assembly removal”...
Page 485: Upper Printer Engine Card Assembly Removal
7510 Connector Replacement warning: Ensure that the upper printer engine card (B) assembly and the lower printer engine card assembly (C) are connected. Upper printer engine card assembly removal “Rear cover assembly removal” on page 4-5. 1. Remove the rear cover assembly. See “Right cover assembly removal”...
Page 486 7510 13. Remove the NVM board (D) from the upper printer engine card assembly (B). Bottom view Replacement warning: When reinstalling the upper printer engine card assembly (B), ensure that the NVM board (D) is installed on the new upper printer engine card assembly (B), or the machine may not function properly.
Page 487: Lower Printer Engine Card Bracket Assembly Removal
7510 Lower printer engine card bracket assembly removal “Rear cover assembly removal” on page 4-5. 1. Remove the rear cover assembly. See 2. Remove the rear upper cooling fan bracket assembly. See “Rear upper cooling fan bracket assembly removal” on page 4-102.
Page 488: Lower Printer Engine Card Assembly Removal
7510 Lower printer engine card assembly removal “Rear cover assembly removal” on page 4-5. 1. Remove the rear cover assembly. See 2. Remove the rear upper cooling fan bracket assembly. See “Rear upper cooling fan bracket assembly removal” on page 4-102.
Page 489: Transfer Belt Drive Motor Cooling Fan Removal
7510 Transfer belt drive motor cooling fan removal “Rear cover assembly removal” on page 4-5. 1. Remove the rear cover assembly. See 2. Remove the rear upper cooling fan bracket assembly. See “Rear upper cooling fan bracket assembly removal” on page 4-102.
Page 490: Transfer Belt Drive Motor Assembly Removal
7510 Transfer belt drive motor assembly removal “Rear cover assembly removal” on page 4-5. 1. Remove the rear cover assembly. See 2. Remove the rear upper cooling fan bracket assembly. See “Rear upper cooling fan bracket assembly removal” on page 4-102.
Page 491: Laser Diode Power Card Assembly Removal
7510 7. Remove the switch (transfer belt access door interlock) (A). Connector Laser diode power card assembly removal “Rear cover assembly removal” on page 4-5. 1. Remove the rear cover assembly. See 2. Remove the rear upper cooling fan bracket assembly. See “Rear upper cooling fan bracket assembly removal”...
Page 492 7510 7. Remove the laser diode power card assembly (A). 4-84 Service Manual...
Page 493: Lvps Card Bracket Assembly Removal
7510 24V LVPS card bracket assembly removal “Rear cover assembly removal” on page 4-5. 1. Remove the rear cover assembly. See 2. Remove the rear upper cooling fan bracket assembly. See “Rear upper cooling fan bracket assembly removal” on page 4-102.
Page 494: Lvps Card Assembly Removal
7510 24V LVPS card assembly removal 1. Disconnect the three connectors from the 24V LVPS card assembly (A). 2. Remove the three screws securing the 24V LVPS card assembly (A). 3. Remove the 24V LVPS card assembly (A). 5V LVPS card bracket assembly removal “Rear cover assembly removal”...
Page 495: Lvps Card Assembly Removal
7510 5V LVPS card assembly removal “Rear cover assembly removal” on page 4-5. 1. Remove the rear cover assembly. See 2. Remove the rear upper cooling fan bracket assembly. See “Rear upper cooling fan bracket assembly removal” on page 4-102. 3.
Page 496: Lvps Cooling Fan Removal
7510 24V LVPS cooling fan removal “Rear cover assembly removal” on page 4-5. 1. Remove the rear cover assembly. See 2. Remove the rear upper cooling fan bracket assembly. See “Rear upper cooling fan bracket assembly removal” on page 4-102. 3.
Page 497: Rear Lower Cooling Fan Assembly Removal
7510 Rear lower cooling fan assembly removal “Rear cover assembly removal” on page 4-5. 1. Remove the rear cover assembly. See 2. Remove the rear upper cooling fan bracket assembly. See “Rear upper cooling fan bracket assembly removal” on page 4-102.
Page 498: Cmy Developer Drive Motor Assembly Removal
7510 CMY developer drive motor assembly removal “Rear cover assembly removal” on page 4-5. 1. Remove the rear cover assembly. See 2. Remove the rear upper cooling fan bracket assembly. See “Rear upper cooling fan bracket assembly removal” on page 4-102.
Page 499: Cmyk Pc Cartridge Drive Motor Assembly Removal
7510 CMYK PC cartridge drive motor assembly removal Warning: Ensure that all four PC cartridges are concealed from all sources of light, or damage will occur. 1. Remove the four PC cartridges from the machine. 2. Remove the rear cover assembly. See “Rear cover assembly removal”...
Page 500: Fuser Cooling Fan Removal
7510 Fuser cooling fan removal 1. Remove the rear cover assembly. See “Rear cover assembly removal” on page 4-5. 2. Remove the right cover assembly. See “Right cover assembly removal” on page 4-4. “Top cover assembly removal” on page 4-4 “Rear cover assembly 3.
Page 501: Cmyk Toner Add Motor Assembly Removal
7510 6. Remove the main power switch actuator (A). CMYK toner add motor assembly removal 1. Remove the printer front door assembly. See “Printer front door assembly removal” on page 4-3. 2. Remove the front left cover. See “Front left cover removal” on page 4-9.
Page 502: Cmyk Transfer Hvps Card Assembly Removal
7510 18. Remove the CMYK toner add motor assembly (A). CMYK transfer HVPS card assembly removal “Rear cover assembly removal” on page 4-5. 1. Remove the rear cover assembly. See 2. Remove the rear upper cooling fan bracket assembly. See “Rear upper cooling fan bracket assembly removal”...
Page 503: Printhead Assembly Removal
7510 Printhead assembly removal Warning: When removing the printhead assembly, be careful not to drop it, or damage will occur. Warning: Always perform color registration adjustment when reinstalling the printhead, NVM initialization, or developer interlock plate assembly. 1. Detach the finisher if equipped. Refer to the MFP or the Printer Finisher Service Manual. 2.
Page 504: Transfer Belt Waste Toner Auger Assembly Removal
7510 Replacement warning: When replacing the printhead assembly, perform the color registration (RegCon) setup “Color registration (RegCon)” on page 4-257. and adjustment. See Transfer belt waste toner auger assembly removal 1. Remove the transfer belt unit assembly. See “Transfer belt unit assembly removal” on page 4-16.
Page 505 7510 16. Gently remove the K developer transport drive motor assembly (A). Connector Frame clamp Connector Clamp Clamps Connectors Clamps 4-97 Repair information...
Page 506 7510 Connector 4-98 Service Manual...
Page 507: K Developer Clutch Removal
7510 K developer clutch removal “Duplex unit assembly removal” on page 4-10. 1. Remove the duplex unit assembly. See 2. Remove the fuser unit assembly. See “Duplex controller card assembly removal” on page 4-14. 3. Remove the rear cover assembly. See “Rear cover assembly removal”...
Page 508: Ac Drive Card Bracket Assembly Removal
7510 AC drive card bracket assembly removal “Rear cover assembly removal” on page 4-5. 1. Remove the rear cover assembly. See 2. Remove the rear upper cooling fan bracket assembly. See “Rear upper cooling fan bracket assembly removal” on page 4-102.
Page 509: Noise Filter Assembly Removal
7510 Noise filter assembly removal “Rear cover assembly removal” on page 4-5. 1. Remove the rear cover assembly. See 2. Remove the rear upper cooling fan bracket assembly. See “Rear upper cooling fan bracket assembly removal” on page 4-102. 3. Remove the developer / transfer roll HVPS card assembly. See “Developer / transfer roll HVPS card assembly removal”...
Page 510: Rear Upper Cooling Fan Bracket Assembly Removal
7510 Rear upper cooling fan bracket assembly removal “Rear cover assembly removal” on page 4-5. 1. Remove the rear cover assembly. See 2. Disconnect the connector from the rear upper cooling fan bracket assembly (A). 3. Remove the two screws securing the upper cooling fan bracket assembly (A) to the machine. 4.
Page 511: Developer / Transfer Roll Hvps Card Assembly Removal
7510 Developer / transfer roll HVPS card assembly removal “Rear cover assembly removal” on page 4-5. 1. Remove the rear cover assembly. See 2. Remove the rear upper cooling fan bracket assembly. See “Rear upper cooling fan bracket assembly removal” on page 4-102.
Page 512: Charge Roll Hvps Card Assembly Removal
7510 Charge roll HVPS card assembly removal “Rear cover assembly removal” on page 4-5. 1. Remove the rear cover assembly. See 2. Remove the rear upper cooling fan bracket assembly. See “Rear upper cooling fan bracket assembly removal” on page 4-102.
Page 513: Mpf / Transport Drive Motor Assembly Removal
7510 MPF / transport drive motor assembly removal “Rear cover assembly removal” on page 4-5. 1. Remove the rear cover assembly. See 2. Remove the rear upper cooling fan bracket assembly. See “Rear upper cooling fan bracket assembly removal” on page 4-102.
Page 514: Feed Roll Removal
7510 Feed roll removal 1. Remove the media tray. 2. Move the feed unit front guide (A) in the direction of the arrow. 3. Release the hook securing the feed roll (B) to the shaft (C). 4. Remove the feed roll (B). Note: Do not touch the rubber surface of the feed roll (B).
Page 515: Pick Roll Removal
7510 Pick roll removal 1. Remove the media tray. 2. Move the media feed unit front guide (A) in the direction of the arrow. 3. Release the hook securing the pick roll (B) to the shaft (C). 4. Remove the pick roll (B). Note: Do not touch the rubber surface of the feed roll (B).
Page 516: Separation Roll Removal
7510 Separation roll removal 1. Remove the media tray. 2. Move the feed unit front guide (A) in the direction of the arrow. 3. Release the hook securing the separation roll (B) to the shaft (C). 4. Remove the separation roll (B). Note: Do not touch the rubber surface of the feed roll (B).
Page 517: Sensor (Rfid Toner Cartridge) Removal
7510 Sensor (RFID toner cartridge) removal Note: This removal applies to the sensor (RFID K toner cartridge), (RFID C toner cartridge), (RFID M toner cartridge) and (RFID Y toner cartridge). “Printer front door assembly removal” on page 4-3. 1. Remove the printer front door assembly. See 2.
Page 518: Fuser Exit Roll Assembly Removal
7510 Fuser exit roll assembly removal 1. Open the printer left door assembly. 2. Remove the E-clip securing the fuser exit roll assembly (A) to the machine. 3. Remove the bushings (B). 4. Remove the fuser exit roll assembly (A). E-clip MPF media out actuator removal 1.
Page 519: Sensor (Mpf Media Out) Removal
7510 Sensor (MPF media out) removal “Rear cover assembly removal” on page 4-5. 1. Remove the rear cover assembly. See 2. Remove the rear left middle cover. See “Rear left middle cover removal” on page 4-6. 3. Remove the MPF feed unit assembly. See “MPF feed unit assembly removal”...
Page 520 7510 Replacement note: When replacing the MPF feed roll assemblies (C), do not touch the rubber surface. Replacement note: When replacing the MPF feed roll assemblies (C), ensure that the directional arrow is properly aligned. 4-112 Service Manual...
Page 521: Media Feed Lift Motor Removal
7510 Media feed lift motor removal “Printer left lower door assembly removal” on page 4-8. 1. Remove the printer left lower door assembly. See 2. Remove the media feed unit assembly. See “Media feed unit assembly 1 removal” on page 4-21.
Page 522: Switch (Media Size) Removal
7510 Switch (media size) removal Note: This procedure can be applied to tray 1 or tray 2 switch (media size). 1. Remove media Tray 1 and media Tray 2. 2. Remove one screw securing the switch (media size) (A) to the bracket inside the machine. 3.
Page 523: Scanner Removals
7510 Scanner removals Scanner unit assembly removal 1. Remove the platen cushion assembly. See “Platen cushion removal” on page 4-130. 2. Remove the ADF unit assembly. See “ADF unit assembly removal” on page 4-129. “Operator panel assembly removal” on page 4-119.
Page 524: Platen Cushion Removal
7510 Platen cushion removal 1. Open the ADF unit assembly. 2. Gently pull off the platen cushion (A) from the ADF. Note: Before reinstalling the platen cushion (A), position the ADF in its upright position, and place the platen cushion (A) on the large platen glass (B) flush with the left and top edges. Gently close the ADF to attach the platen cushion (A) to the ADF.
Page 525: Large Platen Glass Removal
7510 Large platen glass removal 1. Remove the two screws securing the large platen glass retainer (A) to the scanner unit assembly. 2. Remove the large platen glass retainer (A). 3. Gently lift the large platen glass (B) upward, and move it rightward in the direction of the arrow. 4.
Page 526: Scanner Right Cover Removal
7510 Scanner right cover removal 1. Remove the two screws securing the scanner right cover (A) to the scanner unit assembly. 2. Disengage the rear side of scanner right cover (A) from the scanner unit assembly, and shift the scanner right cover (A) rearward.
Page 527: Operator Panel Assembly Removal
7510 Operator panel assembly removal Replacement warning: In the event of replacement of any one of the following components: • RIP card assembly • Interconnect card assembly Only replace one component at a time. Replace the required component, and perform a POR before replacing a second component listed above.
Page 528 7510 8. Remove the CCD card/lens assembly (E). Note: Ensure that the white connector is plugged into the sensor (platen length APS 1) (B). Blue connector White connector Connector 4-120 Service Manual...
Page 529: Scanner Drive Motor Assembly Removal
7510 Scanner drive motor assembly removal “Platen cushion removal” on page 4-130. 1. Remove the platen cushion assembly. See 2. Remove the ADF unit assembly. See “ADF unit assembly removal” on page 4-129. 3. Remove the ADF front cover assembly. See “ADF front cover assembly removal”...
Page 530: Exposure Lamp Removal
7510 Exposure lamp removal “Large platen glass removal” on page 4-117. 1. Remove the large platen glass. See 2. Gently move the scanner carriage (A) to the large opening of the frame to provide access to the front side of the exposure lamp (B).
Page 531: Scanner Controller Card Assembly Removal
7510 8. Remove the insulator bracket (E). Note: Before reinstalling the exposure lamp PS card assembly (A), ensure that all connections are properly connected. Note: Ensure that all harnesses and cables move freely without binding. Note: Ensure that the exposure lamp PS card assembly is securely mounted to the scanner carriage (B). Scanner controller card assembly removal 1.
Page 532: Sensor (Scanner Hp) Removal
7510 Connectors Connector Connector Sensor (scanner HP) removal “Scanner top rear cover removal” on page 4-118. 1. Remove the scanner top rear cover. See 2. Remove the large platen glass. See “Large platen glass removal” on page 4-117. 3. Gently move the scanner carriage (A) rightward to provide access to the sensor (scanner HP) (B). 4.
Page 533: Adf Angle Actuator Assembly Removal
7510 ADF angle actuator assembly removal “Platen cushion removal” on page 4-130. 1. Remove the platen cushion assembly. See 2. Remove the ADF unit assembly. See “ADF unit assembly removal” on page 4-129. 3. Remove the scanner left cover. See “Scanner left cover removal”...
Page 534: Scanner Ps Card Assembly Removal
7510 10. Remove the sensor (ADF angle) (A). Connector Scanner PS card assembly removal “Platen cushion removal” on page 4-130. 1. Remove the platen cushion assembly. See “ADF unit assembly removal” on page 4-129. 2. Remove the ADF unit assembly. See 3.
Page 535: Scanner Ps Cooling Fan Removal
7510 8. Remove the scanner PS card assembly (A). Connector Scanner PS cooling fan removal “Platen cushion removal” on page 4-130. 1. Remove the platen cushion assembly. See 1. Remove the ADF unit assembly. See “ADF unit assembly removal” on page 4-129.
Page 536 7510 7. Remove the scanner PS cooling fan assembly (A). Connector 4-128 Service Manual...
Page 537: Adf Removals
7510 ADF removals ADF unit assembly removal Warning: The ADF is very heavy; do not drop it, or damage will occur. 1. Remove the platen cushion assembly. See “Platen cushion removal” on page 4-130. 2. Open the ADF to its full upright position. 3.
Page 538: Platen Cushion Removal
7510 Platen cushion removal 1. Open the ADF unit assembly. 2. Gently pull off the platen cushion (A) from the ADF. Note: Before reinstalling the platen cushion (A), position the ADF in its upright position, and place the platen cushion (A) on the large platen glass (B) flush with the left and top edges. Gently close the ADF to attach the platen cushion (A) to the ADF.
Page 539: Adf Rear Cover Removal
7510 ADF rear cover removal 1. Open the ADF left cover assembly. 2. Lift the document tray assembly. 3. Remove the three screws securing the ADF rear cover (A). 4. Lift the ADF rear cover (A) upward. 5. Remove the ADF rear cover (A). Rear ADF front cover assembly removal 1.
Page 540: Adf Left Cover Assembly Removal
7510 ADF left cover assembly removal 1. Open the ADF left cover assembly. 2. Remove the ADF front cover assembly. See “ADF front cover assembly removal” on page 4-131. 3. Remove the ADF rear cover. See “ADF rear cover removal” on page 4-131.
Page 541: Adf Left Cover Handle Removal
7510 ADF left cover handle removal 1. Open the ADF left cover assembly. “ADF left cover media guide removal” on page 4-144. 2. Remove the ADF left cover media guide. See 3. Remove the ADF left cover media guide. See “ADF left cover media guide removal”...
Page 542: Left Cover Pinch Roll Assembly Removal
7510 Replacement note: Ensure that the grounding plate (E) is properly reattached. Left cover pinch roll assembly removal 1. Open the ADF left cover assembly. 2. Disconnect the connector from the sensor (pick roll position HP) (A). 3. Remove the three screws securing the left cover pinch roll assembly (B). 4.
Page 543: Media Scan Guide Removal
7510 11. Remove the connectors P751, P754, P755, P758, P761, P785 and P786 from the ADF controller card assembly (D). 12. Remove the harness guide (B) containing the harnesses, and swing it out of the way. 13. Remove the ADF dual drive motor assembly (A) from the ADF. P786 P756 P755...
Page 544 7510 “Document tray assembly removal” on page 4-137. 8. Remove the document tray assembly. See 9. Disconnect connectors P754, P755, P758, P761, P785, and P786 from the ADF controller card assembly (A). 10. Loosen the set screw securing the damper (B) with an Allen wrench. 11.
Page 545: Document Tray Assembly Removal
7510 Document tray assembly removal “ADF front cover assembly removal” on page 4-131. 1. Remove the ADF front cover assembly. See 2. Remove the ADF rear cover. See “ADF rear cover removal” on page 4-131. 3. Open the ADF left cover assembly. 4.
Page 546: Adf Controller Card Assembly Removal
7510 ADF controller card assembly removal “ADF rear cover removal” on page 4-131. 1. Remove the ADF rear cover. See 2. Disconnect all connectors from the ADF controller card assembly (A). 3. Remove the five screws securing the ADF controller card assembly (A). 4.
Page 547: Inverter Solenoid Assembly Removal
7510 Inverter solenoid assembly removal 1. Open the ADF left cover assembly. 2. Remove the ADF front cover assembly. See “ADF front cover assembly removal” on page 4-131. 3. Loosen the set screw securing the damper (A). 4. Remove the damper (A). 5.
Page 548: Document Set Led Removal
7510 Document set LED removal 1. Open the ADF left cover assembly. 2. Remove the ADF front cover assembly. See “ADF front cover assembly removal” on page 4-131. 3. Disconnect the connector from the document set LED (A). 4. Remove the screw securing the document set LED (A). 5.
Page 549: Sensor (Pick Roll Position Hp) Removal
7510 Replacement note: Before reinstalling the rear bracket (E), replace any shims that were originally present. Spring Sensor (pick roll position HP) removal 1. Open the ADF left cover assembly. “ADF left cover media guide removal” on page 4-144. 2. Remove the ADF left cover media guide. See 3.
Page 550: Adf Feed/Pick Roll Assembly Removal
7510 ADF feed/pick roll assembly removal Warning: Do not touch the rubber surface of the feed roll or the pick roll. 1. Turn the machine off. Warning: To reduce the chance of pick roll position errors and mechanical misalignments, ensure that the machine is turned off when replacing the ADF feed/pick roll assembly.
Page 551: Document Set Actuator Removal
7510 Set gate Plate Document set actuator removal 1. Open the ADF left cover assembly. “ADF left cover media guide removal” on page 4-144. 2. Remove the ADF left cover media guide. See 3. Gently pry the document set actuator (A) from the ADF left cover assembly. 4.
Page 552: Adf Left Cover Media Guide Removal
7510 ADF left cover media guide removal 1. Open the ADF left cover assembly. 2. Remove the screw securing the ADF left cover media guide (A). 3. Lift the ADF left cover media guide (A) upward, then remove the two bosses from the slot, and remove the two tabs from the holes.
Page 553: Switch (Adf Left Cover Interlock) Removal
7510 12. Remove the harness from the harness guide (C). Connector Switch (ADF left cover interlock) removal 1. Open the ADF left cover assembly. “ADF front cover assembly removal” on page 4-131. 2. Remove the ADF front cover assembly. See 3.
Page 554: Sensor (Adf Width Aps 1) Removal
7510 Sensor (ADF width APS 1) removal 1. Open the ADF left cover assembly. 2. Lift the separation roll guide assembly to its uppermost position. 3. Remove the actuator/media guide assembly. See “Actuator/media guide assembly removal” on page 4-152. 4. Remove the two screws securing the sensor mount (A) to the ADF. 5.
Page 555: Sensor (Adf Width Aps 2) Removal
7510 Sensor (ADF width APS 2) removal 1. Open the ADF left cover assembly. 2. Lift the separation roll guide assembly to its uppermost position. 3. Remove the actuator/media guide assembly. See “Actuator/media guide assembly removal” on page 4-152. 4. Remove the two screws securing the sensor mount (A) to the ADF. 5.
Page 556: Sensor (Adf Width Aps 3) Removal
7510 Sensor (ADF width APS 3) removal 1. Open the ADF left cover assembly. 2. Lift the separation roll guide assembly to its uppermost position. 3. Remove the actuator/media guide assembly. See “Actuator/media guide assembly removal” on page 4-152. 4. Remove the two screws securing the sensor mount (A) to the ADF. 5.
Page 557: Sensor (Adf Registration) Removal
7510 Sensor (ADF registration) removal 1. Open the ADF left cover assembly. 2. Lift the separation roll guide assembly to its uppermost position. 3. Remove the actuator/media guide assembly. See “Actuator/media guide assembly removal” on page 4-152. 4. Remove the two screws securing the sensor mount (A) to the ADF. 5.
Page 558: Sensor (Adf Pre-Registration) Removal
7510 Sensor (ADF pre-registration) removal 1. Open the ADF left cover assembly. 2. Lift the separation roll guide assembly to its uppermost position. 3. Remove the actuator/media guide assembly. See “Actuator/media guide assembly removal” on page 4-152. 4. Remove the two screws securing the sensor mount (A) to the ADF. 5.
Page 559: Sensor (Adf Inverter) Removal
7510 Sensor (ADF inverter) removal 1. Open the ADF left cover assembly. 2. Lift the separation roll guide assembly to its uppermost position. 3. Remove the actuator/media guide assembly. See “Actuator/media guide assembly removal” on page 4-152. 4. Remove the two screws securing the sensor mount (A) to the ADF. 5.
Page 560: Actuator/Media Guide Assembly Removal
7510 Actuator/media guide assembly removal 1. Open the ADF left cover assembly. 2. Lift the separation roll guide assembly (A) to its uppermost position. 3. Remove the two screws securing the actuator/media guide assembly (B) to the ADF. 4. Remove the actuator/media guide assembly (B). Rear Inverter gate removal 1.
Page 561: Adf Feed-Out Roll Assembly Removal
7510 14. Remove the two screws securing the sensor mount (A) to the ADF. 15. Slide the sensor mount (A) from the underside of the ADF transport roll (B), and move it out of the way. 16. Remove the tension spring (C). 17.
Page 562 7510 “ADF registration motor removal” on page 4-159. 9. Remove the ADF registration motor. See “ADF media feed assembly removal” on page 4-135. 10. Remove the ADF media feed assembly. See 11. Remove the ADF feed drive motor assembly. See “ADF feed drive motor assembly removal”...
Page 563: Adf Separation Roll Guide Assembly
7510 ADF separation roll guide assembly 1. Open the ADF left cover assembly. 2. Lift the separation roll guide assembly (A) to it uppermost position. 3. Lift and remove the separation roll guide assembly (A). Note: Extra upward force is required to remove the separation roll guide assembly. Rear 4-155 Repair information...
Page 564: Adf Exit Roll Assembly Removal
7510 ADF exit roll assembly removal 1. Open the ADF left cover assembly. 2. Remove the ADF front cover assembly. See “ADF front cover assembly removal” on page 4-131. 3. Remove the ADF rear cover. See “ADF rear cover removal” on page 4-131.
Page 565: Adf Transport Roll Assembly Removal
7510 ADF transport roll assembly removal 1. Open the ADF left cover assembly. 2. Remove the ADF front cover assembly. See “ADF front cover assembly removal” on page 4-131. 3. Remove the ADF rear cover. See “ADF rear cover removal” on page 4-131.
Page 566: Sensor (Sheet Through) Removal
7510 6. Remove the sensor (document set) (A). Connector Rear Sensor (sheet through) removal 1. Open the ADF left cover assembly. 2. Lift the document tray assembly. “ADF rear cover removal” on page 4-131. 3. Remove the ADF rear cover. See 4.
Page 567: Adf Registration Motor Removal
7510 ADF registration motor removal 1. Open the ADF left cover assembly. 2. Lift the document tray assembly. 3. Remove the ADF rear cover. See “ADF rear cover removal” on page 4-131. 4. Remove the access cap (A). 5. Disconnect the connector from the ADF registration motor (A). 6.
Page 568: Sensor (Document Tray Width 1) Removal
7510 Sensor (document tray width 1) removal 1. Open the ADF left cover assembly. 2. Lift the document tray assembly. 3. Remove the five screws securing the cover (A). 4. Remove the cover (A). 5. Remove the two screws securing the bracket (B). 6.
Page 569: Sensor (Document Tray Width 2) Removal
7510 Sensor (document tray width 2) removal 1. Open the ADF left cover assembly. 2. Lift the document tray assembly. 3. Remove the five screws securing the cover (A). 4. Remove the cover (A). 5. Remove the two screws securing the bracket (B). 6.
Page 570: Sensor (Document Tray Width 3) Removal
7510 Sensor (document tray width 3) removal 1. Open the ADF left cover assembly. 2. Lift the document tray assembly. 3. Remove the five screws securing the cover (A). 4. Remove the cover (A). 5. Remove the two screws securing the bracket (B). 6.
Page 571: Sensor (Document Tray Length 1) Removal
7510 Sensor (document tray length 1) removal 1. Open the ADF left cover assembly. 2. Lift the document tray assembly. 3. Remove the five screws securing the cover (A). 4. Remove the cover (A). 5. Remove the connector from the sensor (document tray length 1) (B). 6.
Page 572: Sensor (Document Tray Length 2) Removal
7510 Sensor (document tray length 2) removal 1. Open the ADF left cover assembly. 2. Lift the document tray assembly. 3. Remove the five screws securing the cover (A). 4. Remove the cover (A). 5. Remove the connector from the sensor (document tray length 2) (B). 6.
Page 573: 2000-Sheet Dual Input (Ttm) Removals
7510 2000-sheet dual input (TTM) removals 2000-sheet dual input (TTM)—top cover removal 1. Pull out tray 2 assembly. 2. Remove the two screws securing the top cover (A). 3. Remove the top cover (A). 2000-sheet dual input (TTM)—foot cover removal 1.
Page 574: 2000-Sheet Dual Input (Ttm)-Right Cover Removal
7510 4. Remove the foot cover (A). Front 2000-sheet dual input (TTM)—right cover removal 1. Remove the four screws securing the right cover (A). 2. Remove the right cover (A) by lifting up and out. 4-166 Service Manual...
Page 575: 2000-Sheet Dual Input (Ttm)- Tray Module Left Cover Removal
7510 2000-sheet dual input (TTM)— tray module left cover removal 1. Remove the four screws securing the tray module left cover (A). 2. Remove the tray module left cover (A). 2000-sheet dual input (TTM)—rear cover removal 1. Remove the four screws securing the rear cover (A). 2.
Page 576: 2000-Sheet Dual Input (Ttm)-Tray Support Roll Removal
7510 7. Remove the caster (A). 2000-sheet dual input (TTM)—tray support roll removal “2000-sheet dual input (TTM)– tray module left cover removal” on 1. Remove the tray module left cover. See page 4-167. “2000-sheet dual input (TTM)–TTM media tray 3 assembly 2.
Page 577 7510 8. Remove the shafts (D). 9. Remove the tray support rolls (B). 4-169 Repair information...
Page 578: 2000-Sheet Dual Input (Ttm)-Ttm Media Tray 4 Assembly Removal
7510 2000-sheet dual input (TTM)—TTM media tray 4 assembly removal 1. Pull out the TTM media tray 4 assembly. 2. Remove the two screws securing the TTM tray 4 media transport assembly (A) to the TTM media tray 4 assembly (B).
Page 579: 2000-Sheet Dual Input (Ttm)-Ttm Media Tray 3 Assembly Removal
7510 2000-sheet dual input (TTM)—TTM media tray 3 assembly removal “2000-sheet dual input (TTM)– tray module left cover removal” on 1. Remove the tray module left cover. See page 4-167. 2. Open the TTM left door assembly. 3. Loosen the screw securing the TTM tray 3 stopper (A). 4.
Page 580: 2000-Sheet Dual Input (Ttm)-Tray 3 Rear Cable Assembly Removal
7510 2000-sheet dual input (TTM)—tray 3 rear cable assembly removal “2000-sheet dual input (TTM)– tray module left cover removal” on 1. Remove the tray module left cover. See page 4-167. 2. Remove the TTM media tray 3 assembly. See “2000-sheet dual input (TTM)–TTM media tray 3 assembly removal”...
Page 581 7510 7. Move the rear lift cable pulley (D) toward the rear of the tray to release the two tray 3 rear cables (E) from the tray lift shaft assembly (B). Rear 8. Remove the two tray 3 rear cables (E) from the tray lift shaft assembly (B). 9.
Page 582: 2000-Sheet Dual Input (Ttm)-Tray 3 Front Cable Assembly Removal
7510 2000-sheet dual input (TTM)—tray 3 front cable assembly removal “2000-sheet dual input (TTM)– tray module left cover removal” on 1. Remove the tray module left cover. See page 4-167. 2. Remove the TTM media tray 3 assembly. See “2000-sheet dual input (TTM)–TTM media tray 3 assembly removal”...
Page 583: 2000-Sheet Dual Input (Ttm)-Ttm Media Tray 4 Front Cover Removal
7510 2000-sheet dual input (TTM)—TTM media tray 4 front cover removal 1. Pull out the TTM media tray 4 assembly. 2. Remove the four screws securing the TTM tray 4 front cover (A). 3. Remove the TTM tray 4 front cover (A). 4.
Page 584 7510 5. Gently move the tray lift shaft assembly (B) toward the rear of the tray and detach the rear bushing (C) from the frame. Note: Do not remove the front lift cable pulley (A), or the front lift cables will become detached. 6.
Page 585 7510 12. Remove the tray 4 rear cables (D) from the bottom plate (H). Replacement note: Before re-installing: — It is recommended that all four cables be replaced. — Ensure tray 4 rear cables (D) are not twisted or kinked. —...
Page 586: 2000-Sheet Dual Input (Ttm)-Tray 4 Front Cables Removal
7510 2000-sheet dual input (TTM)—tray 4 front cables removal “2000-sheet dual input (TTM)–TTM media tray 4 assembly 1. Remove the TTM media tray 4 assembly. See removal” on page 4-170. 2. Remove the tray 4 front cover. See “2000-sheet dual input (TTM)–TTM media tray 4 front cover removal” on page 4-175.
Page 587: 2000-Sheet Dual Input (Ttm)-Media Feed Unit Assembly Removal (Tray 4)
7510 10. Remove the tray 4 front cables (C) from the bottom plates (F). Replacement note: Before re-installing: — It is recommended that all four cables be replaced. — Ensure tray 4 front cables (C) are not twisted or kinked. —...
Page 588 7510 7. Remove the two screws securing the media feed unit assembly (A). Connectors Front 8. Remove one screw securing the front bracket (B) to the machine. 9. Remove the front bracket (B). 10. Move the media feed unit assembly (A) to the left and up in the direction of the arrow. 11.
Page 589: 2000-Sheet Dual Input (Ttm)-Sensor (Tray 4 Feed-Out) Removal
7510 2000-sheet dual input (TTM)—sensor (tray 4 feed-out) removal 1. Remove the media tray 2 assembly. 2. Remove the tray module left cover. See “2000-sheet dual input (TTM)– tray module left cover removal” on page 4-167. 3. Remove the TTM media tray 3 assembly. See “2000-sheet dual input (TTM)–TTM media tray 3 assembly removal”...
Page 590: 2000-Sheet Dual Input (Ttm) Switch (Media Size) Removal
7510 2000-sheet dual input (TTM) switch (media size) removal Note: This procedure can be applied to tray 1 or tray 2 switch (media size). 1. Remove media Tray 1 and media Tray 2. 2. Remove one screw securing the switch (media size) (A) to the bracket inside the machine. 3.
Page 591: 2000-Sheet Dual Input (Ttm)-Media Feed Unit Assembly 2 Removal
7510 2000-sheet dual input (TTM)–media feed unit assembly 2 removal 1. Remove the media tray 2. 2. Open the TTM left door assembly. 3. Disconnect the connector from the media feed unit assembly (A). 4. Release the harness from the clamp. 5.
Page 592 7510 4-184 Service Manual...
Page 593: 2000-Sheet Dual Input (Ttm)-Sensor (Tray 3 Feed-Out) Removal
7510 2000-sheet dual input (TTM)—sensor (tray 3 feed-out) removal 1. Open the TTM left door assembly. 2. Remove the two screws securing the two support straps (A) to the machine. 3. Disconnect the connector to the bracket (B). 4. Remove the two screws securing the bracket (B) to the machine. 5.
Page 594: 2000-Sheet Dual Input (Ttm)-Sensor (Tray 2 Feed-Out) Removal
7510 2000-sheet dual input (TTM)—sensor (tray 2 feed-out) removal 1. Open the TTM left door assembly. 2. Remove the two screws securing bracket (A) to the machine. 3. Remove the bracket (A). 4. Disconnect the connector from the sensor (tray 2 feed-out) (B). 5.
Page 595 7510 8. Remove the media feed lift motor (B). Connector Rear 4-187 Repair information...
Page 596: 2000-Sheet Dual Input (Ttm)-One-Way Clutch / Gear Assembly Removal
7510 2000-sheet dual input (TTM)—one-way clutch / gear assembly removal “2000-sheet dual input (TTM)– tray module left cover removal” on 1. Remove the tray module left cover. See page 4-167. 2. Remove the TTM media tray 3 assembly. See “2000-sheet dual input (TTM)–TTM media tray 3 assembly removal”...
Page 597 7510 10. Remove the tray lift one-way gear 24 tooth (C). Harness Washer Rear Replacement note: Before re-installing, ensure all gears and washers are securely attached to the bracket (A). 4-189 Repair information...
Page 598: 2000-Sheet Dual Input (Ttm)-Media Out Actuator Removal
7510 2000-sheet dual input (TTM)—media out actuator removal “2000-sheet dual input (TTM)– tray module left cover removal” on 1. Remove the tray module left cover. See page 4-167. 2. Remove the TTM media tray 3 assembly. See “2000-sheet dual input (TTM)–TTM media tray 3 assembly removal”...
Page 599: 2000-Sheet Dual Input (Ttm)-Sensor (Media Level) Removal
7510 2000-sheet dual input (TTM)—sensor (media level) removal “2000-sheet dual input (TTM)– tray module left cover removal” on 1. Remove the tray module left cover. See page 4-167. 2. Remove the TTM media tray 3 assembly. See “2000-sheet dual input (TTM)–TTM media tray 3 assembly removal”...
Page 600: 2000-Sheet Dual Input (Ttm)-Sensor (Media Out) Removal
7510 2000-sheet dual input (TTM)—sensor (media out) removal “2000-sheet dual input (TTM)– tray module left cover removal” on 1. Remove the tray module left cover. See page 4-167. 2. Remove the TTM media tray 3 assembly. See “2000-sheet dual input (TTM)–TTM media tray 3 assembly removal”...
Page 601: 2000-Sheet Dual Input (Ttm)-Feed Roll Removal
7510 2000-sheet dual input (TTM)—feed roll removal 1. Remove the media tray assembly. 2. Move the feed unit front guide (A) toward the front in the direction of the arrow. 3. Release the hook securing the feed roll (B) to the shaft (C). 4.
Page 602: 2000-Sheet Dual Input (Ttm)-Feed Roll One-Way Clutch Removal
7510 2000-sheet dual input (TTM)—feed roll one-way clutch removal 1. Remove the media tray assembly. 2. Remove the feed roll. See “2000-sheet dual input (TTM)–feed roll removal” on page 4-193. 3. Remove the feed roll one-way clutch (A) from the shaft (B). 4-194 Service Manual...
Page 603: 2000-Sheet Dual Input (Ttm)-One-Way 22 Tooth Removal
7510 2000-sheet dual input (TTM)—one-way 22 tooth removal 1. Remove the media tray assembly. 2. Remove the feed roll. See “2000-sheet dual input (TTM)–feed roll removal” on page 4-193. 3. Remove the feed roll one-way clutch. See “2000-sheet dual input (TTM)–feed roll one-way clutch removal” on page 4-194.
Page 604: 2000-Sheet Dual Input (Ttm)-Separation Roll One-Way Friction Clutch Removal
7510 2000-sheet dual input (TTM)—separation roll one-way friction clutch removal 1. Remove the media tray assembly. 2. Remove the separation roll. See “2000-sheet dual input (TTM)–separation roll removal” on page 4-197. 3. Remove the separation roll spacer (A). 4. Remove the separation roll one-way friction clutch (B). 4-196 Service Manual...
Page 605: 2000-Sheet Dual Input (Ttm)-Separation Roll Removal
7510 2000-sheet dual input (TTM)—separation roll removal 1. Remove the media tray assembly. 2. Move the feed unit front guide (A) toward the front in the direction of the arrow. 3. Release the hook securing the separation roll (B) to the shaft (C). 4-197 Repair information...
Page 606 7510 4. Remove the separation roll (B). Note: Do not touch the rubber surface of the feed roll (B). Replacement note: Before re-installing, do not touch the rubber surface of the separation roll (B). 4-198 Service Manual...
Page 607: 2000-Sheet Dual Input (Ttm)-Pick Roll Removal
7510 2000-sheet dual input (TTM)—pick roll removal 1. Remove the media tray assembly. 2. Move the front guide (A) toward the front in the direction of the arrow. 3. Release the hook securing the pick roll (B) to the shaft (C). 4.
Page 608: 2000-Sheet Dual Input (Ttm)-Left Door Assembly Removal
7510 2000-sheet dual input (TTM)—left door assembly removal “2000-sheet dual input (TTM)– tray module left cover removal” on 1. Remove the tray module left cover. See page 4-167. 2. Open the TTM left door assembly. 3. Remove the two screws securing the two support straps (A) to the machine. 4.
Page 609: 2000-Sheet Dual Input (Ttm)-Switch (Ttm Left Door Interlock) Removal
7510 2000-sheet dual input (TTM)—switch (TTM left door interlock) removal 1. Open the TTM left door assembly. 2. Remove the screw securing the support strap (A) to the machine. 3. Remove the screw securing the bracket (B) to the machine. 4.
Page 610: 2000-Sheet Dual Input (Ttm)-Tray 3 Lift Gear Assembly Removal
7510 2000-sheet dual input (TTM)—tray 3 lift gear assembly removal “2000-sheet dual input (TTM)–rear cover removal” on page 4-167. 1. Remove the rear cover. See 2. Pull the tray 3 media assembly out of the machine. 3. Remove the two screws securing the tray 3 lift gear assembly (A) to the machine. Note: When removing the tray 3 lift gear assembly (A), the tray lift coupling assembly (B) my become detached.
Page 611: 2000-Sheet Dual Input (Ttm)-Tray Lift Coupling Assembly Removal
7510 2000-sheet dual input (TTM)—tray lift coupling assembly removal Note: This procedure can be applied to both the tray 3 and the tray 4 media assemblies. “2000-sheet dual input (TTM)–rear cover removal” on page 4-167. 1. Remove the rear cover. See 2.
Page 612 7510 4. Remove the tray module drive motor (A). Connector 4-204 Service Manual...
Page 613: 2000-Sheet Dual Input (Ttm)-Ttm Tray 4 Transport Motor Removal
7510 2000-sheet dual input (TTM)—TTM tray 4 transport motor removal “2000-sheet dual input (TTM)–rear cover removal” on page 4-167. 1. Remove the rear cover. See 2. Disconnect the connector from the TTM tray 4 transport motor (A). 3. Release the harness from the clamp. 4.
Page 614: 500-Sheet Drawer (3Tm) Removals
7510 3X 500-sheet drawer (3TM) removals 3X 500-sheet drawer (3TM) —top cover removal 1. Pull out tray 2 assembly (A). 2. Remove the two screws securing the top cover (B). 3. Remove the top cover (B). 4-206 Service Manual...
Page 615: 500-Sheet Drawer (3Tm)-Foot Cover Removal
7510 3X 500-sheet drawer (3TM) —foot cover removal 1. Remove the media tray 4 assembly. 2. Remove the two screws securing the foot cover (A) to the machine. 3. Remove the foot cover (A). Front 3X 500-sheet drawer (3TM) —right cover removal 1.
Page 616: 500-Sheet Drawer (3Tm)-Tray Module Left Cover Removal
7510 3X 500-sheet drawer (3TM) —tray module left cover removal 1. Remove the four screws securing the tray module left cover (A). 2. Remove the tray module left cover (A). 3X 500-sheet drawer (3TM) —rear cover removal 1. Remove the four screws securing the rear cover (A). 2.
Page 617: 500-Sheet Drawer (3Tm)-Caster Removal
7510 3X 500-sheet drawer (3TM) —caster removal 1. Remove the media tray 2 assembly. 2. Remove the media tray 3 assembly. 3. Remove the media tray 4 assembly. 4. Place the right side of the drawer down. 5. Remove the three screws securing the caster (A). 6.
Page 618: 500-Sheet Drawer (3Tm)-Sensor (Tray 4 Feed-Out) Removal
7510 3X 500-sheet drawer (3TM)—sensor (tray 4 feed-out) removal 1. Open the 3TM left door assembly. 2. Remove the two screws securing the two support straps (A) to the machine. 3. Disconnect the connector from the sensor (tray 4 feed-out) (B). 4.
Page 619: 500-Sheet Drawer (3Tm)-Sensor (Tray 2 Feed-Out) Removal
7510 3X 500-sheet drawer (3TM)—sensor (tray 2 feed-out) removal 1. Open the 3TM left door assembly. 2. Remove the two screws securing bracket (A) to the machine. 3. Remove the bracket (A). 4. Disconnect the connector from the sensor (tray 2 feed-out) (B). 5.
Page 620: 500-Sheet Drawer (3Tm)-Switch (Media Size) Removal
7510 3X 500-sheet drawer (3TM)—switch (media size) removal Note: This removal procedure may be applied to media tray 2, 3 and media tray 4 assemblies. 1. Remove the media tray 2 assembly. 2. Remove the media tray 3 assembly. 3. Remove the media tray 4 assembly. 4.
Page 621: 500-Sheet Drawer (3Tm)-Media Feed Unit Assembly Removal (Tray 3)
7510 3X 500-sheet drawer (3TM)—media feed unit assembly removal (tray 3) 1. Remove the media tray 4 assembly. 2. Open the 3TM left door assembly. 3. Remove the two screws securing the two support straps (A) to the machine. 4. Release the harness from the clamp. 5.
Page 622 7510 4-214 Service Manual...
Page 623: 500-Sheet Drawer (3Tm)-Media Feed Unit Assembly Removal (Tray 2)
7510 3X 500-sheet drawer (3TM)—media feed unit assembly removal (tray 2) 1. Remove the media tray 2 assembly. 2. Open the 3TM left door assembly. 3. Remove the two screws securing the two support straps (A) to the machine. 4. Release the harness from the clamp. 5.
Page 624: 500-Sheet Drawer (3Tm)-Sensor (Tray 3 Feed-Out) Removal
7510 3X 500-sheet drawer (3TM)—sensor (tray 3 feed-out) removal 1. Open the 3TM left door assembly. 2. Remove the two screws securing the two support straps (A) to the machine. 3. Disconnect the connector from the sensor (tray 3 feed-out) (B). 4.
Page 625: 500-Sheet Drawer (3Tm)-Media Feed Lift Motor Removal
7510 7. Remove the sensor (tray 3 feed-out) (B). 3X 500-sheet drawer (3TM)—media feed lift motor removal 1. Remove the media feed unit assembly. See“3X 500-sheet drawer (3TM)–media feed unit assembly removal (tray 2)” on page 4-215 “3X 500-sheet drawer (3TM)–media feed unit assembly removal (tray 3)” on page 4-213.
Page 626: 500-Sheet Drawer (3Tm)-One-Way Clutch / Gear Assembly Removal
7510 3X 500-sheet drawer (3TM)—one-way clutch / gear assembly removal See“3X 500-sheet drawer (3TM)–media feed unit assembly removal 1. Remove the media feed unit assembly. (tray 2)” on page 4-215 “3X 500-sheet drawer (3TM)–media feed unit assembly removal (tray 3)” on page 4-213.
Page 627: 500-Sheet Drawer (3Tm)-Media Out Actuator Removal
7510 3X 500-sheet drawer (3TM)—media out actuator removal See“3X 500-sheet drawer (3TM)–media feed unit assembly removal 1. Remove the media feed unit assembly. (tray 2)” on page 4-215 “3X 500-sheet drawer (3TM)–media feed unit assembly removal (tray 3)” on page 4-213.
Page 628: 500-Sheet Drawer (3Tm)-Sensor (Media Level) Removal
7510 3X 500-sheet drawer (3TM)—sensor (media level) removal See“3X 500-sheet drawer (3TM)–media feed unit assembly removal 1. Remove the media feed unit assembly. (tray 2)” on page 4-215 “3X 500-sheet drawer (3TM)–media feed unit assembly removal (tray 3)” on page 4-213.
Page 629: 500-Sheet Drawer (3Tm)-Sensor (Media Out) Removal
7510 3X 500-sheet drawer (3TM)—sensor (media out) removal See“3X 500-sheet drawer (3TM)–media feed unit assembly removal 1. Remove the media feed unit assembly. (tray 2)” on page 4-215 “3X 500-sheet drawer (3TM)–media feed unit assembly removal (tray 3)” on page 4-213.
Page 630: 500-Sheet Drawer (3Tm)-Feed Roll Removal
7510 3X 500-sheet drawer (3TM)—feed roll removal 1. Remove the media tray assembly. 2. Move the feed unit front guide (A) toward the front in the direction of the arrow. 3. Release the hook securing the feed roll (B) to the shaft (C). 4.
Page 631: 500-Sheet Drawer (3Tm)-Feed Roll One-Way Clutch Removal
7510 3X 500-sheet drawer (3TM)—feed roll one-way clutch removal 1. Remove the media tray assembly. 2. Remove the feed roll. See “2000-sheet dual input (TTM)–feed roll removal” on page 4-193. 3. Remove the feed roll one-way clutch (A) from the shaft (B). Front 4-223 Repair information...
Page 632: 500-Sheet Drawer (3Tm)-One-Way 22 Tooth Removal
7510 3X 500-sheet drawer (3TM)—one-way 22 tooth removal 1. Remove the media tray assembly. 2. Remove the feed roll. See “2000-sheet dual input (TTM)–feed roll removal” on page 4-193. 3. Remove the feed roll one-way clutch. See “2000-sheet dual input (TTM)–feed roll one-way clutch removal” on page 4-194.
Page 633: 500-Sheet Drawer (3Tm)-Separation Roll One-Way Friction Clutch Removal
7510 3X 500-sheet drawer (3TM)—separation roll one-way friction clutch removal 1. Remove the media tray assembly. 2. Remove the separation roll. See “2000-sheet dual input (TTM)–separation roll removal” on page 4-197. 3. Remove the separation roll spacer (A). 4. Remove the separation roll one-way friction clutch (B). Front 4-225 Repair information...
Page 634: 500-Sheet Drawer (3Tm)-Separation Roll Removal
7510 3X 500-sheet drawer (3TM)—separation roll removal 1. Remove the media tray assembly. 2. Move the feed unit front guide (A) toward the front in the direction of the arrow. 3. Release the hook securing the separation roll (B) to the shaft (C). Front 4-226 Service Manual...
Page 635 7510 4. Remove the separation roll (B). Note: Do not touch the rubber surface of the feed roll (B). Front Replacement note: Before re-installing, do not touch the rubber surface of the separation roll (B). 4-227 Repair information...
Page 636: 500-Sheet Drawer (3Tm)-Pick Roll Removal
7510 3X 500-sheet drawer (3TM)—pick roll removal 1. Remove the media tray assembly. 2. Move the front guide (A) toward the front in the direction of the arrow. 3. Release the hook securing the pick roll (B) to the shaft (C). 4.
Page 637: 500-Sheet Drawer (3Tm)-3Tm Left Door Assembly Removal
7510 3X 500-sheet drawer (3TM)—3TM left door assembly removal 1. Open the 3TM left door assembly. 2. Remove the two screws securing the two supports straps (A) to the machine. 3. Remove the screw securing the bracket (B) to the machine. 4.
Page 638: 500-Sheet Drawer (3Tm)-Tray Module Drive Motor Assembly Removal
7510 7. Remove the switch (tray module left door interlock) (C). 3X 500-sheet drawer (3TM)—tray module drive motor assembly removal 1. Remove the rear cover. See “3X 500-sheet drawer (3TM)–rear cover removal” on page 4-208. 2. Disconnect the connector from the tray module drive motor (A). 3.
Page 639: 500-Sheet Drawer (3Tm)-3Tm Controller Card Assembly Removal
7510 3X 500-sheet drawer (3TM)—3TM controller card assembly removal “3X 500-sheet drawer (3TM)–rear cover removal” on page 4-208. 1. Remove the rear cover. See 2. Disconnect the nine connectors from the 3TM controller card assembly (A). 3. Remove the four screws securing the 3TM controller card assembly (A) to the machine. 4.
Page 640: 500-Sheet Drawer (1Tm) Removals
7510 1X 500-sheet drawer (1TM) removals 1X 500-sheet drawer (1TM) —top cover removal 1. Pull out tray 2 assembly (A). 2. Remove the two screws securing the top cover (B). 3. Remove the top cover (B). 4-232 Service Manual...
Page 641: 500-Sheet Drawer (1Tm)-Front Door Removal
7510 1X 500-sheet drawer (1TM) —front door removal 1. Open the 1TM front door. 2. Remove the four screws securing the front door (A) to the machine. 3. Remove the front door (A). 1X 500-sheet drawer (1TM) —foot cover removal 1.
Page 642: 500-Sheet Drawer (1Tm)-Right Cover Removal
7510 1X 500-sheet drawer (1TM) —right cover removal 1. Remove the four screws securing the right cover (A). 2. Remove the right cover (A) by lifting up and out in the direction of the arrow. 4-234 Service Manual...
Page 643: 500-Sheet Drawer (1Tm)-Tray Module Left Cover Removal
7510 1X 500-sheet drawer (1TM) —tray module left cover removal 1. Remove the four screws securing the tray module left cover (A). 2. Remove the tray module left cover (A). 1X 500-sheet drawer (1TM) —rear cover removal 1. Remove the four screws securing the rear cover (A). 2.
Page 644: 500-Sheet Drawer (1Tm)-Caster Removal
7510 1X 500-sheet drawer (1TM) —caster removal 1. Remove the media tray 2 assembly. 2. Place the right side of the drawer down. 3. Remove the three screws securing the caster (A). 4. Remove the caster (A). 1X 500-sheet drawer (1TM)—media feed unit assembly removal (tray 2) 1.
Page 645: 500-Sheet Drawer (1Tm)-Sensor (Tray 2 Feed-Out) Removal
7510 1X 500-sheet drawer (1TM)—sensor (tray 2 feed-out) removal 1. Open the 1TM left door assembly. 2. Remove the two screws securing bracket (A) to the machine. 3. Remove the bracket (A). 4. Disconnect the connector from the sensor (tray 2 feed-out) (B). 5.
Page 646: 500-Sheet Drawer (1Tm)-Switch (Media Size) Removal
7510 1X 500-sheet drawer (1TM)—switch (media size) removal 1. Remove the media tray 2 assembly. 2. Open the 1TM front door. 3. Disconnect the connector from the switch (media size) (A). 4. Remove the screw securing the switch (media size) (A). 5.
Page 647: 500-Sheet Drawer (1Tm)-Media Feed Lift Motor Removal
7510 1X 500-sheet drawer (1TM)—media feed lift motor removal “1X 500-sheet drawer (1TM)–media feed unit assembly 1. Remove the media feed unit assembly. See removal (tray 2)” on page 4-236. 2. Disconnect the harness from the media feed lift motor (A). 3.
Page 648 7510 6. Remove the tray lift one-way gear 24 tooth (C). Harness Washer Rear Replacement note: Before re-installing, ensure all gears and washers are securely attached to the bracket (A). 4-240 Service Manual...
Page 649: 500-Sheet Drawer (1Tm)-Media Out Actuator Removal
7510 1X 500-sheet drawer (1TM)—media out actuator removal “1X 500-sheet drawer (1TM)–media feed unit assembly 1. Remove the media feed unit assembly. See removal (tray 2)” on page 4-236. 2. Release the two bosses on the media out actuator (A) from the media feed unit assembly. 3.
Page 650: 500-Sheet Drawer (1Tm)-Sensor (Media Level) Removal
7510 1X 500-sheet drawer (1TM)—sensor (media level) removal “1X 500-sheet drawer (1TM)–media feed unit assembly removal 1. Remove the media feed unit assembly. See (tray 2)” on page 4-236. 2. Disconnect the connector from the sensor (media level) (A). 3. Release the hooks securing the sensor (media level) (A) to the media feed unit assembly. 4.
Page 651: 500-Sheet Drawer (1Tm)-Sensor (Media Out) Removal
7510 1X 500-sheet drawer (1TM)—sensor (media out) removal “1X 500-sheet drawer (1TM)–media feed unit assembly 1. Remove the media feed unit assembly. See removal (tray 2)” on page 4-236. 2. Remove the media out actuator. See “1X 500-sheet drawer (1TM)–media out actuator removal” on page 4-241.
Page 652: 500-Sheet Drawer (1Tm)-Feed Roll Removal
7510 1X 500-sheet drawer (1TM)—feed roll removal 1. Remove the media tray assembly. 2. Move the feed unit front guide (A) toward the front in the direction of the arrow. 3. Release the hook securing the feed roll (B) to the shaft (C). 4.
Page 653: 500-Sheet Drawer (1Tm)-Feed Roll One-Way Clutch Removal
7510 1X 500-sheet drawer (1TM)—feed roll one-way clutch removal 1. Remove the media tray assembly. 2. Remove the feed roll. See “2000-sheet dual input (TTM)–feed roll removal” on page 4-193. 3. Remove the feed roll one-way clutch (A) from the shaft (B). 4-245 Repair information...
Page 654: 500-Sheet Drawer (1Tm)-One-Way 22 Tooth Removal
7510 1X 500-sheet drawer (1TM)—one-way 22 tooth removal 1. Remove the media tray assembly. 2. Remove the feed roll. See “1X 500-sheet drawer (1TM)–feed roll removal” on page 4-244. 3. Remove the feed roll one-way clutch. See “1X 500-sheet drawer (1TM)–feed roll one-way clutch removal” on page 4-245.
Page 655: 500-Sheet Drawer (1Tm)-Separation Roll One-Way Friction Clutch Removal
7510 1X 500-sheet drawer (1TM)—separation roll one-way friction clutch removal 1. Remove the media tray assembly. 2. Remove the separation roll. See “1X 500-sheet drawer (1TM)–separation roll removal” on page 4-248. 3. Remove the separation roll spacer (A). 4. Remove the separation roll one-way friction clutch (B). Seal 4-247 Repair information...
Page 656: 500-Sheet Drawer (1Tm)-Separation Roll Removal
7510 1X 500-sheet drawer (1TM)—separation roll removal 1. Remove the media tray assembly. 2. Move the feed unit front guide (A) toward the front in the direction of the arrow. 3. Release the hook securing the separation roll (B) to the shaft (C). 4.
Page 657: 500-Sheet Drawer (1Tm)-Pick Roll Removal
7510 1X 500-sheet drawer (1TM)—pick roll removal 1. Remove the media tray assembly. 2. Move the front guide (A) toward the front in the direction of the arrow. 3. Release the hook securing the pick roll (B) to the shaft (C). 4.
Page 658: 500-Sheet Drawer (1Tm)-Tray Module Left Door Assembly Removal
7510 1X 500-sheet drawer (1TM)—tray module left door assembly removal 1. Open the 3TM/TMM left door assembly. 2. Remove the two screws securing the two supports straps (A) to the machine. 3. Remove the screw securing the bracket (B) to the machine. 4.
Page 659: 500-Sheet Drawer (1Tm)-Switch (Tray Module Left Door Interlock) Removal
7510 1X 500-sheet drawer (1TM)—switch (tray module left door interlock) removal 1. Open the 1TM left door assembly. 2. Remove the screw securing the support strap (A) to the machine. 3. Remove the screw securing the bracket (B) to the machine. 4.
Page 660: 500-Sheet Drawer (1Tm)-Tray Module Drive Motor Assembly Removal
7510 1X 500-sheet drawer (1TM)—tray module drive motor assembly removal “1X 500-sheet drawer (1TM)–rear cover removal” on page 4-235. 1. Remove the rear cover. See 2. Disconnect the connector from the tray module drive motor (A). 3. Remove the two screws securing the tray module drive motor (A) to the machine. 4.
Page 661: Setup And Adjustments
7510 Setup and adjustments Sensor (ATC) setup Step Check Warning: Before installing any new developer unit assembles in the machine, record the bar code number located on the sensor (ATC) for all new developer units being installed. Example: Sensor (C ATC) XXX Sensor (M) ATC XXX Sensor (Y) ATC XXX Sensor (K) ATC XXX...
Page 662 7510 Step Check Update the following settings using the newly converted values from step 2 for all newly installed developer units: Sensitivity gradient Sensor output reference 1. Enter the Diagnostics Menu. 2. Touch ENGINE ADJUST. 3. Touch ATC Sensor Adjust Values 4.
Page 663 7510 ATC VALUE CONVERSION CHART Bar code number Sensitivity gradient default value Standard TC output default value (last 2 digits) 4-255 Repair information...
Page 664 7510 ATC VALUE CONVERSION CHART Bar code number Sensitivity gradient default value Standard TC output default value (last 2 digits) 4-256 Service Manual...
Page 665: Color Registration (Regcon)
7510 ATC VALUE CONVERSION CHART Bar code number Sensitivity gradient default value Standard TC output default value (last 2 digits) Color registration (RegCon) 4-257 Repair information...
Page 666: Measurement Cycle Test
7510 Measurement cycle test Step Check Perform the Measurement cycle test. Perform the Go to step 2. “Control sensor 1. Enter the Diagnostics Menu. check”. 2. Touch ENGINE ADJUST. “Control 3. Touch RegCon adjust sensor check” on 4. Touch Measurement cycle page 4-259.
Page 667: Control Sensor Check
7510 Control sensor check Step Check Perform the Control sensor check test. Perform the Go to step 2. “Control sensor 1. Enter the Diagnostics Menu. cycle”. 2. Touch ENGINE ADJUST. “Control 3. Touch RegCon adjust sensor cycle” on 4. Touch Control Sensor Check page 4-259.
Page 668: Belt Edge Learn Test
7510 Belt edge learn test Step Check Perform the Belt edge learn test. Perform “Skew Go to step 2. setup”. 1. Enter the Diagnostics Menu. “Skew fine 2. Touch ENGINE ADJUST. setup” on 3. Touch RegCon adjust page 4-260. 4. Touch Belt edge learn Does the above test pass? Replace the transfer belt unit assembly.
Page 669 7510 Step Check Perform the Skew fine setup printhead adjustment. Perform the In/Out Adjust the setup. printhead Tou ch Cycle result values. adjustment screws “In/out then perform the setup” on In/Out setup. page 4-264. Locate the following new values for the following settings: “In/out Y- Skew adjustment setup”...
Page 670 7510 Step Check Analyze the fine skew setup. Go to step 4. Go to step 6. 1. Enter the Diagnostics Menu. 2. Touch ENGINE ADJUST. 3. Touch RegCon adjust 4. Touch Control setup cycles 5. Touch Cycle result values Locate the following new values for the following settings: Patch-B in Patch-B out Is the value for both of the above settings a “4”?
Page 671 7510 Step Check Perform the skew rough setup printhead adjustment. Re-perform step 1. Go to step 6. If the test fails then 1. Enter the Diagnostics Menu. replace the 2. Touch ENGINE ADJUST. printhead. 3. Touch RegCon adjust “Printhead 4. Touch Control setup cycles assembly 5.
Page 672 7510 Step Check Check the image density sensor assembly for toner Remove and clean Go to step 8. contamination. the image density sensor assembly. Is the above component dirty or contaminated? “Image density sensor assembly removal” on page 4-45. Re-Perform the Skew fine setup. Perform the In/Out Replace the image setup.
Page 673 7510 Step Check Analyze the In/out setup. Go to step 3. Go to step 5. 1. Enter the Diagnostics Menu. 2. Touch ENGINE ADJUST. 3. Touch RegCon adjust 4. Touch Control setup cycles 5. Touch Cycle result values Locate the following new values for the following settings: Y- Skew adjustment M- Skew adjustment C- Skew adjustment...
Page 674 7510 Step Check Perform the skew rough setup printhead adjustment. Re-perform step 1. Go to step 7. If the test fails then 1. Enter the Diagnostics Menu. replace the 2. Touch ENGINE ADJUST. printhead. 3. Touch RegCon adjust “Printhead 4. Touch Control setup cycles assembly 5.
Page 675 7510 Step Check Perform the In/out skew setup printhead adjustment. Go to the Center Adjust the setup. printhead 1. Enter the Diagnostics Menu. adjustment screw “In/out 2. Touch ENGINE ADJUST. then go to Center setup” on 3. Touch RegCon adjust setup.
Page 676: In/Out Setup
7510 Step Check Re-Perform the In/out setup. Perform the Replace the image Center setup. density sensor 1. Enter the Diagnostics Menu. assembly. “In/out 2. Touch ENGINE ADJUST. setup” on “Image 3. Touch RegCon adjust page 4-264. density sensor 4. Touch Control setup cycles assembly 5.
Page 677 7510 Center setup Step Check Warning: Ensure that the image density sensor Go to step 2. Repeat step 1. assembly is moved to the center position or the test will not function. Move the image density sensor assembly to the center position.
Page 678 7510 Center setup Step Check Perform the center setup: Move the image Go to step 3. density sensor 1. Enter the Diagnostics Menu. back to its original 2. Touch ENGINE ADJUST. position. 3. Touch RegCon adjust The color 4. Touch Control setup cycles registration 5.
Page 679: Transfer Belt Lift Handle Assembly Removal
7510 Transfer belt lift handle assembly removal Warning: When replacing the transfer belt lift handle assembly, the two transfer belt lift mechanisms must be correctly timed or print quality problems and damage will occur. “Printer front door assembly removal” on page 4-3 1.
Page 680 7510 4-272 Service Manual...
Page 681 7510 Mark Cap gear Left mechanism Mark Cap gear Right mechanism 4-273 Repair information...
Page 682 7510 4-274 Service Manual...
Page 683: Connector Locations
7510 5. Connector locations Locations Connector locations...
Page 684 7510 Scanner LVPS CCD/lens card assembly card assembly Scanner controller card assembly Switch (platen interlock) Service Manual...
Page 685 7510 Waste toner agitator motor assembly Sensor (waste toner cartridge full) Switch (waste toner cartridge interlock) Connector locations...
Page 686 7510 Image density sensor assembly Duplex unit assembly Printer left door assembly Service Manual...
Page 687 7510 Fuser unit assembly Thumb screws C toner add motor K toner add motor M toner add motor Y toner add motor Main power switch activator Switch (main power) Connector locations...
Page 688 7510 Printhead Polygon mirror motor Service Manual...
Page 689 7510 Charge roll HVPS card assembly 24 V LVPS card assembly Developer/transfer roll HVPS card assembly Connector locations...
Page 690 7510 AC drive card assembly Printer power Finisher power hookup connector hookup connector Upper printer engine card assembly NVM card assembly Service Manual...
Page 691 7510 Lower printer card assembly CMYK transfer roll HVPS card assembly 5V LVPS card assembly Connector locations...
Page 692 7510 Feed/lift motor Sensor (media out) Sensor (media level) Media feed unit assembly Sensor (printer left lower door interlock) Sensor (tray 1 feed-out) Printer left lower door assembly 5-10 Service Manual...
Page 693 7510 5-11 Connector locations...
Page 694 7510 5-12 Service Manual...
Page 695 7510 3TM controller card assembly Tray module drive motor Feed/lift motor Sensor (media out) Sensor (media level) Switch (tray module Media feed left door interlock) unit assembly Sensor (tray 2 feed-out) Sensor (tray 3 feed-out) 3TM left door assembly Sensor (tray 4 feed-out) 5-13 Connector locations...
Page 696 7510 TTM controller card assembly Tray module drive motor TTM tray 4 transport drive motor 5-14 Service Manual...
Page 697 7510 Switch (media size) Switch (TTM media size) 5-15 Connector locations...
Page 698 7510 Media feed unit assembly Sensor (tray 4 feed-out) 5-16 Service Manual...
Page 699: Preventive Maintenance
Damaged, missing, or altered parts, especially in the area of the on/off switch and the power supply • Damaged, missing, or altered covers, especially in the area of the top cover and the power supply cover • Possible safety exposure from any non-Lexmark attachments EVERY EVERY EVERY LEXMARK X940e &...
Page 700 7510 EVERY EVERY EVERY LEXMARK X940e & X945e SERVICE NOTE: 100K 600K CALL DEVELOPER UNITS Transfer Developer unit (4) Replace C developer carrier Replace M developer carrier Replace Y developer carrier Replace K developer carrier Replace TRANSFER ROLL 2nd Transfer Roll assembly...
Page 701: Scheduled Maintenance
7510 Lubrication specifications Lubricate only when parts are replaced or as needed, not on a scheduled basis. Use of lubricants other than those specified can cause premature failure. Some unauthorized lubricants may chemically attack polycarbonate parts. Use IBM no. 10 oil, P/N 1280443 (Approved equivalents: Mobil DTE27, Shell Tellus 100, Fuchs Renolin MR30), IBM no.
Page 702 7510 After replacing the kit, the maintenance count must be reset to zero to clear the “80 scheduled maintenance” message. To reset the maintenance count Turn off the printer. Press and hold the 2 and 6 buttons simultaneously. Turn on the printer. Release the buttons after 10 seconds.
Page 703: Parts Catalog
NS: (Not shown) in the Asm-Index column indicates that the part is procurable but is not pictured in the illustration. • PP: (Parts Packet) in the parts description column indicates the part is contained in a parts packet. Model name Configuration Machine type Maximum speed Lexmark X940e Network 7510-030 35 PPM Lexmark X945e Network 7510-230 45 PPM...
Page 704: Assembly 1: Covers 1
7510 Assembly 1: Covers 1 Asm- Part FRUs/ Units/ Description index number mach 40X0553 Switch (printer front door interlock) 40X0553 Switch (transfer access door interlock) 40X3780 Right cover assembly 40X3778 Printer front door assembly (this comes assembled) 40X3779 Printhead slit glass cleaning assembly MFP Service Manual...
Page 705: Assembly 2: Covers 2
7510 Assembly 2: Covers 2 Asm- Part FRUs/ Units/ Description index number mach 40X3782 RIP card access cover 40X3781 Top cover assembly 40X3787 Switch (main power) 40X3786 Main power switch actuator 40X3783 Main switch cable assembly 40X3785 Inner cover 40X3784 Front left cover Parts catalog...
Page 706: Assembly 3: Covers 3
7510 Assembly 3: Covers 3 Asm- Part FRUs/ Units/ Description index number mach 40X3796 Rear left upper cover 40X3793 Rear left middle cover 40X3795 Left front cover 40X3794 Rear left lower cover 40X3788 Rear blind cover 40X3789 Rear cover assembly 110 V 40X3790 Rear cover assembly 220 V MFP Service Manual...
Page 707: Assembly 4: Pc Cartridge And Developer Drive
7510 Assembly 4: PC cartridge and developer drive Asm- Part FRUs/ Units/ Description index number mach 40X3671 Developer idler gear assembly 40X3669 CMY developer drive motor assembly 40X3670 Developer/transport drive motor assembly 40X3672 MPF/transport drive motor assembly 40X3667 CMYK PC cartridge drive motor assembly 40X3668 Transfer belt drive motor assembly Parts catalog...
Page 708: Assembly 5: Id Sensor And Transfer Belt Steering
7510 Assembly 5: ID sensor and transfer belt steering Asm- Part FRUs/ Units/ Description index number mach 40X3674 Image density sensor assembly 40X3673 Transfer belt steering motor MFP Service Manual...
Page 709: Assembly 6: Media Tray
7510 Assembly 6: Media tray Asm- Part FRUs/ Units/ Description index number mach 40X3677 Switch (media size) 40X3676 Media tray slide 40X3678 Media tray assembly kit • Media tray assembly • #1 label • #2 label • #3 label • #4 label •...
Page 710: Assembly 7: Printer Left Lower Door And Media Feed Unit
7510 Assembly 7: Printer left lower door and media feed unit Asm- Part FRUs/ Units/ Description index number mach 40X3679 Media feed unit assembly 40X3688 Sensor (printer left lower door interlock) 40X0613 Hinge pin 40X3680 Printer left lower door assembly (this comes assembled) 40X3681 Sensor (tray 1 feed-out) 40X3682...
Page 711: Assembly 8: Media Feed Unit
7510 Assembly 8: Media feed unit Parts catalog...
Page 712 7510 Assembly 8: Media feed unit Asm- Part FRUs/ Units/ Description index number mach 40X3679 Media feed unit assembly 40X3687 Media out actuator 40X3688 Sensor (tray media out) 40X3688 Sensor (tray media level) 40X3684 Media feed lift motor 40X0888 Bushing 6 mm 40X0590 Pick roll assembly spring 40X3686...
Page 713: Assembly 9: Mpf Feed Unit Assembly 1
7510 Assembly 9: MPF feed unit assembly 1 Asm- Part FRUs/ Units/ Description index number mach 40X4079 MPF feed unit assembly (this comes assembled) 7-11 Parts catalog...
Page 714: Assembly 10: Mpf Feed Unit Assembly 2
7510 Assembly 10: MPF feed unit assembly 2 Asm- Part FRUs/ Units/ Description index number mach 40X4079 MPF feed unit assembly (this comes assembled) 40X3688 Sensor (MPF media out) 40X3709 MPF media out actuator 40X0755 MPF pickup spring 7-12 MFP Service Manual...
Page 715: Assembly 11: Mpf Feed Unit Assembly 3
7510 Assembly 11: MPF feed unit assembly 3 Asm- Part FRUs/ Units/ Description index number mach 40X4079 MPF feed unit assembly (this comes assembled) 40X3711 MPF pick roll kit • MPF pick roll (2) 40X1381 Bushing 8 mm 7-13 Parts catalog...
Page 716: Assembly 12: Registration / Transport Roll Assembly
7510 Assembly 12: Registration / transport roll assembly Asm- Part FRUs/ Units/ Description index number mach 40X3692 Registration/transport roll assembly (this comes assembled) 40X3695 Sensor (transparency detect) 40X3694 Sensor (registration) 40X3693 Registration clutch 7-14 MFP Service Manual...
Page 717: Assembly 13: Printer Left Door And Duplex
7510 Assembly 13: Printer left door and duplex Asm- Part FRUs/ Units/ Description index number mach 40X4078 Printer left door assembly (this comes assembled) 40X3697 Printer left door damper assembly 40X3696 Printer left door damper idler gear 40X3799 Duplex unit assembly (this comes assembled) 40X3798 Printer left door blind cover 7-15...
Page 718: Assembly 14: Printer Left Door Assembly 1
7510 Assembly 14: Printer left door assembly 1 Asm- Part FRUs/ Units/ Description index number mach 40X4078 Printer left door assembly (this comes assembled) 40X4098 Printer left door closed actuator 40X3699 Sensor (fuser exit) 40X3698 2nd transfer roll assembly 40X3700 Printer left door duplex exit guide 7-16 MFP Service Manual...
Page 719: Assembly 15: Printer Left Door Assembly 2
7510 Assembly 15: Printer left door assembly 2 Asm- Part FRUs/ Units/ Description index number mach 40X4078 Printer left door assembly (this comes assembled) 40X3704 Printer left door damper sector gear 40X3688 Sensor (2nd transfer roll retract HP) 40X3701 2nd transfer roll retract cam assembly 40X3702 2nd transfer retract motor assembly 40X3703...
Page 720: Assembly 16: Duplex Media Inverter Assembly
7510 Assembly 16: Duplex media inverter assembly Asm- Part FRUs/ Units/ Description index number mach 40X3797 Duplex media inverter assembly 7-18 MFP Service Manual...
Page 721: Assembly 17: Duplex 2
7510 Assembly 17: Duplex 2 Asm- Part FRUs/ Units/ Description index number mach 40X3799 Duplex unit assembly (this comes assembled) 40X3802 Duplex drive motor 40X3801 Sensor (duplex wait) 40X3800 Duplex controller card assembly 40X3803 Switch (duplex left door interlock) 7-19 Parts catalog...
Page 722: Assembly 18: Standard Media Exit Shift
7510 Assembly 18: Standard media exit shift Asm- Part FRUs/ Units/ Description index number mach 40X3705 Standard media exit shift assembly (this comes assembled) 40X3707 Standard bin full actuator 40X3688 Sensor (standard bin full) 40X0553 Switch (printer left door interlock) 40X3706 Standard exit top cover 40X4080...
Page 723: Assembly 19: Printhead Assembly
7510 Assembly 19: Printhead assembly Asm- Part FRUs/ Units/ Description index number mach 40X3712 Printhead assembly 7-21 Parts catalog...
Page 724: Assembly 20: Xerographic And Waste Toner
7510 Assembly 20: Xerographic and waste toner Asm- Part FRUs/ Units/ Description index number mach 40X3713 Waste toner cartridge cover 40X3715 Switch (waste toner cartridge interlock) 40X3717 Sensor (waste toner cartridge full) 40X3714 Waste toner cartridge sensor assembly (this comes assembled) 40X3716 Waste toner agitator motor assembly 7-22...
Page 725: Assembly 21: Erase Lamps And Developer Interlock Plate
7510 Assembly 21: Erase lamps and developer interlock plate Asm- Part FRUs/ Units/ Description index number mach 40X3720 K erase lamp assembly 40X3719 CMY erase lamp assembly 40X3718 Developer interlock plate assembly 7-23 Parts catalog...
Page 726: Assembly 22: Transfer Belt Lift 1
7510 Assembly 22: Transfer belt lift 1 Asm- Part FRUs/ Units/ Description index number mach 40X3722 Right transfer belt lift assembly 40X3727 Transfer belt lift handle assembly 40X3723 Transfer belt lift latch assembly with label 40X3721 Left transfer belt lift assembly 7-24 MFP Service Manual...
Page 727: Assembly 23: Transfer Belt
7510 Assembly 23: Transfer belt Asm- Part FRUs/ Units/ Description index number mach 40X3732 Transfer belt unit assembly 40X3733 Transfer belt cleaning assembly 40X3729 Transfer belt auger front gear 14T 40X3731 Transfer belt auger assembly 40X0880 Bushing 6 mm 40X3730 Transfer belt auger rear gear 18T 7-25 Parts catalog...
Page 728: Assembly 24: Transfer Belt Lift 2
7510 Assembly 24: Transfer belt lift 2 Asm- Part FRUs/ Units/ Description index number mach 40X3735 Transfer belt lift rear plunger assembly 40X3734 Transfer belt lift recoil spring 40X3736 Transfer belt lift front plunger assembly 7-26 MFP Service Manual...
Page 729: Assembly 25: Toner Dispense
7510 Assembly 25: Toner Dispense Asm- Part FRUs/ Units/ Description index number mach 40X3740 K toner dispense assembly 40X3739 C toner dispense assembly 40X3738 M toner dispense assembly 40X3737 Y toner dispense assembly 40X3741 CMYK toner add motor assembly 40X0636 Sensor (RFID toner cartridge) 7-27 Parts catalog...
Page 730: Assembly 26: Developer Unit Assemblies
7510 Assembly 26: Developer unit assemblies Asm- Part FRUs/ Units/ Description index number mach 40X3742 Developer unit assembly 40X3744 Y developer carrier 40X3745 M developer carrier 40X3746 C developer carrier 40X3743 K developer carrier 7-28 MFP Service Manual...
Page 731: Assembly 27: Fuser Assembly
7510 Assembly 27: Fuser assembly Asm- Part FRUs/ Units/ Description index number mach 40X4153 Fuser assembly 100 V 40X3747 Fuser assembly 110 V 40X3748 Fuser assembly 220 V 7-29 Parts catalog...
Page 732: Assembly 28: Cooling Fans
7510 Assembly 28: Cooling fans Asm- Part FRUs/ Units/ Description index number mach 40X3750 Fuser cooling fan 40X3749 Printhead shutter motor assembly 40X3752 Rear lower cooling fan assembly (this comes assembled) 40X3751 Transfer belt drive motor cooling fan 7-30 MFP Service Manual...
Page 733: Assembly 29: Electrical 1
7510 Assembly 29: Electrical 1 7-31 Parts catalog...
Page 734 7510 Assembly 29: Electrical 1 Asm- Part FRUs/ Units/ Description index number mach 40X3762 Laser diode power card assembly 40X3757 Lower printer engine card assembly 40X3758 24 V LVPS card assembly 40X3763 Rear upper cooling fan 40X3759 24 V LVPS cooling fan 40X3760 CMYK transfer roll HVPS card assembly 40X3755...
Page 735: Assembly 30: Electrical 2
7510 Assembly 30: Electrical 2 Asm- Part FRUs/ Units/ Description index number mach 40X3764 AC drive card bracket assembly 110 V (this comes assembled) 40X3765 AC drive card bracket assembly 220 V (this comes assembled) 40X3766 Outlet power panel cable assembly 7-33 Parts catalog...
Page 736: Assembly 31: Electrical 3
7510 Assembly 31: Electrical 3 7-34 MFP Service Manual...
Page 737 7510 Assembly 31: Electrical 3 Asm- Part FRUs/ Units/ Description index number mach 40X3775 DC main cable assembly 40X3776 DC rear right cable assembly 40X3774 2nd transfer charge roll cable 40X3771 CK transfer roll cable assembly 40X3770 YM transfer roll cable assembly 40X3772 Transfer belt charge cable 40X3769...
Page 738: Assembly 32: Electrical 4
7510 Assembly 32: Electrical 4 7-36 MFP Service Manual...
Page 739 RIP card cooling fan cover assembly (this comes assembled) 40X3807 RIP bridge card assembly 40X2359 Interconnect card assembly 40X5865 MFP RIP card assembly (X940e, X945e model) 40X4407 MFP RIP card assembly (XC940e, XC945e model) 40X3808 Upper printer engine card chassis assembly 40X4081...
Page 740: Assembly 33: Adf Assembly
7510 Assembly 33: ADF assembly Part Units/ Units/ kit Description Index number mach or pkg 40X3879 ADF unit assembly (this comes assembled) 40X2239 Platen cushion 40X4094 Scanner unit assembly (this comes assembled) 40X2238 ADF mounting screw 7-38 MFP Service Manual...
Page 741: Assembly 34: Adf Covers And Components
7510 Assembly 34: ADF covers and components Part Units/ Units/ kit Description Index number mach or pkg 40X2244 ADF rear cover 40X2246 Small hook/loop strip 40X2245 ADF front cover assembly 40X3880 Document tray assembly (this comes assembled) 40X2243 Document tray hinge 7-39 Parts catalog...
Page 742: Assembly 35: Adf Base
7510 Assembly 35: ADF base Front 7-40 MFP Service Manual...
Page 743 7510 Assembly 35: ADF base Part Units/ Units/ kit Description Index number mach or pkg 40X2257 ADF left hinge 40X3883 ADF registration pinch/frame assembly (this comes assembled) 40X2247 Large hook/loop strip 40X2330 Spring 40X2354 Registration pad 40X4104 Registration pad cover 40X2248 Solenoid/interlock cable assembly 40X2260...
Page 744: Assembly 36: Adf Feeder
7510 Assembly 36: ADF feeder 7-42 MFP Service Manual...
Page 745 7510 Assembly 36: ADF feeder Part Units/ Units/ kit Description Index number mach or pkg 40X3884 ADF left cover assembly (this comes assembled) 40X2265 Registration motor cable assembly 40X2266 ADF feed motor cable assembly 40X2264 Document set/sheet through cable assembly 40X2267 Left cover hinge retainer 40X2270...
Page 746: Assembly 37: Adf Left Cover Components
7510 Assembly 37: ADF left cover components 7-44 MFP Service Manual...
Page 747 7510 Assembly 37: ADF left cover components Part Units/ Units/ kit Description Index number mach or pkg 40X2223 Sensor (pick roll position HP) 40X2291 Plastic ring clip 6 mm 40X2287 ADF feed/pick roll assembly (this comes assembled) 40X2276 Left cover pinch roll assembly (this comes assembled) 40X2274 ADF left cover handle 40X2381...
Page 748: Assembly 38: Adf Media Guide
7510 Assembly 38: ADF media guide 7-46 MFP Service Manual...
Page 749 7510 Assembly 38: ADF media guide Part Units/ Units/ kit Description Index number mach or pkg 40X3890 Actuator/media guide assembly (this comes assembled) 40X2289 Inverter gate 40X2288 ADF main feed cable assembly 40X2223 Sensor (ADF pre-registration) 40X0589 Sensor (ADF registration) 40X2223 Sensor (ADF width APS 1) 40X2223...
Page 750: Assembly 39: Adf Feeder Roll
7510 Assembly 39: ADF feeder roll 7-48 MFP Service Manual...
Page 751 7510 Assembly 39: ADF feeder roll Part Units/ Units/ kit Description Index number mach or pkg 40X2383 ADF main feed assembly (this comes assembled) 40X2346 Manual feed drive wheel 40X2345 Manual feed drive belt 40X2291 Plastic ring clip kit includes: •...
Page 752: Assembly 40: Adf Motor Unit
7510 Assembly 40: ADF motor unit Part Units/ Units/ kit Description Index number mach or pkg 40X2327 ADF feed motor assembly (this comes assembled) 40X2223 Sensor (sheet through) 40X2229 Tension spring 40X2325 ADF registration motor 7-50 MFP Service Manual...
Page 753: Assembly 41: Adf Document Tray
7510 Assembly 41: ADF document tray Part Units/ Units/ kit Description Index number mach or pkg 40X3880 Document tray assembly (this comes assembled) 40X3892 Sensor (document tray length 1) 40X3892 Sensor (document tray length 2) 40X2223 Sensor (document tray width 1) 40X2223 Sensor (document tray width 2) 40X2223...
Page 754: Assembly 42: Scanner Covers
7510 Assembly 42: Scanner covers Part Units/ Units/ kit Description Index number mach or pkg 40X3852 Scanner right cover 40X4094 Complete scanner assembly (this comes assembled) 40X3851 Scanner left cover 40X3855 Scanner interface cable assembly 40X3856 Scanner rear cover assembly 7-52 MFP Service Manual...
Page 755: Assembly 43: Ccd Lens Assembly
7510 Assembly 43: CCD lens assembly 7-53 Parts catalog...
Page 756 7510 Assembly 43: CCD lens assembly Part Units/ Units/ kit Description Index number mach or pkg 40X3867 Scanner main cable assembly 40X3864 Scanner LVPS cable assembly 110 V 40X4037 Scanner LVPS cable assembly 220 V 40X3865 Scanner LVPS card assembly 110 V 40X3866 Scanner LVPS card assembly 220 V 40X3862...
Page 757: Assembly 44: Control Panel And Platen Glass
7510 Assembly 44: Control panel and platen glass 7-55 Parts catalog...
Page 758 40X2208 Large platen glass 40X3858 Large platen glass retainer 40X4094 Complete scanner assembly (this comes assembled) 40X3863 Operator panel bezel X940e model 40X3870 Operator panel bezel X945e model 40X4096 Operator panel assembly (universal) 40X2363 Operator panel controller card assembly 40X2364...
Page 759: Assembly 45: Scanner Electrical
7510 Assembly 45: Scanner electrical Part Units/ Units/ kit Description Index number mach or pkg 40X3875 Scanner controller card assembly 40X2217 Card mounting screw 7-57 Parts catalog...
Page 760: Assembly 46: Scanner Optics
7510 Assembly 46: Scanner optics 7-58 MFP Service Manual...
Page 761 7510 Assembly 46: Scanner optics Part Units/ Units/ kit Description Index number mach or pkg 40X2232 2nd/3rd mirror 40X2233 Scanner mirror clip 40X3872 Exposure lamp PS ribbon cable 40X2234 1st mirror 40X3871 Exposure lamp PS card assembly 40X3873 Exposure lamp PS card insulator 40X3874 Exposure lamp 7-59...
Page 762: Assembly 47: Carriage Cable And Motor
7510 Assembly 47: Carriage cable and motor Part Units/ Units/ kit Description Index number mach or pkg 40X4094 Complete scanner assembly (this comes assembled) 40X2223 Sensor (scanner HP) 40X2229 Scanner drive motor tension spring 40X3868 Scanner drive motor assembly 40X2226 Scanner drive belt 7-60 MFP Service Manual...
Page 763: Assembly 48: Mfp Rack
7510 Assembly 48: MFP rack Part Units/ Units/ kit Description Index number mach or pkg 40X3878 Main stand caster 40X4097 Main stand attach bracket 7-61 Parts catalog...
Page 764: Assembly 49: 1Tm Covers
7510 Assembly 49: 1TM covers Asm- Part FRUs/ Units/ Description index number mach 40X3825 Tray module right cover 40X3824 Tray module foot cover 40X4142 1TM front door assembly 40X3826 Tray module left cover 40X3827 Tray module rear cover 40X3823 Tray module top cover 7-62 MFP Service Manual...
Page 765: Assembly 50: 1Tm Feed Unit Assembly
7510 Assembly 50: 1TM feed unit assembly 7-63 Parts catalog...
Page 766 7510 Assembly 50: 1TM feed unit assembly Asm- Part FRUs/ Units/ Description index number mach 40X3677 Switch (media size) 40X3676 Media tray slide 40X3675 Media tray catch 40X3678 Media tray assembly kit • Media tray assembly • #1 label • #2 label •...
Page 767: Assembly 51: 1Tm Media Feed Unit
7510 Assembly 51: 1TM media feed unit 7-65 Parts catalog...
Page 768 7510 Assembly 51: 1TM media feed unit Asm- Part FRUs/ Units/ Description index number mach 40X3679 Media feed unit assembly 40X3687 Media out actuator 40X3688 Sensor (tray media out) 40X3688 Sensor (tray media level) 40X3684 Media feed lift motor 40X0888 Bushing 6 mm 40X3686 Media tray lift one-way gear...
Page 769: Assembly 52: 1Tm Left Door
7510 Assembly 52: 1TM left door Asm- Part FRUs/ Units/ Description index number mach 40X3818 Tray 2 feed-out sensor cable assembly 40X3817 Sensor (tray 2 feed-out) 40X3821 Switch (tray module left door interlock) 40X4141 1TM left door assembly (this comes assembled) 40X4119 Tray module media transport roll assembly 7-67...
Page 770: Assembly 53: 1Tm Drive And Electrical
7510 Assembly 53: 1TM drive and electrical 7-68 MFP Service Manual...
Page 771 7510 Assembly 53: 1TM drive and electrical Asm- Part FRUs/ Units/ Description index number mach 40X4152 1TM controller card assembly 40X3812 Tray module drive motor assembly 40X4068 Tray module left retaining bracket 40X4034 Tray module retainer screw 40X3815 Media transport gear 33T 40X3813 Media transport gear 23/46T 40X4117...
Page 772: Assembly 54: 3Tm Covers
7510 Assembly 54: 3TM covers 7-70 MFP Service Manual...
Page 773 7510 Assembly 54: 3TM covers Asm- Part FRUs/ Units/ Description index number mach 40X3825 Tray module right cover 40X3824 Tray module foot cover 40X3826 Tray module left cover 40X3827 Tray module rear cover 40X3823 Tray module top cover 7-71 Parts catalog...
Page 774: Assembly 55: 3Tm Feed Unit Assembly
7510 Assembly 55: 3TM feed unit assembly 7-72 MFP Service Manual...
Page 775 7510 Assembly 55: 3TM feed unit assembly Asm- Part FRUs/ Units/ Description index number mach 40X3677 Switch (media size) 40X3676 Media tray slide 40X3675 Media tray catch 40X3678 Media tray assembly kit • Media tray assembly • #1 label • #2 label •...
Page 776: Assembly 56: 3Tm Media Feed Unit
7510 Assembly 56: 3TM media feed unit 7-74 MFP Service Manual...
Page 777 7510 Assembly 56: 3TM Media feed unit Asm- Part FRUs/ Units/ Description index number mach 40X3679 Media feed unit assembly 40X3687 Media out actuator 40X3688 Sensor (tray media out) 40X3688 Sensor (tray media level) 40X3684 Media feed lift motor 40X0888 Bushing 6 mm 40X3686 Media tray lift one-way gear...
Page 778: Assembly 57: 3Tm Left Door
7510 Assembly 57: 3TM left door 7-76 MFP Service Manual...
Page 779 7510 Assembly 57: 3TM left door Asm- Part FRUs/ Units/ Description index number mach 40X3818 Tray 2 feed-out sensor cable assembly 40X3817 Sensor (tray 2 feed-out) 40X3821 Switch (tray module left door interlock) 40X3819 Tray 3/4 feed-out sensor actuator 40X3820 Sensor (tray 3 feed-out) 40X3820 Sensor (tray 4 feed-out)
Page 780: Assembly 58: 3Tm Drive And Electrical
7510 Assembly 58: 3TM drive and electrical 7-78 MFP Service Manual...
Page 781 7510 Assembly 58: 3TM drive and electrical Asm- Part FRUs/ Units/ Description index number mach 40X3811 3TM controller card assembly 40X3812 Tray module drive motor assembly 40X4068 Tray module left retaining bracket 40X4034 Tray module retainer screw 40X3815 Media transport gear 33T 40X3813 Media transport gear 23/46T 40X3814...
Page 782: Assembly 59: Ttm Covers
7510 Assembly 59: TTM covers Asm- Part FRUs/ Units/ Description index number mach 40X3825 Tray module right cover 40X3824 Tray module foot cover 40X3826 Tray module left cover 40X3827 Tray module rear cover 40X3823 Tray module top cover 7-80 MFP Service Manual...
Page 783: Assembly 60: Ttm Media Trays
7510 Assembly 60: TTM media trays 7-81 Parts catalog...
Page 784: Assembly 61: Ttm Media Tray 3
7510 Assembly 60: TTM media trays Asm- Part FRUs/ Units/ Description index number mach 40X3678 Media tray assembly kit • Media tray assembly • #1 label • #2 label • #3 label • #4 label • Instruction label 40X3830 Switch (TTM media size) 40X3831 TTM tray support roll 40X3829...
Page 785 7510 Assembly 61: TTM media tray 3 7-83 Parts catalog...
Page 786 7510 Assembly 61: TTM tray 3 Asm- Part FRUs/ Units/ Description index number mach 40X0711 TTM tray separation pad 40X3832 TTM tray 3 front cover 40X4126 TTM tray lift idler pulley 40X4127 TTM tray lift idler pulley guide 40X4084 TTM tray 3 lift cable 40X0708 TTM large idler pulley kit •...
Page 787: Assembly 62: Ttm Media Tray 4
7510 Assembly 62: TTM media tray 4 Asm- Part FRUs/ Units/ Description index number mach 40X3836 TTM tray 4 front cover 40X4126 TTM tray lift idler pulley 40X4127 TTM tray lift idler pulley guide 40X4085 TTM tray 4 lift cable 40X0723 TTM tray 4 rear support roll (2) 40X0711...
Page 788: Assembly 63: Ttm Media Tray 4 Transport
7510 Assembly 63: TTM media tray 4 transport Asm- Part FRUs/ Units/ Description index number mach 40X3838 TTM tray 4 media transport assembly 40X3679 Media feed unit assembly 40X3841 TTM tray 4 lower media guide 40X3840 TTM tray 4 upper media guide 40X3694 Sensor (tray 4 feed-out) 7-86...
Page 789: Assembly 64: Ttm Media Transport
7510 Assembly 64: TTM media transport Asm- Part FRUs/ Units/ Description index number mach 40X3817 Sensor (tray 2 feed-out) 40X3843 TTM vertical turn guide 40X3679 Media feed unit assembly 40X3842 Tray 3 feed-out sensor assembly (this comes assembled) 40X3818 Tray 2 feed-out sensor cable assembly 40X4119 Tray module media transport roll assembly 7-87...
Page 790: Assembly 65: Ttm Left Door
7510 Assembly 65: TTM left door Asm- Part FRUs/ Units/ Description index number mach 40X3844 TTM left door assembly (this comes assembled) 40X3821 Switch (tray module left door interlock) 7-88 MFP Service Manual...
Page 791: Assembly 66: Ttm Tray Lift Drive
7510 Assembly 66: TTM tray lift drive Asm- Part FRUs/ Units/ Description index number mach 40X3848 TTM tray lift coupling assembly 40X3847 TTM tray lift gear 17T 40X0880 Bushing 6 mm 40X3845 TTM tray 3 lift gear assembly 40X3846 TTM tray 4 lift gear assembly 7-89 Parts catalog...
Page 792: Assembly 67: Ttm Drive And Electrical
7510 Assembly 67: TTM drive and electrical 7-90 MFP Service Manual...
Page 793 7510 Assembly 67: TTM drive and electrical Asm- Part FRUs/ Units/ Description index number mach 40X3850 TTM controller card assembly 40X3849 TTM tray 4 transport drive motor assembly 40X3812 Tray module drive motor assembly 40X4068 Tray module left retaining bracket 40X3815 Media transport gear 33T 40X3813...
Page 794: Assembly 68: Miscellaneous
40X0949 Assorted screw packet 40X4101 MFP relocation kit 56P2129 Lexmark MarkNet N7020e (4 USB ports) 1-0/100/1000 w/out power cord 56P2744 N4050e 802.11g Wireless Print Server (Americas, Argentina, & Brazil) w/out power cord 56P2745 N4050e 802.11g Wireless Print Server (European, UK/Ireland, & Australia)
Page 795 40X1378 Marknet N8050 802.11g wireless, US 40X1562 Marknet N8050 802.11g wireless, International 40X1593 Lexmark marknet N7000e (1 USB port) 10/100 ethernet 40X1594 Lexmark marknet N7002e (1 parallel port) 10/100 ethernet 40X1592 Lexmark marknet N7020e (4 USB ports) 10/100/1000 ethernet 40X0290...
Page 796 7510 7-94 MFP Service Manual...
Page 797 7510 Index 2-10 Numerics selected radio Start 1-76 1TM main components Status/Supplies 1-72 1TM theory Stop 1-75 1TM media feed units Unlock Device 1-73 media transport 2-10 unselected radio 1-74 media tray assembly 1-65 3TM theory 1-68 3TM media feed units 2-10 2-11 Cancel Job button...
Page 798 7510 2-43 Power-on Reset sequence 200.01 sensor (registration) late jam 2-42 Diagnostic Menus 200.01 sensor (registration) static jam 2-44 entering diagnostic menus 201.00 sensor (fuser exit) late jam 2-46 diagnostics 202.00 sensor (fuser exit) lag jam 2-13 error code table 230.00 sensor (duplex wait) late jam (duplex media 2-47 Diagnostics Menus...
Page 799 7510 2-111 2-149 842.01 scanner communication failure 904.07 CMY transfer roll retract motor time out 2-112 842.02 scanner communication failure 905.00 NVM read/write cannot be executed failure 2-112 2-149 842.03 scanner communication failure 2-113 2-149 842.04 scanner communication failure 905.01 marking device video error 2-150 842.10 scanner unit assembly - ADF communication 905.02 marking device Xerographics error...
Page 800 7510 2-176 failure home screen 2-177 956.02 RIP card assembly cooling fan failure status message bar 2-177 956.03 RIP card assembly FPGA failure 980.00 communication error with 1TM, 3TM, or TTM 2-207 image quality trouble 2-177 assembly 2-210 blank print (no print) 2-178 980.01 HVPS controller communication error 2-208...
Page 801 7510 7-46 1-45 ADF media guide scanner unit assembly 7-50 1-14 ADF motor unit printhead assembly 7-92 1-19 miscellaneous front thermistor 1-19 Pound button fuser exit sensor 1-18 preventive maintenance heat roll 1-19 printer overview heater lamp 1-19 basic model pressure belt 1-17 configured model...
Page 802 7510 4-203 4-205 4-230 4-231 4-144 drive motor assembly ADF left cover media guide 4-252 4-135 ADF media feed assembly 4-193 4-222 4-244 4-131 feed roll ADF rear cover 4-194 4-223 4-245 4-159 feed roll one-way clutch ADF registration motor 4-165 4-152 foot cover...
Page 803: Index
7510 1-82 tools required 1-56 TTM theory 1-62 main components 1-57 media transport 1-58 media tray assembly 1-61 TTM media feed units Index...
Page 804 7510 Service Manual...
Page 805: Part Number Index
Lexmark marknet N7002e (1 parallel port) 10/100 ethernet - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -...
Page 806 7510 7-56 40X2213 Small platen glass front retainer - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-56 40X2214 Small platen glass - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -...
Page 807 7510 7-49 40X2291 Plastic ring clip kit - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-54 40X2320 Sensor (platen length APS 1) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -...
Page 808 7510 7-10 7-66 7-75 40X3685 Media tray lift one-way clutch - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-10 7-66 7-75...
Page 809 7510 7-28 40X3745 M developer carrier - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-28 40X3746 C developer carrier - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -...
Page 810 Operator panel bezel X940e model - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -...
Page 811 MFP RIP card assembly (X940e, X945e model) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -...
Page 812 7510 I-16 Service Manual...
Page 813 7510 MFP Scanner/ADF +24V RTN +24VDC +24VDC +24V RTN +24V RTN +24VDC +24VDC +24VDC +24V RTN +24V RTN +24VDC +24VDC +24V RTN +24VDC +24VDC +24VDC +24V RTN P722 P722 SENSOR (ADF +24V RTN ANGLE) SCANNER UNIT +24V RTN* DRIVE MOTOR SENSOR (APS 2) +24V RTN +24V RTN...
Page 814 7510 MFP Fax Card 24V RTN (TO lower printer engine card ASM P530 [7]) 5V RTN (OPTION) 5V RTN (OPTION) 5V RTN 5V RTN To Scanner Controller Card Asm 5V RTN J719 J300 +24VDC (TO lower printer engine card ASM P530 [2]) 5V RTN 5V RTN 5V RTN...
Page 815 5057 AND 7510 Tray Modules SENSOR (tray2 feed out) +5VDC 5V RTN SENSOR (tray4 feed out) 1TM ONLY +5VRTN +5VDC +5VDC 5V RTN SWITCH (TTM media 5V RTN size) #4 +5VDC P546 P546 P548 +5VDC5V RTN SWITCH (media size #2) 5V RTN SENSOR (tray3 5V RTN (SHORTING WIRE)

This manual is also suitable for:

7510 X945e
