Cmy Toner Add Assembly Removal - Lexmark X940e Service Manual

12. Remove the image density sensor assembly (A).
Replacement note: Requires color calibration adjustments.
Replacement warning: When replacing the harness access cover, ensure that the harnesses are not pinched,
or damage will occur.

CMY toner add assembly removal

1. Remove the printer front door assembly. See
2. Remove the front left cover. See
3. Remove the waste toner cartridge cover. See
4. Remove the waste toner cartridge sensor assembly. See
on page 4-39.
5. Remove the inner cover. See

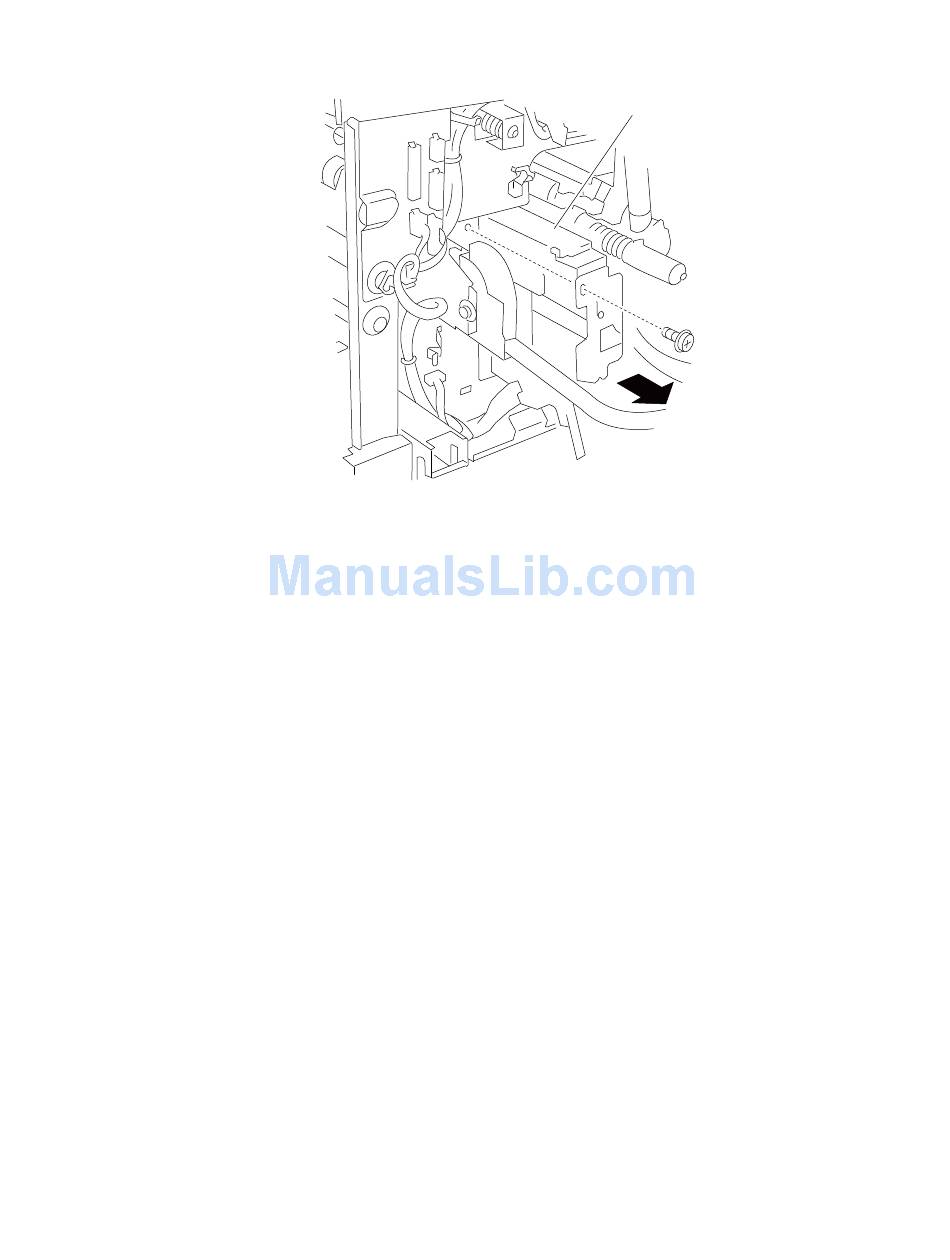

6. Remove the screw securing the appropriate CMY toner add assembly (A) to the machine.
Warning: Pull the appropriate shutters to reduce toner spillage into the machine.
Warning: The C, M, and Y toner add assemblies must be removed in this order: Y, M, C, or damage will occur.
"Printer front door assembly removal" on page
"Front left cover removal" on page
"Waste toner cartridge cover removal" on page
"Inner cover removal" on page
B
4-9.
"Waste toner cartridge sensor assembly removal"
4-43.
Repair information
7510
4-3.
4-39.
4-47
