Sensor (Transparency Detect) Removal - Lexmark X940e Service Manual

7510
9. Disconnect the connector from the sensor (registration) (C).

Sensor (transparency detect) removal

1. Remove the rear cover assembly. See
2. Remove the rear left middle cover. See
3. Remove the MPF feed unit assembly. See
4. Remove the printer left door assembly. See

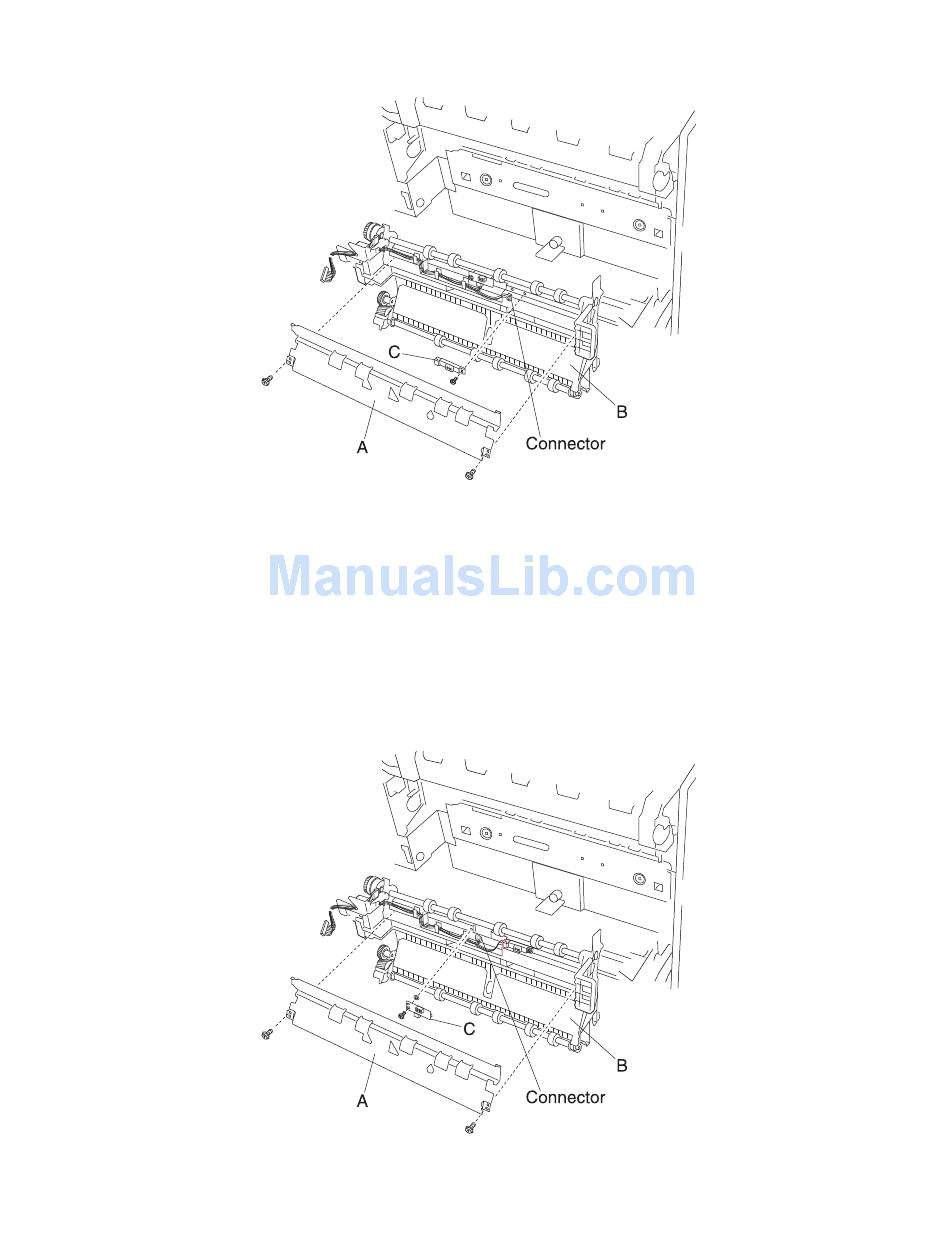

5. Remove the two screws securing the plate (A) to the registration transport roll assembly (B).
6. Remove the plate (A).
7. Remove the screw securing the sensor (transparency detect) (C) to the registration transport roll assembly (B).
8. Remove the sensor (transparency detect) (C).
9. Disconnect the connector from the sensor (transparency detect) (C).
4-38
Service Manual
"Rear cover assembly removal" on page
"Rear left middle cover removal" on page
"MPF feed unit assembly removal" on page
"Printer left door assembly removal" on page
4-5.
4-6.
4-8.
4-26.
