Edition: July 10, 2007

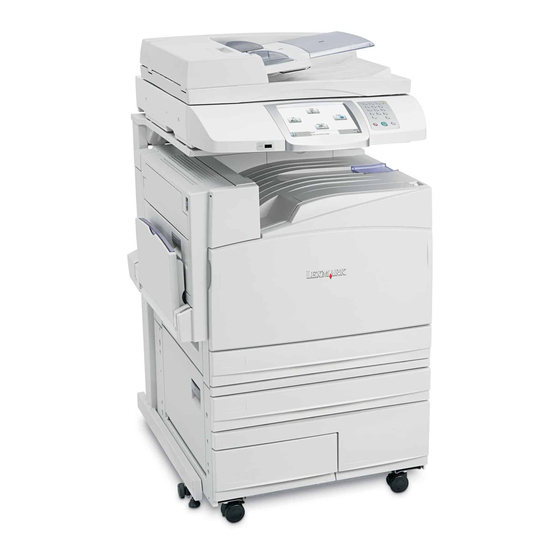

Lexmark™ X940e & X945e MFP

7510-XXX

• Table of contents

• Start diagnostics

• Safety and notices

• Trademarks

• Index

Lexmark and Lexmark with diamond design are

trademarks of Lexmark International, Inc., registered

in the United States and/or other countries.

Table of Contents

Advertisement

Table of Contents

Troubleshooting

Need help?

Need help?

Do you have a question about the X940e and is the answer not in the manual?

Questions and answers

Summary of Contents for Lexmark X940e

Page 1 Lexmark™ X940e & X945e MFP 7510-XXX • Table of contents • Start diagnostics • Safety and notices • Trademarks • Index Lexmark and Lexmark with diamond design are trademarks of Lexmark International, Inc., registered in the United States and/or other countries.
Page 2 Lexmark and Lexmark with diamond design are trademarks of Lexmark International, Inc., registered in the United States and/or other countries. PCL® is a registered trademark of the Hewlett-Packard Company.
Page 3: Table Of Contents
7510-XXX Table of contents Table of contents ............iii Notices and safety information .
Page 4 7510-XXX Transfer belt steering motor ........... .1-13 2nd transfer roll assembly .
Page 5 7510-XXX Auto density sensing ............1-33 Document scanning .
Page 6 7510-XXX White level variation compensation ..........1-55 Black level variation compensation .
Page 7 7510-XXX Functions of main components ..........1-74 Media tray assembly .
Page 8 7510-XXX 244.00 Sensor (tray 4 feed-out) late jam ..........2-58 244.01 Sensor (tray 3 feed-out) on jam (feeding from tray 4) .
Page 9 7510-XXX 845.01 CCD initialization (lamp on) error ......... . . 2-122 845.02 CCD initialization (lamp off) error .
Page 10 7510-XXX 941.00 Switch (media size) size sensing error (tray 1) ....... .2-155 941.01 Sensor (media level) late error (tray 1) .
Page 11 7510-XXX Solid black ............. . . 2-197 Vertical lines and bands (process direction) .
Page 12 7510-XXX Printed Color Page Count ........... . .3-18 Printed Mono Page Count .
Page 13 7510-XXX Key Repeat Rate ............. . . 3-50 Exiting Configuration Menu .
Page 14 7510-XXX Photoconductor (PC) unit assembly removal ........4-58 Transfer belt lift latch assembly removal .
Page 15 7510-XXX Platen cushion removal ............4-113 Large platen glass removal .
Page 16 7510-XXX 2000-sheet dual input (TTM) removals ..........4-162 2000-sheet dual input (TTM)–top cover removal .
Page 17 7510-XXX 3X 500-sheet drawer (3TM)–one-way clutch / gear assembly removal ....4-215 3X 500-sheet drawer (3TM)–media out actuator removal ......4-216 3X 500-sheet drawer (3TM)–sensor (media level) removal .
Page 18 7510-XXX Parts catalog ................How to use this parts catalog .
Page 19 7510-XXX Assembly 58: 3TM left door ............7-77 Assembly 59: 3TM drive and electrical.
Page 20 7510-XXX MFP Service Manual...
Page 21: Notices And Safety Information
7510-XXX Notices and safety information The following laser notice labels may be affixed to this printer. Laser notice The printer is certified in the U.S. to conform to the requirements of DHHS 21 CFR Subchapter J for Class I (1) laser products, and elsewhere is certified as a Class I laser product conforming to the requirements of IEC 60825-1.
Page 22 7510-XXX Avisos sobre el láser Se certifica que, en los EE.UU., esta impresora cumple los requisitos para los productos láser de Clase I (1) establecidos en el subcapítulo J de la norma CFR 21 del DHHS (Departamento de Sanidad y Servicios) y, en los demás países, reúne todas las condiciones expuestas en la norma IEC 60825-1 para productos láser de Clase I (1).
Page 23 7510-XXX Laserilmoitus Tämä tulostin on sertifioitu Yhdysvalloissa DHHS 21 CFR Subchapter J -standardin mukaiseksi luokan I (1) - lasertuotteeksi ja muualla IEC 60825-1 -standardin mukaiseksi luokan I lasertuotteeksi. Luokan I lasertuotteita ei pidetä haitallisina. Tulostimen sisällä on luokan IIIb (3b) laser, joka on nimellisteholtaan 5 mW:n galliumarsenidilaser ja toimii 770 - 795 nanometrin aallonpituuksilla.
Page 24 7510-XXX Avís sobre el Làser Segons ha estat certificat als Estats Units, aquesta impressora compleix els requisits de DHHS 21 CFR, apartat J, pels productes làser de classe I (1), i segons ha estat certificat en altres llocs, és un producte làser de classe I que compleix els requisits d’IEC 60825-1.
Page 25 7510-XXX Notices and safety information...
Page 26 7510-XXX xxvi MFP Service Manual...
Page 27: Safety Information
7510-XXX Safety information • The safety of this product is based on testing and approvals of the original design and specific components. The manufacturer is not responsible for safety in the event of use of unauthorized replacement parts. • The maintenance information for this product has been prepared for use by a professional service person and is not intended to be used by others.
Page 28 7510-XXX Sicherheitshinweise • Die Sicherheit dieses Produkts basiert auf Tests und Zulassungen des ursprünglichen Modells und bestimmter Bauteile. Bei Verwendung nicht genehmigter Ersatzteile wird vom Hersteller keine Verantwortung oder Haftung für die Sicherheit übernommen. • Die Wartungsinformationen für dieses Produkt sind ausschließlich für die Verwendung durch einen Wartungsfachmann bestimmt.
Page 29 7510-XXX Informació de Seguretat • La seguretat d'aquest producte es basa en l'avaluació i aprovació del disseny original i els components específics. El fabricant no es fa responsable de les qüestions de seguretat si s'utilitzen peces de recanvi no autoritzades. •...
Page 30: Preface
7510-XXX Preface This manual contains maintenance procedures for service personnel. It is divided into the following chapters: General information contains a general description of the printer and the maintenance approach used to repair it. Special tools and test equipment, as well as general environmental and safety instructions, are discussed.
Page 31: General Information
7510-XXX 1. General information The Lexmark™ X940e and X945e are color laser MFPs that provide print, copy, scan, and fax functions. All information in this service manual pertains to both models unless explicitly noted. Printer technology • Color laser Processor •...
Page 32 7510-XXX Scanner Number of light sources Color bit depth Maximum optical resolution 600 x 600 Scan area - flatbed 297 x 432 mm Scanner ADF Type C-path (duplexing) Optical resolution ADF (mono) Maximum 600 x 600 dpi Optical resolution ADF (color) Maximum 600 x 300 dpi Document capacity 75 sheets (80 g/m...
Page 33: Printer Overview
7510-XXX Printer overview CAUTION: Do not set up this product or make any electrical or cabling connections, such as the power cord or options and features, during a lightning storm. Basic model The following illustration shows a printer with its base features. Operator panel Duplex unit...
Page 34 7510-XXX The following illustration shows a fully configured printer. Items denoted with an asterisk (*) are options. Operator panel Duplex unit Bridge unit* (Used in conjunction with finisher) Multipurpose feeder (MPF) Finisher* Tray 3 and tray 4 850+1150 sheet dual input tray (TTM) Tray 1 and tray 2 (500 sheet trays)
Page 35: Printer Theory
7510-XXX Printer theory Media transport Media transport path Media is supplied from the MPF, tray 1, 2, 3 or 4, and is transported to the printer along the media transport path shown below. Tray 1 Tray 2 Tray 3 Tray 4 MPF pick roll Pick roll Pick roll...
Page 36: Mfp Paper Path Rolls
7510-XXX MFP paper path rolls Bridge unit assembly (included with finisher) ADF and Scanner Upper media Bridge unit bin exit transport roll assembly roll assembly Finisher media entrance roll assembly Upper media exit roll assembly Standard media exit roll assembly Buffer roll assembly Fuser exit Media eject...
Page 37: Mfp Sensors
7510-XXX MFP sensors ADF and Scanner Sensor (bridge unit media exit) Sensor (diverter gate) Sensor (upper Sensor (finisher media exit) media entrance) Sensor (standard Sensor (upper bin media full) media bin full) Sensor (lower Sensor (fuser exit) media exit) Sensor (bridge unit Sensor (media on belt) Sensor (buffer path) media entrance)
Page 38: Rear Media Guide
7510-XXX Rear media guide The rear media tray guide assembly can be adjusted to different media sizes by moving it to the front or rear. The rear guide come into contact with the media and hold it in position. End guide The media tray assembly is designed so it can adapt to the media length in the media feed direction by moving the end guide to the left or right.
Page 39: Media Feed/Lift Motor
7510-XXX Media feed/lift motor This motor is activated to feed media and to lift the bottom plate. When feeding media, it rotates forward to drive the pick roll. When lifting the bottom plate, it rotates reversely to drive the tray module gears to lift the lift up shaft.
Page 40: Mpf Feed Roll
The MPF side guides detects the width (length in the main scanning direction) of media on the MPF. MPF pick solenoid MPF pick rolls Sensor (MPF media width) Sensor (MPF media out) Media size The following table details the standard paper and envelope sizes supported by the Lexmark X945e MFPs and options. Media Width Length 210 mm...
Page 41: Registration
7510-XXX Media Width Length Statement 5.5 inches 8.5 inches Universal 140 to 297 mm 98.4 to 432 mm 5.5 to 11.7 inches 3.9 to 17 inches MPF only 105 to 305 mm 148 to 482 mm 4.1 to 12 inches 5.8 to 19 inches 7 3/4 Envelope 98.4 mm...
Page 42: Transfer
7510-XXX The registration roll assembly feeds the media at the precise moment to ensure that printed images are precisely placed. The registration roll assembly feeds media from all trays to the transfer belt. Registration clutch Sensor (transparency detect) Sensor (registration) Media transport roll assembly Transfer 1st transfer rolls (C,M,Y,K)
Page 43: Transfer Belt Unit Assembly
7510-XXX Transfer belt unit assembly The transfer belt unit assembly contains the four 1st transfer rolls; these 1st transfer rolls are referred to as the CMYK transfer rolls. The CMYK transfer rolls are positively charged to remove the developed toner image from the four drums.
Page 44: Sensor (2Nd Transfer Roll Hp)
7510-XXX Sensor (2nd transfer roll HP) The sensor (2nd transfer roll HP) is used to detect the home position of the 2nd transfer roll assembly. Transfer belt Sensor (2nd transfer roll retract HP) 2nd transfer roll assembly 2nd transfer roll retract motor Printhead assembly The printhead scans the four drum surface with four laser beams.
Page 45 7510-XXX Conceptual diagram of an image created by scanning Printhead 1-15 General information...
Page 46 7510-XXX Y Laser Path Y drum Sensor (Y start of scan) Polygon Mirror M Laser Path M drum Polygon Mirror Sensor (M start of scan) 1-16 MFP Service Manual...
Page 47: Printhead Shutter
7510-XXX C drum C Laser Path Sensor (C start of scan) Polygon Mirror K drum K Laser Path Sensor (K start of scan) Polygon Mirror Printhead shutter The printhead shutter tightly covers the slit glass through which laser beams from the printhead pass to write the four drums.
Page 48: Fuser
7510-XXX Fuser Fuser cooling fan Heat roll Sensor (fuser exit) Pressure belt Thumb screws Heat roll The heat roll is a hollow metal tube with a coated surface. This tube is heated by the inner heater lamp. The heat is applied to the media passing between the heat roll and pressure roll, fusing the toner on the media. 1-18 MFP Service Manual...
Page 49: Pressure Belt
7510-XXX Pressure belt The pressure belt is used to apply pressure to the media surface for fusing. Pressure is applied to the media between the pressure belt and heat roll, pressing the melted toner against the media. Heater lamps Rear thermister Thermistat Front...
Page 50: Standard Media Exit Roll Assembly
7510-XXX Standard media exit roll assembly The media exit roll assembly feeds printed media from the fuser to the standard bin. Sensor (standard bin full) The sensor (standard bin full) detects whether the standard bin is full by moving the actuator up and down. Standard media exit shift motor The standard media exit shift motor allows the standard media exit roll assembly to shift back and forth to perform off-set sorting.
Page 51: Cmyk Pc Cartridge Drive Motor Assembly
7510-XXX The MPF/transport drive motor is a stepper motor that drives the MPF unit assembly and media transport roll. K developer/transport drive motor assembly MPF/transport drive motor CMYK PC cartridge drive motor assembly The CMYK PC cartridge drive motor assembly uses dual DC brushless motors that drive the four drums in the four PC cartridges.
Page 52: Cmy Developer Drive Motor Assembly
7510-XXX CMY developer drive motor assembly The CMY developer drive motor assembly uses a DC brushless motor to drive the three color developer unit assemblies. K developer clutch This clutch is used to engage the K developer unit assembly and is driven by the K-developer transfer drive motor assembly.
Page 53: Waste Toner Agitator Motor Assembly
7510-XXX The CMYK toner add motor assembly consists of 4 separate DC motors. Each color of toner has its own motor that is used to rotate the toner auger inside the toner cartridge and drive the auger inside the toner add assembly.
Page 54: Lvps Card Assembly
7510-XXX 5V LVPS card assembly The LVPS card assembly generates low voltages 5V for logic circuits, 5 V for laser diodes from AC power. 24V LVPS card assembly The LVPS card assembly generates 24 V for motors/clutches from AC power. CMYK transfer roll HVPS card assembly The CMYK transfer roll HVPS card assembly generates AC power and feeds it to the CMYK transfer rolls inside the transfer belt unit assembly.
Page 55: Upper Printer Engine Card Assembly
7510-XXX Upper printer engine card assembly The upper printer engine card assembly controls printing operation based on the communication with the RIP card assembly and optional peripherals. It also controls toner dispense, erase lamps and fuser control. Lower printer engine card assembly The lower printer engine card assembly controls printing operation based on the communication with the RIP card assembly and on sensor/switch information.
Page 56: Control
7510-XXX Control Media size control Media tray assembly feeding The following table gives the states (on/off) of the switches on the switch (media size), corresponding to the media sizes of the media tray assembly. Note: The switches on the switch (media size) are denoted by “S/W2”, “S/W4”, “S/W3”, “S/W5”, and “S/W1” respectively from the left side.
Page 57: Determination Of Printhead Ready
7510-XXX Determination of printhead ready The printhead goes into ready state after the specified period passes since the reception of the printhead MPA start signal and the SOS cycle exceeds the reference value. Printhead reference value Printhead reference value Description Ready reference value SOS signal interval (equivalent to 98% or more of the rated RPM of the printhead motor)
Page 58: Xerographic Process During A Print Cycle
7510-XXX Xerographic process during a print cycle K toner C toner M toner Y toner Fuser Transfer belt Transfer belt Cleaning roll K transfer roll C transfer roll M transfer roll cleaning Y transfer roll assembly 2nd transfer roll assembly Registration roll Printhead Erase Lamp...
Page 59: Charge
7510-XXX Charge The Charge Roll places a uniform negative electrostatic charge on the surface of the drum. The drum surface is made of a photoconductive material that holds an electrical charge as long as the drum remains in darkness. Light striking the drum discharges the surface charge. HVPS Charge roll (-VDC)
Page 60: Exposure
7510-XXX Exposure The Printhead generates a beam of laser light. Image data received from the RIP card assembly modulates this beam, turning it on and off according to image information that is received from the host computer and software. Through the use of a series of rotating and stationary mirrors within the Printhead, the beam scans the negative charged drum surface.
Page 61: Transfer
7510-XXX The toner adhering to the Magnet Roll is always in contact with the drum surface. When a less negative point on the drum (a discharged area) comes in contact with the more negative charged toner on the Magnet Roll, toner transfers from the Magnet Roll to that point on the drum.
Page 62: Cleaning
7510-XXX is now stuck to the transfer belt due to the relative electrical differences between the negative electrical charge of the inner conductive layer of the drum and the positive electrical charge of the paper. HVPS -VDC DRUM -VDC Transfer roll Sheet of paper Cleaning The Cleaning Blade removes any toner that remains on the drum after the transfer process.
Page 63: Auto Density Sensing
7510-XXX At the beginning of each individual printer cycle, the Printhead scans the surface of the drum, further discharging any residual DC charge that may be left on the drum. Erase lamp LED array DRUM Ground Auto density sensing Image density sensor assembly The image density sensor assembly uses a reflection type sensor that detects a pre-placed toner patch and image on the transfer belt and outputs pulses when the central line of the patch image aligns with the central line...
Page 64: Document Scanning
7510-XXX Document scanning The document scanning section of this machine consists of a scanner that reads a single-sheet document placed on the platen glass and a document feeder that can transport a multiple-sheet document and flip the sheets for two-sided scanning. This ADF employs a constant velocity transport system that scans images by feeding the document at a constant speed over the specified position (scan position) where the carriage (full/half rate carriage) of the scanner unit assembly is fixed.
Page 65: Document Scanning At Adf
7510-XXX The exposure lamp is installed on the full rate carriage. As the full rate carriage travels, the document on the platen glass is scanned and exposed with the exposure lamp. In conjunction with the full rate carriage, the half rate carriage travels half of the stroke of the full rate carriage. The optical image of the exposed document is reflected by the scanner 1st mirror of the full rate carriage and directed to the scanner lens via the scanner 2nd mirror and the scanner 3rd mirror of the half rate carriage.
Page 66: Pre-Feed
7510-XXX Pre-feed In the pre-feed step, a document sheet is fed from the Feed roll to the ADF transport roll assembly. To correct the skew, side1 of the document sheet is thrust against the ADF transport roll assembly rotating in the reverse direction, and side2 is thrust against the ADF transport roll assembly at rest.
Page 67: Scan Control
7510-XXX ADF transport roll assembly ADF registration roll assembly Scan control Scanning of the image illuminated with the exposure lamp of the full rate carriage is controlled by changing the feed speed according to the copy magnification. The document sheet stopping at the scan feed reference position is then fed to the scan position when the scan signal is sent from the main unit of the machine after the predetermined time lapse following the paper detection at sensor (ADF registration).
Page 68: Simplex Document
7510-XXX ADF exit roll assembly Document Inverter gate Simplex document For two simplex document sheets, feed is performed in the following sequence: 1. The first document sheet is fed to the ADF transport roll assembly. (see Pre-feed) 2. The document is fed to the ADF registration roll assembly, and then fed to the scan feed reference position.
Page 69: Duplex Document
7510-XXX Sensor (ADF pre-registration) 2nd documant 1st document Duplex document The ADF scans the image on Side 1 (side facing up when set on the tray), inverts the document sheet, scans the image on Side 2 (side facing down when set on the tray), and then ejects the document sheet while inverting Therefore, the duplex document sheet is ejected with Side 2 up as with the simplex document sheet.
Page 70 7510-XXX When the sensor (ADF pre-registration) detects the lead edge of document sheet (Side 1), the inverter solenoid assembly is turned on to release the nipped ADF exit roll assembly and exit pinch roll, and the ADF registration motor decelerates and stops. 12.
Page 71: Image Data Flow
7510-XXX Image data flow The image date from the document set on the scanner unit assembly or ADF goes through the following components before it is printed at the Engine section. Document Lens CCD image sensor Scanner controller card assembly Scanner Engine RIP card assembly...
Page 72: Drive Torque Transfer Scheme
7510-XXX Drive torque transfer scheme ADF feed motor assembly The rotational force of the ADF feed motor assembly is transferred to each document feeding roll as shown below. ADF feed motor assembly ADF drive belt Feed drive rear pulley 14/32/37 Feed/pick drive gear 20T Transport roll drive belt Feed/pick drive...
Page 73: Gear Layout
7510-XXX Gear layout ADF registration motor Registration roll drive belt Registration drive gear/pulley 21/54T Registration drive belt Exit/feed-out drive Registration roll pulley 25/28 drive gear 28T Exit roll drive belt Registration roll assembly Feed-out roll assembly Exit roll drive pulley 20T Exit roll assembly 1-43 General information...
Page 74 7510-XXX Feed/pick drive gear 20T Feed drive gear/pulley14/32/37T ADF feed motor assembly Transport roll drive Feed roll drive gear 26T gear pulley 20/50T Pick roll idler gear 36T Exit roll drive pulley 20T ADF registration motor Pick roll drive gear 34T Pick roll Registration main drive Exit roll assembly...
Page 75: Names And Functions Of Components
7510-XXX Names and functions of components The sections below describe the functions of main components of the scanner. Scanner unit assembly Sensor (platen length APS 1) Sensor (platen length APS 2) The document length in the slow scanning direction is detected by a combination of the two reflector sensors. Switch (platen interlock) A switch that detects whether the ADF is open and determines the timing of platen document size detection.
Page 76: Adf
7510-XXX A fan that prevents overheating of the scanner controller card assembly and exposure lamp. Scanner drive motor assembly Exposure lamp PS card assembly (under the carriage) Sensor (platen length APS1) Scanner cooling fan Sensor (platen ADF angle length APS2) actuator assembly Sensor CCD image...
Page 77: Adf Document Set Led
7510-XXX ADF Document Set LED An LED that illuminates when a document is set on the ADF Document Tray. Switch (ADF left cover interlock) A switch that detects whether the ADF left cover assembly is open. ADF controller card assembly A card that controls the ADF unit assembly.
Page 78: Sensor (Adf Registration)
7510-XXX The ADF sensor (ADF pre-registration) is installed immediately upstream from the ADF transport roll assembly to detect that the preceding document sheet has left the ADF transport roll assembly, triggering the pre-feed of the next document sheet. Sensor (ADF registration) The sensor (ADF registration) is installed upstream from the ADF registration roll assembly to detect that the preceding document sheet has left the ADF registration roll assembly, triggering the pre-registration of the next document sheet.
Page 79 7510-XXX Sensor (ADF pre-registration) ADF feed motor assembly Sensor (sheet through) ADF registration motor Sensor (ADF registration) Inverter solenoid assembly Sensor (ADF inverter) Sensor (ADF APS 3) Sensor (ADF APS 2) Sensor (ADF APS 1) 1-49 General information...
Page 80: Control
7510-XXX Control Document size detection at scanner unit assembly The width (fast-scan-directional size) of the document sheet on the Platen Grass is detected with the CCD image sensor, and the length (slow-scanning-directional size) is detected with the sensor (platen length APS 1) and the sensor (platen length APS 2).
Page 81 7510-XXX Shown below are the combinations of document size, detection range in the fast scanning direction, and sensors. Width (Fast scanning Length (Slow scanning direction) Area direction: mm) Document Size Fast Detection Sensor (platen Sensor (platen scanning Range length APS 1) length APS 2) Width Japanese Post...
Page 82: Adf Document Size Detection
7510-XXX Width (Fast scanning Length (Slow scanning direction) Area direction: mm) Document Size Fast Detection Sensor (platen Sensor (platen scanning Range length APS 1) length APS 2) Width A4 LEF 297.2 289—307 A3 SEF 297.2 O: Detectable by default. N: Detectable by replacing the document size marked as O with the system data having the same detection information.
Page 83 7510-XXX The standard document sizes to be identified by the same given detection information are defined on an area-by-area basis. Each area is to be set in the system data. 1-53 General information...
Page 84: Document Scanning Steps
7510-XXX The table below shows the combinations of document sizes and sensors. Width (Fast scanning direction) Length (Slow scanning direction) Area Sensor (document tray width *) Sensor (document tray length *) Document Size 5.5 X 8.5 SEF A5 SEF B5 SEF 8 X 10 SEF 8 X 10.5 SEF A5 LEF...
Page 85: Agc (Auto Gain Control): White Level Coarse Adjustment
7510-XXX The CCD image sensor is used to read image data from the document. To stabilize the read image data, the CCD image sensor output is adjusted and the read image data is compensated. The CCD image sensor output is adjusted with the gain/offset voltage of the amplifier in the analog circuit. This adjustment includes AGC and AOC.
Page 86: Ttm Theory
7510-XXX TTM theory 1-56 MFP Service Manual...
Page 87: Media Transport
7510-XXX Media transport Media transport path Media is supplied from tray 2, tray 3 or tray 4, and is transported to the printer along the media transport path shown below. Tray 2 Tray 3 Tray 4 Pick roll Pick roll Pick roll Separation roll Separation roll...
Page 88: Functions Of Main Components
7510-XXX Media transport path The following is a cross section of the printer and the tandem tray module, showing the main components directly associated with the media path and transport. Bridge unit assembly (included with finisher) ADF and Scanner Upper media Bridge unit bin exit transport roll assembly roll assembly...
Page 89: Bottom Plate
7510-XXX Bottom plate The force pushing up the bottom plate is transmitted by the driving force of the motor on the media feed unit assembly. The bottom plate is pushed up by the rotation of the lift up shaft, which causes the supplied media to come in contact with the pick roll.
Page 90: Tray 3 Or 4 Media Tray Assembly
7510-XXX Tray 3 or 4 media tray assembly Rear lift cables Rear media guide Bottom plate F/R lift cable F/L lift cable 1-60 MFP Service Manual...
Page 91: Ttm Media Feed Units
7510-XXX TTM media feed units Media feed unit assembly Since the tray 3 and tray 4 are functionally equivalent in terms of the switch (TTM media size), sensor (media out), sensor (media level) and sensor (pre-feed), only the components of one tray are described here. The media feed unit assembly is a mechanical unit supplying media from the media tray assembly to the printer.
Page 92: Main Components
7510-XXX Media feed lift motor Sensor (media level) Sensor (media out) Switch (TTM media size) Media feed unit assembly Front Main components Switch (tray module left door interlock) The switch (tray module left door interlock) detects open/close of the tray module left door assembly. Sensor (tray 2 feed-out) The sensor (tray 2 feed-out) detects media fed from trays 2, 3, or 4.
Page 93: Tray Module Drive Motor
7510-XXX Tray module drive motor This motor is used to drive the media transport mechanism in the tray module. TTM tray 4 media transport motor This motor is used in the TTM to transport media from the tray 4 towards the tray module left door assembly. TTM controller card assembly The TTM controller card assembly, which contains a CPU, controls media feed in the tandem tray module upon receiving a command from the upper printer engine card assembly and sensor/switch information.
Page 94: Switch (Ttm Media Size)
7510-XXX Switch (TTM media size) The following table gives on/off states of the switches on the switch (TTM media size), corresponding to the media sizes of the media tray assembly. Note: The switches (TTM media size) are denoted by “S/W1” and “S/W3” respectively from the left side. Analog switch Media Size S/W1...
Page 95: 3Tm Theory
7510-XXX 3TM theory 1-65 General information...
Page 96: Media Transport
7510-XXX Media transport Media transport path Media is supplied from tray 3 or tray 4, and is transported to the printer along the media transport path shown below. Tray 2 Tray 3 Tray 4 Pick roll Pick roll Pick roll Separation roll Separation roll Separation roll...
Page 97: Media Transport Path
7510-XXX Media transport path The following is a cross section of the printer and the tandem tray module, showing the main components directly associated with the media path and transport. Bridge unit assembly (included with finisher) ADF and Scanner Upper media Bridge unit bin exit transport roll assembly roll assembly...
Page 98: Bottom Plate
7510-XXX Bottom plate The force pushing up the bottom plate is transmitted by the driving force of the motor on the media feed unit assembly. The bottom plate is pushed up by the rotation of the lift up shaft, which causes the supplied media to come in contact with the pick roll.
Page 99: Main Components
7510-XXX This sensor detects by the actuator position whether media in the media tray assembly is lifted. When the flag of the actuator leaves the sensor (media level) sensing area, the sensor detects that the media has been lifted. Main components Switch (tray module left door interlock) The switch (tray module left door interlock) detects open/close of the tray module left door assembly.
Page 100: Tray Module Drive Motor
7510-XXX The tray module transport roll assembly feeds media from the tray 3 or tray 4 to the printer. Tray module drive motor This motor is used to drive the media transport mechanism in the tray module. 3TM controller card assembly The 3TM controller card assembly, which contains a CPU, controls media feed in the tandem tray module upon receiving a command from the upper printer engine card assembly and sensor/switch information.
Page 101: Switch (Media Size)
7510-XXX Switch (media size) The following table gives on/off states of the switches on the switch (media size), corresponding to the media sizes of the media tray assembly. Note: The switches (media size) are denoted by “S/W1” and “S/W3” respectively from the left side. Analog switch Media Size S/W1...
Page 102: 1Tm Theory
7510-XXX 1TM theory 1-72 MFP Service Manual...
Page 103: Media Transport
7510-XXX Media transport Media transport path Media is supplied from tray 3 or tray 4, and is transported to the printer along the media transport path shown below. Tray 2 Tray 3 Tray 4 Pick roll Pick roll Pick roll Separation roll Separation roll Separation roll...
Page 104: Media Transport Path
7510-XXX Media transport path The following is a cross section of the printer and the 1TM, showing the main components directly associated with the media path and transport. Bridge unit assembly (included with finisher) ADF and Scanner Upper media Bridge unit bin exit transport roll assembly roll assembly Finisher media entrance...
Page 105: Tray 2 Media Tray Assembly
7510-XXX The force pushing up the bottom plate is transmitted by the driving force of the motor on the media feed unit assembly. The bottom plate is pushed up by the rotation of the lift up shaft, which causes the supplied media to come in contact with the pick roll.
Page 106: Switch (Media Size)
7510-XXX Switch (media size) The switch (media size) switches the setting of the size of media supplied from each media tray assembly. A signal indicating the set size is transmitted as a voltage to the printer engine card assembly. Sensor (media out) If there is no media in the media tray assembly, the media out actuator lowers and the flag of the media out actuator that has stayed in the sensor (media out) sensing area leaves there.
Page 107: Sensor (Tray 2 Feed-Out)
7510-XXX Sensor (tray 2 feed-out) The sensor (tray 2 feed-out) detects media fed from the tray 2. Tray module media transport roll assembly The tray module transport roll assembly feeds media from the tray 2. Tray module drive motor This motor is used to drive the media transport mechanism in the tray module. 1TM controller card assembly The 1TM controller card assembly, which contains a CPU, controls media feed in the 1TM upon receiving a command from the upper printer engine card assembly and sensor/switch information.
Page 108: Switch (Media Size)
7510-XXX Switch (media size) The following table gives on/off states of the switches on the switch (media size), corresponding to the media sizes of the media tray assembly. Note: The switches (media size) are denoted by “S/W1” and “S/W3” respectively from the left side. Analog switch Media Size S/W1...
Page 109: Duplex
7510-XXX Duplex 1-79 General information...
Page 110: Layout Of Media Transport Path
7510-XXX Layout of media transport path The main components associated with the media path and transport with the duplex installed. Inverter forward Standard media clutch Inverter exit roll assembly reverse clutch Standard media bin Sensor Exit duplex diverter gate (fuser exit) Fuser unit assembly Fuser exit roll...
Page 111: Duplex Controller Card Assembly
7510-XXX Duplex controller card assembly The duplex controller card assembly that contains a CPU controls media feed in the duplex upon receiving a command from the upper printer engine card assembly and sensor/switch information. Duplex drive motor The duplex drive motor transmits driving force to the two duplex media transport roll assemblies and the duplex media center transport roll assembly middle that feeds media.
Page 112: Tools Required For Service
7510-XXX Tools required for service Flat-blade screwdriver #1 Phillips screwdriver, magnetic #2 Phillips screwdriver, magnetic #2 Phillips screwdriver, magnetic short-blade Needle nose pliers Diagonal side cutters Spring hook Analog or digital multi meter Parallel wrap plug 1319128 Twinax/serial debug cable (#1381963) Coax/serial debug cable (#1381964) 5.5 mm hexdriver (magnetic) Color toner vacuum...
Page 113: Acronyms
7510-XXX Acronyms 1 Tray Module 3 Tray Module Alternating Current Automatic Document Feeder Automatic Paper Size ASIC Application Specific Integrated Circuit Automatic Toner Control Customer Replaceable Unit Customer Setup Counterclockwise Clockwise Direct Current DIMM Dual Inline Memory Module DRAM Dynamic Random Access Memory Enhanced Data Out Electrophotographic Process EPROM...
Page 114 7510-XXX SRAM Static Random Access Memory Tandem Tray Module TVOC Total Volatile Organic Compound Used Parts Return Volts V ac Volts alternating current V dc Volts direct current 1-84 MFP Service Manual...
Page 115: Diagnostic Information
7510-XXX 2. Diagnostic information Start CAUTION Unplug the power cord from the electrical outlet before you connect or disconnect any cable electronic board or assembly. CAUTION If the printer is kept on, never touch the conductive parts if not specifically required. The power switch and inlet of the low voltage power supply card (LVPS card) assembly is live even while the power supply is cut off.
Page 116: Confirm The Installation Status
The following is an example of the events that occur during the POR sequence: Turn the machine on. The Lexmark splash screen appears with a progress bar in the center until the code is loaded. The scanner exposure lamp flashes several times.
Page 117: Control Panel
7510-XXX Control panel PQRS WXYZ Callout Control panel item Function A liquid crystal display (LCD) which shows home screen buttons, menus, menu items, and values. Allows for making selections within Copy, Fax, and so on. Indicator light Gives information about the status of the MFP using the colors red and green.
Page 118 7510-XXX Dial Pause Press to cause a two- or three-second dial pause in a fax number. The button only functions within the Fax menu or with fax functions. Press from the home screen to redial a fax number. When outside of the Fax menu, fax function, or home screen, pressing Dial Pause causes an error beep.
Page 119: Home Screen And Home Screen Buttons
7510-XXX Home screen and Home screen buttons After the MFP is turned on and a short warm-up period occurs, the LCD shows the following basic screen which is referred to as the Home screen. Use the Home screen buttons to initiate an action such as copy, fax, or scan, to open the menu screen, or to respond to messages.
Page 120 7510-XXX Touch to access the File Transfer Protocol (FTP) menus. A document can be scanned directly to an FTP site. Touch to access the Fax menus. Other buttons may appear on the Home screen. They are: Button Button name Function Release Held Faxes There are held faxes with a Check the sensor (sheet through) for (or Held Faxes if in...
Page 121 7510-XXX Unlock Device This button appears on the screen when the MFP is locked. The control panel buttons and shortcuts cannot be used while it appears, and no default copy starts may occur. To unlock the MFP: 1 Touch Unlock Device to open a PIN entry screen. 2.
Page 122: Using The Lcd Touch-Screen Buttons
7510-XXX Using the LCD touch-screen buttons The following section provides information on navigating through several screens. Only a few are chosen to demonstrate the use of the buttons. Sample screen one Copy from Sides (Duplex) Letter (8.5 x 11 in.) Portrait 1-sided to 1-sided Copy to...
Page 123 7510-XXX Button Button name Function or description Touch the left arrow button to scroll left to: Left arrow button • Reach a decreased value shown by an illustration. • See a full text field on the left. Touch the right arrow button to scroll right to: Right arrow button •...
Page 124: Sample Screen Two
7510-XXX Sample screen two Unknown paper size. Copy from: Letter (8.5 x 11 in.) Legal (8.5 x 14 in.) Executive (7.25 x 10.5 in.) Folio (8. 5 x 13 in.) Statement (5.5 x 8.5 in.) A4 (210 x 297 mm) Cancel Continue Information on touch-screen buttons...
Page 125: Other Touch-Screen Buttons
7510-XXX Button Button name Function or description “Cancel Jobs” on page 2-7. Cancel Job Cancel Continue Touch Continue after a menu item or value on a screen is selected and more changes need to be made for a job from the original screen.
Page 126: Features
7510-XXX Button Button name Function or description Done Allows specifying that a job is finished. For example, when scanning an original document, one could indicate that the last page is scanned, and then printing the job would begin. Done Back Touch the Back button to return to the previous screen, and no settings are saved on the screen where it was touched.
Page 127: To Enter The Diagnostic Menu
7510-XXX To enter the diagnostic menu: 1. Turn off the printer. 2. Press and hold the 3 and 6 buttons simultaneously. 3. Turn on the printer. 4. Release the buttons after 10 seconds. Error code table Error code or Error contents Description/Action message 200.00...
Page 128 7510-XXX Error code or Error contents Description/Action message 231.01 Sensor (registration) late jam The media is late reaching the sensor (registration) (duplex media feed) within the specified time after reaching the sensor Paper jam (duplex wait). Go to “231.01 Sensor (registration) late jam (duplex media feed)”...
Page 129 7510-XXX Error code or Error contents Description/Action message 250.00 Sensor (registration) late jam The media is late reaching the sensor (registration) (feeding from the MPF) within the specified time after the MPF pick solenoid Paper jam is turned on. Go to “250.00 Sensor (registration) late jam (feeding from the MPF)”...
Page 130 7510-XXX Error code or Error contents Description/Action message 284.03 Sensor (lower media exit) lag The media reached the sensor (lower media exit) but did not clear it within the specified time. Paper jam Refer to the Finisher Service Manual. 284.05 Sensor (lower media exit) Media remains on the sensor (lower media exit).
Page 131 7510-XXX Error code or Error contents Description/Action message 289.04 Sensor (booklet media exit) The media is late reaching the sensor (booklet late jam media exit) within the specified time after the Paper jam booklet folding solenoid is turned on. Refer to the Finisher Service Manual. 289.05 Sensor (booklet media exit) The media reached the sensor (booklet media exit)
Page 132 7510-XXX Error code or Error contents Description/Action message 290.15 Sensor (ADF registration) lag The media reached the sensor (registration) but did jam (inverting) not clear it within the specified time. Scanner jam Go to “290.15 Sensor (ADF registration) lag jam (inverting)”...
Page 133 7510-XXX Error code or Error contents Description/Action message 294.00 Sensor (ADF inverter) static Media remains on the sensor (ADF inverter). Scanner jam Go to “294.00 Sensor (ADF inverter) static jam” on page 2-93. 294.01 Sensor (ADF pre-registration) The media is late reaching the sensor (ADF pre- late jam (side 2) registration) within the specified time after the ADF Scanner jam...
Page 134 7510-XXX Error code or Error contents Description/Action message <Color> toner cartridge The <Color> toner cartridge is defective or not detection error installed. Missing or defective Go to “<Color> toner cartridge detection error” <color> on page 2-184. cartridge Incorrect black toner cartridge A black toner cartridge of an incorrect specification error.
Page 135 7510-XXX Error code or Error contents Description/Action message 100K maintenance required Service is required to maintain printer performance. Scheduled Go to “100K maintenance required” on maintenance page 2-174. 100K kit 600K maintenance required Service is required to maintain printer performance. Scheduled Go to “600K maintenance required”...
Page 136 7510-XXX Error code or Error contents Description/Action message 842.04 Scanner communication Controller detected a communication error. Invalid errors the above components message command Service the above component scanner failure Go to “842.04 Scanner communication error” on page 2-109. 842.10 Scanner unit assembly - ADF Communication error occurred between the scanner communication error controller card assembly and the ADF controller...
Page 137 7510-XXX Error code or Error contents Description/Action message 843.20 Scanner unit assembly There is an open circuit in the scanner interface connection error cable assembly between the scanner controller card Service assembly and the RIP card assembly. scanner failure Go to “843.20 Scanner unit assembly connection error”...
Page 138 7510-XXX Error code or Error contents Description/Action message 845.02 CCD initialization (lamp off) The CCD does not make a correct output when light error is absent. Service scanner failure Go to “845.02 CCD initialization (lamp off) error” on page 2-123. 846.00 Scanner communication error Controller detected errors.
Page 139 7510-XXX Error code or Error contents Description/Action message K PC cartridge exhausted The black PC cartridge requires replacing. Replace black Go to “K PC cartridge exhausted” on page 2-182. PC unit CMY PC cartridges All color PC cartridges require replacing. exhausted Replace color Go to...
Page 140 7510-XXX Error code or Error contents Description/Action message 904.00 Sensor (transfer belt HP) late The sensor (transfer belt HP) does not detect the error transfer belt home position in the specified time or Service the transfer belt is damaged or torn in half. transfer belt The transfer belt cleaning assembly is missing.
Page 141 7510-XXX Error code or Error contents Description/Action message 905.02 Marking device Xerographic Internal processing error occurred in printer engine. error Service engine Go to “905.02 Marking device Xerographics error error” on page 2-139. 905.03 Marking device other1 error Internal processing error occurred in printer engine. Service engine Go to “905.03 Marking device other1 error”...
Page 142 7510-XXX Error code or Error contents Description/Action message 911.02 Fuser cooling fan lock error When the Fuser cooling fan was operating, fan lock was detected for more than 30 seconds. Service engine error Go to “911.02 Fuser cooling fan lock error” on page 2-144.
Page 143 7510-XXX Error code or Error contents Description/Action message 924.00 Yellow toner RFID Communication error with the Y sensor (RFID toner communication error cartridge) has occurred. Service engine error Go to “924.00 Yellow toner RFID communication error” on page 2-150. 924.01 Magenta toner RFID Communication error with the M sensor (RFID toner communication error...
Page 144 7510-XXX Error code or Error contents Description/Action message 941.00 Switch (media size) size The tray 1 switch (media size) detected an invalid sensing error (tray 1) size setting. Service tray 1 failure Go to “941.00 Switch (media size) size sensing error (tray 1)”...
Page 145 7510-XXX Error code or Error contents Description/Action message 980.02 Communication error A communication error has occurred with the RIP between printer and RIP card card assembly and the upper printer engine card Service device assembly assembly and the. comm Go to “980.02 Communication error between printer and RIP card assembly”...
Page 146 7510-XXX Error code or Error contents Description/Action message 985.00 Sensor (punch carriage shift The sensing are of the sensor (punch carriage shift HP) late error HP) is not interrupted within the specified time after Service finisher the punch carriage starts moving to the home error position.
Page 147 7510-XXX Error code or Error contents Description/Action message 991.00 Sensor (booklet front tamper The sensing area of the sensor (booklet front HP) late error tamper HP) is not interrupted within the specified Service finisher time after the front booklet tamper starts moving to error the home position.
Page 148 7510-XXX Error code or Error contents Description/Action message 991.11 Booklet stapler error The booklet stapler unit has failed. Service finisher Refer to the Finisher Service Manual. error 991.12 Communication error with A communication error has occurred with the booklet controller card booklet controller card assembly and the finisher Service finisher assembly...
Page 149 7510-XXX Error code or Error contents Description/Action message Empty hole Punch waste box full. The punch waste box is full. punch box Refer to the Finisher Service Manual. Insert hole Punch waste box missing. No punch waste box. punch box Refer to the Finisher Service Manual.
Page 150: Service Checks
7510-XXX Service checks 200.00 Sensor (registration) late jam Step Check Check the media position. Remove the Go to step 2. media. Does the media touch the sensor (registration)? Check the registration/transport roll assembly. Go to step 3. Clean or replace the registration / Is the above component free of excess wear and transport roll...
Page 151: Sensor (Registration) Lag Jam
7510-XXX Step Check Check the Replace the K developer/transport drive motor Go to step 9. Go to step 8. assembly for proper operation. Caution: When performing motor tests, ensure that all cover and door interlock switches are overridden. 1. Enter the Diagnostics Menu. 2.
Page 152 7510-XXX Step Check Check the sensor (registration) for proper operation. Go to step 6. Go to step 5. 1. Enter the Diagnostics Menu. 2. Touch BASE SENSOR TEST. 3. Touch Media Path. 4. Touch Registration. Does the display on the operator panel, change every time the sensing area of the above sensor is interrupted or blocked? Check the sensor (registration) for proper connection.
Page 153: Sensor Static Jam
7510-XXX Step Check Check the Replace the K developer/transport drive motor Go to step 12. Go to step 11. assembly for proper operation. Caution: When performing motor tests, ensure that all cover and door interlock switches are overridden. 1. Enter the Diagnostics Menu. 2.
Page 154: Sensor (Media On Belt) Late Jam
7510-XXX Step Check POR the machine. Replace the lower Problem solved. printer engine card Does the error continue? assembly. Go to “Lower printer engine card assembly removal” on page 4-77. 200.03 Sensor (media on belt) late jam Step Check Check the media condition. Replace the Go to step 2.
Page 155: Sensor (Fuser Exit) Late Jam
7510-XXX 201.00 Sensor (fuser exit) late jam Step Check Check the media position. Remove the Go to step 2. media. Does the media touch the sensor (fuser exit)? Check the fuser exit actuator. Replace the Go to step 3. sensor (fuser exit) Does the fuser exit actuator attached to the sensor (fuser exit) appear to be binding or sticking in its normal resting Go to...
Page 156 7510-XXX Step Check Check the duplex diverter gate solenoid for proper Replace the Replace the connection. duplex media connection. inverter assembly. Is the above component properly connected? Go to “Duplex media inverter assembly removal” on page 4-9. Check the registration clutch for proper operation. Go to step 10.
Page 157: Sensor (Fuser Exit) Lag Jam
7510-XXX Step Check Perform a print test. Replace the lower Problem solved. printer engine card Does the error continue? assembly. Go to “Lower printer engine card assembly removal” on page 4-77. 202.00 Sensor (fuser exit) lag jam Step Check Check the media position. Remove the Go to step 2.
Page 158: Sensor (Duplex Wait) Late Jam (Duplex Media Feed)
7510-XXX Step Check Check the Replace the K developer/transport drive motor Go to step 8. Go to step 7. assembly for proper operation. Caution: When performing motor tests, ensure that all cover and door interlock switches are overridden. 1. Enter the Diagnostics Menu. 2.
Page 159 7510-XXX Step Check Check the sensor (duplex wait) for proper connection. Replace the sensor Replace the (duplex wait). connection. Is the above component properly connected? Go to “Sensor (duplex wait) removal” on page 4-11. Check the duplex diverter gate solenoid for proper Go to step 7.
Page 160: Sensor (Registration) Late Jam (Duplex Feed)
7510-XXX Step Check Check the duplex media inverter clutch for proper Go to step 11. Go to step 10. operation. Caution: When performing motor tests, ensure that all cover and door interlock switches are overridden. 1. Enter the Diagnostics Menu. 2.
Page 161 7510-XXX Step Check Check the sensor (registration) for proper operation. Go to step 5. Go to step 4. 1. Enter the Diagnostics Menu. 2. Touch BASE SENSOR TESTS. 3. Touch Media Path. 4. Touch Registration. Does the display on the operator panel, change every time the sensing area of the above sensor is interrupted or blocked? Check the sensor (registration) for proper connection.
Page 162: Sensor (Registration) Late Jam (Duplex Media Feed)
7510-XXX Step Check Check the duplex media inverter clutch for proper Go to step 11. Go to step 10. operation. Caution: When performing motor tests, ensure that all cover and door interlock switches are overridden. 1. Enter the Diagnostics Menu. 2.
Page 163 7510-XXX Step Check Check the sensor (registration) for proper operation. Go to step 5. Go to step 4. 1. Enter the Diagnostics Menu. 2. Touch BASE SENSOR TESTS. 3. Touch Media Path. 4. Touch Registration. Does the display on the operator panel, change every time the sensing area of the above sensor is interrupted or blocked? Check the sensor (registration) for proper connection.
Page 164: Sensor (Tray 1 Feed-Out) Late Jam
7510-XXX Step Check Check the duplex media inverter clutch for proper Go to step 11. Go to step 10. operation. Caution: When performing motor tests, ensure that all cover and door interlock switches are overridden. 1. Enter the Diagnostics Menu. 2.
Page 165 7510-XXX Step Check Check the feed roll, separation roll, and pick roll for media Go to step 4. Clean or replace tray 1. the feed roll, separating roll, or Are the above components free of excess wear and pick roll. contamination? Go to “Feed roll...
Page 166: Sensor (Tray 2 Feed-Out) Late Jam
7510-XXX 242.00 Sensor (tray 2 feed-out) late jam Step Check Check the media condition. Replace the Go to step 2. damaged media Is the media in the tray crumpled or damaged? with new. Check the media size setup. Go to step 3. Replace the media, or change Does the media size, in use, match the size set for tray 2?
Page 167: Sensor (Tray 1 Feed-Out) Late Jam (Feeding From Tray 2)
7510-XXX Step Check Perform a print test. Replace the lower Problem solved. printer engine card Does the error continue? assembly. Go to “Lower printer engine card assembly removal” on page 4-77. 242.01 Sensor (tray 1 feed-out) late jam (feeding from tray 2) Step Check Check the media condition.
Page 168: Sensor (Tray 3 Feed-Out) Late Jam
7510-XXX Step Check Check the MPF/transport drive motor for proper operation. Go to step 9. Skip to step 8. Caution: When performing motor tests, ensure that all cover and door interlock switches are overridden. 1. Enter the Diagnostics Menu. 2. Touch MOTOR TESTS. 3.
Page 169 7510-XXX Step Check Check the sensor (tray 3 feed-out) for proper operation. Go to step 7. Go to step 6. 1. Enter the Diagnostics Menu. 2. Touch INPUT TRAY TESTS. 3. Touch Sensor test. 4. Touch Tray 3. 5. Touch Feed-out. Does the display on the operator panel, change every time the sensing area of the above sensor is interrupted or blocked?
Page 170: Sensor (Tray 2 Feed-Out) Late Jam (Feeding From Tray 3)
7510-XXX Step Check Perform a print test. Replace the lower Problem solved. printer engine card Does the error continue? assembly. Go to “Lower printer engine card assembly removal” on page 4-77. 243.01 Sensor (tray 2 feed-out) late jam (feeding from tray 3) Step Check Check the media condition.
Page 171 7510-XXX Step Check Check the tray module drive motor for proper operation. Go to step 9. Skip to step 8. Caution: When performing motor tests, ensure that all cover and door interlock switches are overridden. 1. Enter the Diagnostics Menu. 2.
Page 172: Sensor (Tray 4 Feed-Out) Late Jam
7510-XXX 244.00 Sensor (tray 4 feed-out) late jam Step Check Check the media condition. Replace the Go to step 2. damaged media with Is the media in the tray crumpled or damaged? new. Check the media size setup. Go to step 3. Replace the media, or change the media Does the media size, in use, match the size set for...
Page 173 7510-XXX Step Check Check the TTM tray 4 transport motor for proper Go to step 9. Skip to step 8. operation. Caution: When performing motor tests, ensure that all cover and door interlock switches are overridden. 1. Enter the Diagnostics Menu. 2.
Page 174: Sensor (Tray 3 Feed-Out) On Jam (Feeding From Tray 4)
7510-XXX 244.01 Sensor (tray 3 feed-out) on jam (feeding from tray 4) Step Check Check the media condition. Replace the Go to step 2. damaged media with Is the media in the tray crumpled or damaged? new. Check the media position. Remove the media.
Page 175: Sensor (Registration) Late Jam (Feeding From The Mpf)
7510-XXX Step Check Check the tray module drive motor for proper Replace the tray Replace the module drive motor . connection. connection. Is the above component properly connected? Go to “2000-sheet dual input (TTM)– tray module drive motor assembly removal” on page 4-200 “2000-sheet dual input (TTM)–tray...
Page 176 7510-XXX Step Check Check the pick feed rolls. Go to step 5. Clean or replace the pick rolls. Are the pick rolls free of excess wear and contamination? Go to “Pick roll removal” on page 4-104. Check the sensor (registration) for proper operation. Go to step 7.
Page 177: Switch (Sheet Through) Static Jam
7510-XXX Step Check Check the MPF/transport drive motor for proper connection. Replace the MPF/ Replace the transport drive connection. Is the above component properly connected? motor . Go to “MPF / transport drive motor assembly removal” on page 4-102. Perform a print test. Replace the lower Problem solved.
Page 178: Sensor (Sheet Through) Late Jam
7510-XXX 290.01 Sensor (sheet through) late jam Step Check Check the original document condition. Go to step 2. Remove damaged original Is the original document free of paper clips and staples as document and well as damage such as creases, tears, holes or excessive replace with a wear? new undamaged...
Page 179 7510-XXX Step Check Check the ADF feed drive motor assembly for proper Go to step 8. Go to step 7. operation. Caution: When performing motor tests, ensure that all cover and door interlock switches are overridden. 1. Enter the Diagnostics Menu. 2.
Page 180: Sensor (Adf Pre-Registration) Late Jam (Side 1)
7510-XXX 290.02 Sensor (ADF pre-registration) late jam (side 1) Step Check Check the original document condition. Go to step 2. Remove damaged original document Is the original document free of paper clips and staples as and replace with a well as damage such as creases, tears, holes or excessive new undamaged wear? original document.
Page 181: Sensor (Adf Pre-Registration) Lag Jam
7510-XXX Step Check Check the ADF feed drive motor assembly for proper Go to step 8. Go to step 7. operation. Caution: When performing motor tests, ensure that all cover and door interlock switches are overridden. 1. Enter the Diagnostics Menu. 2.
Page 182 7510-XXX Step Check Check the ADF rolls for wear. Go to step 3. Clean or replace the ADF feed/pick Is the ADF feed/pick roll assembly or the ADF separation roll roll assembly or guide assembly free of excess wear? the ADF separation roll guide assembly.
Page 183 7510-XXX Step Check Check the ADF feed drive motor assembly for proper Go to step 10. Go to step 9. operation. Caution: When performing motor tests, ensure that all cover and door interlock switches are overridden. 1. Enter the Diagnostics Menu. 2.
Page 184: Sensor (Adf Pre-Registration) Static Jam
7510-XXX Step Check Place an undamaged document in the ADF, and perform a Replace the RIP Problem solved. ADF test. card assembly. Does the error remain? Go to “RIP card assembly removal” on page 4-71. 290.10 Sensor (ADF pre-registration) static jam Step Check Check the media path.
Page 185: Sensor (Adf Registration) Late Jam (Side 1)
7510-XXX 290.11 Sensor (ADF registration) late jam (side 1) Step Check Check the original document condition. Go to step 2. Remove damaged original document Is the original document free of paper clips and staples as and replace with a well as damage such as creases, tears, holes or excessive new undamaged wear? original document.
Page 186: Sensor (Adf Registration) Late Jam (Side 2)
7510-XXX Step Check Check the ADF feed drive motor assembly for proper Replace the Go to step 7. operation. ADF feed drive motor assembly. Caution: When performing motor tests, ensure that all cover and door interlock switches are Go to “ADF overridden.
Page 187 7510-XXX Step Check Check the ADF rolls for wear. Go to step 3. Clean or replace the ADF feed/pick Is the ADF feed/pick roll assembly or the ADF separation roll roll assembly or guide assembly free of excess wear? the ADF separation roll guide assembly.
Page 188 7510-XXX Step Check Check the ADF feed drive motor assembly for proper Replace the Replace the connection. ADF feed drive connection. motor assembly. Is the above component properly connected? Go to “ADF feed drive motor assembly removal” on page 4-131. Check the inverter solenoid assembly for proper operation.
Page 189: Sensor (Adf Registration) Lag Jam
7510-XXX 290.13 Sensor (ADF registration) lag jam Step Check Check the original document condition. Go to step 2. Remove damaged original document Is the original document free of paper clips and staples as and replace with a well as damage such as creases, tears, holes or excessive new undamaged wear? original document.
Page 190 7510-XXX Step Check Check the media path for contaminates. Go to step 5. Remove all contaminates from Is the media path free of excess media dust and foreign the media path. objects such as paper clips and staples? Check the sensor (ADF registration) for proper operation. Go to step 7.
Page 191: Sensor (Adf Inverter) Late Jam (Inverting)
7510-XXX 290.14 Sensor (ADF inverter) late jam (Inverting) Step Check Check the original document condition. Go to step 2. Remove damaged original document Is the original document free of paper clips and staples as and replace with a well as damage such as creases, tears, holes or excessive new undamaged wear? original document.
Page 192 7510-XXX Step Check Check the ADF registration motor for proper operation. Go to step 8. Go to step 7. Caution: When performing motor tests, ensure that all cover and door interlock switches are overridden. 1. Enter the Diagnostics Menu. 2. Touch MOTOR TESTS. 3.
Page 193: Sensor (Adf Registration) Lag Jam (Inverting)
7510-XXX 290.15 Sensor (ADF registration) lag jam (inverting) Step Check Check the original document condition. Go to step 2. Remove damaged Is the original document free of paper clips and staples as original well as damage such as creases, tears, holes or document and excessive wear? replace with a...
Page 194 7510-XXX Step Check Check the sensor (ADF pre registration) for proper Go to step 8. Go to step 7. operation. 1. Enter the Diagnostics Menu. 2. Touch SCANNER TESTS. 3. Touch Sensor Tests. 4. Touch ADF pre registration. Does the display on the operator panel, change every time the sensing area of the above sensor is interrupted or blocked? Check the sensor (ADF pre-registration) for proper...
Page 195 7510-XXX Step Check Check the inverter solenoid assembly for proper Go to step 12. Go to step 11. operation. Caution: When performing motor tests, ensure that all cover and door interlock switches are overridden. 1. Enter the Diagnostics Menu. 2. Touch MOTOR TESTS. 3.
Page 196: Sensor (Adf Width Aps1), Sensor (Adf Width Aps 2) And Sensor (Adf Width Aps 3) Static
7510-XXX Step Check Place an undamaged document in the ADF, and perform Replace the Problem solved. a ADF test. RIP card assembly. Does the error remain? Go to “RIP card assembly removal” on page 4-71. 290.20 Sensor (ADF width APS1), sensor (ADF width APS 2) and sensor (ADF width APS 3) static jam Step Check...
Page 197: Sensor (Adf Width Aps 1) Static Jam
7510-XXX Step Check Check the sensor (ADF width APS 3) for proper operation. Go to step 9. Go to step 8. 1. Enter the Diagnostics Menu. 2. Touch SCANNER TESTS. 3. Touch Sensor Tests. 4. Touch ADF width APS 3. Does the display on the operator panel, change every time the sensing area of the above sensor is interrupted or blocked?
Page 198: Sensor (Adf Width Aps 2) Static Jam
7510-XXX Step Check Check the sensor (ADF width APS 1) for proper connection. Replace the Replace the sensor (ADF connection. Is the above component properly connected? width APS 1). Go to “Sensor (ADF width APS 1) removal” on page 4-143. Place an undamaged document in the ADF, and perform a Replace the ADF Problem solved.
Page 199: Sensor (Adf Width Aps 3) Static Jam
7510-XXX Step Check Place an undamaged document in the ADF, and perform a Replace the RIP Problem solved. ADF test. card assembly. Does the error remain? Go to “RIP card assembly removal” on page 4-71. 290.23 Sensor (ADF width APS 3) static jam Step Check Check the media path.
Page 200: Sensor (Adf Registration) Static Jam
7510-XXX 291.00 Sensor (ADF registration) static jam Step Check Check the media path. Go to step 2. Remove any media or media Is the media path free of media or media fragments? fragments. Check the sensor (ADF registration) for proper operation. Go to step 4.
Page 201 7510-XXX Step Check Check the ADF rolls for wear. Go to step 3. Clean or replace the ADF feed/pick Is the ADF feed/pick roll assembly or the ADF separation roll assembly or roll guide assembly free of excess wear? the ADF separation roll guide assembly.
Page 202: Sensor (Adf Inverter) Late Jam 2
7510-XXX Step Check Place an undamaged document in the ADF, and perform a Replace the ADF Problem solved. ADF test. controller card assembly. Does the error remain? Go to “ADF controller card assembly removal” on page 4-135. Go to step 9. Place an undamaged document in the ADF, and perform a Replace the RIP Problem solved.
Page 203 7510-XXX Step Check Check the sensor (ADF inverter) for proper connection. Replace the Replace the sensor (ADF connection. Is the above component properly connected? inverter). Go to “Sensor (ADF inverter) removal” on page 4-148. Check the inverter gate condition. Go to step 7. Replace the inverter gate.
Page 204: Sensor (Adf Inverter) Lag Jam
7510-XXX 291.03 Sensor (ADF inverter) lag jam Step Check Check the original document condition. Go to step 2. Remove damaged original document Is the original document free of paper clips and staples as and replace with a well as damage such as creases, tears, holes or excessive new undamaged wear? original document.
Page 205 7510-XXX Step Check Check the sensor (ADF registration) for proper connection. Replace the Replace the sensor (ADF connection. Is the above component properly connected? registration). Go to “Sensor (ADF inverter) removal” on page 4-148. Check the inverter gate condition. Go to step 9. Replace the inverter gate.
Page 206: Adf Raised Jam
7510-XXX Step Check Place an undamaged document in the ADF, and perform a Replace the ADF Problem solved. ADF test. controller card assembly. Does the error remain? Go to “ADF controller card assembly removal” on page 4-135. Go to step 14. Place an undamaged document in the ADF, and perform a Replace the RIP Problem solved.
Page 207: Sensor (Adf Inverter) Static Jam
7510-XXX Step Check Check the sensor (document set) for proper operation. Go to step 4. Go to step 3. 1. Enter the Diagnostics Menu. 2. Touch SCANNER TESTS. 3. Touch Sensor Tests. 4. Touch Document set. Does the display on the operator panel, change every time the sensing area of the above sensor is interrupted or blocked? Check the sensor (document set) for proper connection.
Page 208: Sensor (Adf Pre-Registration) Late Jam (Side 2)
7510-XXX Step Check Check the sensor (ADF inverter) for proper connection. Replace the Replace the sensor (ADF connection. Is the above component properly connected? inverter). Go to “Sensor (ADF inverter) removal” on page 4-148. Place an undamaged document in the ADF, and perform a ADF Replace the Problem solved.
Page 209 7510-XXX Step Check Check the inverter gate condition. Go to step 5. Replace the inverter gate. Is the inverter gate free of damage and warpage, and does it move smoothly? Go to “Inverter gate removal” on page 4-149. Check the sensor (ADF pre registration) for proper Go to step 7.
Page 210: Sensor (Adf Pre-Registration) Lag Jam (Inverting)
7510-XXX Step Check Check the inverter solenoid assembly for proper operation. Go to step 11. Go to step 10. Caution: When performing motor tests, ensure that all cover and door interlock switches are overridden. 1. Enter the Diagnostics Menu. 2. Touch MOTOR TESTS. 3.
Page 211 7510-XXX Step Check Check the ADF rolls for wear. Go to step 3. Clean or replace the ADF feed/pick Is the ADF feed/pick roll assembly or the ADF separation roll roll assembly or the guide assembly free of excess wear? ADF separation roll guide assembly.
Page 212 7510-XXX Step Check Check the ADF feed drive motor assembly for proper Go to step 10. Go to step 9. operation. Caution: When performing motor tests, ensure that all cover and door interlock switches are overridden. 1. Enter the Diagnostics Menu. 2.
Page 213: Size Mismatch Jam (Mix-Size)
7510-XXX Step Check Check the ADF registration motor for proper operation. Go to step 14. Go to step 13. Caution: When performing motor tests, ensure that all cover and door interlock switches are overridden. 1. Enter the Diagnostics Menu. 2. Touch MOTOR TESTS. 3.
Page 214 7510-XXX Step Check Check the sensor (ADF width APS 1) for proper operation. Go to step 2. Go to step 3. 1. Enter the Diagnostics Menu. 2. Touch SCANNER TESTS. 3. Touch Sensor Tests. 4. Touch ADF width APS 1. Does the display on the operator panel, change every time the sensing area of the above sensor is interrupted or blocked?
Page 215: Size Mismatch Jam (No Mix-Size)
7510-XXX Step Check Place an undamaged document in the ADF, and perform a Replace the ADF Problem solved. ADF test. controller card assembly. Does the error remain? Go to “ADF controller card assembly removal” on page 4-135. Go to step 9. Place an undamaged document in the ADF, and perform a Replace the RIP Problem solved.
Page 216: Invalid Combine Size Jam
7510-XXX 295.02 Invalid combine size jam Step Check Check the document size. Go to step 2. Insert the proper size document into Is the correct size document being inserted into the ADF? the ADF. Check the document tray media guide position. Go to step 3.
Page 217: Too Short Size Jam
7510-XXX Step Check Check the sensor (ADF width APS 3) for proper operation. Go to step 10. Go to step 9. 1. Enter the Diagnostics Menu. 2. Touch SCANNER TESTS. 3. Touch Sensor Tests. 4. Touch ADF width APS 3. Does the display on the operator panel, change every time the sensing area of the above sensor is interrupted or blocked?
Page 218: Too Long Size Jam
7510-XXX Step Check Check the sensor (sheet through) for proper connection. Replace the Replace the sensor (sheet connection. Is the above component properly connected? through). Go to “Sensor (sheet through) removal” on page 4-155. Check the sensor (ADF pre registration) for proper Go to step 6.
Page 219 7510-XXX Step Check Check the sensor (sheet through) for proper operation. Go to step 4. Go to step 3. 1. Enter the Diagnostics Menu. 2. Touch SCANNER TESTS. 3. Touch Sensor Tests. 4. Touch Sheet through. Does the display on the operator panel, change every time the sensing area of the above sensor is interrupted or blocked? Check the sensor (sheet through) for proper connection.
Page 220: Mixed Size Not Supported
7510-XXX 295.05 Mixed size not supported Step Check Check the mixed sizes setting. Perform a POR Select mixed and refeed sizes setting. Is the above setting properly selected for mixed sizes? originals. 298.01 Scanner cable missing or unplugged Step Check Check the scanner main power connection.
Page 221: Scanner Communication Error
7510-XXX Step Check Perform a POR. Replace the RIP Problem solved. card assembly. Does the error remain when the power is turned off/on again? Go to “RIP card assembly removal” on page 4-71. Step Check Perform a POR. Go to step 2. Perform several print tests.
Page 222: Scanner Communication Error
7510-XXX 842.01 Scanner communication error Step Check Check the scanner interface cable assembly connection Go to step 2. Replace the between the RIP card assembly and the scanner unit connection. assembly. Is the scanner interface cable assembly connected properly? Check all connections of the scanner controller card assembly. Go to step 3.
Page 223: Scanner Communication Error
7510-XXX Step Check Perform a POR. Replace the RIP Problem solved. card assembly. Does the error remain when the power is turned off/on again? Go to “RIP card assembly removal” on page 4-71. 842.03 Scanner communication error Step Check Check the scanner interface cable assembly connection Go to step 2.
Page 224: Scanner Unit Assembly - Adf Communication Error
7510-XXX Step Check Perform a POR. Replace the Problem solved. scanner Does the error remain when the power is turned off/on? controller card assembly. Go to “Scanner controller card assembly removal” on page 4-120. Go to step 4. Perform a POR. Replace the RIP Problem solved.
Page 225: Scanner Unit Assembly Communication Error
7510-XXX Step Check Check all connections of the ADF controller card assembly. Go to step 3. Replace all connections. Are the connections of the ADF controller card assembly connected properly? Perform a POR. Replace the Problem solved. ADF controller Does the error remain when the power is turned off/on? card assembly.
Page 226: Sensor (Scanner Hp) Error
7510-XXX 843.00 Sensor (scanner HP) error Step Check Check the scanner carriage rails. Clean and Go to step 2. lubricate the Is there any foreign substance on the scanner rails? scanner carriage rails. Check the sensor (scanner HP) for operation. Go to step 4.
Page 227: Scanner Carriage Over Run Error
7510-XXX 843.01 Scanner carriage over run error Step Check Check the connections of the scanner controller card Go to step 2. Connect each assembly. connector of the scanner Are the connectors of the scanner controller card assembly controller card connected properly? assembly properly.
Page 228: Adf Pick Roll Position Lift Up Error
7510-XXX Step Check Perform a POR. Replace the Problem solved. ADF controller Does the error remain when the power is turned off/on? card assembly. Go to “ADF controller card assembly removal” on page 4-135. 843.12 ADF pick roll position lift up error Step Check Check the feed/pick roll assembly.
Page 229: Scanner Unit Assembly Connection Error
7510-XXX Step Check Check the pick roll position motor assembly for connection. Replace the Replace the pick roll position connection. Is the above component properly connected? motor assembly. Go to “Pick roll position motor assembly removal” on page 4-141. Place an undamaged document in the ADF, and perform a Replace the Go to step 7.
Page 230: Scanner Unit Assembly Eeprom Sub System Error
7510-XXX Step Check Perform a POR. Replace the Problem solved. ADF controller Does the error remain when the power is turned off/on? card assembly. Go to “ADF controller card assembly removal” on page 4-135. 843.22 Scanner unit assembly EEPROM sub system error Step Check Check the connection of each scanner controller card...
Page 231: Image Processing Error
7510-XXX Step Check Check the scanner cooling fan for connection. Replace the Replace the scanner cooling connection. Is the above fan connected properly? fan. Go to “Scanner PS cooling fan removal” on page 4-124. Perform a POR. Replace the Problem solved. scanner Does the error remain when the power is turned off/on? controller card...
Page 232: Scanner Controller Card Assembly Error 2
7510-XXX Step Check Perform a POR. Replace the Problem solved. scanner Does the error remain when the power is turned off/on? controller card assembly. Go to “Scanner controller card assembly removal” on page 4-120. Perform a POR. Replace the Problem solved. CCD card /lens Does the error remain when the power is turned off/on? assembly.
Page 233: Exposure Lamp Error
7510-XXX 844.00 Exposure lamp error Step Check Check the exposure lamp for operation. Go to step 6. Go to step 3. Caution: When performing motor tests, ensure that all cover and door interlock switches are overridden. Perform the exposure lamp test. 1.
Page 234: White Reference/Exposure Lamp Illumination Error
7510-XXX 844.01 White reference/exposure lamp illumination error Step Check Check the large platen glass. Go to step 2. Remove and clean the large Is the large platen glass installed properly? platen glass. Go to “Large platen glass removal” on page 4-114.
Page 235: Ccd Error
7510-XXX Step Check Check the scanner PS card assembly for connection. Replace the Replace the scanner PS card connection. Is the above card connected properly? assembly. Go to “Scanner PS card assembly removal” on page 4-123. Perform a POR. Replace the Problem solved.
Page 236: Ccd Initialization (Lamp On) Error
7510-XXX 845.01 CCD initialization (lamp on) error Step Check Check the exposure lamp for operation. Go to step 6. Go to step 3. Caution: When performing motor tests, ensure that all cover and door interlock switches are overridden. 1. Enter the Diagnostics Menu. 2.
Page 237: Ccd Initialization (Lamp Off) Error
7510-XXX 845.02 CCD initialization (lamp off) error Step Check Check the connection of the scanner controller card Go to step 2. Connect each assembly. connector of the scanner Are the connectors of the scanner controller card assembly controller card connected properly? assembly properly.
Page 238: Scanner Communication Error
7510-XXX 846.01 Scanner communication error Step Check Check the scanner interface cable assembly connection Go to step 2. Replace the between the RIP card assembly and the scanner unit connection. assembly. Is the scanner interface cable assembly connected properly? Check all connections of the scanner controller card assembly. Go to step 3.
Page 239: Scanner Unit Assembly Software Logic Error
7510-XXX Step Check Check the sensor (ADF width APS 2) for proper connection. Replace the Replace the sensor (ADF connection. Is the above component properly connected? width APS 2). Go to “Sensor (ADF width APS 2) removal” on page 4-144. Check the sensor (ADF width APS 3) for proper operation.
Page 240: Switch (Platen Interlock) Open
7510-XXX 846.13 Switch (platen interlock) open Step Check Check the ADF for opening and closing. Go to step 2. Inspect and adjust the ADF Does the ADF lay completely flush on the scanner unit when left hinge and it is in its closed position? right hinge as required.
Page 241: Fax Storage Error
7510-XXX Step Check Check the fax interface card assembly (modem) connection. Replace the fax Replace the interface card connection. Is the fax interface card assembly (modem) connected assembly properly? (modem) and properly set configuration ID. Go to “Fax interface card (modem) assembly removal”...
Page 242: Fax/Modem Configuration Id Mismatch
7510-XXX 848.00 Fax/modem configuration ID mismatch Step Check Check the fax interface card assembly (modem) connection. Replace the fax Replace the interface card connection. Is the fax interface card assembly (modem) connected assembly properly? (modem) and properly set configuration ID. Go to “Fax interface card...
Page 243: K Developer/Transport Drive Assembly Motor Error
7510-XXX Step Check Turn the printer off for 60 seconds. Replace the RIP Problem solved. card assembly. Does the error occur when the power is turned off/on again? Go to “RIP card assembly removal” on page 4-71. Go to step 3. 901.XX RIP card assembly software error Step Check...
Page 244: K Pc Drive Motor Error
7510-XXX Step Check Check the K developer/transport drive motor assembly for Go to step 4. Go to step 3. proper operation. Caution: When performing motor tests, ensure that all cover and door interlock switches are overridden. 1. Enter the Diagnostics Menu. 2.
Page 245: Cmy Pc Drive Motor Error
7510-XXX Step Check Check the CMYK PC cartridge drive motor assembly for Go to step 4. Go to step 3. proper operation. Caution: When performing motor tests, ensure that all cover and door interlock switches are overridden. 1. Enter the Diagnostics Menu. 2.
Page 246: Developer Drive Motor Error
7510-XXX Step Check Check the CMYK PC cartridge drive motor assembly for Replace the Replace the proper connection. CMYK PC connection. cartridge drive Is the above component properly connected? motor assembly. Go to “CMYK PC cartridge drive motor assembly removal” on page 4-88.
Page 247: Sensor (Transfer Belt Hp) Late Error
7510-XXX Step Check Perform a POR. Replace the lower Problem solved. printer engine card Does the error occur when the power is turned off/on? assembly. Go to “Lower printer engine card assembly removal” on page 4-77. 904.00 Sensor (transfer belt HP) late error Step Check Reset the transfer belt HP failure lock out condition.
Page 248: Sensor (Transfer Belt Edge) Failure
7510-XXX Step Check Check the transfer belt steering motor assembly for proper Go to step 6. Go to step 5. operation. Caution: When performing motor tests, ensure that all cover and door interlock switches are overridden. 1. Enter the Diagnostics Menu. 2.
Page 249: Sensor (2Nd Transfer Roll Retract Hp) Late Error
7510-XXX Step Check Check the transfer belt steering motor for proper Replace the Replace the connection. transfer belt connection. steering motor. Is the above component properly connected. Go to “Transfer belt steering motor removal” on page 4-62. Perform a POR. Replace the lower Problem solved.
Page 250: Sensor (2Nd Transfer Roll Retract Hp) Lag Error
7510-XXX Step Check Check the 2nd transfer roll retract motor for proper Replace the 2nd Replace the transfer roll retract connection. connection. motor assembly . Is the above component properly connected? Go to “2nd transfer roll retract motor assembly removal” on page 4-35.
Page 251: Sensor (Cmy Transfer Roll Retract Hp) Late Error
7510-XXX Step Check Caution: Check the 2nd transfer roll retract Go to step 6. Skip to step 5. motor for proper operation. When performing motor tests, ensure that all cover and door interlock switches are overridden. 1. Enter the Diagnostics Menu. 2.
Page 252: Sensor (Cmy Transfer Roll Retract Hp) Lag Error
7510-XXX 904.06 Sensor (CMY transfer roll retract HP) lag error Step Check Check the transfer belt unit assembly. To to step 2 Properly reinstall the transfer belt Is the above component properly installed? unit assembly. Perform a POR. Go to step 3. Perform several print tests.
Page 253: Marking Device Video Error
7510-XXX Step Check Turn the printer off for 60 seconds. Replace the Problem solved. printer engine card Does the error occur when the power is turned off/on again? assembly. Go to “Upper printer engine card assembly removal” on page 4-74. Go to step 3.
Page 254: Marking Device Other1 Error
7510-XXX 905.03 Marking device other1 error Step Check Perform a POR. Replace the upper Problem solved. printer engine card Does the error occur when the power is turned off/on? assembly. Go to “Upper printer engine card assembly removal” on page 4-74.
Page 255: Sos Internal Error
7510-XXX Step Check Perform a POR. Replace the RIP Problem solved. card assembly. Does the error occur when the power is turned off/on? Go to “RIP card assembly removal” on page 4-71. 907.01 SOS internal error Step Check Perform a POR. Go to step 2.
Page 256: Sos Internal Error
7510-XXX 907.03 SOS internal error Step Check Perform a POR. Go to step 2. Perform several print tests. Does the error occur when the power is turned off/on? If the problem remains, go to step 2. Turn the printer off for 60 seconds. Go to step 3.
Page 257: Waste Toner Full Error
7510-XXX Step Check Perform a POR. Replace the RIP Problem solved. card assembly. Does the error occur when the power is turned off/on? Go to “RIP card assembly removal” on page 4-71. 908.00 Waste toner full error Step Check Reinstall the waste toner cartridge. Replace the waste Problem solved.
Page 258: Transfer Belt Drive Motor Cooling Fan Error
7510-XXX Step Check Perform a POR. Replace the lower Problem solved. printer engine card Does the error occur when the power is turned off/on? assembly. Go to “Lower printer engine card assembly removal” on page 4-77. 911.01 Transfer belt drive motor cooling fan error Step Check Perform a POR.
Page 259: Standard Media Exit Shift Error
7510-XXX Step Check Check the fuser cooling fan for proper operation. Go to step 4. Go to step 3. Caution: When performing motor tests, ensure that all cover and door interlock switches are overridden. 1. Enter the Diagnostics Menu. 2. Touch MOTOR TESTS. 3.
Page 260: Front Thermistor Disconnection Error
7510-XXX Step Check Reset the fuser overheat failure lock out condition. Remove the Go to step 3. media. Check the fuser unit assembly for a media jam. Is there a media jam in the fuser unit assembly? Check the fuser unit assembly for proper installation. Go to step 4.
Page 261: Fuser Sub Lamp Overheat Error
7510-XXX 920.02 Fuser sub lamp overheat error Step Check Reset the fuser overheat failure lock out condition. Go to step 2. Go to step 5. 1. Enter the Diagnostics Menu. 2. Touch Fuser temp fail clear. 3. Touch Fuser temp fail clear. Perform a POR.
Page 262: Main Lamp Warm Up Error
7510-XXX Step Check Perform a POR. Replace the fuser Problem solved. unit assembly. Does the error occur when the power is turned off/on? Go to “Fuser unit assembly removal” on page 4-15. 920.04 Main lamp warm up error Step Check Check for proper voltage fuser.
Page 263: Sub Lamp Warm-Up Failure
7510-XXX Step Check Check the fuser unit assembly for proper connection. Go to step 4. Repair the connection. Is the above component properly connected. Perform a print test. Replace the fuser Problem solved. unit assembly. Does the error continue? Go to “Fuser unit assembly removal”...
Page 264: Sub Lamp On-Time Error
7510-XXX 920.07 Sub lamp on-time error Step Check Check the fuser unit assembly for a media jam. Remove the Go to step 2. media. Is there a media jam in the fuser unit assembly? Check the fuser unit assembly for proper installation. Go to step 3.
Page 265: Magenta Toner Rfid Communication Error
7510-XXX 924.01 Magenta toner RFID communication error Step Check Check the M toner cartridge. Go to step 2. Reinstall the M toner cartridge. Is the M toner cartridge properly installed? Check the sensor (M toner RFID) for proper connection. Replace the Replace the CMYK toner add connection.
Page 266: Sensor (Y Atc) Error
7510-XXX Step Check Check the sensor (Y toner RFID) for proper connection. Replace the Replace the CMYK toner add connection. Is the above component properly connected? motor assembly. Go to “CMYK toner add motor assembly removal” on page 4-90. Perform a POR. Replace the upper Problem solved.
Page 267: Sensor (M Atc) Error
7510-XXX 925.01 Sensor (M ATC) error Step Check Reset the M ATC failure lock out condition. Go to step 2. Problem solved. 1. Enter diagnostic mode 2. Touch Dev unit reset. 2. Touch M channel Perform a very large print test. Does the error remain? Check the sensor (M ATC) for proper connection.
Page 268: Sensor (K Atc) Error
7510-XXX 925.03 Sensor (K ATC) error Step Check Reset the K ATC failure lock out condition. Go to step 2. Problem solved. 1. Enter diagnostic mode 2. Touch Dev unit reset. 2. Touch K channel Perform a very large print test. Does the error continue? Check the sensor (K ATC) for proper connection.
Page 269: Switch (Media Size) Size Sensing Error (Tray 1)
7510-XXX 941.00 Switch (media size) size sensing error (tray 1) Step Check Check the media. Go to step 2. Load media properly. Is media loaded in tray 1properly? Check the media tray. Replace the media Go to step 3. tray assembly. Are the size sensing mechanisms on the back and the bottom of the media tray damaged.
Page 270: Switch (Media Size) Size Sensing Error (Tray 2)
7510-XXX Step Check Check the sensor (media level) (tray 1) for proper Replace the Replace the connection. sensor (media connection. level). Is the above component properly connected? Go to “Sensor (media level) removal” on page 4-24. Check the media feed/lift motor (tray 1) for proper Go to step 6.
Page 271: Sensor (Media Level) Late Error (Tray 2)
7510-XXX Step Check Check the tray 2 switch (media size) for proper operation. Go to step 5. Go to step 4. 1. Enter the Diagnostics Menu. 2. Touch INPUT TRAY TESTS. 3. Touch Sensor Test. 4. Touch Tray 2. 5. Touch Tray 2 present. Does the display on the operator panel, change every time the media tray is opened and closed? Check the tray 2 switch (media size) for proper connection.
Page 272: Switch (Media Size) Size Sensing Error (Tray 3)
7510-XXX Step Check Check the media feed/lift motor (tray 2) for proper Go to step 6. Go to step 5. operation. Caution: When performing motor tests, ensure that all cover and door interlock switches are overridden. 1. Enter the Diagnostics Menu. 2.
Page 273: Sensor (Media Level) Late Error (Tray 3)
7510-XXX Step Check 3TM equipped machines check the tray 3 switch (media Replace the switch Replace the size) for proper connection. (media size) for connection. 3TM. TTM equipped machines check the tray 3 Switch (TTM media size for proper connection. Go to “3X 500- sheet drawer...
Page 274: Switch (Media Size) Size Sensing Error (Tray 4)
7510-XXX Step Check Check the media feed/lift motor (tray 3) for proper Go to step 6. Go to step 5. operation. Caution: When performing motor tests, ensure that all cover and door interlock switches are overridden. 1. Enter the Diagnostics Menu. 2.
Page 275: Sensor (Media Level) Late Error (Tray 4)
7510-XXX Step Check 3TM equipped machines check the tray 4 switch (media Replace the switch Replace the size) for proper connection. (media size) for connection. 3TM. TTM equipped machines check the tray 4 Switch (TTM media size for proper connection. Go to “3X 500- sheet drawer...
Page 276: Communication Error With 1Tm, 3Tm, Or Ttm Assembly
7510-XXX Step Check Check the media feed/lift motor (tray 4) for proper Go to step 6. Go to step 5. operation. Caution: When performing motor tests, ensure that all cover and door interlock switches are overridden. 1. Enter the Diagnostics Menu. 2.
Page 277: Hvps Controller Communication Error
7510-XXX Step Check Perform a POR. Replace the 1TM, Problem solved. 3TM or the TTM Does the error continue when the power is turned off/ TTM controller card assembly. Go to “1X 500- sheet drawer (1TM)–1TM controller card assembly removal” on page 4-249, “3X...
Page 278: Communication Error Between Printer And Rip Card Assembly
7510-XXX 980.02 Communication error between printer and RIP card assembly Step Check Check the RIP card assembly and the printer engine card Go to step 2. Replace the assembly for proper connection. connection. Is the above component properly connected? Perform a POR. Replace the RIP Problem solved.
Page 279: 1Tm, 3Tm Or Ttm Left Door Assembly Open
7510-XXX 1TM, 3TM or TTM left door assembly open Step Check Check the 1TM, 3TM or TTM left door for proper Go to step 2. Replace the 1TM, operation. 3TM or TTM left door assembly. Is the above component open and close properly? Go to “1X 500- sheet drawer...
Page 280: Duplex Left Door Assembly Open
7510-XXX Step Check Perform a POR. Replace the upper Problem solved. printer engine card Does the error continue when the power is turned off/ assembly. Go to “Upper printer engine card assembly removal” on page 4-74. Duplex left door assembly open Step Check Check the duplex left door for proper operation.
Page 281: Media Size Mismatch In Width
7510-XXX Media size mismatch in width Step Check Check the media. Go to step 2. Load media properly. Is media properly loaded in the tray? Check the media. Go to step 3. Set the guides properly. Is the rear media tray guide, and media tray end guide of tray 1 or tray 2 set correctly? Check the switch (media size) for proper installation.
Page 282: No Media In The Selected Media Tray
7510-XXX Step Check Check the switch (TTM media size) for proper Replace the Replace the connection. appropriate switch connection. (TTM media size). Check tray 3 and tray 4. Go to “2000-sheet Are the above sensors connected properly? dual input (TTM)– switch (TTM media size) removal”...
Page 283 7510-XXX Step Check Check the sensor (media out) for operation. Go to step 4. Go to step 3. 1. Enter the Diagnostics Menu. 2. Touch INPUT TRAY TESTS. 3. Touch Sensor test. 4. Touch Tray 1. 5. Touch Media out. 1.
Page 284: Paper Is Installed (Short Edge) In The Media Paper Tray
7510-XXX Paper is installed (short edge) in the media paper tray Step Check Is the media installed (short edge) orientation in the media Turn media 90 Go to step 2. tray assembly as opposed to long edge? degrees or enable short edge feeding which is found in the config menu...
Page 285: Printer Front Door Assembly Open
7510-XXX Printer front door assembly open Step Check Check the printer front door for proper operation. Go to step 2. Replace the printer front door Does the above component open and close properly? assembly. Go to “Printer front door assembly removal”...
Page 286: Printer Left Door Open
7510-XXX Printer left door open Step Check Check the printer left door closed actuator located on the Go to step 2. Replace the rear of the printer left door assembly for damage. printer left door closed actuator Is the above component, as shown in the graphic below, (40X0498).
Page 287: Transfer Belt Access Door Open
7510-XXX Transfer belt access door open Step Check Check the transfer belt access door for proper operation. Go to step 2. Replace the printer right cover Does the above component open and close properly? assembly. Go to “Printer left door damper removal”...
Page 288: Maintenance Required
7510-XXX Step Check Check the switch (printer left lower door interlock) for Go to step 4. Go to step 3. operation. 1. Enter the Diagnostics Menu. 2. Touch BASE SENSOR TEST. 3. Touch Cover and Door. 4. Touch Door B left/lower. Does the display on the operator panel change every time the actuator on the above switch is operated? Check the switch (printer left lower door interlock)
Page 289: Adf Maintenance Required
7510-XXX ADF maintenance required Step Check Install the ADF maintenance kit. Reset the ADF Problem solved. maintenance Does the message still occur? counter. Go to “Scheduled maintenance” on page 6-3. Standard media bin full Step Check Check the actuator for movement. Go to step 2.
Page 290: Adf Left Cover Assembly Is Open
7510-XXX Step Check Perform a POR. Replace the Problem solved. scanner Does the error remain when the power is turned off/on? controller card assembly. Go to “Scanner controller card assembly removal” on page 4-120. Go to step 4. Perform a POR. Replace the RIP Problem solved.
Page 291: Toner Cartridge Error
7510-XXX Toner cartridge error Step Check Check the toner cartridge installation. Go to step 2. Install the correct toner cartridge Is the correct toner cartridge properly installed? properly. Checking the sensor (RFID toner cartridge) for proper Go to step 3. Install the sensor installation.
Page 292: Waste Toner Cartridge Full
7510-XXX Waste toner cartridge full Step Check Check the waste toner cartridge. Go to step 2. Reinstall the waste toner cartridge. Is the above component properly installed? Check the sensor (waste toner cartridge full) for proper Go to step 5. Go to step 3.
Page 293: Waste Toner Cartridge Nearly Full
7510-XXX Step Check Perform a POR. Replace the upper Problem solved. printer engine card Does the error remain when the power is turned off/on assembly. again? Go to “Upper printer engine card assembly removal” on page 4-74. Waste toner cartridge nearly full Step Check Check the waste toner cartridge.
Page 294: Color> Pc Cartridge Not Detected
7510-XXX <Color> PC cartridge not detected Step Check Check the appropriate PC cartridge. Go to step 2. Reinstall the appropriate PC Is the above component properly installed? cartridge. Go to “PC cartridge unit removal” on page 4-44. Replace the appropriate PC cartridge. Go to step 3.
Page 295: Cmy Pc Cartridges Exhausted
7510-XXX Step Check Replace the CMY PC cartridges. Go to step 3. Problem solved. Does the error remain? Perform a POR. Replace the upper Problem solved. printer engine card Does the error remain when the power is turned off/on assembly. again? Go to “Upper...
Page 296: K Pc Cartridge Exhausted
7510-XXX K PC cartridge exhausted Step Check Check the K PC cartridge. Go to step 2. Reinstall the K PC cartridge. Is the above component properly installed? Go to “PC cartridge unit removal” on page 4-44. Replace the K PC cartridge. Go to step 3.
Page 297: Color> Toner Cartridge Empty
7510-XXX Step Check Check the appropriate segment of the CMYK toner add Go to step 7. Go to step 6. motor assembly for operation. Caution: When performing motor tests, ensure that all cover and door interlock switches are overridden. Warning: Only perform this test in segments of three seconds or less or toner spill will occur.
Page 298: Color> Toner Cartridge Detection Error
7510-XXX Step Check Check the appropriate segment of the CMYK toner add Go to step 7. Go to step 6. motor assembly for operation. Caution: When performing motor tests, ensure that all cover and door interlock switches are overridden. Warning: Only perform this test in segments of three seconds or less or toner spill will occur.
Page 299: Incorrect Black Toner Cartridge Error
7510-XXX Step Check Perform a POR. Replace the upper Problem solved. printer engine card Does the error remain when the power is turned off/on? assembly. Go to “Upper printer engine card assembly removal” on page 4-74. Perform a POR. Replace the RIP Problem solved.
Page 300: Tray 2 Media Size Mismatch Error
7510-XXX Step Check Check the switch (media size) for proper connection. Replace the switch Replace the (media size) connection. Is the above component properly connected? Perform a POR. Replace the upper Problem solved. printer engine card Does the error remain when the power is turned off/on? assembly.
Page 301: Tray 3 Media Size Mismatch Error
7510-XXX Tray 3 media size mismatch error Step Check Check the media tray assembly 3 side guide. Go to step 2. Properly set the media tray Is the above component set properly? assembly side guide. Check the media tray assembly 3 end guide. Go to step 3.
Page 302: Tray 1 Media Type Mismatch Error
7510-XXX Step Check Perform a POR. Replace the upper Problem solved. printer engine card Does the error remain when the power is turned off/on? assembly. Go to “Upper printer engine card assembly removal” on page 4-74. Perform a POR. Replace the RIP Problem solved.
Page 303: Tray 2 Media Type Mismatch Error
7510-XXX Step Check Perform a POR. Replace the RIP Problem solved. card assembly. Does the error remain when the power is turned off/on again? Go to “RIP card assembly removal” on page 4-71. Tray 2 media type mismatch error Step Check Check the media tray assembly 2 for the correct media Go to step 2.
Page 304: Tray 3 Media Type Mismatch Error
7510-XXX Tray 3 media type mismatch error Step Check Check the media tray assembly 3 for the correct media Go to step 2. Install the correct type. media. Does the above tray contain the correct type of media? Check the media tray assembly 3 for the transparencies. Ensure that the Go to step 3.
Page 305 7510-XXX Step Check Check the media tray assembly 4 for the transparencies. Ensure that the Go to step 3. media tray Does the media tray 1 assembly contain transparencies? assembly is supposed to be configured for transparencies or replace them with standard media.
Page 306: Image Quality Trouble
7510-XXX Image quality trouble Printer Related Troubleshooting Note: First, get a printout as a base, and follow the symptom table to identify the possible failing FRU’s. Image quality symptoms • Faint print (low contrast)– “Faint print (Low contrast)” on page 2-193.
Page 307: Image Quality
7510-XXX Image Quality Faint print (Low contrast) Leading edge Trailing edge Before starting, check the media route for foreign objects, such as staples, clips, and scraps, in the media path. Step Check Check the media condition. Problem solved. Go to step 2. Load new, dry, recommended media, and perform a print test.
Page 308 7510-XXX Step Check Check the toner add motor assembly. Go to step 7. Problem solved. Replace the toner add motor assembly. Go to “CMYK toner add motor assembly removal” on page 4-90. Does the error continue. Check the developer/transfer roll HVPS card assembly. Go to step 8.
Page 309: Blank Print (No Print)
7510-XXX Blank print (no print) Check the media path for foreign objects such as staples, clips, scraps of media. Step Check Check the four toner cartridges. Problem solved. Replace any empty toner Re-print the defective image. cartridges. Is the image density normal? Check the 2nd transfer roll assembly for contamination Go to step 3.
Page 310 7510-XXX Step Check Check the printhead assembly installation. Go to step 8. Problem solved. Install the printhead assembly properly, and perform a print test. Does the problem remain? Check the printhead assembly for connection. Go to step 9. Replace the connection.
Page 311: Solid Black
7510-XXX Solid black Check the media path for foreign objects such as staples, clips, scraps of media. Step Check Check the four PC cartridges for proper installation. Go to step 2. Correct and clean Check the PC cartridge connections. contaminated pins, or replace Are the PC cartridge connections free of excess wear the appropriate...
Page 312: Vertical Lines And Bands (Process Direction)
7510-XXX Vertical lines and bands (process direction) Leading edge Trailing edge Step Check Check the media condition. Go to step 2. Problem solved. Load new, dry, recommended media. Re-print the defective image. Does the error continue? Is the media transfer route and the media path clear of Go to step 3.
Page 313 7510-XXX Step Check Check the upper printer engine card assembly. Go to step 9. Problem solved. Replace the upper printer engine card assembly. Go to “Upper printer engine card assembly removal” on page 4-74. Perform a print test. Does the problem remain? Check the printhead assembly for connection.
Page 314: Horizontal White Stripes Or Bands (Side To Side Direction)
7510-XXX Horizontal white stripes or bands (side to side direction) Leading edge Trailing edge Step Check Check the media condition. Go to step 2. Problem solved. Load new, dry, and recommended media. Re-print the defective image. Does the error continue? Are the media transfer route and the media path free of Go to step 3.
Page 315 7510-XXX Step Check Check the printhead assembly. Go to step 9. Problem solved. Replace the printhead assembly. Go to “Printhead assembly removal” on page 4-92. Does the error continue? Check the upper printer engine card assembly. Replace the RIP problem solved. card assembly.
Page 316: Vertical Stripes (Process Direction)
7510-XXX Vertical stripes (process direction) Leading edge Trailing edge Step Check Check the media condition. Go to step 2. Problem solved. Load new, dry, recommended media. Re-print the defective image. Does the error continue? Are the media transfer route and the media path free of Go to step 3.
Page 317 7510-XXX Step Check Check the upper printer engine card assembly. Problem solved. Replace the RIP card assembly. Replace the upper printer engine card assembly. Go to “RIP card Go to “Upper printer engine card assembly removal” assembly on page 4-74. removal”...
Page 318: Horizontal Stripes (Side To Side Direction)
7510-XXX Horizontal stripes (side to side direction) Leading edge Trailing edge Step Check Check the media condition. Go to step 2. Problem solved. Load new, dry, recommended media. Re-print the defective image. Does the error continue? Check the media transfer route. Go to step 3.
Page 319 7510-XXX Step Check Check the developer/transfer roll HVPS card assembly. Go to step 8. Problem solved. Replace the developer/transfer roll HVPS card assembly. Go to “Developer / transfer roll HVPS card assembly removal” on page 4-100. Perform a print test. Does the problem remain? Check the upper printer engine card assembly.
Page 320: Partial Lack
7510-XXX Partial lack Leading edge Trailing edge Step Check Check the media condition. Go to step 2. Problem solved. Load new, dry, recommended media. Re-print the defective image. Does the problem remain? Check the four toner cartridges. Problem solved. Replace any empty toner Re-print the defective image.
Page 321 7510-XXX Step Check Check the printhead assembly. Go to step 9. Problem solved. Replace the printhead assembly. Go to “Printhead assembly removal” on page 4-92. Does the error continue? Check the upper printer engine card assembly. Problem solved. Replace the RIP card assembly.
Page 322: Spots
7510-XXX Spots Leading edge Trailing edge Step Check Check the media condition. Go to step 2. Problem solved. Load new, dry, recommended media. Re-print the defective image. Does the error continue? Check the media transfer route. Go to step 3. Remove debris Is the media route free of contamination or debris? contamination.
Page 323: After Image
7510-XXX Step Check Check the printhead assembly. Go to step 8. Problem solved. Replace the printhead assembly. Go to “Printhead assembly removal” on page 4-92. Does the error continue? Check the upper printer engine card assembly. Replace the RIP Problem solved. card assembly.
Page 324 7510-XXX Step Check Check the upper printer engine card assembly. Replace the RIP Problem solved. card assembly. Replace the upper printer engine card assembly. Go to “RIP card Go to “Upper printer engine card assembly removal” assembly on page 4-74. removal”...
Page 325: Background (Fog)
7510-XXX Background (fog) Leading edge Trailing edge Step Check Check the media condition. Go to step 2. Problem solved. Load new, dry, recommended media. Re-print the defective image. Does the error continue? Check the media transfer route. Go to step 3. Remove debris Is the media path free of contamination or debris.
Page 326 7510-XXX Step Check Check the printhead assembly. Go to step 8. Problem solved. Replace the printhead assembly. Go to “Printhead assembly removal” on page 4-92. Does the error continue? Check the upper printer engine card assembly. Replace the RIP Problem solved. card assembly.
Page 327: Skew
7510-XXX Skew Leading edge Trailing edge The printed image is not paralleled with both sides of the media. Step Check Check printer installation placement. Go to step 2. Correct the installation Check the installation surface for irregularities. placement. Check for damaged printer caster. Is the setup surface normal? Properly load media into the media tray assembly and Go to step 3.
Page 328 7510-XXX Step Check Check the registration/transport roll assembly. Go to step 7. Replace registration/ Are all drive rolls on the registration/transport roll transport roll assembly free of contamination, wear and damage? assembly. Go to “Registration / transport roll assembly removal” on page 4-36.
Page 329: Media Damage
7510-XXX Media damage Leading edge Trailing edge Step Check Check printer installation placement. Go to step 2. Correct the installation Check the installation surface for irregularities. placement. Check for missing printer foot. Is the setup surface normal? Check the media feed. Go to step 3.
Page 330 7510-XXX Step Check Check the heat roll and pressure roll. Replace the Inspect the fuser unit machine for Remove the fuser unit assembly. assembly. obstructions in the media path. CAUTION: Allow the fuser unit assembly to Go to “Fuser unit assembly cool down.
Page 331: No Fuse
7510-XXX No fuse Leading edge Trailing edge Step Check Check the fuser unit assembly installation. Go to step 2. Problem solved. Check that the levers, on both sides of the fuser unit assembly, are pushed down. Re-print the defective image. Does the error continue? Check the media condition.
Page 332: Color Misregistration
7510-XXX Color misregistration Step Check Replace the transfer belt unit assembly. Go to Go to step 2. Problem solved. “Transfer belt unit assembly removal” on page 4-16. Does the error remain? Replace the transfer belt steering motor. Go to Go to step 3. Problem solved.
Page 333: Deletions
7510-XXX Deletions Step Check Check the media condition. Go to step 2. Problem solved. Load new, dry, recommended media. Re-print the defective image. Does the problem remain? Replace the transfer belt unit assembly. Go to Go to step 3. Problem solved. “Transfer belt unit assembly removal”...
Page 334: Hightfrequency Bands
7510-XXX Hightfrequency bands Step Check Check the four PC cartridges for proper installation. Go to step 2. Correct and clean Check the PC cartridge connections. contaminated pins, or replace Are the PC cartridge connections free of excess wear the appropriate and contamination? PC cartridge or connector.
Page 335: Adf & Scanner Related Troubleshooting
7510-XXX ADF & Scanner Related Troubleshooting Note: First, get a printout as a base, and follow the symptom table to identify the possible failing FRU’s. Image quality symptoms: • Dark print – “Faint print (Low contrast)” on page 2-193. • Vertical stripes–...
Page 336: Adf & Scanner Image Quality
7510-XXX ADF & Scanner Image Quality Dark image quality (using ADF or Scanner) Leading edge Leading edge Trailing edge Trailing edge Before starting, check the media route for foreign objects, such as staples, clips, and scraps, in the media path. Step Check Check the large and small platen glass on the scanner...
Page 337: Vertical Lines (Process Direction Using The Adf)
7510-XXX Vertical lines (process direction using the ADF) Leading edge Leading edge Trailing edge Trailing edge Step Check Check the small platen glass on the scanner unit Clean or replace Go to step 2. assembly. the small platen glass. Is the large and small platen glass contaminated or damaged? Go to “Large...
Page 338: Spots (Using Flatbed Scanner)
7510-XXX Spots (using flatbed scanner) Leading edge Leading edge Trailing edge Trailing edge Step Check Check the large platen glass on the scanner unit Clean or replace Go to step 2. assembly. the large platen glass. Is the large platen glass contaminated or damaged? Go to “Large platen glass...
Page 339: Skew (Using Adf)
7510-XXX Skew (using ADF) Leading edge Trailing edge The printed image is not paralleled with both sides of the media. Step Check Check printer installation placement. Go to step 2. Correct the installation Check the installation surface for irregularities. placement. Check for damaged printer caster.
Page 340: Media Damage (Using Adf)
7510-XXX Media damage (using ADF) Leading edge Trailing edge Step Check Properly load document into the ADF unit assembly and Go to step 2. Problem solved. ensure all guides are set correctly. Re-print the defective image. Does the error continue? Check for obstructions in the area of the media feed Go to step 3.
Page 341 7510-XXX Select a menu or menu item for more details. Supplies Menu Job Menu Serial Menu PCL Emul Menu Color Menu <color> Toner Cancel Job PCL SmartSwitch Font Source Color Adjust Oiler Reset Printer PS SmartSwitch Font Name Color Balance Waste Bottle Print Buffer NPA Mode...
Page 342 7510-XXX 2-228 MFP Service Manual...
Page 343: Diagnostic Aids
7510-XXX 3. Diagnostic aids This chapter explains the tests and procedures to identify printer failures and to verify that repairs have corrected the problem. Accessing service menus Access the following menus to identify problems with the printer and run diagnostic tests. Diagnostics Menu 1.
Page 344: Diagnostics Menus
7510-XXX Diagnostics Menus Entering Diagnostics Menus 1. Turn off the printer. 2. Press and hold the 3 and 6 buttons simultaneously. 3. Turn on the printer. 4. Release the buttons after 10 seconds. Available tests Tests appear on the LCD in the order shown: MOTOR TESTS “MOTOR TESTS”...
Page 345 7510-XXX Bridge unit bin media exit solenoid Printer Motor Tests Transfer belt steering motor CMY PC cartridge drive motor K PC cartridge drive motor Printhead polygon mirror motor Registration clutch Tray 1 media feed/lift motor Tray 2 media feed/lift motor Tray 3 media feed/lift motor Tray 4 media feed/lift motor 2nd transfer roll retract motor...
Page 346 7510-XXX “PRINT TESTS” on page 3-6. PRINT TESTS Tray 1 Tray 2 Tray 3 Tray 4 MP Feeder Printing Quality Test Pages “Print Quality Test Pages” on page 3-7. HARDWARE TESTS Panel Test “Panel Test” on page 3-8. Button Test “Button Test”...
Page 347 7510-XXX Model Name “Model Name” on page 3-19. Configuration ID “Configuration ID” on page 3-19. EVENT LOG Display Log “Display the Event Log” on page 3-21. Print Log “Print the Event Log” on page 3-22. Clear Log “Clear the Event Log” on page 3-22.
Page 348: Motor Tests
7510-XXX MOTOR TESTS The tests in this group allow you to test specific motors, and on some motors run them forward or reverse. To run the MOTOR TESTS: 1. Touch MOTOR TESTS from the Diagnostics Menu. 2. Touch the test to run. The following Finisher Motor Tests are available: •...
Page 349: Input Source Print Test
7510-XXX To run the Print Tests: 1. Touch PRINT TESTS from the Diagnostics Menu. 2. Touch [Input Source] to verify that the printer can generate output from that source’s media. 3. Touch Printing Quality Test Pages to view information about the printer’s current settings and to test the printer’s ability to generate quality output.
Page 350: Hardware Tests
7510-XXX HARDWARE TESTS Touch the following Hardware Tests from this menu: • Panel Test • Button Test • DRAM Test • CACHE Test Panel Test This test automatically toggles all pixels on the LCD through every contrast level beginning with the darkest to the brightest.
Page 351: Dram Test
7510-XXX DRAM Test The DRAM Test is used to check the validity of both the printer’s standard and optional DRAM. The test involves writing patterns of data to DRAM to verify that each bit in memory can be set and read correctly. To run the DRAM Test: 1.
Page 352: Sensor Test (Duplex)
7510-XXX Make sure either letter or A4 size paper is loaded in the default paper source. If the default source only supports envelopes, then the Quick Test will be printed from Tray 1. To run the Quick Test: 1. Touch DUPLEX TESTS from the Diagnostics Menu. 2.
Page 353: Sensor Test (Input Tray)
7510-XXX • Single–Feeds one sheet of media from the selected source. • Continuous–Media continues feeding from the selected input source until Stop is pressed. Sensor Test (input tray) This test is used to verify that a specific input tray’s sensors are working correctly. To run the Input Tray Sensor Test: 1.
Page 354: Feed To All Bins
7510-XXX • Continuous–Media continues feeding from the selected source until Stop is pressed. Press Stop to return to the [Selected Output Bin]. While this test runs, [Selected Output Bin] Feeding...appears on the LCD. During Single tests, no buttons are active. However, during Continuous tests, you can press Stop to cancel the test.
Page 355: Hole Punch Test
7510-XXX Hole Punch Test This test is used to verify that media can be fed to a finisher output bin and then hole punched. No information is printed on the feed test pages. To run the Hole Punch Test: 1. Touch FINISHER TESTS from the Diagnostics Menu. 2.
Page 356 7510-XXX Available Bin Level Sensors Sensor Name Finisher upper media bin full Stacker bin level1 Stacker bin level2 Stacker bin upper limit Stacker bin no media Stacker bin level encod Available Media Path 1 Sensors Sensor Name Bridge unit media entrance Bridge unit media exit Finisher media entrance Bridge unit media bin exit...
Page 357: Base Sensor Test
7510-XXX Booklet unit interlock Booklet front low staple Booklet rear low staple Available Punch and Staple Sensors Sensor Name Punch side reg1 Punch side reg2 Punch box set Low staple Punch carriage shift hp Punch unit hp Stapler carriage shift hp Punch cam front Punch hole select After selecting one of the available sensors, you can manually toggle the sensor between its two values (Open...
Page 358: Device Tests
7510-XXX Devices Sensors Sensor Name C PC cartridge present M PC cartridge present Y PC cartridge present K PC cartridge present Waste toner full Exit Level Sensor Sensor Name Standard bin full Media Path Sensors Sensor Name Registration Fuser exit Transparency detect 2nd transfer roll retract Transfer Belt Sensors...
Page 359: Power Off
7510-XXX Quick Disk Test Testing... appears on the LCD. This test cannot be canceled. After the test finishes, either Quick Disk Test Passed or Quick Disk Test Failed appears on the LCD. This message remains until you touch Back. Disk Test/Clean This test performs a low-level format of the hard disk.
Page 360: Printer Setup
7510-XXX PRINTER SETUP To enter the PRINTER SETUP screen, touch PRINTER SETUP from the Diagnostics Menu. The following graphic appears on the LCD: PRINTER SETUP U.S. Defaults Printed Page Count Perm Page Count Serial Number NV26T470 Medium Envelope Entrance Engine Setting 1 Back Submit Defaults...
Page 361: Printed Mono Page Count
7510-XXX Printed Mono Page Count The value of this setting enables you to gauge the amount of usage on a device. The Printed Page Count cannot be reset by the servicer. Permanent Page Count The value of this setting indicates the total number of pages that have been printed by the printer. The Permanent Page Count cannot be reset.
Page 362: Event Log
7510-XXX The Configuration ID setting allows you to set both Configuration IDs simultaneously. To set one or both Configuration IDs: 1. From the PRINTER SETUP menu, touch the icon to the right of the Configuration ID menu item. The screen displays the value of both Configuration IDs. By default, the cursor appears on the Configuration ID 1 line.
Page 363: Display The Event Log
7510-XXX • Maintenance Count Resets • NV Resets and various types of JFFS@ partition formats Touch EVENT LOG from the Diagnostics Menu, and the following options are displayed: Display Log Print Log Clear Log Display the Event Log Note: The displayed version of the Event Log shows only a subset of the information contained in the Diagnostics version of the printed Event Log.
Page 364: Print The Event Log
7510-XXX Print the Event Log Each page of the printed Event Log report has the title Event Log at the top of each page followed by the model name and serial number. The following is a sample of a printed Event Log: Model and Serial number XXX-XXXX...
Page 365: Scanner Tests
7510-XXX SCANNER TESTS ASIC Test This operation performs a diagnostic test on the scanner ASIC that cycles through all of the scanner ASIC's memory. To perform the ASIC Test: 1. Touch SCANNER TESTS from the Diagnostics Menu. 2. Touch ASIC Test. During this test, ASIC Test Running...
Page 366: Scanner Manual Registration
7510-XXX Scanner Manual Registration Note: All scanner and ADF manual registration alignment verifications must be done in standard user mode, not in configuration or diagnostic mode. Note: You should verify the printer registration alignment before conducting the manual scanner registration process.
Page 367: Trans Belt Hp Fail Clear
7510-XXX Trans Belt HP Fail Clear To perform the Trans Belt Fail Clear Test: 1. Touch Trans Belt Fail Clear from the Diagnostics Menu. 2. Touch Trans Belt HP Fail Clear. Trans Belt HP Fail Clear Testing..appears on the LCD. Press Stop to return to Trans Blet PH Fail Clear.
Page 368: Engine Adjust
7510-XXX ENGINE ADJUST To begin PH Adjust (media tray registration), the test page must be printed. To print the test page the printer must be in standard mode. 1. Select Menus. 2. Select Reports. 3. Select Network Setup Page The following report prints. Using a fine incremental ruler, measure from the black line border to the edge of the media.
Page 369 7510-XXX Adj Lead Reg ALL (appears on LCD) Registration values appear on the LCD. If required, reset the values (Adj lead reg all trays) and Select to submit the changes. Adj Lead Reg Tr165 (appears on LCD) Registration values appear on the LCD.
Page 370 7510-XXX PRO-CON (ATC sensor setup and adjust) This procedure is used to adjust the following: Sensor (C ATC) Sensor (M ATC) Sensor (Y ATC) Sensor (K ATC) Select PRO-CON and select: Then Select: Appears on the LCD ATC Sensor Adjust values Sen Grad SNR-Y Registration values appear on the LCD.
Page 371: Booklet Fold Adjust
7510-XXX Press Stop to return to ENGINE ADJUST. Booklet Fold Adjust To perform the Booklet Fold Adjust Test: 1. Select Booklet Fold Adjust from the Diagnostics Menu. The following tests appear on the LCD Select the following: Appears on the LCD: Booklet Tamper Shift Adjust Booklet Staple Fold Fine Adjust values appear on the LCD.
Page 372: Testing The Manual Scanner Registration
7510-XXX Testing the manual scanner registration Note: Machine must be in Standard User Mode. To properly position the Network Setup Page which will be used as the ADF test original page on the flatbed scanner and the ADF side 1 and ADF side 2, follow the graphic below: Warning: Ensure that the Network Setup Page is properly positioned according to the diagrams, or registration and margins cannot be properly adjusted.
Page 373: Analyzing The Manual Scanner Registration Copies
7510-XXX Analyzing the manual scanner registration copies 1. To analyze the manual scanner registration of the flatbed, ADF side 1, and ADF side 2, hold the test copy according to the diagram below. 2. Compare the three copies to the Network Setup Page for image placement. Ideally, the image should be centered on the page by measuring the page edge to the black border with a ruler.
Page 374 7510-XXX 4. Make required adjustments, and touch Submit. Note: All reference to Side Registration in the graphic below refers to the left side edge. 5. Turn the machine off and then back on in order to make a copy. 6. Using the registration test original page, make a copy using the flatbed scanner and the ADF side 1 and ADF side 2 to verify adjustments for accuracy.
Page 375: Scanner Manual Registration Factory Defaults
7510-XXX Decreasing the registration value moves the text toward the lead edge of the page and narrows the lead margin; increasing the registration value moves the text away from the lead edge of the page and widens the lead margin. The entire image moves up or down on the page; therefore, no compression or expansion of the image occurs to preserve the lead margin.
Page 376: Exiting Diagnostics Menu
7510-XXX Exiting Diagnostics Menu From the Diagnostics Menu, touch Back until a graphic appears with Exit Diag Menu in the lower right corner. Touch Exit Diag Menu to perform a POR, and the following graphic appears on the LCD: Copy E-Mail Menus Ready.
Page 377: Configuration Menu
7510-XXX Configuration Menu Entering Configuration Menu 1. Turn off the printer. 2. Press and hold the 2 and 6 buttons simultaneously. 3. Turn on the printer. 4. Release the buttons after 10 seconds. Available menus Maintenance Counter Value “Maintenance Counter Value” on page 3-37.
Page 378 7510-XXX Exiting Configuration Menu “Exiting Configuration Menu” on page 3-50. 3-36 MFP Service Manual...
Page 379: Maintenance Counter Value
7510-XXX Maintenance Counter Value This setting enables you to view the current maintenance count value of each maintenance kit. After selecting this item, you can choose a specific kit in order to view its current maintenance count value. To return to the Configuration Menu, press Back.
Page 380: Usb Scan To Local
7510-XXX USB Scan to Local To change this setting: 1. Touch USB Scan to Local from the Configuration Menu. [setting's current value] appears on the touch-screen. 2. Touch to scroll through the setting's possible values. 3. Touch Back to cancel and return to the Configuration Menu. 4.
Page 381: Size Sensing
7510-XXX SIZE SENSING This setting controls whether the printer automatically registers the size of paper installed in an input source equipped with size sensing hardware. Size sensing Input source Length Width ✓ Multipurpose feeder (integrated MPF) ✓ ✓ Tray 1 (integrated 500-sheet drawer) ✓...
Page 382: A5/Statement
7510-XXX A5/Statement Due to engine limitations, Trays 1 through 4 cannot simultaneously sense A5- and statement-size paper. The value of this setting determines which of the two paper sizes these trays will sense automatically. This setting will apply to all automatic trays, but not to the MP Feeder. The MP Feeder can support these paper sizes regardless of the value of this setting.
Page 383: Factory Defaults
2. Touch Restore Base to restore all non-critical base printer NVRAM settings. 3. Touch Restore Network to restore all network NVRAM settings. 4. Touch Restore LES to remove all Lexmark Embedded Solution applications When you select either value, the LCD displays Restoring Factory Defaults and then Resetting the Device.
Page 384: Format Fax Storage
7510-XXX Format Fax Storage This setting enables you to format the non-volatile storage used for storing faxes. To change this setting: 1. Touch Format Fax Storage from the Configuration Menu. Note: If an advanced password has been established, you must enter this password in order to change the setting.
Page 385: Paper Prompts
7510-XXX Paper Prompts When a tray is out of the indicated paper size, a prompt is sent to the user to load paper in a tray. This setting controls the tray the user is directed to fill. Selections are Auto (default), MP Feeder, and Manual Paper. To change this setting: 1.
Page 386 7510-XXX When you touch Enable (encryption) or Disable (formatting), Contents will be lost. Continue? appears on the LCD. Touch No to cancel or Yes to proceed. If you touch Yes, the printer performs the selected action on the hard disk. The following graphic appears when the encryption process is selected: Encrypting Disk DO NOT POWER OFF...
Page 387 7510-XXX The panel provides many progress indicators during the two-stage process. 1. 1/2 indicates that the process is currently in the first stage. 2. 0% indicates the progress of the current stage of the process. 3. The progress bar indicates the overall completion of the entire process by filling in throughout each separate stage.
Page 388: Wipe Disk
7510-XXX Formatting Disk DO NOT POWER OFF The entire process is complete when the progress bar appears completely shaded and the percentage indicator shows 100%. After completion, the panel returns to Disk Encryption. Wipe Disk This setting provides you with a tool for erasing the contents of a disk. Warning: Wipe Disk removes a disk's data in such a way that it cannot be recovered.
Page 389 7510-XXX If you touch No, the device cancels the Wipe Disk process and returns to the Configuration Menu. If you touch Yes, the following screen appears: Wiping Disk ½ DO NOT POWER OFF The panel provides the following progress indicators during the execution of this process: 1.
Page 390: Font Sharpening
7510-XXX When the first stage of the process completes, the printer displays the following graphic and then begins the second stage of the process: Wiping Disk DO NOT POWER OFF The entire process is complete when the progress bar appears completely shaded and the percentage indicator shows 100%.
Page 391: Require Standby
2. Touch Back to cancel and return to the Configuration Menu. 3. Touch Submit to save the change. LES Applications This disables all installed Lexmark Embedded Solution applications. The default is Enabled. To change this setting: 1. Touch LES Applications from the Configuration Menu.
Page 392: Key Repeat Initial Delay
7510-XXX Key Repeat Initial Delay When a key is touched repeatedly, this is the delay before the key begins repeating. The delay ranges from .25 seconds to 5 seconds. The default is 1 second. Values are given in increments of .25 seconds. To change this setting: 1.
Page 393: Repair Information
7510-XXX 4. Repair information Warning: Read the following before handling electronic parts. Handling ESD-sensitive parts Many electronic products use parts that are known to be sensitive to electrostatic (ESD). To prevent damage to ESD- sensitive parts, use the following instructions in addition to all the usual precautions, such as turning off power before removing logic boards: •...
Page 394: Removal Procedures
7510-XXX Removal procedures Before starting service work CAUTION: Remove the power cord from the electrical outlet before you connect or disconnect any cable or electronic board or assembly. CAUTION: While performing service around the fuser assembly, ensure the fuser area has cooled down. Note: Some removal procedures require removing cable ties.
Page 395: Printer Front Door Assembly Removal
7510-XXX Printer front door assembly removal 1. Open the printer front door assembly. 2. Press the tab, and rotate the two flexible supports (A) 90°, and pull from the machine. 3. Remove the two flexible supports (A). 4. Remove the two screws securing the two brackets (B) to the printer front door assembly (C). 5.
Page 396: Right Cover Assembly Removal
7510-XXX Right cover assembly removal Note: Detach the finisher if equipped. Refer to the MFP or Printer Finisher Service Manual. 1. Open the transfer belt unit access door (A). 2. Remove the three screws securing the right cover assembly (B) to the machine. 3.
Page 397: Rear Cover Assembly Removal
7510-XXX Rear cover assembly removal 1. Remove the blind cover (A). 2. Remove all connectors and power cords from the rear of the machine. 3. Remove the four screws securing the rear cover assembly (B) to the machine. 4. Remove the rear cover assembly (B). Connectors Repair information...
Page 398: Rear Left Middle Cover Removal
7510-XXX Rear left middle cover removal 1. Remove the rear cover assembly. See “Rear cover assembly removal” on page 4-5. 2. Open the printer left door assembly. 3. Remove the screw securing the rear left middle cover (A) to the machine. 4.
Page 399: Rear Left Upper Cover Removal
7510-XXX Rear left upper cover removal 1. Remove the rear cover assembly. See “Rear cover assembly removal” on page 4-5. Warning: Ensure that the rear left middle cover is removed before removing the rear left upper cover, or damage will occur. 2.
Page 400: Printer Left Lower Door Assembly Removal
7510-XXX Printer left lower door assembly removal 1. Remove the media tray 1. 2. Open the printer left lower door assembly. 3. Disconnect the connector from the printer left lower door assembly (A). 4. Release the harness from the clamp. 5.
Page 401: Front Left Cover Removal
7510-XXX Front left cover removal 1. Open the printer front door assembly. 2. Remove the two screws securing the front left cover (A) to the machine. 3. Move the front left cover (A) up and pull out. 4. Remove the front left cover (A). Duplex media inverter assembly removal 1.
Page 402: Duplex Unit Assembly Removal
7510-XXX Duplex unit assembly removal 1. Remove the two screws securing the duplex unit assembly (A) to the printer left door assembly (B). 2. Gently pull the duplex unit assembly (A) from the printer left door assembly (B). Note: When removing the duplex unit assembly (A), the plastic panel (C) may become detached. 3.
Page 403: Sensor (Duplex Wait) Removal
7510-XXX Sensor (duplex wait) removal 1. Remove the duplex unit assembly. See “Duplex unit assembly removal” on page 4-10. 2. Remove the screw securing the bracket (A) to the duplex unit assembly (B). 3. Release the hooks securing the sensor (duplex wait) (C) to the bracket (A). 4.
Page 404: Duplex Media Exit Turn Guide Removal
7510-XXX Duplex media exit turn guide removal 1. Remove the rear cover assembly. See “Rear cover assembly removal” on page 4-5. 2. Remove the rear left middle cover. See “Rear left middle cover removal” on page 4-6. 3. Remove the MPF feed unit assembly. See “MPF feed unit assembly removal”...
Page 405: Duplex Drive Motor Removal
7510-XXX Replacement note: When replacing the printer left door assembly (B), ensure that the duplex media exit turn guide (A) is held up, or the printer left door assembly (B) will not close properly. Black line Duplex drive motor removal 1.
Page 406: Duplex Controller Card Assembly Removal
7510-XXX Duplex controller card assembly removal 1. Remove the duplex unit assembly. See “Duplex unit assembly removal” on page 4-10. 2. Remove the screw securing the connector access cover (A) to the duplex unit assembly (C). 3. Disconnect the connectors from the duplex controller card assembly (B). 4.
Page 407: Fuser Unit Assembly Removal
7510-XXX Fuser unit assembly removal CAUTION: The fuser unit assembly can be extremely hot, handle with care to avoid getting burned. 1. Open the printer left door assembly. 2. Loosen the two thumb screws to release the fuser unit assembly (A) from the machine. 3.
Page 408: Transfer Belt Unit Assembly Removal
7510-XXX Transfer belt unit assembly removal Warning: When removing the transfer belt unit assembly, do not touch the belt surface, or damage will occur. Note: Detach the finisher if equipped. Refer to the MFP or the Printer Finisher Service Manual. 1.
Page 409: Transfer Belt Cleaning Assembly Removal
7510-XXX Transfer belt cleaning assembly removal Warning: When removing the transfer belt unit assembly, do not touch the belt surface, or damage will occur. Note: It is not required to completely remove the transfer belt unit assembly (B) from the machine. It can be partially pulled out to provide access to the transfer belt cleaning assembly (A).
Page 410: Standard Media Exit Bin Full Actuator Removal
7510-XXX Connectors Standard media exit bin full actuator removal 1. Remove the rear cover assembly. See “Rear cover assembly removal” on page 4-5. Warning: Ensure that the rear left middle cover is removed before removing the rear left upper cover, or damage will occur.
Page 411: Switch (Printer Left Door Interlock) Removal
7510-XXX Switch (printer left door interlock) removal 1. Remove the rear cover assembly. See “Rear cover assembly removal” on page 4-5. Warning: Ensure that the rear left middle cover is removed before removing the rear left upper cover, or damage will occur.
Page 412 7510-XXX 5. Remove the screw securing the bracket (A) to the standard media exit bin shift assembly. 6. Remove the bracket (A). 7. Release the hooks securing the switch (printer left door interlock) (B) to the bracket (A). 8. Remove the switch (printer left door interlock). Hooks Hooks Hooks...
Page 413: Sensor (Standard Media Bin Full) Removal
7510-XXX Sensor (standard media bin full) removal 1. Remove the rear cover assembly. See “Rear cover assembly removal” on page 4-5. Warning: Ensure that the rear left middle cover is removed before removing the rear left upper cover, or damage will occur.
Page 414: Sensor (Media Out) Removal
7510-XXX Sensor (media out) removal 1. Remove the printer left lower door assembly. See “Printer left lower door assembly removal” on page 4-8. 2. Remove the media feed unit assembly. See “Media feed unit assembly 1 removal” on page 4-21. 3.
Page 415 7510-XXX 4. Remove the media out actuator (A). Front Bosses Lower view 4-23 Repair information...
Page 416: Sensor (Media Level) Removal
7510-XXX Sensor (media level) removal 1. Remove the printer left lower door assembly. See “Printer left lower door assembly removal” on page 4-8. 2. Remove the appropriate media feed unit assembly. See “Media feed unit assembly 1 removal” on page 4-21.
Page 417: Sensor (Fuser Exit) Removal
7510-XXX Sensor (fuser exit) removal 1. Open the printer left door assembly. 2. Remove the E-clip securing the fuser exit roll assembly (A) to the machine. 3. Remove the bushing (B). 4. Remove the fuser exit roll assembly (A). 5. Remove the two screws securing the sensor (fuser exit) (C) to the machine. 6.
Page 418: Printer Left Door Assembly Removal
7510-XXX Printer left door assembly removal 1. Remove the rear cover assembly. See “Rear cover assembly removal” on page 4-5. 2. Remove the rear left middle cover. See “Rear left middle cover removal” on page 4-6. 3. Remove the MPF feed unit assembly. See “MPF feed unit assembly removal”...
Page 419 7510-XXX Replacement warning: When replacing the printer left door assembly (B), ensure that the black lines are aligned on the damper assembly (E), or the door will not properly operate. Black line 4-27 Repair information...
Page 420: Printer Left Door Damper Removal
7510-XXX ‘ Replacement warning: When replacing the printer left door assembly (B), ensure that the duplex media exit turn guide (F) is held in its upper-most position, or the printer left door assembly (B) will not close properly. Printer left door damper removal 1.
Page 421 7510-XXX 9. Remove the printer left door damper (C). E-clip Replacement warning: When replacing the printer left door assembly (D), ensure that the black lines are aligned on the damper assembly (C), or the door will not properly operate. Black line Replacement warning: When replacing the printer left door assembly (D), ensure that the duplex media exit turn guide (E) is held in its upper-most position, or the printer left door assembly (D) will not close properly.
Page 422: Sensor (Media On Belt) Removal
7510-XXX Sensor (media on belt) removal 1. Open the printer left door assembly. 2. Remove the screw securing the sensor (media on belt) (A) to the machine. 3. Disconnect the connector from the sensor (media on belt) (A). 4. Remove the sensor (media on belt) (A). 4-30 MFP Service Manual...
Page 423: 2Nd Transfer Roll Retract Cam Assembly Removal
7510-XXX 2nd transfer roll retract cam assembly removal 1. Remove the 2nd transfer roll assembly. See “2nd transfer roll assembly removal” on page 4-35. 2. Remove the two screws securing the registration pinch guide assembly (A) to the machine. 3. Remove the registration pinch guide assembly (A). 4.
Page 424 7510-XXX Connector Replacement note: When reinstalling the transfer roll retract cam assembly (D), ensure that the bushing (E), pin (F), and washer are replaced. E-clip Actuator Connector 4-32 MFP Service Manual...
Page 425 7510-XXX 4-33 Repair information...
Page 426: Sensor (2Nd Transfer Roll Retract Hp) Removal
7510-XXX Sensor (2nd transfer roll retract HP) removal 1. Remove the 2nd transfer roll assembly. See “2nd transfer roll assembly removal” on page 4-35. 2. Remove the two screws securing the registration pinch guide assembly (A) to the machine. 3. Remove the registration pinch guide assembly (A). 4.
Page 427: 2Nd Transfer Roll Retract Motor Assembly Removal
7510-XXX 2nd transfer roll retract motor assembly removal 1. Remove the 2nd transfer roll assembly. See “2nd transfer roll assembly removal” on page 4-35. 2. Remove the 2nd transfer roll retract cam assembly. See “2nd transfer roll retract cam assembly removal” on page 4-31.
Page 428: Registration / Transport Roll Assembly Removal
7510-XXX Warning: When removing the main transfer roll assembly (B), do not touch the roll surface. Replacement warning: When reinstalling the transfer roll assembly (B), do not touch the roll surface. Registration / transport roll assembly removal 1. Remove the rear cover assembly. See “Rear cover assembly removal”...
Page 429: Registration Clutch Removal
7510-XXX Registration clutch removal 1. Remove the rear cover assembly. See “Rear cover assembly removal” on page 4-5. 2. Remove the rear left middle cover. See “Rear left middle cover removal” on page 4-6. 3. Remove the MPF feed unit assembly. See “MPF feed unit assembly removal”...
Page 430: Sensor (Transparency Detect) Removal
7510-XXX 9. Disconnect the connector from the sensor (registration) (C). Sensor (transparency detect) removal 1. Remove the rear cover assembly. See “Rear cover assembly removal” on page 4-5. 2. Remove the rear left middle cover. See “Rear left middle cover removal” on page 4-6.
Page 431: Waste Toner Cartridge Cover Removal
7510-XXX Waste toner cartridge cover removal 1. Remove the printer front door assembly. See “Printer front door assembly removal” on page 4-3. 2. Lower the waste toner cartridge cover (A) to its lower-most position. 3. Remove the waste toner cartridge. 4.
Page 432: Sensor (Waste Toner Cartridge Full) Removal
7510-XXX 7. Remove the waste toner cartridge sensor assembly (B). Connectors Sensor (waste toner cartridge full) removal 1. Remove the front left cover. See “Front left cover removal” on page 4-9. 2. Remove the waste toner cartridge cover. See “Waste toner cartridge cover removal” on page 4-39.
Page 433 7510-XXX Connectors 4-41 Repair information...
Page 434: Switch (Waste Toner Cartridge Interlock) Removal
7510-XXX Switch (waste toner cartridge interlock) removal 1. Remove the printer front door assembly. See “Printer front door assembly removal” on page 4-3. 2. Remove the front left cover. See “Front left cover removal” on page 4-9. 3. Remove the waste toner cartridge cover. See “Waste toner cartridge cover removal”...
Page 435: Inner Cover Removal
7510-XXX Inner cover removal 1. Open the printer front door assembly. 2. Remove the front left cover. See “Front left cover removal” on page 4-9. 3. Remove the waste toner cartridge cover. See “Waste toner cartridge cover removal” on page 4-39.
Page 436: Waste Toner Agitator Motor Assembly Removal
7510-XXX Waste toner agitator motor assembly removal 1. Remove the printer front door assembly. See “Printer front door assembly removal” on page 4-3. 2. Remove the front left cover. See “Front left cover removal” on page 4-9. 3. Remove the waste toner cartridge cover. See “Waste toner cartridge cover removal”...
Page 437: Image Density Sensor Assembly Removal
7510-XXX Replacement warning: Ensure that all PC cartridge units are properly seated and aligned before raising the transfer belt lift handle to its upper-most position, or damage will occur. Never force the transfer belt lift handle into its home position, or damage will occur. Button Image density sensor assembly removal 1.
Page 438 7510-XXX Warning: Note the orientation of the harnesses to ensure they are not pinched when replacing the harness access cover (A), or damage will occur. 8. Remove the harness access cover (A) from the machine. Connectors 9. Disconnect the three connectors from the image density sensor assembly (B). 10.
Page 439: Cmy Toner Add Assembly Removal
7510-XXX 12. Remove the image density sensor assembly (A). Replacement note: Requires color calibration adjustments. Replacement warning: When replacing the harness access cover, ensure that the harnesses are not pinched, or damage will occur. CMY toner add assembly removal 1. Remove the printer front door assembly. See “Printer front door assembly removal”...
Page 440: K Toner Add Assembly Removal
7510-XXX 7. Remove the appropriate CMY toner add assemblies (A). Shutter K toner add assembly removal Warning: Ensure the three CMY toner add assemblies are removed before removing the K toner add assembly, or damage will occur. 1. Remove the printer front door assembly. See “Printer front door assembly removal”...
Page 441: Developer Interlock Plate Assembly Removal
7510-XXX Shutter Developer interlock plate assembly removal Warning: Always perform color registration adjustment (RegCon) when removing or reinstalling the printhead, NVM initialization, or developer interlock plate assembly. See “Color registration (RegCon)” on page 4-254. 1. Remove the printer front door assembly. See “Printer front door assembly removal”...
Page 442 7510-XXX Warning: Use extreme caution when disconnecting the next seven connectors from the upper harness strip, or damage will occur. 9. Disconnect the seven connectors from the upper harness strip. 10. Remove the six screws securing the developer interlock plate assembly (A) to the machine. 11.
Page 443 7510-XXX 13. While holding the four developer unit assemblies firmly inside the machine, gently remove the developer interlock plate assembly (A). 14. Remove the developer interlock plate assembly (A) and allow it to gently hang down by the harness if removing the developer units.
Page 444 7510-XXX Replacement note: When replacing the developer interlock plate assembly (A), install the bottom edge first and ensure that all four developer unit assemblies are properly aligned when replacing the developer interlock plate assembly (A). 4-52 MFP Service Manual...
Page 445: Developer Unit Assembly Removal
7510-XXX Replacement warning: Ensure that the erase lamp harnesses and developer unit assembly harnesses are correctly installed in the clamps, or they may become detached. Verify that the harnesses are properly secured in the clamps by moving the transfer belt lift handle up and down several times before reinstalling the inner cover. Erase lamp &...
Page 446 7510-XXX “Inner cover removal” on page 4-43. 6. Remove the inner cover. See 7. Remove the three CMY toner add assemblies. See “CMY toner add assembly removal” on page 4-47. 8. Remove the K toner add assembly. See “K toner add assembly removal” on page 4-48.
Page 447: Developer Carrier Removal And Replacement
7510-XXX Replacement warning: Ensure that the erase lamp harnesses and developer unit assembly harnesses are correctly installed in the clamps, or they may become detached. Verify that the harnesses are properly secured in the clamps by moving the transfer belt lift handle up and down several times before reinstalling the inner cover. Erase lamp &...
Page 448 7510-XXX “Developer interlock plate assembly removal” on 8. Remove the developer interlock plate assembly. See page 4-49 9. Remove the developer unit assembly. See “Developer unit assembly removal” on page 4-53. 10. Using a prying tool, gently release the two tabs securing the top cover (A) to the assembly. 11.
Page 449 7510-XXX To install the new carrier (B): Warning: Ensure that the carrier is installed evenly and uniformly in the assembly, or spillage may occur. 1. Open the appropriate bag, and dump the appropriate carrier into the appropriate assembly. Seal Seal 2.
Page 450: Photoconductor (Pc) Unit Assembly Removal
7510-XXX Photoconductor (PC) unit assembly removal Warning: Ensure that all four PC cartridges are concealed from all sources of light, or damage will occur. Note: This procedure can be applied to either the C, M, Y, or K PC unit assemblies. 1.
Page 451 7510-XXX 5. Pull the appropriate PC unit assembly (C) from the machine. Note: When the PC unit assembly (C) is removed, ensure that it is stored in the position as shown in the graphic below. 4-59 Repair information...
Page 452: Transfer Belt Lift Latch Assembly Removal
7510-XXX Replacement warning: When replacing the PC unit assembly (C), ensure that the rail on the PC unit assembly (C) is properly inserted into the metal track or physical binding and damage will occur. In the event that the PC unit assembly (C) becomes bound, it can be removed by twisting it in a clockwise direction while pulling it from the machine.
Page 453 7510-XXX 9. Remove the transfer belt lift latch assembly (A). 4-61 Repair information...
Page 454: Transfer Belt Steering Motor Removal
7510-XXX Transfer belt steering motor removal 1. Remove the front left cover. See “Front left cover removal” on page 4-9. 2. Remove the waste toner cartridge cover. See “Waste toner cartridge cover removal” on page 4-39. 3. Remove the waste toner cartridge sensor assembly. See “Waste toner cartridge sensor assembly removal”...
Page 455: K Erase Lamp Assembly Removal
7510-XXX 12. Gently raise the rear of the appropriate CMY erase lamp assembly (B) to detach the mounting hook from the machine. 13. Remove the appropriate CMY erase lamp assembly (B). Connector Mounting hook K erase lamp assembly removal Warning: Ensure the transfer belt assembly unit is removed, or damage will occur. 1.
Page 456 7510-XXX 13. Gently raise the rear of the K erase lamp assembly (B) to detach the mounting hook from the machine. 14. Remove the K erase lamp assembly (B). Connector 4-64 MFP Service Manual...
Page 457: Printhead Shutter Motor Assembly
7510-XXX Mounting hook Printhead shutter motor assembly 1. Remove the rear cover assembly. See “Rear cover assembly removal” on page 4-5. 2. Remove the rear left middle cover. See “Rear left middle cover removal” on page 4-6. 3. Remove the MPF feed unit assembly. See “MPF feed unit assembly removal”...
Page 458: Switch (Printer Front Door Interlock) Removal
7510-XXX Replacement warning: When reinstalling the printhead shutter motor assembly (A), ensure that the plastic arm is inserted into the printhead shutter (B). Connectors Switch (printer front door interlock) removal 1. Remove the rear cover assembly. See “Rear cover assembly removal” on page 4-5.
Page 459: Sensor (Printer Left Lower Door Interlock) Removal
7510-XXX Sensor (printer left lower door interlock) removal 1. Remove the rear cover assembly. See “Rear cover assembly removal” on page 4-5. 2. Remove the rear left middle cover. See “Rear left middle cover removal” on page 4-6. 3. Remove the MPF feed unit assembly. See “MPF feed unit assembly removal”...
Page 460: Controller Box Assembly Removal
7510-XXX 8. Remove the RIP card cooling fan cover assembly (A). Connector Connector Controller box assembly removal 1. Remove the rear cover assembly. See “Rear cover assembly removal” on page 4-5. 2. Remove the right cover assembly. See “Right cover assembly removal” on page 4-4 3.
Page 461: Switch (Main Power) Removal
7510-XXX Switch (main power) removal 1. Remove the rear cover assembly. See “Rear cover assembly removal” on page 4-5. 2. Remove the right cover assembly. See “Right cover assembly removal” on page 4-4. 3. Remove the top cover assembly. See “Top cover assembly removal”...
Page 462: Bridge Card Assembly Removal
7510-XXX Bridge card assembly removal 1. Remove the rear cover assembly. See “Rear cover assembly removal” on page 4-5. 2. Remove the right cover assembly. See “Right cover assembly removal” on page 4-4 3. Remove the top cover assembly. See “Top cover assembly removal”...
Page 463: Rip Card Access Cover Removal
7510-XXX RIP card access cover removal 1. Using your finger, lift the RIP card access cover (A) by the notch. 2. Remove the RIP card access cover (A). RIP card assembly removal 1. Remove the two screws securing the RIP card assembly (A) to the machine. 2.
Page 464: Fax Interface Card (Modem) Assembly Removal
7510-XXX Fax interface card (modem) assembly removal 1. Remove the RIP card assembly. See “RIP card assembly removal” on page 4-71. 2. Remove the two screws securing the fax interface card (modem) assembly (A) to the assembly. 3. Disconnect the connectors from the fax interface card (modem) assembly (A). 4.
Page 465: Upper Printer Engine Card Bracket Assembly Removal
7510-XXX Upper printer engine card bracket assembly removal 1. Remove the rear cover assembly. See “Rear cover assembly removal” on page 4-5. 2. Remove the right cover assembly. See “Right cover assembly removal” on page 4-4 3. Remove the top cover assembly. See “Top cover assembly removal”...
Page 466: Upper Printer Engine Card Assembly Removal
7510-XXX Connector Replacement warning: Ensure that the upper printer engine card (B) assembly and the lower printer engine card assembly (C) are connected. Upper printer engine card assembly removal “Rear cover assembly removal” on page 4-5. 1. Remove the rear cover assembly. See 2.
Page 467 7510-XXX 13. Remove the NVM board (D) from the upper printer engine card assembly (B). Bottom view Replacement warning: When reinstalling the upper printer engine card assembly (B), ensure that the NVM board (D) is installed on the new upper printer engine card assembly (B), or the machine may not function properly.
Page 468: Lower Printer Engine Card Bracket Assembly Removal
7510-XXX Lower printer engine card bracket assembly removal 1. Remove the rear cover assembly. See “Rear cover assembly removal” on page 4-5. 2. Remove the rear upper cooling fan bracket assembly. See “Rear upper cooling fan bracket assembly removal” on page 4-99.
Page 469: Lower Printer Engine Card Assembly Removal
7510-XXX Lower printer engine card assembly removal 1. Remove the rear cover assembly. See “Rear cover assembly removal” on page 4-5. 2. Remove the rear upper cooling fan bracket assembly. See “Rear upper cooling fan bracket assembly removal” on page 4-99.
Page 470: Transfer Belt Drive Motor Cooling Fan Removal
7510-XXX Transfer belt drive motor cooling fan removal 1. Remove the rear cover assembly. See “Rear cover assembly removal” on page 4-5. 2. Remove the rear upper cooling fan bracket assembly. See “Rear upper cooling fan bracket assembly removal” on page 4-99.
Page 471: Transfer Belt Drive Motor Assembly Removal
7510-XXX Transfer belt drive motor assembly removal 1. Remove the rear cover assembly. See “Rear cover assembly removal” on page 4-5. 2. Remove the rear upper cooling fan bracket assembly. See “Rear upper cooling fan bracket assembly removal” on page 4-99.
Page 472: Laser Diode Power Card Assembly Removal
7510-XXX 7. Remove the switch (transfer belt access door interlock) (A). Connector Laser diode power card assembly removal 1. Remove the rear cover assembly. See “Rear cover assembly removal” on page 4-5. 2. Remove the rear upper cooling fan bracket assembly. See “Rear upper cooling fan bracket assembly removal”...
Page 473 7510-XXX 7. Remove the laser diode power card assembly (A). 4-81 Repair information...
Page 474: Lvps Card Bracket Assembly Removal
7510-XXX 24V LVPS card bracket assembly removal 1. Remove the rear cover assembly. See “Rear cover assembly removal” on page 4-5. 2. Remove the rear upper cooling fan bracket assembly. See “Rear upper cooling fan bracket assembly removal” on page 4-99.
Page 475: Lvps Card Assembly Removal
7510-XXX 24V LVPS card assembly removal 1. Disconnect the three connectors from the 24V LVPS card assembly (A). 2. Remove the three screws securing the 24V LVPS card assembly (A). 3. Remove the 24V LVPS card assembly (A). 5V LVPS card bracket assembly removal 1.
Page 476: Lvps Card Assembly Removal
7510-XXX 5V LVPS card assembly removal 1. Remove the rear cover assembly. See “Rear cover assembly removal” on page 4-5. 2. Remove the rear upper cooling fan bracket assembly. See “Rear upper cooling fan bracket assembly removal” on page 4-99. 3.
Page 477: Lvps Cooling Fan Removal
7510-XXX 24V LVPS cooling fan removal 1. Remove the rear cover assembly. See “Rear cover assembly removal” on page 4-5. 2. Remove the rear upper cooling fan bracket assembly. See “Rear upper cooling fan bracket assembly removal” on page 4-99. 3.
Page 478: Rear Lower Cooling Fan Assembly Removal
7510-XXX Rear lower cooling fan assembly removal 1. Remove the rear cover assembly. See “Rear cover assembly removal” on page 4-5. 2. Remove the rear upper cooling fan bracket assembly. See “Rear upper cooling fan bracket assembly removal” on page 4-99.
Page 479: Cmy Developer Drive Motor Assembly Removal
7510-XXX CMY developer drive motor assembly removal 1. Remove the rear cover assembly. See “Rear cover assembly removal” on page 4-5. 2. Remove the rear upper cooling fan bracket assembly. See “Rear upper cooling fan bracket assembly removal” on page 4-99.
Page 480: Cmyk Pc Cartridge Drive Motor Assembly Removal
7510-XXX CMYK PC cartridge drive motor assembly removal Warning: Ensure that all four PC cartridges are concealed from all sources of light, or damage will occur. 1. Remove the four PC cartridges from the machine. 2. Remove the rear cover assembly. See “Rear cover assembly removal”...
Page 481: Fuser Cooling Fan Removal
7510-XXX Fuser cooling fan removal 1. Remove the rear cover assembly. See “Rear cover assembly removal” on page 4-5. 2. Remove the right cover assembly. See “Right cover assembly removal” on page 4-4. 3. Remove the top cover assembly. See “Top cover assembly removal”...
Page 482: Cmyk Toner Add Motor Assembly Removal
7510-XXX 6. Remove the main power switch actuator (A). CMYK toner add motor assembly removal 1. Remove the printer front door assembly. See “Printer front door assembly removal” on page 4-3. 2. Remove the front left cover. See “Front left cover removal” on page 4-9.
Page 483: Cmyk Transfer Hvps Card Assembly Removal
7510-XXX 18. Remove the CMYK toner add motor assembly (A). Clamps Connectors CMYK transfer HVPS card assembly removal 1. Remove the rear cover assembly. See “Rear cover assembly removal” on page 4-5. 2. Remove the rear upper cooling fan bracket assembly. See “Rear upper cooling fan bracket assembly removal”...
Page 484: Printhead Assembly Removal
7510-XXX Printhead assembly removal Warning: When removing the printhead assembly, be careful not to drop it, or damage will occur. Warning: Always perform color registration adjustment when reinstalling the printhead, NVM initialization, or developer interlock plate assembly. 1. Detach the finisher if equipped. Refer to the MFP or the Printer Finisher Service Manual. 2.
Page 485: Transfer Belt Waste Toner Auger Assembly Removal
7510-XXX Transfer belt waste toner auger assembly removal 1. Remove the transfer belt unit assembly. See “Transfer belt unit assembly removal” on page 4-16. 2. Remove the two screws securing the transfer belt waste toner auger assembly (A). 3. Detach the bushing (B) from the transfer belt waste toner auger assembly (A). 4.
Page 486 7510-XXX 16. Gently remove the K developer transport drive motor assembly (A). Connector Frame clamp Connector Clamp Clamps Connectors Clamps 4-94 MFP Service Manual...
Page 487 7510-XXX Connector 4-95 Repair information...
Page 488: K Developer Clutch Removal
7510-XXX K developer clutch removal 1. Remove the duplex unit assembly. See “Duplex unit assembly removal” on page 4-10. 2. Remove the fuser unit assembly. See “Duplex controller card assembly removal” on page 4-14. 3. Remove the rear cover assembly. See “Rear cover assembly removal”...
Page 489: Ac Drive Card Bracket Assembly Removal
7510-XXX AC drive card bracket assembly removal 1. Remove the rear cover assembly. See “Rear cover assembly removal” on page 4-5. 2. Remove the rear upper cooling fan bracket assembly. See “Rear upper cooling fan bracket assembly removal” on page 4-99.
Page 490: Noise Filter Assembly Removal
7510-XXX Noise filter assembly removal 1. Remove the rear cover assembly. See “Rear cover assembly removal” on page 4-5. 2. Remove the rear upper cooling fan bracket assembly. See “Rear upper cooling fan bracket assembly removal” on page 4-99. 3. Remove the developer / transfer roll HVPS card assembly. See “Developer / transfer roll HVPS card assembly removal”...
Page 491: Rear Upper Cooling Fan Bracket Assembly Removal
7510-XXX Rear upper cooling fan bracket assembly removal 1. Remove the rear cover assembly. See “Rear cover assembly removal” on page 4-5. 2. Disconnect the connector from the rear upper cooling fan bracket assembly (A). 3. Remove the two screws securing the upper cooling fan bracket assembly (A) to the machine. 4.
Page 492: Developer / Transfer Roll Hvps Card Assembly Removal
7510-XXX Developer / transfer roll HVPS card assembly removal 1. Remove the rear cover assembly. See “Rear cover assembly removal” on page 4-5. 2. Remove the rear upper cooling fan bracket assembly. See “Rear upper cooling fan bracket assembly removal” on page 4-99.
Page 493: Charge Roll Hvps Card Assembly Removal
7510-XXX Charge roll HVPS card assembly removal 1. Remove the rear cover assembly. See “Rear cover assembly removal” on page 4-5. 2. Remove the rear upper cooling fan bracket assembly. See “Rear upper cooling fan bracket assembly removal” on page 4-99.
Page 494: Mpf / Transport Drive Motor Assembly Removal
7510-XXX MPF / transport drive motor assembly removal 1. Remove the rear cover assembly. See “Rear cover assembly removal” on page 4-5. 2. Remove the rear upper cooling fan bracket assembly. See “Rear upper cooling fan bracket assembly removal” on page 4-99.
Page 495: Feed Roll Removal
7510-XXX Feed roll removal 1. Remove the media tray. 2. Move the feed unit front guide (A) in the direction of the arrow. 3. Release the hook securing the feed roll (B) to the shaft (C). 4. Remove the feed roll (B). Note: Do not touch the rubber surface of the feed roll (B).
Page 496: Pick Roll Removal
7510-XXX Pick roll removal 1. Remove the media tray. 2. Move the media feed unit front guide (A) in the direction of the arrow. 3. Release the hook securing the pick roll (B) to the shaft (C). 4. Remove the pick roll (B). Note: Do not touch the rubber surface of the feed roll (B).
Page 497: Separation Roll Removal
7510-XXX Separation roll removal 1. Remove the media tray. 2. Move the feed unit front guide (A) in the direction of the arrow. 3. Release the hook securing the separation roll (B) to the shaft (C). 4. Remove the separation roll (B). Note: Do not touch the rubber surface of the feed roll (B).
Page 498: Sensor (Rfid Toner Cartridge) Removal
7510-XXX Sensor (RFID toner cartridge) removal Note: This removal applies to the sensor (RFID K toner cartridge), (RFID C toner cartridge), (RFID M toner cartridge) and (RFID Y toner cartridge). 1. Remove the printer front door assembly. See “Printer front door assembly removal” on page 4-3.
Page 499: Fuser Exit Roll Assembly Removal
7510-XXX Fuser exit roll assembly removal 1. Open the printer left door assembly. 2. Remove the E-clip securing the fuser exit roll assembly (A) to the machine. 3. Remove the bushings (B). 4. Remove the fuser exit roll assembly (A). E-clip MPF media out actuator removal 1.
Page 500: Sensor (Mpf Media Out) Removal
7510-XXX Sensor (MPF media out) removal 1. Remove the rear cover assembly. See “Rear cover assembly removal” on page 4-5. 2. Remove the rear left middle cover. See “Rear left middle cover removal” on page 4-6. 3. Remove the MPF feed unit assembly. See “MPF feed unit assembly removal”...
Page 501 7510-XXX Replacement note: When replacing the MPF feed roll assemblies (C), do not touch the rubber surface. Replacement note: When replacing the MPF feed roll assemblies (C), ensure that the directional arrow is properly aligned. 4-109 Repair information...
Page 502: Media Feed Lift Motor Removal
7510-XXX Media feed lift motor removal 1. Remove the printer left lower door assembly. See “Printer left lower door assembly removal” on page 4-8. 2. Remove the media feed unit assembly. See “Media feed unit assembly 1 removal” on page 4-21.
Page 503: Switch (Media Size) Removal
7510-XXX Switch (media size) removal Note: This procedure can be applied to tray 1 or tray 2 switch (media size). 1. Remove media Tray 1 and media Tray 2. 2. Remove one screw securing the switch (media size) (A) to the bracket inside the machine. 3.
Page 504: Scanner Removals
7510-XXX Scanner removals Scanner unit assembly removal 1. Remove the platen cushion assembly. See “Platen cushion removal” on page 4-127. 2. Remove the ADF unit assembly. See “ADF unit assembly removal” on page 4-126. 3. Remove the operator panel assembly. See “Operator panel assembly removal”...
Page 505: Platen Cushion Removal
7510-XXX Platen cushion removal 1. Open the ADF unit assembly. 2. Gently pull off the platen cushion (A) from the ADF. Note: Before reinstalling the platen cushion (A), position the ADF in its upright position, and place the platen cushion (A) on the large platen glass (B) flush with the left and top edges. Gently close the ADF to attach the platen cushion (A) to the ADF.
Page 506: Large Platen Glass Removal
7510-XXX Large platen glass removal 1. Remove the two screws securing the large platen glass retainer (A) to the scanner unit assembly. 2. Remove the large platen glass retainer (A). 3. Gently lift the large platen glass (B) upward, and move it rightward in the direction of the arrow. 4.
Page 507: Scanner Right Cover Removal
7510-XXX Scanner right cover removal 1. Remove the two screws securing the scanner right cover (A) to the scanner unit assembly. 2. Disengage the rear side of scanner right cover (A) from the scanner unit assembly, and shift the scanner right cover (A) rearward.
Page 508: Operator Panel Assembly Removal
7510-XXX Operator panel assembly removal Replacement warning: In the event of replacement of any one of the following components: • Operator panel assembly (universal) • Operator panel controller card assembly • RIP card assembly • Interconnect card assembly Only replace one component at a time. Replace the required component, and perform a POR before replacing a second component listed above.
Page 509 7510-XXX 8. Remove the CCD card/lens assembly (E). Note: Ensure that the white connector is plugged into the sensor (platen length APS 1) (B). Blue connector White connector Connector 4-117 Repair information...
Page 510: Scanner Drive Motor Assembly Removal
7510-XXX Scanner drive motor assembly removal 1. Remove the platen cushion assembly. See “Platen cushion removal” on page 4-127. 2. Remove the ADF unit assembly. See “ADF unit assembly removal” on page 4-126. 3. Remove the ADF front cover assembly. See “ADF front cover assembly removal”...
Page 511: Exposure Lamp Removal
7510-XXX Exposure lamp removal 1. Remove the large platen glass. See “Large platen glass removal” on page 4-114. 2. Gently move the scanner carriage (A) to the large opening of the frame to provide access to the front side of the exposure lamp (B).
Page 512: Scanner Controller Card Assembly Removal
7510-XXX 8. Remove the insulator bracket (E). Note: Before reinstalling the exposure lamp PS card assembly (A), ensure that all connections are properly connected. Note: Ensure that all harnesses and cables move freely without binding. Note: Ensure that the exposure lamp PS card assembly is securely mounted to the scanner carriage (B). Scanner controller card assembly removal 1.
Page 513: Sensor (Scanner Hp) Removal
7510-XXX Connectors Connector Connector Sensor (scanner HP) removal 1. Remove the scanner top rear cover. See “Scanner top rear cover removal” on page 4-115. 2. Remove the large platen glass. See “Large platen glass removal” on page 4-114. 3. Gently move the scanner carriage (A) rightward to provide access to the sensor (scanner HP) (B). 4.
Page 514: Adf Angle Actuator Assembly Removal
7510-XXX ADF angle actuator assembly removal 1. Remove the platen cushion assembly. See “Platen cushion removal” on page 4-127. 2. Remove the ADF unit assembly. See “ADF unit assembly removal” on page 4-126. 3. Remove the scanner left cover. See “Scanner left cover removal”...
Page 515: Scanner Ps Card Assembly Removal
7510-XXX 10. Remove the sensor (ADF angle) (A). Connector Scanner PS card assembly removal 1. Remove the platen cushion assembly. See “Platen cushion removal” on page 4-127. 2. Remove the ADF unit assembly. See “ADF unit assembly removal” on page 4-126.
Page 516: Scanner Ps Cooling Fan Removal
7510-XXX 8. Remove the scanner PS card assembly (A). Scanner PS cooling fan removal 1. Remove the platen cushion assembly. See “Platen cushion removal” on page 4-127. 1. Remove the ADF unit assembly. See “ADF unit assembly removal” on page 4-126.
Page 517 7510-XXX 7. Remove the scanner PS cooling fan assembly (A). 4-125 Repair information...
Page 518: Adf Removals
7510-XXX ADF removals ADF unit assembly removal Warning: The ADF is very heavy; do not drop it, or damage will occur. 1. Remove the platen cushion assembly. See “Platen cushion removal” on page 4-127. 2. Open the ADF to its full upright position. 3.
Page 519: Platen Cushion Removal
7510-XXX Platen cushion removal 1. Open the ADF unit assembly. 2. Gently pull off the platen cushion (A) from the ADF. Note: Before reinstalling the platen cushion (A), position the ADF in its upright position, and place the platen cushion (A) on the large platen glass (B) flush with the left and top edges. Gently close the ADF to attach the platen cushion (A) to the ADF.
Page 520: Adf Rear Cover Removal
7510-XXX ADF rear cover removal 1. Open the ADF left cover assembly. 2. Lift the document tray assembly. 3. Remove the three screws securing the ADF rear cover (A). 4. Lift the ADF rear cover (A) upward. 5. Remove the ADF rear cover (A). Rear ADF front cover assembly removal 1.
Page 521: Adf Left Cover Assembly Removal
7510-XXX ADF left cover assembly removal 1. Open the ADF left cover assembly. 2. Remove the ADF front cover assembly. See “ADF front cover assembly removal” on page 4-128. 3. Remove the ADF rear cover. See “ADF rear cover removal” on page 4-128.
Page 522: Adf Left Cover Handle Removal
7510-XXX ADF left cover handle removal 1. Open the ADF left cover assembly. 2. Remove the ADF left cover media guide. See “ADF left cover media guide removal” on page 4-141. 3. Remove the ADF left cover media guide. See “ADF left cover media guide removal”...
Page 523: Left Cover Pinch Roll Assembly Removal
7510-XXX Replacement note: Ensure that the grounding plate (E) is properly reattached. Left cover pinch roll assembly removal 1. Open the ADF left cover assembly. 2. Disconnect the connector from the sensor (pick roll position HP) (A). 3. Remove the three screws securing the left cover pinch roll assembly (B). 4.
Page 524: Media Scan Guide Removal
7510-XXX 11. Remove the connectors P751, P754, P755, P758, P761, P785 and P786 from the ADF controller card assembly (D). 12. Remove the harness guide (B) containing the harnesses, and swing it out of the way. 13. Remove the ADF dual drive motor assembly (A) from the ADF. P786 P756 P755...
Page 525 7510-XXX “Document tray assembly removal” on page 4-134. 8. Remove the document tray assembly. See 9. Disconnect connectors P754, P755, P758, P761, P785, and P786 from the ADF controller card assembly (A). 10. Loosen the set screw securing the damper (B) with an Allen wrench. 11.
Page 526: Document Tray Assembly Removal
7510-XXX Document tray assembly removal 1. Remove the ADF front cover assembly. See “ADF front cover assembly removal” on page 4-128. 2. Remove the ADF rear cover. See “ADF rear cover removal” on page 4-128. 3. Open the ADF left cover assembly. 4.
Page 527: Adf Controller Card Assembly Removal
7510-XXX ADF controller card assembly removal 1. Remove the ADF rear cover. See “ADF rear cover removal” on page 4-128. 2. Disconnect all connectors from the ADF controller card assembly (A). 3. Remove the five screws securing the ADF controller card assembly (A). 4.
Page 528: Inverter Solenoid Assembly Removal
7510-XXX Inverter solenoid assembly removal 1. Open the ADF left cover assembly. 2. Remove the ADF front cover assembly. See “ADF front cover assembly removal” on page 4-128. 3. Loosen the set screw securing the damper (A). 4. Remove the damper (A). 5.
Page 529: Document Set Led Removal
7510-XXX Document set LED removal 1. Open the ADF left cover assembly. 2. Remove the ADF front cover assembly. See “ADF front cover assembly removal” on page 4-128. 3. Disconnect the connector from the document set LED (A). 4. Remove the screw securing the document set LED (A). 5.
Page 530: Sensor (Pick Roll Position Hp) Removal
7510-XXX Replacement note: Before reinstalling the rear bracket (E), replace any shims that were originally present. Spring Sensor (pick roll position HP) removal 1. Open the ADF left cover assembly. 2. Remove the ADF left cover media guide. See “ADF left cover media guide removal” on page 4-141.
Page 531: Adf Feed/Pick Roll Assembly Removal
7510-XXX ADF feed/pick roll assembly removal Warning: Do not touch the rubber surface of the feed roll or the pick roll. 1. Turn the machine off. Warning: To reduce the chance of pick roll position errors and mechanical misalignments, ensure that the machine is turned off when replacing the ADF feed/pick roll assembly.
Page 532: Document Set Actuator Removal
7510-XXX Set gate Plate Document set actuator removal 1. Open the ADF left cover assembly. 2. Remove the ADF left cover media guide. See “ADF left cover media guide removal” on page 4-141. 3. Gently pry the document set actuator (A) from the ADF left cover assembly. 4.
Page 533: Adf Left Cover Media Guide Removal
7510-XXX ADF left cover media guide removal 1. Open the ADF left cover assembly. 2. Remove the screw securing the ADF left cover media guide (A). 3. Lift the ADF left cover media guide (A) upward, then remove the two bosses from the slot, and remove the two tabs from the holes.
Page 534: Switch (Adf Left Cover Interlock) Removal
7510-XXX 12. Remove the harness from the harness guide (C). Connector Switch (ADF left cover interlock) removal 1. Open the ADF left cover assembly. 2. Remove the ADF front cover assembly. See “ADF front cover assembly removal” on page 4-128. 3.
Page 535: Sensor (Adf Width Aps 1) Removal
7510-XXX Sensor (ADF width APS 1) removal 1. Open the ADF left cover assembly. 2. Lift the separation roll guide assembly to its uppermost position. 3. Remove the actuator/media guide assembly. See “Actuator/media guide assembly removal” on page 4-149. 4. Remove the two screws securing the sensor mount (A) to the ADF. 5.
Page 536: Sensor (Adf Width Aps 2) Removal
7510-XXX Sensor (ADF width APS 2) removal 1. Open the ADF left cover assembly. 2. Lift the separation roll guide assembly to its uppermost position. 3. Remove the actuator/media guide assembly. See “Actuator/media guide assembly removal” on page 4-149. 4. Remove the two screws securing the sensor mount (A) to the ADF. 5.
Page 537: Sensor (Adf Width Aps 3) Removal
7510-XXX Sensor (ADF width APS 3) removal 1. Open the ADF left cover assembly. 2. Lift the separation roll guide assembly to its uppermost position. 3. Remove the actuator/media guide assembly. See “Actuator/media guide assembly removal” on page 4-149. 4. Remove the two screws securing the sensor mount (A) to the ADF. 5.
Page 538: Sensor (Adf Registration) Removal
7510-XXX Sensor (ADF registration) removal 1. Open the ADF left cover assembly. 2. Lift the separation roll guide assembly to its uppermost position. 3. Remove the actuator/media guide assembly. See “Actuator/media guide assembly removal” on page 4-149. 4. Remove the two screws securing the sensor mount (A) to the ADF. 5.
Page 539: Sensor (Adf Pre-Registration) Removal
7510-XXX Sensor (ADF pre-registration) removal 1. Open the ADF left cover assembly. 2. Lift the separation roll guide assembly to its uppermost position. 3. Remove the actuator/media guide assembly. See “Actuator/media guide assembly removal” on page 4-149. 4. Remove the two screws securing the sensor mount (A) to the ADF. 5.
Page 540: Sensor (Adf Inverter) Removal
7510-XXX Sensor (ADF inverter) removal 1. Open the ADF left cover assembly. 2. Lift the separation roll guide assembly to its uppermost position. 3. Remove the actuator/media guide assembly. See “Actuator/media guide assembly removal” on page 4-149. 4. Remove the two screws securing the sensor mount (A) to the ADF. 5.
Page 541: Actuator/Media Guide Assembly Removal
7510-XXX Actuator/media guide assembly removal 1. Open the ADF left cover assembly. 2. Lift the separation roll guide assembly (A) to its uppermost position. 3. Remove the two screws securing the actuator/media guide assembly (B) to the ADF. 4. Remove the actuator/media guide assembly (B). Rear Inverter gate removal 1.
Page 542: Adf Feed-Out Roll Assembly Removal
7510-XXX 14. Remove the two screws securing the sensor mount (A) to the ADF. 15. Slide the sensor mount (A) from the underside of the ADF transport roll (B), and move it out of the way. 16. Remove the tension spring (C). 17.
Page 543 7510-XXX “ADF registration motor removal” on page 4-156. 9. Remove the ADF registration motor. See 10. Remove the ADF media feed assembly. See “ADF media feed assembly removal” on page 4-132. 11. Remove the ADF feed drive motor assembly. See “ADF feed drive motor assembly removal”...
Page 544: Adf Separation Roll Guide Assembly
7510-XXX ADF separation roll guide assembly 1. Open the ADF left cover assembly. 2. Lift the separation roll guide assembly (A) to it uppermost position. 3. Lift and remove the separation roll guide assembly (A). Note: Extra upward force is required to remove the separation roll guide assembly. Rear 4-152 MFP Service Manual...
Page 545: Adf Exit Roll Assembly Removal
7510-XXX ADF exit roll assembly removal 1. Open the ADF left cover assembly. 2. Remove the ADF front cover assembly. See “ADF front cover assembly removal” on page 4-128. 3. Remove the ADF rear cover. See “ADF rear cover removal” on page 4-128.
Page 546: Adf Transport Roll Assembly Removal
7510-XXX ADF transport roll assembly removal 1. Open the ADF left cover assembly. 2. Remove the ADF front cover assembly. See “ADF front cover assembly removal” on page 4-128. 3. Remove the ADF rear cover. See “ADF rear cover removal” on page 4-128.
Page 547: Sensor (Sheet Through) Removal
7510-XXX 6. Remove the sensor (document set) (A). Connector Rear Sensor (sheet through) removal 1. Open the ADF left cover assembly. 2. Lift the document tray assembly. 3. Remove the ADF rear cover. See “ADF rear cover removal” on page 4-128.
Page 548: Adf Registration Motor Removal
7510-XXX ADF registration motor removal 1. Open the ADF left cover assembly. 2. Lift the document tray assembly. 3. Remove the ADF rear cover. See “ADF rear cover removal” on page 4-128. 4. Remove the access cap (A). 5. Disconnect the connector from the ADF registration motor (A). 6.
Page 549: Sensor (Document Tray Width 1) Removal
7510-XXX Sensor (document tray width 1) removal 1. Open the ADF left cover assembly. 2. Lift the document tray assembly. 3. Remove the five screws securing the cover (A). 4. Remove the cover (A). 5. Remove the two screws securing the bracket (B). 6.
Page 550: Sensor (Document Tray Width 2) Removal
7510-XXX Sensor (document tray width 2) removal 1. Open the ADF left cover assembly. 2. Lift the document tray assembly. 3. Remove the five screws securing the cover (A). 4. Remove the cover (A). 5. Remove the two screws securing the bracket (B). 6.
Page 551: Sensor (Document Tray Width 3) Removal
7510-XXX Sensor (document tray width 3) removal 1. Open the ADF left cover assembly. 2. Lift the document tray assembly. 3. Remove the five screws securing the cover (A). 4. Remove the cover (A). 5. Remove the two screws securing the bracket (B). 6.
Page 552: Sensor (Document Tray Length 1) Removal
7510-XXX Sensor (document tray length 1) removal 1. Open the ADF left cover assembly. 2. Lift the document tray assembly. 3. Remove the five screws securing the cover (A). 4. Remove the cover (A). 5. Remove the connector from the sensor (document tray length 1) (B). 6.
Page 553: Sensor (Document Tray Length 2) Removal
7510-XXX Sensor (document tray length 2) removal 1. Open the ADF left cover assembly. 2. Lift the document tray assembly. 3. Remove the five screws securing the cover (A). 4. Remove the cover (A). 5. Remove the connector from the sensor (document tray length 2) (B). 6.
Page 554: 2000-Sheet Dual Input (Ttm) Removals
7510-XXX 2000-sheet dual input (TTM) removals 2000-sheet dual input (TTM)—top cover removal 1. Pull out tray 2 assembly. 2. Remove the two screws securing the top cover (A). 3. Remove the top cover (A). 2000-sheet dual input (TTM)—foot cover removal 1.
Page 555: 2000-Sheet Dual Input (Ttm)-Right Cover Removal
7510-XXX 4. Remove the foot cover (A). Front 2000-sheet dual input (TTM)—right cover removal 1. Remove the four screws securing the right cover (A). 2. Remove the right cover (A) by lifting up and out. 4-163 Repair information...
Page 556: 2000-Sheet Dual Input (Ttm)- Tray Module Left Cover Removal
7510-XXX 2000-sheet dual input (TTM)— tray module left cover removal 1. Remove the four screws securing the tray module left cover (A). 2. Remove the tray module left cover (A). 2000-sheet dual input (TTM)—rear cover removal 1. Remove the four screws securing the rear cover (A). 2.
Page 557: 2000-Sheet Dual Input (Ttm)-Tray Support Roll Removal
7510-XXX 7. Remove the caster (A). 2000-sheet dual input (TTM)—tray support roll removal 1. Remove the tray module left cover. See “2000-sheet dual input (TTM)– tray module left cover removal” on page 4-164. 2. Remove TTM media tray 3 assembly. See “2000-sheet dual input (TTM)–TTM media tray 3 assembly removal”...
Page 558 7510-XXX 8. Remove the shafts (D). 9. Remove the tray support rolls (B). 4-166 MFP Service Manual...
Page 559: 2000-Sheet Dual Input (Ttm)-Ttm Media Tray 4 Assembly Removal
7510-XXX 2000-sheet dual input (TTM)—TTM media tray 4 assembly removal 1. Pull out the TTM media tray 4 assembly. 2. Remove the two screws securing the TTM tray 4 media transport assembly (A) to the TTM media tray 4 assembly (B).
Page 560: 2000-Sheet Dual Input (Ttm)-Ttm Media Tray 3 Assembly Removal
7510-XXX 2000-sheet dual input (TTM)—TTM media tray 3 assembly removal 1. Remove the tray module left cover. See “2000-sheet dual input (TTM)– tray module left cover removal” on page 4-164. 2. Open the TTM left door assembly. 3. Loosen the screw securing the TTM tray 3 stopper (A). 4.
Page 561: 2000-Sheet Dual Input (Ttm)-Tray 3 Rear Cable Assembly Removal
7510-XXX 2000-sheet dual input (TTM)—tray 3 rear cable assembly removal 1. Remove the tray module left cover. See “2000-sheet dual input (TTM)– tray module left cover removal” on page 4-164. 2. Remove the TTM media tray 3 assembly. See “2000-sheet dual input (TTM)–TTM media tray 3 assembly removal”...
Page 562 7510-XXX 7. Move the rear lift cable pulley (D) toward the rear of the tray to release the two tray 3 rear cables (E) from the tray lift shaft assembly (B). Rear 8. Remove the two tray 3 rear cables (E) from the tray lift shaft assembly (B). 9.
Page 563: 2000-Sheet Dual Input (Ttm)-Tray 3 Front Cable Assembly Removal
7510-XXX 2000-sheet dual input (TTM)—tray 3 front cable assembly removal 1. Remove the tray module left cover. See “2000-sheet dual input (TTM)– tray module left cover removal” on page 4-164. 2. Remove the TTM media tray 3 assembly. See “2000-sheet dual input (TTM)–TTM media tray 3 assembly removal”...
Page 564: 2000-Sheet Dual Input (Ttm)-Ttm Media Tray 4 Front Cover Removal
7510-XXX 2000-sheet dual input (TTM)—TTM media tray 4 front cover removal 1. Pull out the TTM media tray 4 assembly. 2. Remove the four screws securing the TTM tray 4 front cover (A). 3. Remove the TTM tray 4 front cover (A). 4.
Page 565 7510-XXX 5. Gently move the tray lift shaft assembly (B) toward the rear of the tray and detach the rear bushing (C) from the frame. Note: Do not remove the front lift cable pulley (A), or the front lift cables will become detached. 6.
Page 566 7510-XXX 12. Remove the tray 4 rear cables (D) from the bottom plate (H). Replacement note: Before re-installing: — It is recommended that all four cables be replaced. — Ensure tray 4 rear cables (D) are not twisted or kinked. —...
Page 567: 2000-Sheet Dual Input (Ttm)-Tray 4 Front Cables Removal
7510-XXX 2000-sheet dual input (TTM)—tray 4 front cables removal 1. Remove the TTM media tray 4 assembly. See “2000-sheet dual input (TTM)–TTM media tray 4 assembly removal” on page 4-167. 2. Remove the tray 4 front cover. See “2000-sheet dual input (TTM)–TTM media tray 4 front cover removal” on page 4-172.
Page 568: 2000-Sheet Dual Input (Ttm)-Media Feed Unit Assembly Removal (Tray 4)
7510-XXX 10. Remove the tray 4 front cables (C) from the bottom plates (F). Replacement note: Before re-installing: — It is recommended that all four cables be replaced. — Ensure tray 4 front cables (C) are not twisted or kinked. —...
Page 569 7510-XXX 7. Remove the two screws securing the media feed unit assembly (A). Connectors Front 8. Remove one screw securing the front bracket (B) to the machine. 9. Remove the front bracket (B). 10. Move the media feed unit assembly (A) to the left and up in the direction of the arrow. 11.
Page 570: 2000-Sheet Dual Input (Ttm)-Sensor (Tray 4 Feed-Out) Removal
7510-XXX 2000-sheet dual input (TTM)—sensor (tray 4 feed-out) removal 1. Remove the media tray 2 assembly. 2. Remove the tray module left cover. See “2000-sheet dual input (TTM)– tray module left cover removal” on page 4-164. 3. Remove the TTM media tray 3 assembly. See “2000-sheet dual input (TTM)–TTM media tray 3 assembly removal”...
Page 571: 2000-Sheet Dual Input (Ttm) Switch (Media Size) Removal
7510-XXX 2000-sheet dual input (TTM) switch (media size) removal Note: This procedure can be applied to tray 1 or tray 2 switch (media size). 1. Remove media Tray 1 and media Tray 2. 2. Remove one screw securing the switch (media size) (A) to the bracket inside the machine. 3.
Page 572: 2000-Sheet Dual Input (Ttm)-Media Feed Unit Assembly 2 Removal
7510-XXX 2000-sheet dual input (TTM)–media feed unit assembly 2 removal 1. Remove the media tray 2. 2. Open the TTM left door assembly. 3. Disconnect the connector from the media feed unit assembly (A). 4. Release the harness from the clamp. 5.
Page 573 7510-XXX 4-181 Repair information...
Page 574: 2000-Sheet Dual Input (Ttm)-Sensor (Tray 3 Feed-Out) Removal
7510-XXX 2000-sheet dual input (TTM)—sensor (tray 3 feed-out) removal 1. Open the TTM left door assembly. 2. Remove the two screws securing the two support straps (A) to the machine. 3. Disconnect the connector to the bracket (B). 4. Remove the two screws securing the bracket (B) to the machine. 5.
Page 575: 2000-Sheet Dual Input (Ttm)-Sensor (Tray 2 Feed-Out) Removal
7510-XXX 2000-sheet dual input (TTM)—sensor (tray 2 feed-out) removal 1. Open the TTM left door assembly. 2. Remove the two screws securing bracket (A) to the machine. 3. Remove the bracket (A). 4. Disconnect the connector from the sensor (tray 2 feed-out) (B). 5.
Page 576 7510-XXX 8. Remove the media feed lift motor (B). Connector Rear 4-184 MFP Service Manual...
Page 577: 2000-Sheet Dual Input (Ttm)-One-Way Clutch / Gear Assembly Removal
7510-XXX 2000-sheet dual input (TTM)—one-way clutch / gear assembly removal 1. Remove the tray module left cover. See “2000-sheet dual input (TTM)– tray module left cover removal” on page 4-164. 2. Remove the TTM media tray 3 assembly. See “2000-sheet dual input (TTM)–TTM media tray 3 assembly removal”...
Page 578 7510-XXX 10. Remove the tray lift one-way gear 24 tooth (C). Harness Washer Rear Replacement note: Before re-installing, ensure all gears and washers are securely attached to the bracket (A). 4-186 MFP Service Manual...
Page 579: 2000-Sheet Dual Input (Ttm)-Media Out Actuator Removal
7510-XXX 2000-sheet dual input (TTM)—media out actuator removal 1. Remove the tray module left cover. See “2000-sheet dual input (TTM)– tray module left cover removal” on page 4-164. 2. Remove the TTM media tray 3 assembly. See “2000-sheet dual input (TTM)–TTM media tray 3 assembly removal”...
Page 580: 2000-Sheet Dual Input (Ttm)-Sensor (Media Level) Removal
7510-XXX 2000-sheet dual input (TTM)—sensor (media level) removal 1. Remove the tray module left cover. See “2000-sheet dual input (TTM)– tray module left cover removal” on page 4-164. 2. Remove the TTM media tray 3 assembly. See “2000-sheet dual input (TTM)–TTM media tray 3 assembly removal”...
Page 581: 2000-Sheet Dual Input (Ttm)-Sensor (Media Out) Removal
7510-XXX 2000-sheet dual input (TTM)—sensor (media out) removal 1. Remove the tray module left cover. See “2000-sheet dual input (TTM)– tray module left cover removal” on page 4-164. 2. Remove the TTM media tray 3 assembly. See “2000-sheet dual input (TTM)–TTM media tray 3 assembly removal”...
Page 582: 2000-Sheet Dual Input (Ttm)-Feed Roll Removal
7510-XXX 2000-sheet dual input (TTM)—feed roll removal 1. Remove the media tray assembly. 2. Move the feed unit front guide (A) toward the front in the direction of the arrow. 3. Release the hook securing the feed roll (B) to the shaft (C). 4.
Page 583: 2000-Sheet Dual Input (Ttm)-Feed Roll One-Way Clutch Removal
7510-XXX 2000-sheet dual input (TTM)—feed roll one-way clutch removal 1. Remove the media tray assembly. 2. Remove the feed roll. See “2000-sheet dual input (TTM)–feed roll removal” on page 4-190. 3. Remove the feed roll one-way clutch (A) from the shaft (B). 4-191 Repair information...
Page 584: 2000-Sheet Dual Input (Ttm)-One-Way 22 Tooth Removal
7510-XXX 2000-sheet dual input (TTM)—one-way 22 tooth removal 1. Remove the media tray assembly. 2. Remove the feed roll. See “2000-sheet dual input (TTM)–feed roll removal” on page 4-190. 3. Remove the feed roll one-way clutch. See “2000-sheet dual input (TTM)–feed roll one-way clutch removal” on page 4-191.
Page 585: 2000-Sheet Dual Input (Ttm)-Separation Roll One-Way Friction Clutch Removal
7510-XXX 2000-sheet dual input (TTM)—separation roll one-way friction clutch removal 1. Remove the media tray assembly. 2. Remove the separation roll. See “2000-sheet dual input (TTM)–separation roll removal” on page 4-194. 3. Remove the separation roll spacer (A). 4. Remove the separation roll one-way friction clutch (B). 4-193 Repair information...
Page 586: 2000-Sheet Dual Input (Ttm)-Separation Roll Removal
7510-XXX 2000-sheet dual input (TTM)—separation roll removal 1. Remove the media tray assembly. 2. Move the feed unit front guide (A) toward the front in the direction of the arrow. 3. Release the hook securing the separation roll (B) to the shaft (C). 4-194 MFP Service Manual...
Page 587 7510-XXX 4. Remove the separation roll (B). Note: Do not touch the rubber surface of the feed roll (B). Replacement note: Before re-installing, do not touch the rubber surface of the separation roll (B). 4-195 Repair information...
Page 588: 2000-Sheet Dual Input (Ttm)-Pick Roll Removal
7510-XXX 2000-sheet dual input (TTM)—pick roll removal 1. Remove the media tray assembly. 2. Move the front guide (A) toward the front in the direction of the arrow. 3. Release the hook securing the pick roll (B) to the shaft (C). 4.
Page 589: 2000-Sheet Dual Input (Ttm)-Left Door Assembly Removal
7510-XXX 2000-sheet dual input (TTM)—left door assembly removal 1. Remove the tray module left cover. See “2000-sheet dual input (TTM)– tray module left cover removal” on page 4-164. 2. Open the TTM left door assembly. 3. Remove the two screws securing the two support straps (A) to the machine. 4.
Page 590: 2000-Sheet Dual Input (Ttm)-Switch (Ttm Left Door Interlock) Removal
7510-XXX 2000-sheet dual input (TTM)—switch (TTM left door interlock) removal 1. Open the TTM left door assembly. 2. Remove the screw securing the support strap (A) to the machine. 3. Remove the screw securing the bracket (B) to the machine. 4.
Page 591: 2000-Sheet Dual Input (Ttm)-Tray 3 Lift Gear Assembly Removal
7510-XXX 2000-sheet dual input (TTM)—tray 3 lift gear assembly removal 1. Remove the rear cover. See “2000-sheet dual input (TTM)–rear cover removal” on page 4-164. 2. Pull the tray 3 media assembly out of the machine. 3. Remove the two screws securing the tray 3 lift gear assembly (A) to the machine. Note: When removing the tray 3 lift gear assembly (A), the tray lift coupling assembly (B) my become detached.
Page 592: 2000-Sheet Dual Input (Ttm)-Tray Lift Coupling Assembly Removal
7510-XXX 2000-sheet dual input (TTM)—tray lift coupling assembly removal Note: This procedure can be applied to both the tray 3 and the tray 4 media assemblies. 1. Remove the rear cover. See “2000-sheet dual input (TTM)–rear cover removal” on page 4-164.
Page 593 7510-XXX 4. Remove the tray module drive motor (A). Connector 4-201 Repair information...
Page 594: 2000-Sheet Dual Input (Ttm)-Ttm Tray 4 Transport Motor Removal
7510-XXX 2000-sheet dual input (TTM)—TTM tray 4 transport motor removal 1. Remove the rear cover. See “2000-sheet dual input (TTM)–rear cover removal” on page 4-164. 2. Disconnect the connector from the TTM tray 4 transport motor (A). 3. Release the harness from the clamp. 4.
Page 595: 500-Sheet Drawer (3Tm) Removals
7510-XXX 3X 500-sheet drawer (3TM) removals 3X 500-sheet drawer (3TM) —top cover removal 1. Pull out tray 2 assembly (A). 2. Remove the two screws securing the top cover (B). 3. Remove the top cover (B). 4-203 Repair information...
Page 596: 500-Sheet Drawer (3Tm)-Foot Cover Removal
7510-XXX 3X 500-sheet drawer (3TM) —foot cover removal 1. Remove the media tray 4 assembly. 2. Remove the two screws securing the foot cover (A) to the machine. 3. Remove the foot cover (A). 3X 500-sheet drawer (3TM) —right cover removal 1.
Page 597: 500-Sheet Drawer (3Tm)-Tray Module Left Cover Removal
7510-XXX 3X 500-sheet drawer (3TM) —tray module left cover removal 1. Remove the four screws securing the tray module left cover (A). 2. Remove the tray module left cover (A). 3X 500-sheet drawer (3TM) —rear cover removal 1. Remove the four screws securing the rear cover (A). 2.
Page 598: 500-Sheet Drawer (3Tm)-Caster Removal
7510-XXX 3X 500-sheet drawer (3TM) —caster removal 1. Remove the media tray 2 assembly. 2. Remove the media tray 3 assembly. 3. Remove the media tray 4 assembly. 4. Place the right side of the drawer down. 5. Remove the three screws securing the caster (A). 6.
Page 599: 500-Sheet Drawer (3Tm)-Sensor (Tray 4 Feed-Out) Removal
7510-XXX 3X 500-sheet drawer (3TM)—sensor (tray 4 feed-out) removal 1. Open the 3TM left door assembly. 2. Remove the two screws securing the two support straps (A) to the machine. 3. Disconnect the connector from the sensor (tray 4 feed-out) (B). 4.
Page 600: 500-Sheet Drawer (3Tm)-Sensor (Tray 2 Feed-Out) Removal
7510-XXX 3X 500-sheet drawer (3TM)—sensor (tray 2 feed-out) removal 1. Open the 3TM left door assembly. 2. Remove the two screws securing bracket (A) to the machine. 3. Remove the bracket (A). 4. Disconnect the connector from the sensor (tray 2 feed-out) (B). 5.
Page 601: 500-Sheet Drawer (3Tm)-Switch (Media Size) Removal
7510-XXX 3X 500-sheet drawer (3TM)—switch (media size) removal Note: This removal procedure may be applied to media tray 2, 3 and media tray 4 assemblies. 1. Remove the media tray 2 assembly. 2. Remove the media tray 3 assembly. 3. Remove the media tray 4 assembly. 4.
Page 602: 500-Sheet Drawer (3Tm)-Media Feed Unit Assembly Removal (Tray 3)
7510-XXX 3X 500-sheet drawer (3TM)—media feed unit assembly removal (tray 3) 1. Remove the media tray 4 assembly. 2. Open the 3TM left door assembly. 3. Remove the two screws securing the two support straps (A) to the machine. 4. Release the harness from the clamp. 5.
Page 603 7510-XXX 4-211 Repair information...
Page 604: 500-Sheet Drawer (3Tm)-Media Feed Unit Assembly Removal (Tray 2)
7510-XXX 3X 500-sheet drawer (3TM)—media feed unit assembly removal (tray 2) 1. Remove the media tray 2 assembly. 2. Open the 3TM left door assembly. 3. Remove the two screws securing the two support straps (A) to the machine. 4. Release the harness from the clamp. 5.
Page 605: 500-Sheet Drawer (3Tm)-Sensor (Tray 3 Feed-Out) Removal
7510-XXX 3X 500-sheet drawer (3TM)—sensor (tray 3 feed-out) removal 1. Open the 3TM left door assembly. 2. Remove the two screws securing the two support straps (A) to the machine. 3. Disconnect the connector from the sensor (tray 3 feed-out) (B). 4.
Page 606: 500-Sheet Drawer (3Tm)-Media Feed Lift Motor Removal
7510-XXX 7. Remove the sensor (tray 3 feed-out) (B). 3X 500-sheet drawer (3TM)—media feed lift motor removal 1. Remove the media feed unit assembly. See“3X 500-sheet drawer (3TM)–media feed unit assembly removal (tray 2)” on page 4-212 “3X 500-sheet drawer (3TM)–media feed unit assembly removal (tray 3)” on page 4-210.
Page 607: 500-Sheet Drawer (3Tm)-One-Way Clutch / Gear Assembly Removal
7510-XXX 3X 500-sheet drawer (3TM)—one-way clutch / gear assembly removal 1. Remove the media feed unit assembly. See“3X 500-sheet drawer (3TM)–media feed unit assembly removal (tray 2)” on page 4-212 “3X 500-sheet drawer (3TM)–media feed unit assembly removal (tray 3)” on page 4-210.
Page 608: 500-Sheet Drawer (3Tm)-Media Out Actuator Removal
7510-XXX 3X 500-sheet drawer (3TM)—media out actuator removal 1. Remove the media feed unit assembly. See“3X 500-sheet drawer (3TM)–media feed unit assembly removal (tray 2)” on page 4-212 “3X 500-sheet drawer (3TM)–media feed unit assembly removal (tray 3)” on page 4-210.
Page 609: 500-Sheet Drawer (3Tm)-Sensor (Media Level) Removal
7510-XXX 3X 500-sheet drawer (3TM)—sensor (media level) removal 1. Remove the media feed unit assembly. See“3X 500-sheet drawer (3TM)–media feed unit assembly removal (tray 2)” on page 4-212 “3X 500-sheet drawer (3TM)–media feed unit assembly removal (tray 3)” on page 4-210.
Page 610: 500-Sheet Drawer (3Tm)-Sensor (Media Out) Removal
7510-XXX 3X 500-sheet drawer (3TM)—sensor (media out) removal 1. Remove the media feed unit assembly. See“3X 500-sheet drawer (3TM)–media feed unit assembly removal (tray 2)” on page 4-212 “3X 500-sheet drawer (3TM)–media feed unit assembly removal (tray 3)” on page 4-210.
Page 611: 500-Sheet Drawer (3Tm)-Feed Roll Removal
7510-XXX 3X 500-sheet drawer (3TM)—feed roll removal 1. Remove the media tray assembly. 2. Move the feed unit front guide (A) toward the front in the direction of the arrow. 3. Release the hook securing the feed roll (B) to the shaft (C). 4.
Page 612: 500-Sheet Drawer (3Tm)-Feed Roll One-Way Clutch Removal
7510-XXX 3X 500-sheet drawer (3TM)—feed roll one-way clutch removal 1. Remove the media tray assembly. 2. Remove the feed roll. See “2000-sheet dual input (TTM)–feed roll removal” on page 4-190. 3. Remove the feed roll one-way clutch (A) from the shaft (B). Front 4-220 MFP Service Manual...
Page 613: 500-Sheet Drawer (3Tm)-One-Way 22 Tooth Removal
7510-XXX 3X 500-sheet drawer (3TM)—one-way 22 tooth removal 1. Remove the media tray assembly. 2. Remove the feed roll. See “2000-sheet dual input (TTM)–feed roll removal” on page 4-190. 3. Remove the feed roll one-way clutch. See “2000-sheet dual input (TTM)–feed roll one-way clutch removal” on page 4-191.
Page 614: 500-Sheet Drawer (3Tm)-Separation Roll One-Way Friction Clutch Removal
7510-XXX 3X 500-sheet drawer (3TM)—separation roll one-way friction clutch removal 1. Remove the media tray assembly. 2. Remove the separation roll. See “2000-sheet dual input (TTM)–separation roll removal” on page 4-194. 3. Remove the separation roll spacer (A). 4. Remove the separation roll one-way friction clutch (B). Front 4-222 MFP Service Manual...
Page 615: 500-Sheet Drawer (3Tm)-Separation Roll Removal
7510-XXX 3X 500-sheet drawer (3TM)—separation roll removal 1. Remove the media tray assembly. 2. Move the feed unit front guide (A) toward the front in the direction of the arrow. 3. Release the hook securing the separation roll (B) to the shaft (C). Front 4-223 Repair information...
Page 616 7510-XXX 4. Remove the separation roll (B). Note: Do not touch the rubber surface of the feed roll (B). Front Replacement note: Before re-installing, do not touch the rubber surface of the separation roll (B). 4-224 MFP Service Manual...
Page 617: 500-Sheet Drawer (3Tm)-Pick Roll Removal
7510-XXX 3X 500-sheet drawer (3TM)—pick roll removal 1. Remove the media tray assembly. 2. Move the front guide (A) toward the front in the direction of the arrow. 3. Release the hook securing the pick roll (B) to the shaft (C). 4.
Page 618: 500-Sheet Drawer (3Tm)-3Tm Left Door Assembly Removal
7510-XXX 3X 500-sheet drawer (3TM)—3TM left door assembly removal 1. Open the 3TM left door assembly. 2. Remove the two screws securing the two supports straps (A) to the machine. 3. Remove the screw securing the bracket (B) to the machine. 4.
Page 619: 500-Sheet Drawer (3Tm)-Tray Module Drive Motor Assembly Removal
7510-XXX 7. Remove the switch (tray module left door interlock) (C). 3X 500-sheet drawer (3TM)—tray module drive motor assembly removal 1. Remove the rear cover. See “3X 500-sheet drawer (3TM)–rear cover removal” on page 4-205. 2. Disconnect the connector from the tray module drive motor (A). 3.
Page 620: 500-Sheet Drawer (3Tm)-3Tm Controller Card Assembly Removal
7510-XXX 3X 500-sheet drawer (3TM)—3TM controller card assembly removal 1. Remove the rear cover. See “3X 500-sheet drawer (3TM)–rear cover removal” on page 4-205. 2. Disconnect the nine connectors from the 3TM controller card assembly (A). 3. Remove the four screws securing the 3TM controller card assembly (A) to the machine. 4.
Page 621: 500-Sheet Drawer (1Tm) Removals
7510-XXX 1X 500-sheet drawer (1TM) removals 1X 500-sheet drawer (1TM) —top cover removal 1. Pull out tray 2 assembly (A). 2. Remove the two screws securing the top cover (B). 3. Remove the top cover (B). 4-229 Repair information...
Page 622: 500-Sheet Drawer (1Tm)-Front Door Removal
7510-XXX 1X 500-sheet drawer (1TM) —front door removal 1. Open the 1TM front door. 2. Remove the four screws securing the front door (A) to the machine. 3. Remove the front door (A). 1X 500-sheet drawer (1TM) —foot cover removal 1.
Page 623 7510-XXX 2. Remove the right cover (A) by lifting up and out in the direction of the arrow. 4-231 Repair information...
Page 624: 500-Sheet Drawer (1Tm)-Tray Module Left Cover Removal
7510-XXX 1X 500-sheet drawer (1TM) —tray module left cover removal 1. Remove the four screws securing the tray module left cover (A). 2. Remove the tray module left cover (A). 1X 500-sheet drawer (1TM) —rear cover removal 1. Remove the four screws securing the rear cover (A). 2.
Page 625: 500-Sheet Drawer (1Tm)-Caster Removal
7510-XXX 1X 500-sheet drawer (1TM) —caster removal 1. Remove the media tray 2 assembly. 2. Place the right side of the drawer down. 3. Remove the three screws securing the caster (A). 4. Remove the caster (A). 1X 500-sheet drawer (1TM)—media feed unit assembly removal (tray 2) 1.
Page 626: 500-Sheet Drawer (1Tm)-Sensor (Tray 2 Feed-Out) Removal
7510-XXX 1X 500-sheet drawer (1TM)—sensor (tray 2 feed-out) removal 1. Open the 1TM left door assembly. 2. Remove the two screws securing bracket (A) to the machine. 3. Remove the bracket (A). 4. Disconnect the connector from the sensor (tray 2 feed-out) (B). 5.
Page 627: 500-Sheet Drawer (1Tm)-Switch (Media Size) Removal
7510-XXX 1X 500-sheet drawer (1TM)—switch (media size) removal 1. Remove the media tray 2 assembly. 2. Open the 1TM front door. 3. Disconnect the connector from the switch (media size) (A). 4. Remove the screw securing the switch (media size) (A). 5.
Page 628: 500-Sheet Drawer (1Tm)-Media Feed Lift Motor Removal
7510-XXX 1X 500-sheet drawer (1TM)—media feed lift motor removal 1. Remove the media feed unit assembly. See “1X 500-sheet drawer (1TM)–media feed unit assembly removal (tray 2)” on page 4-233. 2. Disconnect the harness from the media feed lift motor (A). 3.
Page 629 7510-XXX 6. Remove the tray lift one-way gear 24 tooth (C). Harness Washer Rear Replacement note: Before re-installing, ensure all gears and washers are securely attached to the bracket (A). 4-237 Repair information...
Page 630: 500-Sheet Drawer (1Tm)-Media Out Actuator Removal
7510-XXX 1X 500-sheet drawer (1TM)—media out actuator removal 1. Remove the media feed unit assembly. See “1X 500-sheet drawer (1TM)–media feed unit assembly removal (tray 2)” on page 4-233. 2. Release the two bosses on the media out actuator (A) from the media feed unit assembly. 3.
Page 631: 500-Sheet Drawer (1Tm)-Sensor (Media Level) Removal
7510-XXX 1X 500-sheet drawer (1TM)—sensor (media level) removal 1. Remove the media feed unit assembly. See “1X 500-sheet drawer (1TM)–media feed unit assembly removal (tray 2)” on page 4-233. 2. Disconnect the connector from the sensor (media level) (A). 3. Release the hooks securing the sensor (media level) (A) to the media feed unit assembly. 4.
Page 632: 500-Sheet Drawer (1Tm)-Sensor (Media Out) Removal
7510-XXX 1X 500-sheet drawer (1TM)—sensor (media out) removal 1. Remove the media feed unit assembly. See “1X 500-sheet drawer (1TM)–media feed unit assembly removal (tray 2)” on page 4-233. 2. Remove the media out actuator. See “1X 500-sheet drawer (1TM)–media out actuator removal” on page 4-238.
Page 633: 500-Sheet Drawer (1Tm)-Feed Roll Removal
7510-XXX 1X 500-sheet drawer (1TM)—feed roll removal 1. Remove the media tray assembly. 2. Move the feed unit front guide (A) toward the front in the direction of the arrow. 3. Release the hook securing the feed roll (B) to the shaft (C). 4.
Page 634: 500-Sheet Drawer (1Tm)-Feed Roll One-Way Clutch Removal
7510-XXX 1X 500-sheet drawer (1TM)—feed roll one-way clutch removal 1. Remove the media tray assembly. 2. Remove the feed roll. See “2000-sheet dual input (TTM)–feed roll removal” on page 4-190. 3. Remove the feed roll one-way clutch (A) from the shaft (B). 4-242 MFP Service Manual...
Page 635: 500-Sheet Drawer (1Tm)-One-Way 22 Tooth Removal
7510-XXX 1X 500-sheet drawer (1TM)—one-way 22 tooth removal 1. Remove the media tray assembly. 2. Remove the feed roll. See “1X 500-sheet drawer (1TM)–feed roll removal” on page 4-241. 3. Remove the feed roll one-way clutch. See “1X 500-sheet drawer (1TM)–feed roll one-way clutch removal” on page 4-242.
Page 636: 500-Sheet Drawer (1Tm)-Separation Roll One-Way Friction Clutch Removal
7510-XXX 1X 500-sheet drawer (1TM)—separation roll one-way friction clutch removal 1. Remove the media tray assembly. 2. Remove the separation roll. See “1X 500-sheet drawer (1TM)–separation roll removal” on page 4-245. 3. Remove the separation roll spacer (A). 4. Remove the separation roll one-way friction clutch (B). 4-244 MFP Service Manual...
Page 637: 500-Sheet Drawer (1Tm)-Separation Roll Removal
7510-XXX 1X 500-sheet drawer (1TM)—separation roll removal 1. Remove the media tray assembly. 2. Move the feed unit front guide (A) toward the front in the direction of the arrow. 3. Release the hook securing the separation roll (B) to the shaft (C). 4.
Page 638: 500-Sheet Drawer (1Tm)-Pick Roll Removal
7510-XXX 1X 500-sheet drawer (1TM)—pick roll removal 1. Remove the media tray assembly. 2. Move the front guide (A) toward the front in the direction of the arrow. 3. Release the hook securing the pick roll (B) to the shaft (C). 4.
Page 639: 500-Sheet Drawer (1Tm)-Tray Module Left Door Assembly Removal
7510-XXX 1X 500-sheet drawer (1TM)—tray module left door assembly removal 1. Open the 3TM/TMM left door assembly. 2. Remove the two screws securing the two supports straps (A) to the machine. 3. Remove the screw securing the bracket (B) to the machine. 4.
Page 640: 500-Sheet Drawer (1Tm)-Switch (Tray Module Left Door Interlock) Removal
7510-XXX 1X 500-sheet drawer (1TM)—switch (tray module left door interlock) removal 1. Open the 1TM left door assembly. 2. Remove the screw securing the support strap (A) to the machine. 3. Remove the screw securing the bracket (B) to the machine. 4.
Page 641: 500-Sheet Drawer (1Tm)-Tray Module Drive Motor Assembly Removal
7510-XXX 1X 500-sheet drawer (1TM)—tray module drive motor assembly removal 1. Remove the rear cover. See “1X 500-sheet drawer (1TM)–rear cover removal” on page 4-232. 2. Disconnect the connector from the tray module drive motor (A). 3. Remove the two screws securing the tray module drive motor (A) to the machine. 4.
Page 642: Setup And Adjustments
7510-XXX Setup and adjustments Sensor (ATC) setup Step Check Warning: Before installing any new developer unit assembles in the machine, record the bar code number located on the sensor (ATC) for all new developer units being installed. Example: Sensor (C ATC) XXX Sensor (M) ATC XXX Sensor (Y) ATC XXX Sensor (K) ATC XXX...
Page 643 7510-XXX Step Check Note: Ensure that all photoconductor unit assemblies are The sensor (ATC) Ensure that the installed before performing this step. setup is now photoconductor complete. unit assemblies Finalize the newly updated settings. are installed before performing 1. Enter the Diagnostics Menu. this test.
Page 644 7510-XXX ATC VALUE CONVERSION CHART Bar code number Sensitivity gradient default value Standard TC output default value (last 2 digits) 4-252 MFP Service Manual...
Page 645 7510-XXX ATC VALUE CONVERSION CHART Bar code number Sensitivity gradient default value Standard TC output default value (last 2 digits) 4-253 Repair information...
Page 646: Color Registration (Regcon)
7510-XXX ATC VALUE CONVERSION CHART Bar code number Sensitivity gradient default value Standard TC output default value (last 2 digits) Color registration (RegCon) Measurement cycle test Step Check Perform the Measurement cycle test. Perform the Go to step 2. “Control sensor 1.
Page 647 7510-XXX Step Check Check the image density sensor assembly connection. Replace the image Replace the density sensor connection. Is the above component properly connected? assembly. “Image density sensor assembly removal” on page 4-45. Re-perform the Measurement cycle test again. Perform the Contact next level “Control sensor of support.
Page 648: Control Sensor Check
7510-XXX Control sensor check Step Check Perform the Control sensor check test. Perform the Go to step 2. “Control sensor 1. Enter the Diagnostics Menu. cycle”. 2. Touch ENGINE ADJUST. “Control 3. Touch RegCon adjust sensor cycle” on 4. Touch Control Sensor Check page 4-256.
Page 649: Belt Edge Learn Test
7510-XXX Belt edge learn test Step Check Perform the Belt edge learn test. Perform “Skew Go to step 2. setup”. 1. Enter the Diagnostics Menu. “Skew fine 2. Touch ENGINE ADJUST. setup” on 3. Touch RegCon adjust page 4-257. 4. Touch Belt edge learn Does the above test pass? Replace the transfer belt unit assembly.
Page 650 7510-XXX Step Check Perform the Skew fine setup printhead adjustment. Perform the In/Out Adjust the setup. printhead 1. Enter the Diagnostics Menu. adjustment screws “In/out 2. Touch ENGINE ADJUST. then perform the setup” on 3. Touch RegCon adjust In/Out setup. page 4-262.
Page 651 7510-XXX Step Check Analyze the fine skew setup. Go to step 4. Go to step 6. 1. Enter the Diagnostics Menu. 2. Touch ENGINE ADJUST. 3. Touch RegCon adjust 4. Touch Control setup cycles 5. Touch Cycle result values Locate the following new values for the following settings: Patch-B in Patch-B out Is the value for both of the above settings a “4”?
Page 652 7510-XXX Step Check Perform the skew rough setup printhead adjustment. Re-perform step 1. Go to step 6. If the test fails then 1. Enter the Diagnostics Menu. replace the 2. Touch ENGINE ADJUST. printhead. 3. Touch RegCon adjust “Printhead 4. Touch Control setup cycles assembly 5.
Page 653 7510-XXX Step Check Check the image density sensor assembly for toner Remove and clean Go to step 8. contamination. the image density sensor assembly. Is the above component dirty or contaminated? “Image density sensor assembly removal” on page 4-45. Re-Perform the Skew fine setup. Perform the In/Out Replace the image setup.
Page 654: In/Out Setup
7510-XXX In/out setup Step Check Perform the In/out setup: Perform the Go to step 2. Center setup. 1. Enter the Diagnostics Menu. “Center 2. Touch ENGINE ADJUST. setup” on 3. Touch RegCon adjust page 4-266. 4. Touch Control setup cycles 5.
Page 655 7510-XXX Step Check Perform the skew rough setup printhead adjustment. Re-perform step 1. Go to step 7. If the test fails then 1. Enter the Diagnostics Menu. replace the 2. Touch ENGINE ADJUST. printhead. 3. Touch RegCon adjust “Printhead 4. Touch Control setup cycles assembly 5.
Page 656 7510-XXX Step Check Perform the In/out skew setup printhead adjustment. Go to the Center Adjust the setup. printhead 1. Enter the Diagnostics Menu. adjustment screw “Center 2. Touch ENGINE ADJUST. then go to Center setup” on 3. Touch RegCon adjust setup.
Page 657 7510-XXX Step Check Check the image density sensor assembly for toner Remove and clean Go to step 8. contamination. the image density sensor assembly. Is the above component dirty or contaminated? “Image density sensor assembly removal” on page 4-45. Re-Perform the In/out setup. Perform the Replace the image Center setup.
Page 658: Center Setup
7510-XXX Center setup 4-266 MFP Service Manual...
Page 659 7510-XXX Step Check Warning: Ensure that the image density sensor Go to step 2. Repeat step 1. assembly is moved to the center position or the test will not function. Move the image density sensor assembly to the center position. 1.
Page 660 7510-XXX Step Check Perform the center setup: Move the image Go to step 3. density sensor 1. Enter the Diagnostics Menu. back to its original 2. Touch ENGINE ADJUST. position. 3. Touch RegCon adjust The color 4. Touch Control setup cycles registration 5.
Page 661: Connector Locations
7510-XXX 5. Connector locations Locations Connector locations...
Page 662 7510-XXX Scanner LVPS CCD/lens card assembly card assembly Scanner controller card assembly Switch (platen interlock) MFP Service Manual...
Page 663 7510-XXX Waste toner agitator motor assembly Sensor (waste toner cartridge full) Switch (waste toner cartridge interlock) Connector locations...
Page 664 7510-XXX Image density sensor assembly Duplex unit assembly Printer left door assembly MFP Service Manual...
Page 665 7510-XXX Fuser unit assembly Thumb screws C toner add motor K toner add motor M toner add motor Y toner add motor Main power switch activator Switch (main power) Connector locations...
Page 666 7510-XXX Printhead Polygon mirror motor MFP Service Manual...
Page 667 7510-XXX Charge roll HVPS card assembly 24 V LVPS card assembly Developer/transfer roll HVPS card assembly Connector locations...
Page 668 7510-XXX AC drive card assembly Printer power Finisher power hookup connector hookup connector Upper printer engine card assembly NVM card assembly MFP Service Manual...
Page 669 7510-XXX Lower printer card assembly CMYK transfer roll HVPS card assembly 5V LVPS card assembly Connector locations...
Page 670 7510-XXX Feed/lift motor Sensor (media out) Sensor (media level) Media feed unit assembly Sensor (printer left lower door interlock) Sensor (tray 1 feed-out) Printer left lower door assembly 5-10 MFP Service Manual...
Page 671 7510-XXX 5-11 Connector locations...
Page 672 7510-XXX 5-12 MFP Service Manual...
Page 673 7510-XXX 3TM controller card assembly Tray module drive motor Feed/lift motor Sensor (media out) Sensor (media level) Switch (tray module Media feed left door interlock) unit assembly Sensor (tray 2 feed-out) Sensor (tray 3 feed-out) 3TM left door assembly Sensor (tray 4 feed-out) 5-13 Connector locations...
Page 674 7510-XXX TTM controller card assembly Tray module drive motor TTM tray 4 transport drive motor 5-14 MFP Service Manual...
Page 675 7510-XXX Switch (media size) Switch (TTM media size) 5-15 Connector locations...
Page 676 7510-XXX Media feed unit assembly Sensor (tray 4 feed-out) 5-16 MFP Service Manual...
Page 677: Preventive Maintenance
Damaged, missing, or altered parts, especially in the area of the on/off switch and the power supply • Damaged, missing, or altered covers, especially in the area of the top cover and the power supply cover • Possible safety exposure from any non-Lexmark attachments EVERY EVERY EVERY LEXMARK X940e &...
Page 678 7510-XXX EVERY EVERY EVERY LEXMARK X940e & X945e SERVICE NOTE: 100K 600K CALL DEVELOPER UNITS Transfer Developer unit (4) Replace C developer carrier Replace M developer carrier Replace Y developer carrier Replace K developer carrier Replace TRANSFER ROLL 2nd Transfer Roll assembly...
Page 679: Scheduled Maintenance
7510-XXX Lubrication specifications Lubricate only when parts are replaced or as needed, not on a scheduled basis. Use of lubricants other than those specified can cause premature failure. Some unauthorized lubricants may chemically attack polycarbonate parts. Use IBM no. 10 oil, P/N 1280443 (Approved equivalents: Mobil DTE27, Shell Tellus 100, Fuchs Renolin MR30), IBM no.
Page 680 7510-XXX After replacing the kit, the maintenance count must be reset to zero to clear the “80 scheduled maintenance” message. To reset the maintenance count Turn off the printer. Press and hold the 2 and 6 buttons simultaneously. Turn on the printer. Release the buttons after 10 seconds.
Page 681: Parts Catalog
NS: (Not shown) in the Asm-Index column indicates that the part is procurable but is not pictured in the illustration. • PP: (Parts Packet) in the parts description column indicates the part is contained in a parts packet. Model name Configuration Machine type Maximum speed Lexmark X940e Network 7510-030 35 PPM Lexmark X945e Network 7510-230 45 PPM...
Page 682: Assembly 1: Covers 1
7510-XXX Assembly 1: Covers 1 Asm- Part FRUs/ Units/ Description index number mach 40X0553 Switch (printer front door interlock) 40X0553 Switch (transfer access door interlock) 40X3780 Right cover assembly 40X3778 Printer front door assembly (this comes assembled) 40X3779 Printhead slit glass cleaning assembly MFP Service Manual...
Page 683: Assembly 2: Covers 2
7510-XXX Assembly 2: Covers 2 Asm- Part FRUs/ Units/ Description index number mach 40X3782 RIP card access cover 40X3781 Top cover assembly 40X3787 Switch (main power) 40X3786 Main power switch actuator 40X3783 Main switch cable assembly 40X3785 Inner cover 40X3784 Front left cover Parts catalog...
Page 684: Assembly 3: Covers 3
7510-XXX Assembly 3: Covers 3 Asm- Part FRUs/ Units/ Description index number mach 40X3796 Rear left upper cover 40X3793 Rear left middle cover 40X3795 Left front cover 40X3794 Rear left lower cover 40X3788 Rear blind cover 40X3789 Rear cover assembly 110 V 40X3790 Rear cover assembly 220 V •...
Page 685: Assembly 4: Pc Cartridge And Developer Drive
7510-XXX Assembly 4: PC cartridge and developer drive Asm- Part FRUs/ Units/ Description index number mach 40X3671 Developer idler gear assembly 40X3669 CMY developer drive motor assembly 40X3670 Developer/transport drive motor assembly 40X3672 MPF/transport drive motor assembly 40X3667 CMYK PC cartridge drive motor assembly 40X3668 Transfer belt drive motor assembly Parts catalog...
Page 686: Assembly 5: Id Sensor And Transfer Belt Steering
7510-XXX Assembly 5: ID sensor and transfer belt steering Asm- Part FRUs/ Units/ Description index number mach 40X3674 Image density sensor assembly 40X3673 Transfer belt steering motor MFP Service Manual...
Page 687: Assembly 6: Media Tray
7510-XXX Assembly 6: Media tray Asm- Part FRUs/ Units/ Description index number mach 40X3677 Switch (media size) 40X3676 Media tray slide 40X3678 Media tray assembly kit • Media tray assembly • #1 label • #2 label • #3 label • #4 label •...
Page 688: Assembly 7: Printer Left Lower Door And Media Feed Unit
7510-XXX Assembly 7: Printer left lower door and media feed unit Asm- Part FRUs/ Units/ Description index number mach 40X3679 Media feed unit assembly 40X3688 Sensor (printer left lower door interlock) 40X0613 Hinge pin 40X3680 Printer left lower door assembly (this comes assembled) 40X3681 Sensor (tray 1 feed-out) 40X3682...
Page 689: Assembly 8: Media Feed Unit
7510-XXX Assembly 8: Media feed unit Parts catalog...
Page 690 7510-XXX Assembly 8: Media feed unit Asm- Part FRUs/ Units/ Description index number mach 40X3679 Media feed unit assembly 40X3687 Media out actuator 40X3688 Sensor (tray media out) 40X3688 Sensor (tray media level) 40X3684 Media feed lift motor 40X0888 Bushing 6 mm 40X3686 Media tray lift one-way gear 40X3685...
Page 691: Assembly 9: Mpf Feed Unit Assembly 1
7510-XXX Assembly 9: MPF feed unit assembly 1 Asm- Part FRUs/ Units/ Description index number mach 40X4079 MPF feed unit assembly (this comes assembled) 7-11 Parts catalog...
Page 692: Assembly 10: Mpf Feed Unit Assembly 2
7510-XXX Assembly 10: MPF feed unit assembly 2 Asm- Part FRUs/ Units/ Description index number mach 40X4079 MPF feed unit assembly (this comes assembled) 40X3688 Sensor (MPF media out) 40X3709 MPF media out actuator 40X0755 MPF pickup spring 7-12 MFP Service Manual...
Page 693: Assembly 11: Mpf Feed Unit Assembly 3
7510-XXX Assembly 11: MPF feed unit assembly 3 Asm- Part FRUs/ Units/ Description index number mach 40X4079 MPF feed unit assembly (this comes assembled) 40X3711 MPF pick roll kit • MPF pick roll (2) 40X1381 Bushing 8 mm 7-13 Parts catalog...
Page 694: Assembly 12: Registration / Transport Roll Assembly
7510-XXX Assembly 12: Registration / transport roll assembly Asm- Part FRUs/ Units/ Description index number mach 40X3692 Registration/transport roll assembly (this comes assembled) 40X3695 Sensor (transparency detect) 40X3694 Sensor (registration) 40X3693 Registration clutch 7-14 MFP Service Manual...
Page 695: Assembly 13: Printer Left Door And Duplex
7510-XXX Assembly 13: Printer left door and duplex Asm- Part FRUs/ Units/ Description index number mach 40X4078 Printer left door assembly (this comes assembled) 40X3697 Printer left door damper assembly 40X3696 Printer left door damper idler gear 40X3799 Duplex unit assembly (this comes assembled) 40X3798 Printer left door blind cover 7-15...
Page 696: Assembly 14: Printer Left Door Assembly 1
7510-XXX Assembly 14: Printer left door assembly 1 Asm- Part FRUs/ Units/ Description index number mach 40X4078 Printer left door assembly (this comes assembled) 40X4098 Printer left door closed actuator 40X3699 Sensor (fuser exit) 40X3698 2nd transfer roll assembly 40X3700 Printer left door duplex exit guide 7-16 MFP Service Manual...
Page 697: Assembly 15: Printer Left Door Assembly 2
7510-XXX Assembly 15: Printer left door assembly 2 Asm- Part FRUs/ Units/ Description index number mach 40X4078 Printer left door assembly (this comes assembled) 40X3704 Printer left door damper sector gear 40X3688 Sensor (2nd transfer roll retract HP) 40X3701 2nd transfer roll retract cam assembly 40X3702 2nd transfer retract motor assembly 40X3703...
Page 698: Assembly 16: Duplex Media Inverter Assembly
7510-XXX Assembly 16: Duplex media inverter assembly Asm- Part FRUs/ Units/ Description index number mach 40X3797 Duplex media inverter assembly 7-18 MFP Service Manual...
Page 699: Assembly 17: Duplex 1
7510-XXX Assembly 17: Duplex 1 Asm- Part FRUs/ Units/ Description index number mach 40X3799 Duplex unit assembly (this comes assembled) 40X3798 Printer left door blind cover 7-19 Parts catalog...
Page 700: Assembly 18: Duplex 2
7510-XXX Assembly 18: Duplex 2 Asm- Part FRUs/ Units/ Description index number mach 40X3799 Duplex unit assembly (this comes assembled) 40X3802 Duplex drive motor 40X3801 Sensor (duplex wait) 40X3800 Duplex controller card assembly 40X3803 Switch (duplex left door interlock) 7-20 MFP Service Manual...
Page 701: Assembly 19: Standard Media Exit Shift
7510-XXX Assembly 19: Standard media exit shift Asm- Part FRUs/ Units/ Description index number mach 40X3705 Standard media exit shift assembly (this comes assembled) 40X3707 Standard bin full actuator 40X3688 Sensor (standard bin full) 40X0553 Switch (printer left door interlock) 40X3706 Standard exit top cover 40X4080...
Page 702: Assembly 20: Printhead Assembly
7510-XXX Assembly 20: Printhead assembly Asm- Part FRUs/ Units/ Description index number mach 40X3712 Printhead assembly 7-22 MFP Service Manual...
Page 703: Assembly 21: Xerographic And Waste Toner
7510-XXX Assembly 21: Xerographic and waste toner Asm- Part FRUs/ Units/ Description index number mach 40X3713 Waste toner cartridge cover 40X3715 Switch (waste toner cartridge interlock) 40X3717 Sensor (waste toner cartridge full) 40X3714 Waste toner cartridge sensor assembly (this comes assembled) 40X3716 Waste toner agitator motor assembly 7-23...
Page 704: Assembly 22: Erase Lamps And Developer Interlock Plate
7510-XXX Assembly 22: Erase lamps and developer interlock plate Asm- Part FRUs/ Units/ Description index number mach 40X3720 K erase lamp assembly 40X3719 CMY erase lamp assembly 40X3718 Developer interlock plate assembly 7-24 MFP Service Manual...
Page 705: Assembly 23: Transfer Belt Lift 1
7510-XXX Assembly 23: Transfer belt lift 1 Asm- Part FRUs/ Units/ Description index number mach 40X3722 Right transfer belt lift assembly 40X3727 Transfer belt lift handle assembly 40X3723 Transfer belt lift latch assembly with label 40X3721 Left transfer belt lift assembly 7-25 Parts catalog...
Page 706: Assembly 24: Transfer Belt
7510-XXX Assembly 24: Transfer belt Asm- Part FRUs/ Units/ Description index number mach 40X3732 Transfer belt unit assembly 40X3733 Transfer belt cleaning assembly 40X3729 Transfer belt auger front gear 14T 40X3731 Transfer belt auger assembly 40X0880 Bushing 6 mm 40X3730 Transfer belt auger rear gear 18T 7-26 MFP Service Manual...
Page 707: Assembly 25: Transfer Belt Lift 2
7510-XXX Assembly 25: Transfer belt lift 2 Asm- Part FRUs/ Units/ Description index number mach 40X3735 Transfer belt lift rear plunger assembly 40X3734 Transfer belt lift recoil spring 40X3736 Transfer belt lift front plunger assembly 7-27 Parts catalog...
Page 708: Assembly 26: Toner Dispense
7510-XXX Assembly 26: Toner Dispense Asm- Part FRUs/ Units/ Description index number mach 40X3740 K toner dispense assembly 40X3739 C toner dispense assembly 40X3738 M toner dispense assembly 40X3737 Y toner dispense assembly 40X3741 CMYK toner add motor assembly 40X0636 Sensor (RFID toner cartridge) 7-28 MFP Service Manual...
Page 709: Assembly 27: Developer Unit Assemblies
7510-XXX Assembly 27: Developer unit assemblies Asm- Part FRUs/ Units/ Description index number mach 40X3742 Developer unit assembly 40X3744 Y developer carrier 40X3745 M developer carrier 40X3746 C developer carrier 40X3743 K developer carrier 7-29 Parts catalog...
Page 710: Assembly 28: Fuser Assembly
7510-XXX Assembly 28: Fuser assembly Asm- Part FRUs/ Units/ Description index number mach 40X3747 Fuser assembly 110 V 40X3748 Fuser assembly 220 V 7-30 MFP Service Manual...
Page 711: Assembly 29: Cooling Fans
7510-XXX Assembly 29: Cooling fans Asm- Part FRUs/ Units/ Description index number mach 40X3750 Fuser cooling fan 40X3749 Printhead shutter motor assembly 40X3752 Rear lower cooling fan assembly (this comes assembled) 40X3751 Transfer belt drive motor cooling fan 7-31 Parts catalog...
Page 712: Assembly 30: Electrical 1
7510-XXX Assembly 30: Electrical 1 7-32 MFP Service Manual...
Page 713 7510-XXX Assembly 30: Electrical 1 Asm- Part FRUs/ Units/ Description index number mach 40X3762 Laser diode power card assembly 40X3757 Lower printer engine card assembly 40X3758 24 V LVPS card assembly 40X3763 Rear upper cooling fan 40X3759 24 V LVPS cooling fan 40X3760 CMYK transfer roll HVPS card assembly 40X3755...
Page 714: Assembly 31: Electrical 2
7510-XXX Assembly 31: Electrical 2 Asm- Part FRUs/ Units/ Description index number mach 40X3764 AC drive card bracket assembly 110 V (this comes assembled) 40X3765 AC drive card bracket assembly 220 V (this comes assembled) 40X3766 Outlet power panel cable assembly 7-34 MFP Service Manual...
Page 715: Assembly 32: Electrical 3
7510-XXX Assembly 32: Electrical 3 7-35 Parts catalog...
Page 716 7510-XXX Assembly 32: Electrical 3 Asm- Part FRUs/ Units/ Description index number mach 40X3775 DC main cable assembly 40X3776 DC rear right cable assembly 40X3774 2nd transfer charge roll cable 40X3771 CK transfer roll cable assembly 40X3770 YM transfer roll cable assembly 40X3772 Transfer belt charge cable 40X3769...
Page 717: Assembly 33: Electrical 4
7510-XXX Assembly 33: Electrical 4 7-37 Parts catalog...
Page 718 7510-XXX Assembly 33: Electrical 4 Asm- Part FRUs/ Units/ Description index number mach 40X3804 RIP card cooling fan cover assembly (this comes assembled) 40X3807 RIP bridge card assembly 40X2359 Interconnect card assembly 40X4091 MFP RIP card assembly 40X3808 Upper printer engine card chassis assembly 40X4151 Hard drive assembly includes: •...
Page 719: Assembly 34: Adf Assembly
7510-XXX Assembly 34: ADF assembly Part Units/ Units/ kit Description Index number mach or pkg 40X3879 ADF unit assembly (this comes assembled) 40X2239 Platen cushion 40X4094 Scanner unit assembly (this comes assembled) 40X2238 ADF mounting screw 7-39 Parts catalog...
Page 720: Assembly 35: Adf Covers And Components
7510-XXX Assembly 35: ADF covers and components Part Units/ Units/ kit Description Index number mach or pkg 40X2244 ADF rear cover 40X2246 Small hook/loop strip 40X3881 ADF front cover assembly 40X3880 Document tray assembly (this comes assembled) 40X2243 Document tray hinge 7-40 MFP Service Manual...
Page 721: Assembly 36: Adf Base
7510-XXX Assembly 36: ADF base Front 7-41 Parts catalog...
Page 722 7510-XXX Assembly 36: ADF base Part Units/ Units/ kit Description Index number mach or pkg 40X2257 ADF left hinge 40X3883 ADF registration pinch/frame assembly (this comes assembled) 40X2247 Large hook/loop strip 40X2330 Spring 40X2354 Registration pad 40X2355 Registration pad cover 40X2248 Solenoid/interlock cable assembly 40X2260...
Page 723: Assembly 37: Adf Feeder
7510-XXX Assembly 37: ADF feeder 7-43 Parts catalog...
Page 724 7510-XXX Assembly 37: ADF feeder Part Units/ Units/ kit Description Index number mach or pkg 40X3884 ADF left cover assembly (this comes assembled) 40X2265 Registration motor cable assembly 40X2266 ADF feed motor cable assembly 40X2264 Document set/sheet through cable assembly 40X2267 Left cover hinge retainer 40X2270...
Page 725: Assembly 38: Adf Left Cover Components
7510-XXX Assembly 38: ADF left cover components 7-45 Parts catalog...
Page 726 7510-XXX Assembly 38: ADF left cover components Part Units/ Units/ kit Description Index number mach or pkg 40X2223 Sensor (pick roll position HP) 40X2291 Plastic ring clip 6 mm 40X3887 ADF feed/pick roll assembly (this comes assembled) 40X2276 Left cover pinch roll assembly (this comes assembled) 40X3886 ADF left cover handle 40X2381...
Page 727: Assembly 39: Adf Media Guide
7510-XXX Assembly 39: ADF media guide 7-47 Parts catalog...
Page 728 7510-XXX Assembly 39: ADF media guide Part Units/ Units/ kit Description Index number mach or pkg 40X3890 Actuator/media guide assembly (this comes assembled) 40X2289 Inverter gate 40X2288 ADF main feed cable assembly 40X2223 Sensor (ADF pre-registration) 40X0589 Sensor (ADF registration) 40X2223 Sensor (ADF width APS 1) 40X2223...
Page 729: Assembly 40: Adf Feeder Roll
7510-XXX Assembly 40: ADF feeder roll 7-49 Parts catalog...
Page 730 7510-XXX Assembly 40: ADF feeder roll Part Units/ Units/ kit Description Index number mach or pkg 40X2383 ADF main feed assembly (this comes assembled) 40X2346 Manual feed drive wheel 40X2345 Manual feed drive belt 40X2291 Plastic ring clip kit includes: •...
Page 731: Assembly 41: Adf Motor Unit
7510-XXX Assembly 41: ADF motor unit Part Units/ Units/ kit Description Index number mach or pkg 40X2327 ADF feed motor assembly (this comes assembled) 40X2223 Sensor (sheet through) 40X2229 Tension spring 40X2325 ADF registration motor 7-51 Parts catalog...
Page 732: Assembly 42: Adf Document Tray
7510-XXX Assembly 42: ADF document tray Part Units/ Units/ kit Description Index number mach or pkg 40X3880 Document tray assembly (this comes assembled) 40X3892 Sensor (document tray length 1) 40X3892 Sensor (document tray length 2) 40X2223 Sensor (document tray width 1) 40X2223 Sensor (document tray width 2) 40X2223...
Page 733: Assembly 43: Scanner Covers
7510-XXX Assembly 43: Scanner covers Part Units/ Units/ kit Description Index number mach or pkg 40X3852 Scanner right cover 40X4094 Complete scanner assembly (this comes assembled) 40X3851 Scanner left cover 40X3855 Scanner interface cable assembly 40X3856 Scanner rear cover assembly 7-53 Parts catalog...
Page 734: Assembly 44: Ccd Lens Assembly
7510-XXX Assembly 44: CCD lens assembly 7-54 MFP Service Manual...
Page 735 7510-XXX Assembly 44: CCD lens assembly Part Units/ Units/ kit Description Index number mach or pkg 40X3867 Scanner main cable assembly 40X3864 Scanner LVPS cable assembly 110 V 40X4037 Scanner LVPS cable assembly 220 V 40X3865 Scanner LVPS card assembly 110 V 40X3866 Scanner LVPS card assembly 220 V 40X3862...
Page 736: Assembly 45: Control Panel And Platen Glass
7510-XXX Assembly 45: Control panel and platen glass 7-56 MFP Service Manual...
Page 737 40X2208 Large platen glass 40X2218 Large platen glass retainer 40X4094 Complete scanner assembly (this comes assembled) 40X3863 Operator panel bezel X940e model 40X3870 Operator panel bezel X945e model 40X4096 Operator panel assembly (universal) 40X4090 Operator panel controller card assembly 40X2364...
Page 738: Assembly 46: Scanner Electrical
7510-XXX Assembly 46: Scanner electrical Part Units/ Units/ kit Description Index number mach or pkg 40X3875 Scanner controller card assembly 40X2217 Card mounting screw 7-58 MFP Service Manual...
Page 739: Assembly 47: Scanner Optics
7510-XXX Assembly 47: Scanner optics 7-59 Parts catalog...
Page 740 7510-XXX Assembly 47: Scanner optics Part Units/ Units/ kit Description Index number mach or pkg 40X2232 2nd/3rd mirror 40X2233 Scanner mirror clip 40X3872 Exposure lamp PS ribbon cable 40X2234 1st mirror 40X3871 Exposure lamp PS card assembly 40X3873 Exposure lamp PS card insulator 40X3874 Exposure lamp 7-60...
Page 741: Assembly 48: Carriage Cable And Motor
7510-XXX Assembly 48: Carriage cable and motor Part Units/ Units/ kit Description Index number mach or pkg 40X4094 Complete scanner assembly (this comes assembled) 40X2223 Sensor (scanner HP) 40X2229 Scanner drive motor tension spring 40X3868 Scanner drive motor assembly 40X2226 Scanner drive belt 7-61 Parts catalog...
Page 742: Assembly 49: Mfp Rack
7510-XXX Assembly 49: MFP rack Part Units/ Units/ kit Description Index number mach or pkg 40X3878 Main stand caster 40X4097 Main stand attach bracket 7-62 MFP Service Manual...
Page 743: Assembly 50: 1Tm Covers
7510-XXX Assembly 50: 1TM covers Asm- Part FRUs/ Units/ Description index number mach 40X3825 Tray module right cover 40X3824 Tray module foot cover 40X4142 1TM front door assembly 40X3826 Tray module left cover 40X3827 Tray module rear cover 40X3823 Tray module top cover 7-63 Parts catalog...
Page 744: Assembly 51: 1Tm Feed Unit Assembly
7510-XXX Assembly 51: 1TM feed unit assembly 7-64 MFP Service Manual...
Page 745 7510-XXX Assembly 51: 1TM feed unit assembly Asm- Part FRUs/ Units/ Description index number mach 40X3677 Switch (media size) 40X3676 Media tray slide 40X3675 Media tray catch 40X3678 Media tray assembly kit • Media tray assembly • #1 label • #2 label •...
Page 746: Assembly 52: 1Tm Media Feed Unit
7510-XXX Assembly 52: 1TM media feed unit 7-66 MFP Service Manual...
Page 747 7510-XXX Assembly 52: 1TM media feed unit Asm- Part FRUs/ Units/ Description index number mach 40X3679 Media feed unit assembly 40X3687 Media out actuator 40X3688 Sensor (tray media out) 40X3688 Sensor (tray media level) 40X3684 Media feed lift motor 40X0888 Bushing 6 mm 40X3686 Media tray lift one-way gear...
Page 748: Assembly 53: 1Tm Left Door
7510-XXX Assembly 53: 1TM left door Asm- Part FRUs/ Units/ Description index number mach 40X3818 Tray 2 feed-out sensor cable assembly 40X3817 Sensor (tray 2 feed-out) 40X3821 Switch (tray module left door interlock) 40X4141 1TM left door assembly (this comes assembled) 40X4119 Tray module media transport roll assembly 7-68...
Page 749: Assembly 54: 1Tm Drive And Electrical
7510-XXX Assembly 54: 1TM drive and electrical 7-69 Parts catalog...
Page 750 7510-XXX Assembly 54: 1TM drive and electrical Asm- Part FRUs/ Units/ Description index number mach 40X4152 1TM controller card assembly 40X3812 Tray module drive motor assembly 40X4068 Tray module left retaining bracket 40X4034 Tray module retainer screw 40X3815 Media transport gear 33T 40X3813 Media transport gear 23/46T 40X4117...
Page 751: Assembly 55: 3Tm Covers
7510-XXX Assembly 55: 3TM covers 7-71 Parts catalog...
Page 752 7510-XXX Assembly 55: 3TM covers Asm- Part FRUs/ Units/ Description index number mach 40X3825 Tray module right cover 40X3824 Tray module foot cover 40X3826 Tray module left cover 40X3827 Tray module rear cover 40X3823 Tray module top cover 7-72 MFP Service Manual...
Page 753: Assembly 56: 3Tm Feed Unit Assembly
7510-XXX Assembly 56: 3TM feed unit assembly 7-73 Parts catalog...
Page 754 7510-XXX Assembly 56: 3TM feed unit assembly Asm- Part FRUs/ Units/ Description index number mach 40X3677 Switch (media size) 40X3676 Media tray slide 40X3675 Media tray catch 40X3678 Media tray assembly kit • Media tray assembly • #1 label • #2 label •...
Page 755: Assembly 57: 3Tm Media Feed Unit
7510-XXX Assembly 57: 3TM media feed unit 7-75 Parts catalog...
Page 756 7510-XXX Assembly 57: 3TM Media feed unit Asm- Part FRUs/ Units/ Description index number mach 40X3679 Media feed unit assembly 40X3687 Media out actuator 40X3688 Sensor (tray media out) 40X3688 Sensor (tray media level) 40X3684 Media feed lift motor 40X0888 Bushing 6 mm 40X3686 Media tray lift one-way gear...
Page 757: Assembly 58: 3Tm Left Door
7510-XXX Assembly 58: 3TM left door 7-77 Parts catalog...
Page 758 7510-XXX Assembly 58: 3TM left door Asm- Part FRUs/ Units/ Description index number mach 40X3818 Tray 2 feed-out sensor cable assembly 40X3817 Sensor (tray 2 feed-out) 40X3821 Switch (tray module left door interlock) 40X3819 Tray 3/4 feed-out sensor actuator 40X3820 Sensor (tray 3 feed-out) 40X3820 Sensor (tray 4 feed-out)
Page 759: Assembly 59: 3Tm Drive And Electrical
7510-XXX Assembly 59: 3TM drive and electrical 7-79 Parts catalog...
Page 760 7510-XXX Assembly 59: 3TM drive and electrical Asm- Part FRUs/ Units/ Description index number mach 40X3811 3TM controller card assembly 40X3812 Tray module drive motor assembly 40X4068 Tray module left retaining bracket 40X4034 Tray module retainer screw 40X3815 Media transport gear 33T 40X3814 Media transport gear 46T 40X3813...
Page 761: Assembly 60: Ttm Covers
7510-XXX Assembly 60: TTM covers Asm- Part FRUs/ Units/ Description index number mach 40X3825 Tray module right cover 40X3824 Tray module foot cover 40X3826 Tray module left cover 40X3827 Tray module rear cover 40X3823 Tray module top cover 7-81 Parts catalog...
Page 762: Assembly 61: Ttm Media Trays
7510-XXX Assembly 61: TTM media trays 7-82 MFP Service Manual...
Page 763 7510-XXX Assembly 61: TTM media trays Asm- Part FRUs/ Units/ Description index number mach 40X3678 Media tray assembly kit • Media tray assembly • #1 label • #2 label • #3 label • #4 label • Instruction label 40X3830 Switch (TTM media size) 40X3831 TTM tray support roll 40X3829...
Page 764: Assembly 62: Ttm Media Tray 3
7510-XXX Assembly 62: TTM media tray 3 7-84 MFP Service Manual...
Page 765 7510-XXX Assembly 62: TTM tray 3 Asm- Part FRUs/ Units/ Description index number mach 40X0711 TTM tray separation pad 40X3832 TTM tray 3 front cover 40X4126 TTM tray lift idler pulley 40X4127 TTM tray lift idler pulley guide 40X4084 TTM tray 3 lift cable 40X0708 TTM large idler pulley kit •...
Page 766: Assembly 63: Ttm Media Tray 4
7510-XXX Assembly 63: TTM media tray 4 Asm- Part FRUs/ Units/ Description index number mach 40X3836 TTM tray 4 front cover 40X4126 TTM tray lift idler pulley 40X4127 TTM tray lift idler pulley guide 40X4085 TTM tray 4 lift cable 40X0723 TTM tray 4 rear support roll (2) 40X0711...
Page 767: Assembly 64: Ttm Media Tray 4 Transport
7510-XXX Assembly 64: TTM media tray 4 transport Asm- Part FRUs/ Units/ Description index number mach 40X3838 TTM tray 4 media transport assembly 40X3679 Media feed unit assembly 40X3841 TTM tray 4 lower media guide 40X3840 TTM tray 4 upper media guide 40X3694 Sensor (tray 4 feed-out) 7-87...
Page 768: Assembly 65: Ttm Media Transport
7510-XXX Assembly 65: TTM media transport Asm- Part FRUs/ Units/ Description index number mach 40X3817 Sensor (tray 2 feed-out) 40X3843 TTM vertical turn guide 40X3679 Media feed unit assembly 40X3842 Tray 3 feed-out sensor assembly (this comes assembled) 40X3818 Tray 2 feed-out sensor cable assembly 40X4119 Tray module media transport roll assembly 7-88...
Page 769: Assembly 66: Ttm Left Door
7510-XXX Assembly 66: TTM left door Asm- Part FRUs/ Units/ Description index number mach 40X3844 TTM left door assembly (this comes assembled) 40X3821 Switch (tray module left door interlock) 7-89 Parts catalog...
Page 770: Assembly 67: Ttm Tray Lift Drive
7510-XXX Assembly 67: TTM tray lift drive Asm- Part FRUs/ Units/ Description index number mach 40X3848 TTM tray lift coupling assembly 40X3847 TTM tray lift gear 17T 40X0880 Bushing 6 mm 40X3845 TTM tray 3 lift gear assembly 40X3846 TTM tray 4 lift gear assembly 7-90 MFP Service Manual...
Page 771: Assembly 68: Ttm Drive And Electrical
7510-XXX Assembly 68: TTM drive and electrical 7-91 Parts catalog...
Page 772 7510-XXX Assembly 68: TTM drive and electrical Asm- Part FRUs/ Units/ Description index number mach 40X3850 TTM controller card assembly 40X3849 TTM tray 4 transport drive motor assembly 40X3812 Tray module drive motor assembly 40X4068 Tray module left retaining bracket 40X3815 Media transport gear 33T 40X3814...
Page 773: Assembly 69: Miscellaneous
40X0949 Assorted screw packet 40X4101 MFP relocation kit 56P2129 Lexmark MarkNet N7020e (4 USB ports) 1-0/100/1000 w/out power cord 56P2744 N4050e 802.11g Wireless Print Server (Americas, Argentina, & Brazil) w/out power cord 56P2745 N4050e 802.11g Wireless Print Server (European, UK/Ireland, & Australia)
Page 774: Index
40X1378 Marknet N8050 802.11g wireless, US 40X1562 Marknet N8050 802.11g wireless, International 40X1593 Lexmark marknet N7000e (1 USB port) 10/100 ethernet 40X1594 Lexmark marknet N7002e (1 parallel port) 10/100 ethernet 40X1592 Lexmark marknet N7020e (4 USB ports) 10/100/1000 ethernet 7-94...
Page 775 7510-XXX Index 2-10 Numerics selected radio Start 1-76 1TM main components Status/Supplies 1-72 1TM theory Stop 1-75 1TM media feed units Unlock Device 1-73 media transport 2-10 unselected radio 1-74 media tray assembly 1-65 3TM theory 1-68 3TM media feed units 2-10 2-11 Cancel Job button...
Page 776 7510-XXX 2-40 Power-on Reset sequence 200.01 sensor (registration) late jam 2-39 Diagnostic Menus 200.01 sensor (registration) static jam 2-41 entering diagnostic menus 201.00 sensor (fuser exit) late jam 2-43 diagnostics 202.00 sensor (fuser exit) lag jam 2-13 error code table 230.00 sensor (duplex wait) late jam (duplex media 2-44 Diagnostics Menus...
Page 777 7510-XXX 2-108 842.01 scanner communication failure 905.00 NVM read/write cannot be executed failure 2-108 2-138 842.02 scanner communication failure 2-109 2-139 842.03 scanner communication failure 905.01 marking device video error 2-109 2-139 842.04 scanner communication failure 905.02 marking device Xerographics error 2-140 842.10 scanner unit assembly - ADF communication 905.03 marking device other1 error...
Page 778 7510-XXX 2-183 2-211 toner cartridge empty background (fog) 2-182 2-218 toner cartridge nearly empty color misregistration 2-165 2-219 1TM, 3TM or TTM left door assembly open deletions 2-176 2-220 ADF left cover assembly is open high frequency bands 2-175 2-204 ADF maintenance required horizontal stripes 2-106...
Page 779 7510-XXX 1-54 1-11 document scanning steps registration clutch 1-11 document size detection at scanner unit assembly registration roll assembly 1-50 1-11 sensor (registration) 1-27 1-11 fuser control sensor (transparency detect) 1-26 1-20 media size control standard media exit roll assembly 1-26 1-20 printhead control...
Page 780 7510-XXX 4-190 4-219 4-241 4-136 media feed unit drive gear 28/21T inverter solenoid assembly 4-190 4-219 4-241 4-131 media feed unit drive gear 29T left cover pinch roll assembly 4-172 4-132 media guide rack and pinion media scan guide 4-187 4-216 4-238 4-141...
Page 781: Part Number Index
Lexmark marknet N7002e (1 parallel port) 10/100 ethernet - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -...
Page 782 7510-XXX 7-57 40X2218 Large platen glass retainer - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 40X2223 Sensor (ADF angle) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-55...
Page 783 7510-XXX 7-42 7-46 40X2330 Spring - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 40X2333 ADF registration roll assembly - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-50...
Page 784 7510-XXX 40X3688 Sensor (printer left lower door interlock) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 40X3688 Sensor (standard bin full) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-21...
Page 785 7510-XXX 7-31 40X3749 Printhead shutter motor assembly - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 40X3750 Fuser cooling fan - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-31...
Page 786 Operator panel bezel X940e model - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -...
Page 787 1TM controller card assembly - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-70 56P2129 Lexmark MarkNet N7020e (4 USB ports) 1-0/100/1000 w/out power cord - - - - - - - - - - - - - - - - - - - - - - 7-93 56P2744 N4050e 802.11g Wireless Print Server (Americas, Argentina, &...
Page 788 7510-XXX I-14 Service Manual...
Page 789 7510 MFP Scanner/ADF +24V RTN +24VDC +24VDC +24V RTN +24V RTN +24VDC +24VDC +24VDC +24V RTN +24V RTN +24VDC +24VDC +24V RTN +24VDC +24VDC +24VDC +24V RTN P722 P722 SENSOR (ADF +24V RTN ANGLE) SCANNER UNIT +24V RTN* DRIVE MOTOR SENSOR (APS 2) +24V RTN +24V RTN...
Page 790 7510 MFP Fax Card 24V RTN (TO lower printer engine card ASM P530 [7]) 5V RTN (OPTION) 5V RTN (OPTION) 5V RTN 5V RTN To Scanner Controller Card Asm 5V RTN J719 J300 +24VDC (TO lower printer engine card ASM P530 [2]) 5V RTN 5V RTN 5V RTN...
Page 791 5057 AND 7510 Tray Modules SENSOR (tray2 feed out) +5VDC 5V RTN SENSOR (tray4 feed out) 1TM ONLY +5VRTN +5VDC +5VDC 5V RTN SWITCH (TTM media 5V RTN size) #4 +5VDC P546 P546 P548 +5VDC5V RTN SWITCH (media size #2) 5V RTN SENSOR (tray3 5V RTN (SHORTING WIRE)
