7510

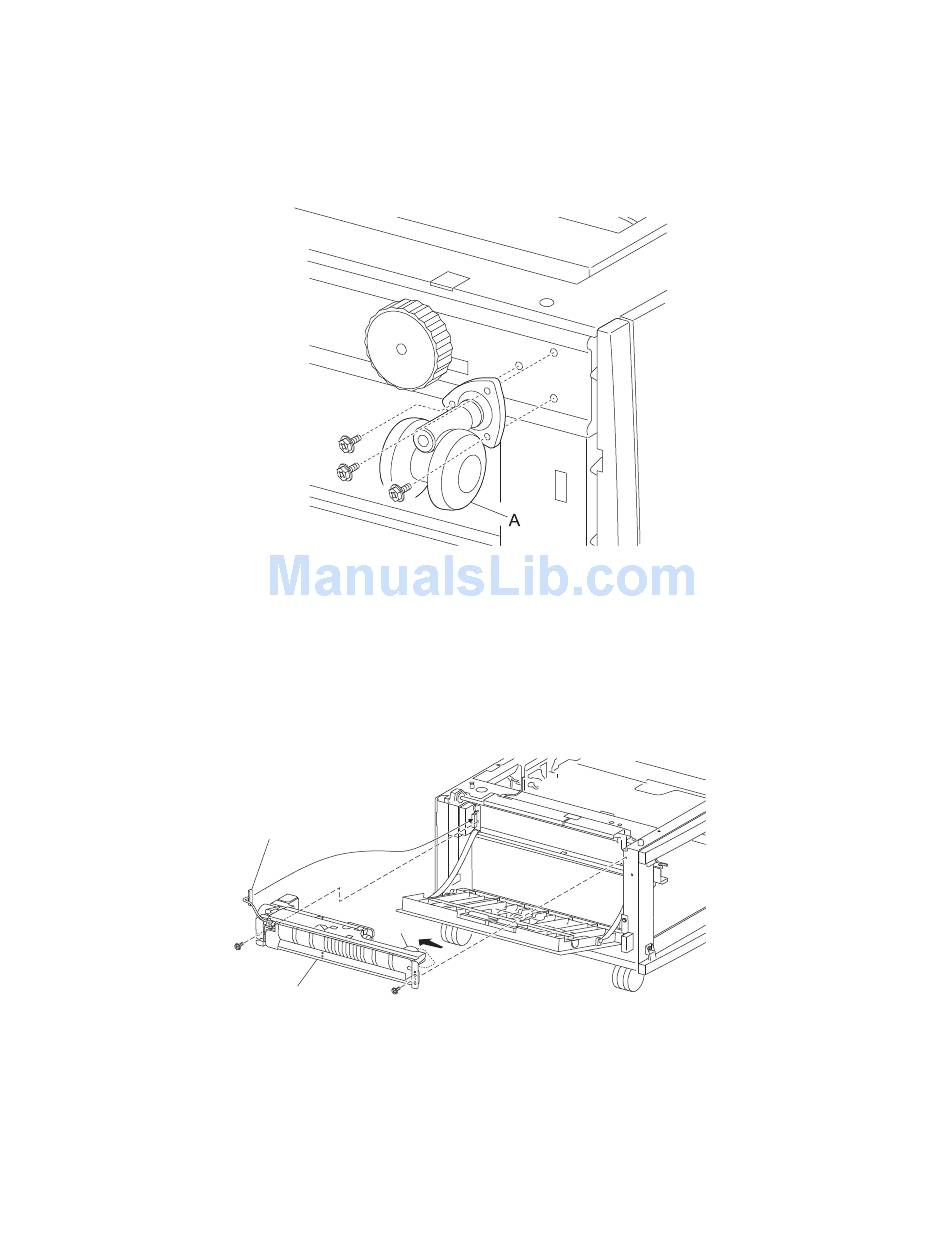

1X 500-sheet drawer (1TM)
1. Remove the media tray 2 assembly.
2. Place the right side of the drawer down.
3. Remove the three screws securing the caster (A).
4. Remove the caster (A).
1X 500-sheet drawer (1TM)—media feed unit assembly removal (tray 2)
1. Remove the media tray 2 assembly.
2. Open the 1TM left door assembly.
3. Release the harness from the clamp.
4. Disconnect the connector from the media feed unit assembly (A).
5. Remove the two screws securing the media feed unit assembly (A) to the machine.
6. Remove the media feed unit assembly (A).
4-236
Service Manual
—caster removal
Connector
E
A
