3X 500-sheet drawer (3TM)—sensor (media level) removal
1. Remove the media feed unit assembly.
(tray 2)" on page 4-215
page 4-213.
2. Disconnect the connector from the sensor (media level) (A).
3. Release the hooks securing the sensor (media level) (A) to the media feed unit assembly.
4. Remove the sensor (media level) (A).
4-220
Service Manual
See"3X 500-sheet drawer (3TM)–media feed unit assembly removal
"3X 500-sheet drawer (3TM)–media feed unit assembly removal (tray 3)" on
or

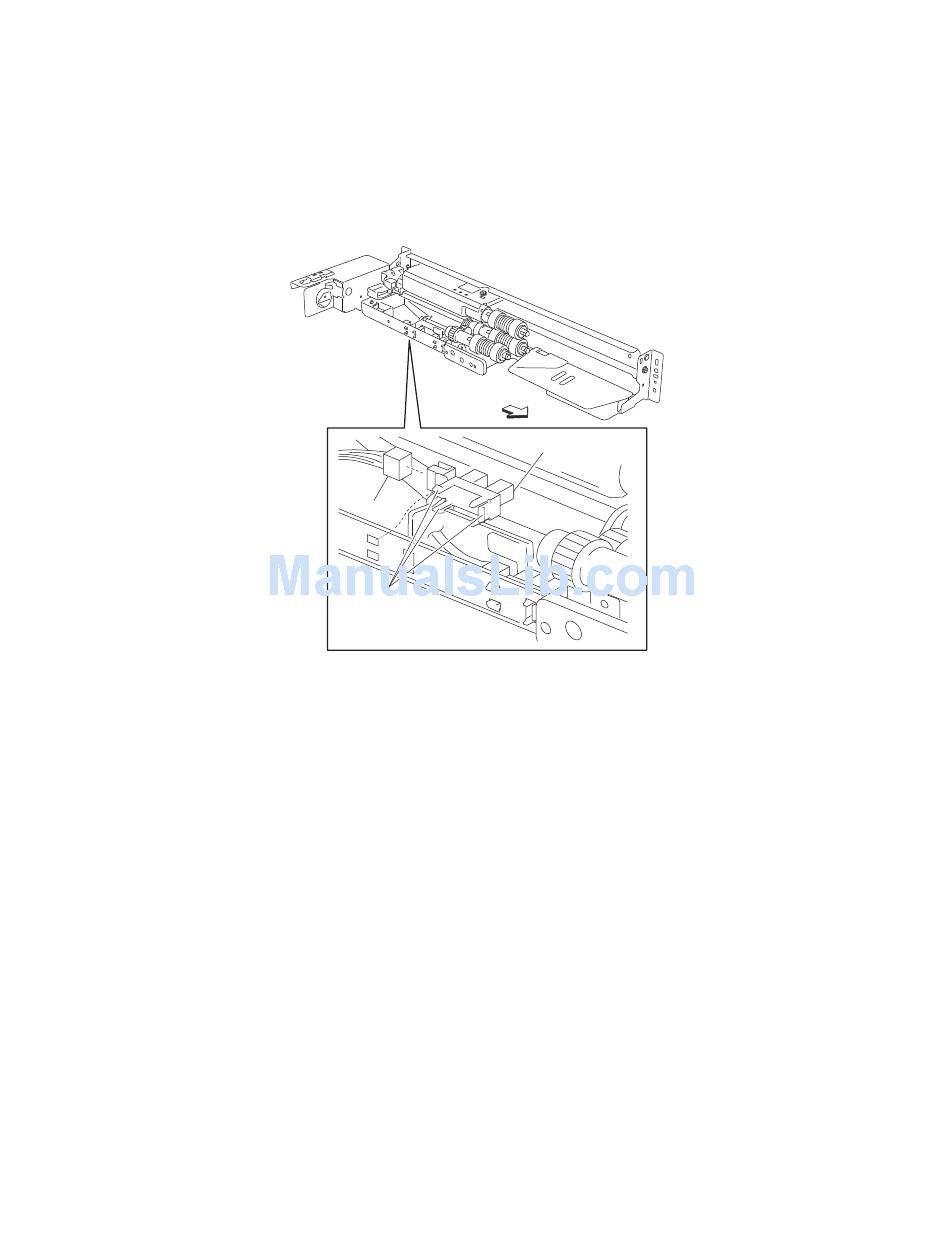

Harness
Hooks
Lower view
Front
A
