Sensor (Sheet Through) Removal - Lexmark X940e Service Manual

7510
6. Remove the sensor (document set) (A).

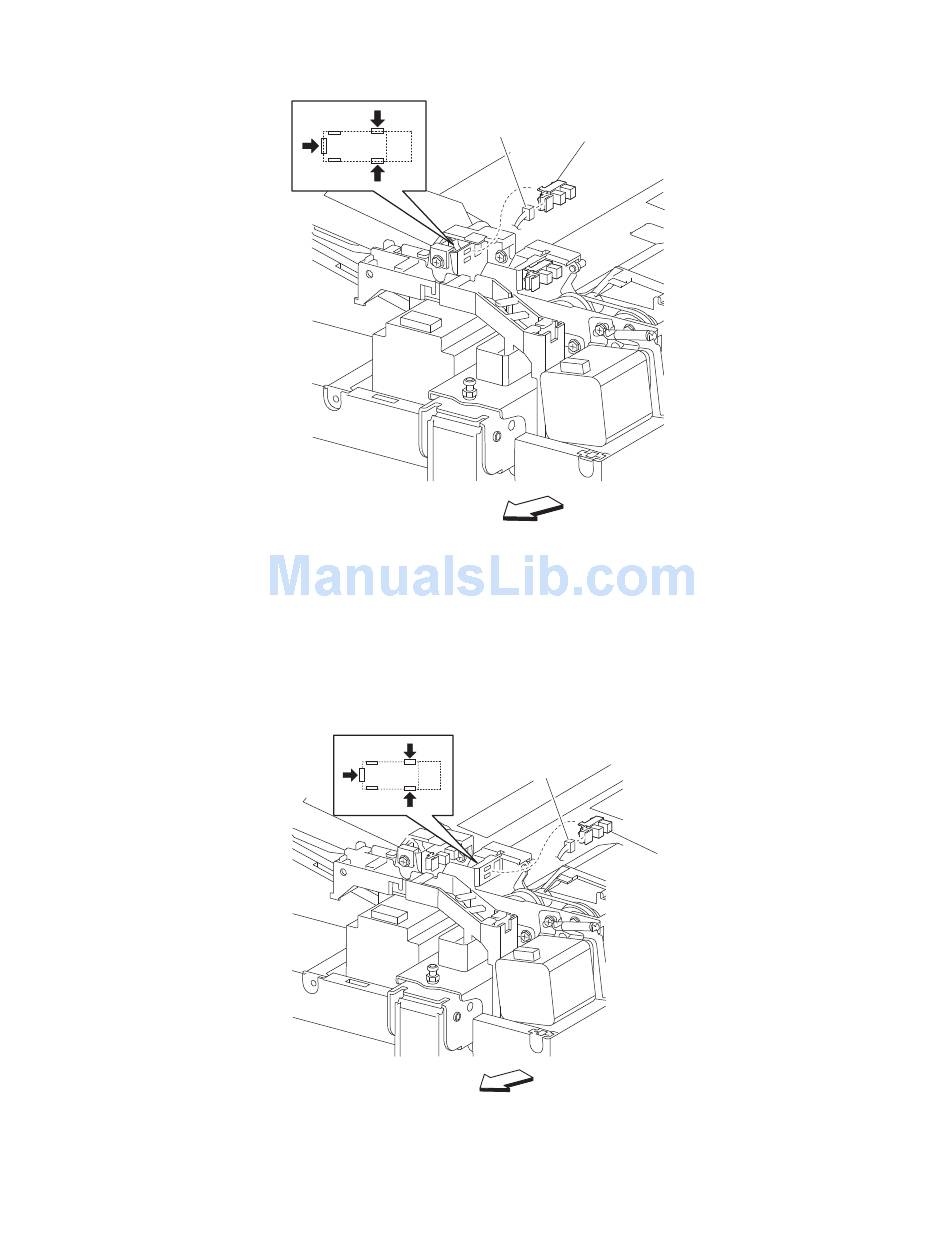

Sensor (sheet through) removal

1. Open the ADF left cover assembly.
2. Lift the document tray assembly.
3. Remove the ADF rear cover. See
4. Disconnect the connector from the sensor (sheet through) (A).
5. Release the hooks securing the sensor (sheet through) (A).
6. Remove the sensor (sheet through) (A).
4-158
Service Manual
Connector
Rear
"ADF rear cover removal" on page
Connector
Rear
A
4-131.
A
