7510

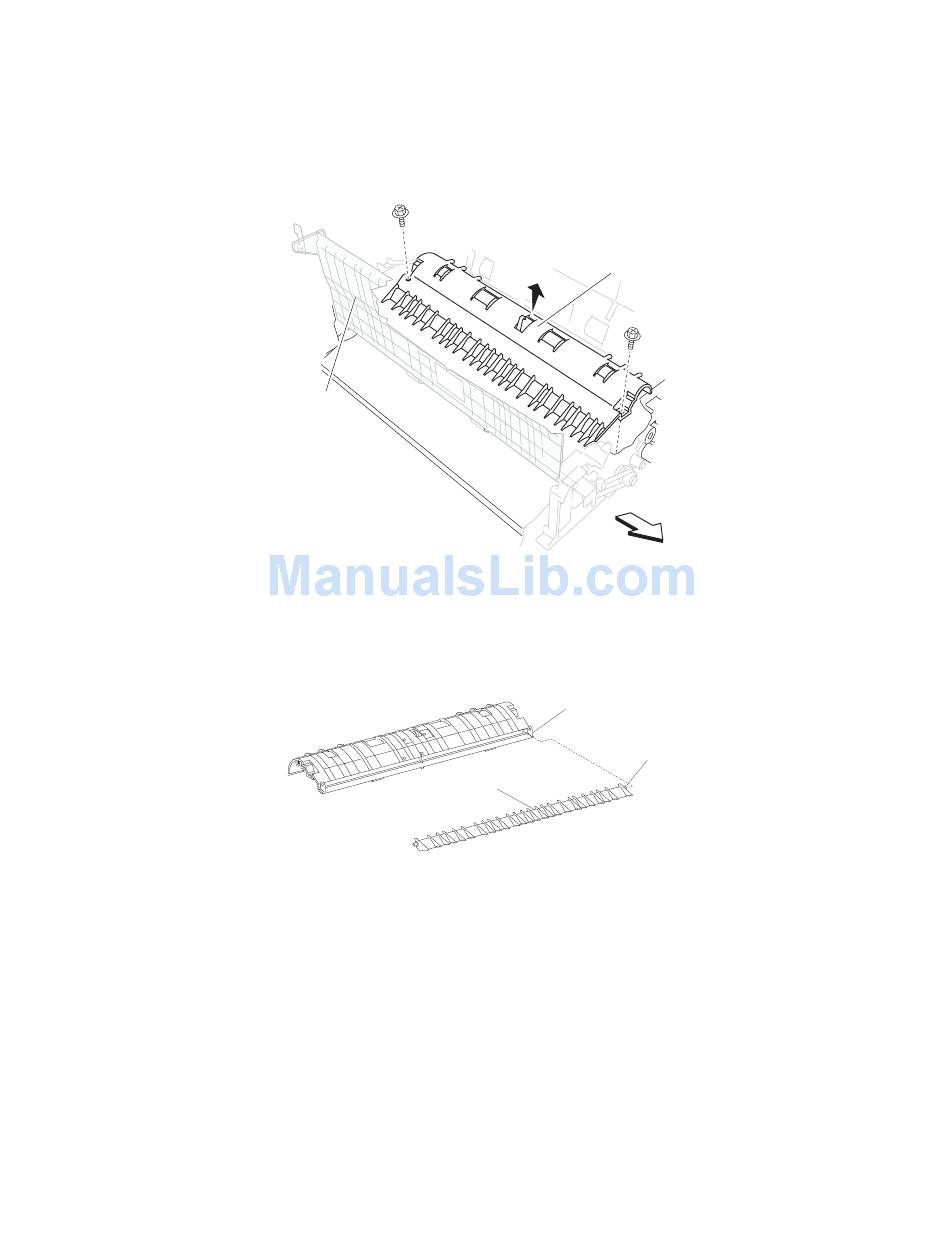

Actuator/media guide assembly removal

1. Open the ADF left cover assembly.
2. Lift the separation roll guide assembly (A) to its uppermost position.
3. Remove the two screws securing the actuator/media guide assembly (B) to the ADF.
4. Remove the actuator/media guide assembly (B).

Inverter gate removal

1. Remove the actuator/media guide assembly. See
2. Flex the tab, and remove the boss from the hole.
3. Remove the inverter gate (A).

ADF registration roll assembly removal

1. Remove the platen cushion assembly. See
2. Remove the ADF unit assembly. See
3. Open the ADF left cover assembly.
4. Remove the ADF front cover assembly. See
5. Remove the ADF rear cover. See
6. Remove the document tray assembly. See
7. Remove the ADF left cover media guide. See
8. Remove the left cover pinch roll assembly. See
9. Remove the ADF left cover assembly. See
10. Remove the ADF media feed assembly. See
11. Remove the ADF feed drive motor assembly. See
12. Lift the separation roll guide assembly to its uppermost position.
13. Remove the actuator/media guide assembly. See
4-152
Service Manual
A
"Actuator/media guide assembly removal" on page
A
"Platen cushion removal" on page
"ADF unit assembly removal" on page
"ADF front cover assembly removal" on page
"ADF rear cover removal" on page
"Document tray assembly removal" on page
"ADF left cover media guide removal" on page
"Left cover pinch roll assembly removal" on page
"ADF left cover assembly removal" on page
"ADF media feed assembly removal" on page
"ADF feed drive motor assembly removal" on page
"Actuator/media guide assembly removal" on page
B
Rear
Tab
Boss
4-130.
4-129.
4-131.
4-152.
4-131.
4-137.
4-144.
4-134.
4-132.
4-135.
4-134.
4-152.
