Switch (Media Size) Removal - Lexmark X940e Service Manual

7510

Switch (media size) removal

Note: This procedure can be applied to tray 1 or tray 2 switch (media size).
1. Remove media Tray 1 and media Tray 2.
2. Remove one screw securing the switch (media size) (A) to the bracket inside the machine.
3. Remove the connector from switch (media size) (A).
4. Remove the switch (media size) (A).
4-114
Service Manual

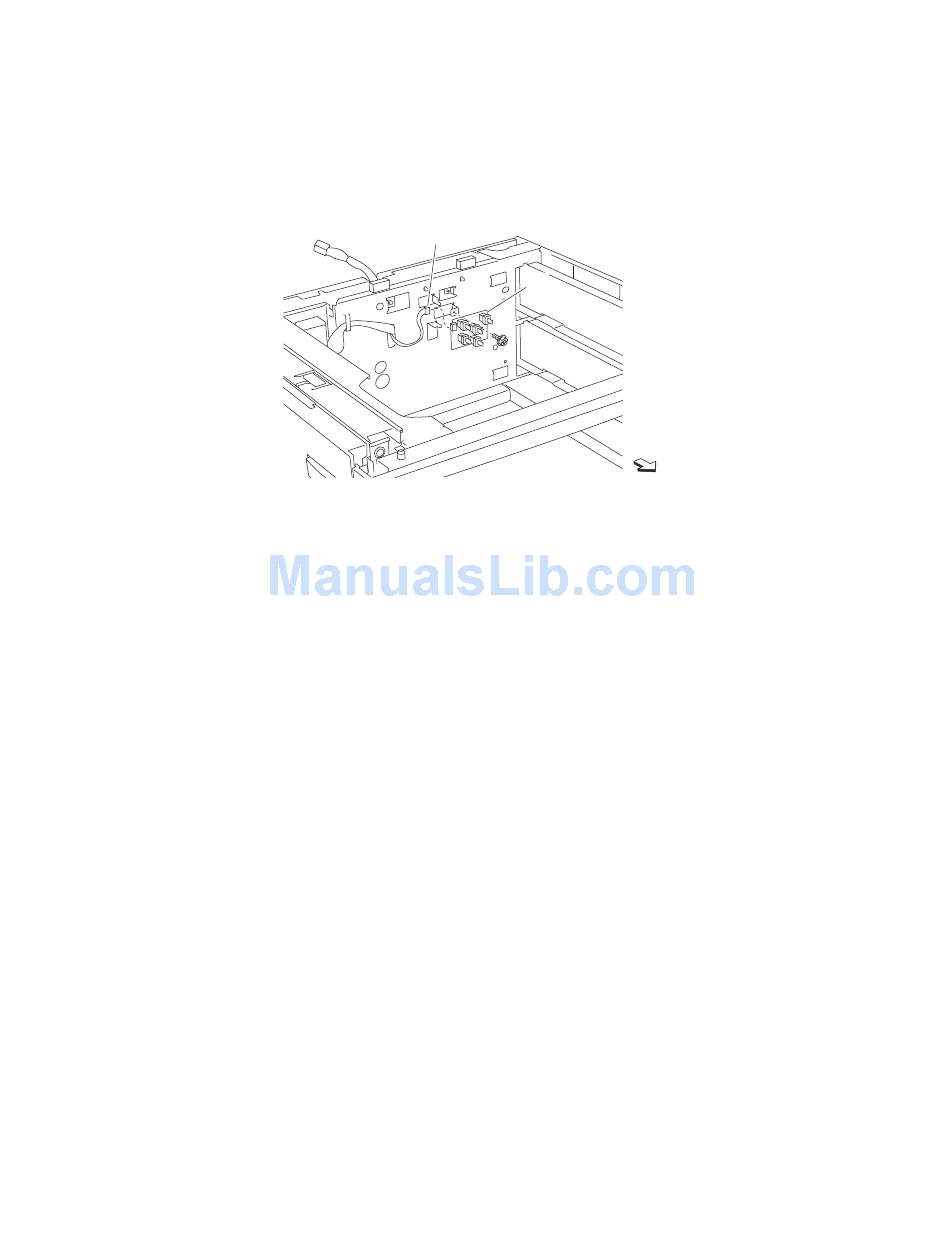

Connector
A
Front
