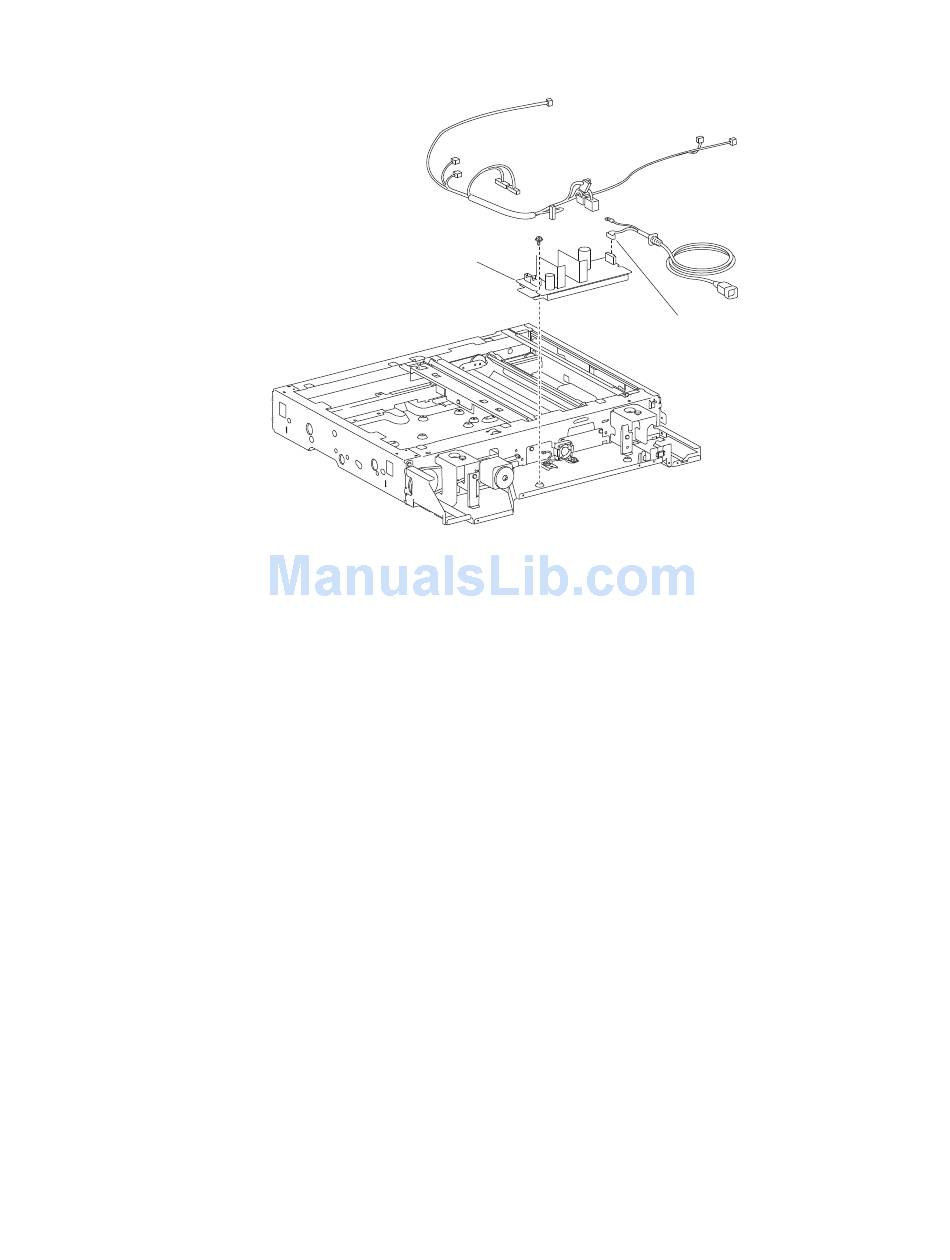

8. Remove the scanner PS card assembly (A).
A
Connector

Scanner PS cooling fan removal

"Platen cushion removal" on page 4-130.
1. Remove the platen cushion assembly. See
1. Remove the ADF unit assembly. See "ADF unit assembly removal" on page 4-129.
2. Remove the scanner left cover. See "Scanner left cover removal" on page 4-117.
"Scanner right cover removal" on page 4-118.
3. Remove the scanner right cover. See
4. Remove the scanner top rear cover assembly. See "Scanner top rear cover removal" on page 4-118.
5. Remove the two screws securing the scanner PS cooling fan assembly (A) to the machine.
6. Disconnect the connector from the scanner PS cooling fan assembly (A).
4-127
