Sensor (Waste Toner Cartridge Full) Removal - Lexmark X940e Service Manual

7510
7. Remove the waste toner cartridge sensor assembly (B).

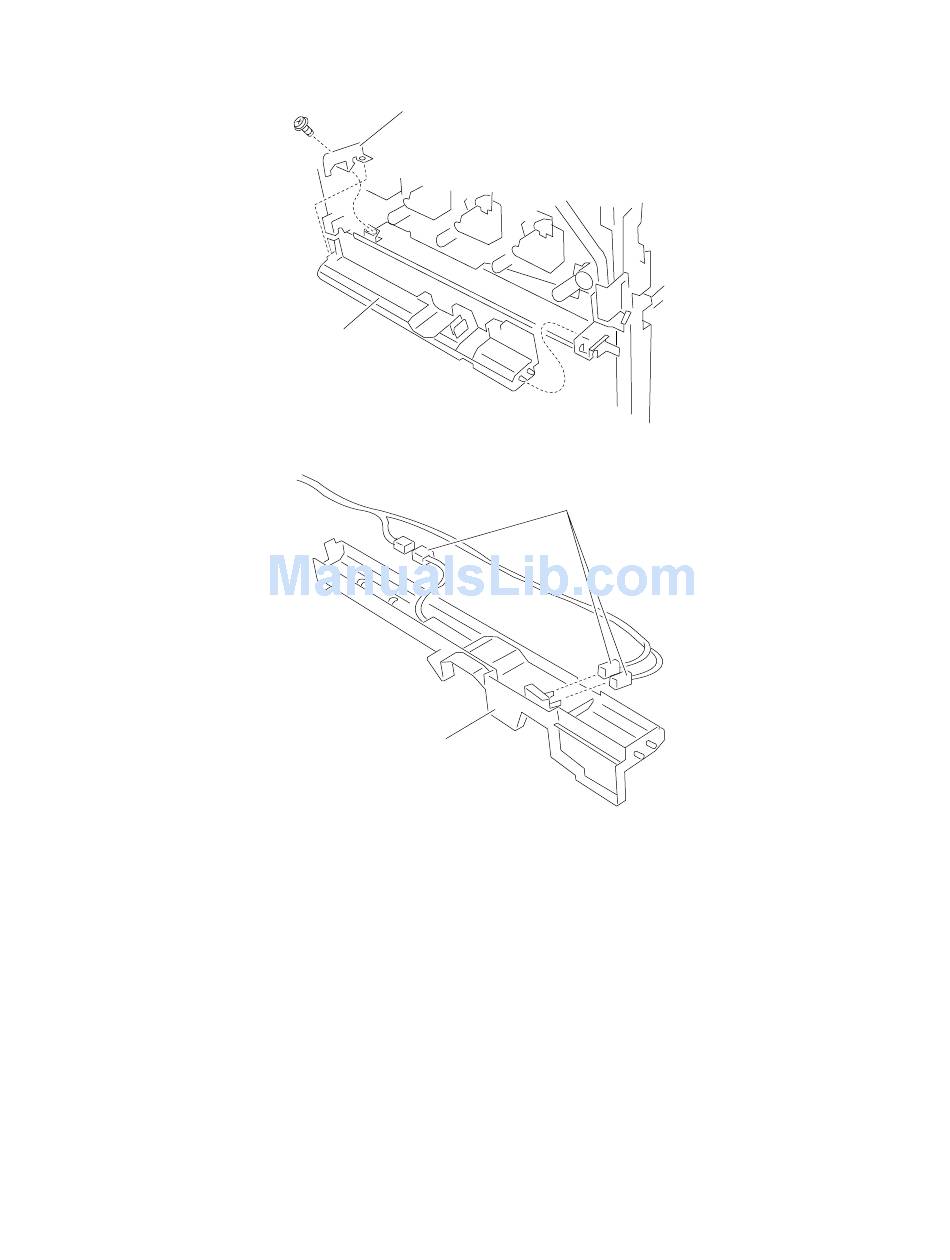

Sensor (waste toner cartridge full) removal

1. Remove the front left cover. See
2. Remove the waste toner cartridge cover. See
3. Remove the waste toner cartridge sensor assembly. See
on page 4-39.
4. Disconnect the connector from the sensor (waste toner cartridge full) (A).
5. Release the hooks securing the sensor (waste toner cartridge full) (A) to the assembly.
6. Remove the sensor (waste toner cartridge full) (A).
4-40
Service Manual
A
B
B
"Front left cover removal" on page
"Waste toner cartridge cover removal" on page
Connectors
4-9.
"Waste toner cartridge sensor assembly removal"
4-39.
