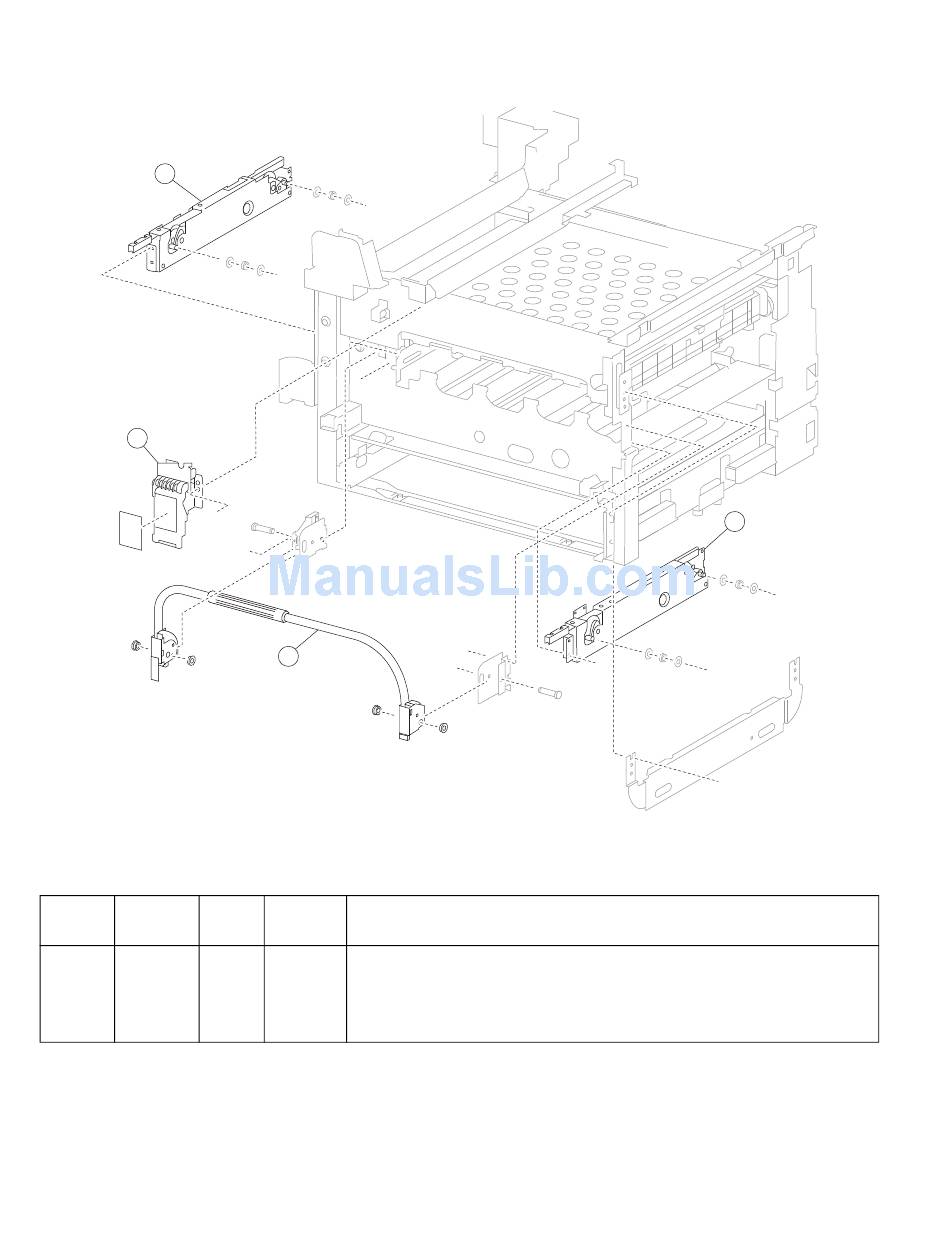

Assembly 22: Transfer belt lift 1
4
3
Asm-
Part
FRUs/
index
number
mach
1
40X3722
2
40X3727
3
40X3723
4
40X3721
7-24
MFP Service Manual
2
Units/
Description
FRU
1
1
Right transfer belt lift assembly
1
1
Transfer belt lift handle assembly
1
1
Transfer belt lift latch assembly with label
3
1
Left transfer belt lift assembly
