Fuser Exit Roll Assembly Removal; Mpf Media Out Actuator Removal - Lexmark X940e Service Manual

7510

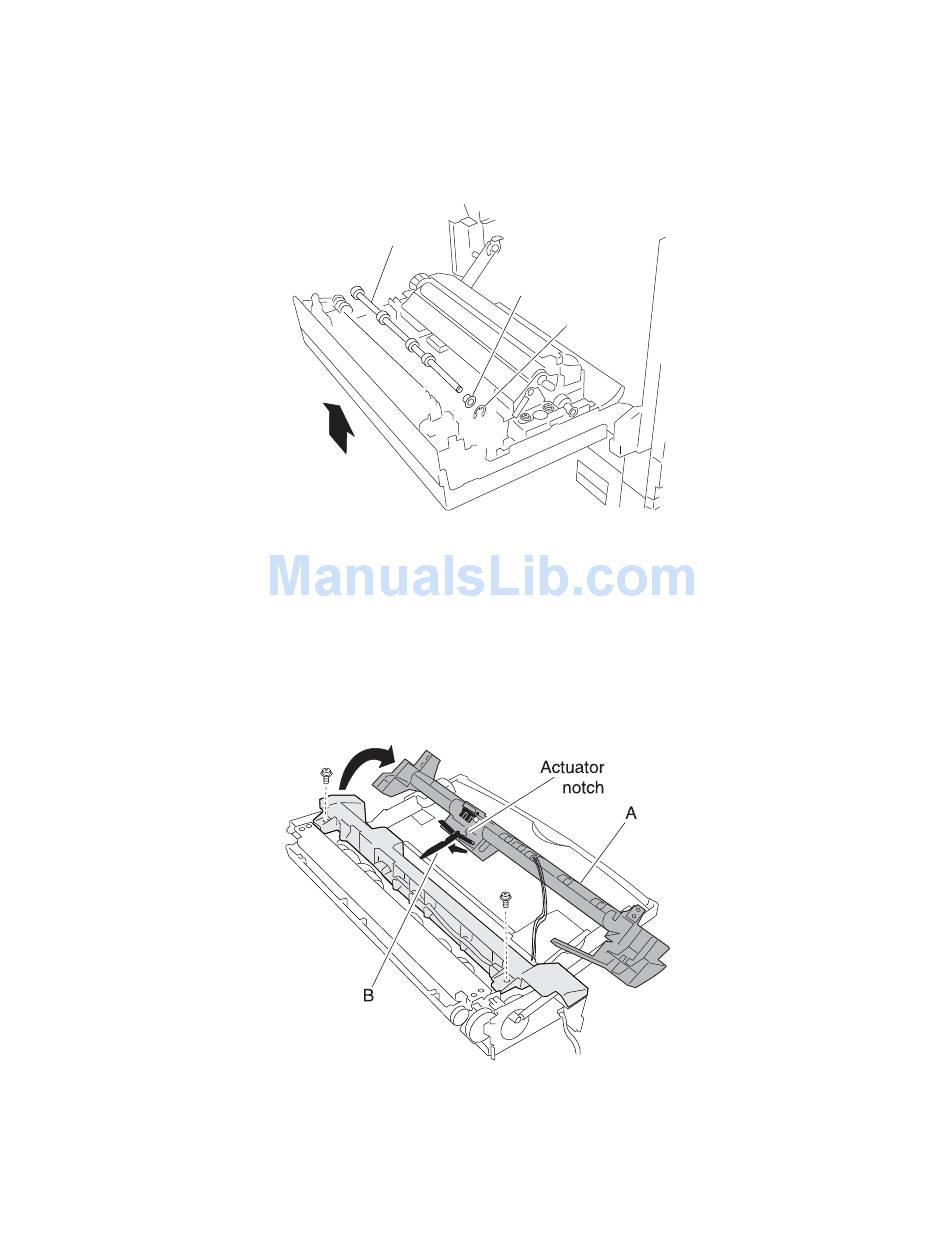

Fuser exit roll assembly removal

1. Open the printer left door assembly.
2. Remove the E-clip securing the fuser exit roll assembly (A) to the machine.
3. Remove the bushings (B).
4. Remove the fuser exit roll assembly (A).

MPF media out actuator removal

1. Remove the rear cover assembly. See
2. Remove the rear left middle cover. See
3. Remove the MPF feed unit assembly. See
4. Remove the two screws securing the upper frame cover (A).
5. Remove the upper frame cover (A).
6. Using a prying tool, gently pry the MPF media out actuator (B) from the upper frame cover (A).
7. Remove the MPF media out actuator (B).
4-110
Service Manual
A
B
E-clip
"Rear cover assembly removal" on page
"Rear left middle cover removal" on page
"MPF feed unit assembly removal" on page
4-5.
4-6.
4-8.
